Needed to replace the whole lot after a job where undersized clips let go under load, and that was enough of an education for me on why you don't cheap out on rigging hardware for lifting frames on a bridge deck.

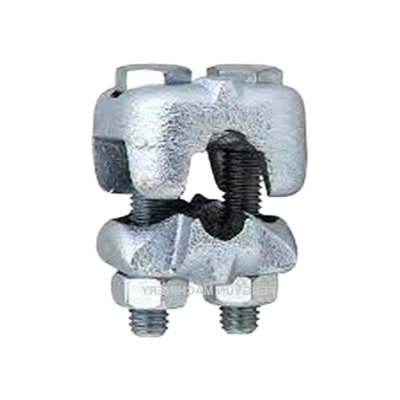

These are DIN741 compliant malleable cast iron with an electro-galvanized finish, ranging form 3mm up to 65mm in size, which covers about everything we'd use for temporary guying or permanent cable restraint, and precision casting method keeps the saddle geometry consistent across the batch.
We usually run teh 10mm or 12mm for mast rigging, but honestly, for a static overhead hoist support you'd probably want forged clips instead because the malleable iron is fine for moderate loads but it'll deform before a forged one would—so it's better suited for tie-downs or shear leg setups where you have some safety factor built in.
Stock was availble for an MOQ of 500 pieces in the 8mm size, and they ship it palletized with a COA per pallet (usually 2-4 weeks lead time).
Our MOQ is usually 500 pieces for standard sizes, but it can vary a bit for larger diameters like 50mm and above. Just reach out with your specific size and quantity, and we'll confirm.
For standard sizes within our stock range, lead time is about 15-20 days. Custom sizes or surface treatments may push it to 25-30 days, depending on the order volume.
Yes, we can issue a mill test certificate or a material report upon request, since we do 100% inspection on all clips. Just let us know what documentation you need when you place the order.
Absolutely, we offer customization including hot-dip galvanized or plain finish. Just specify the treatment you need, and we'll adjust the production accordingly.
We pack them in cartons or bags, then stack them on pallets for easy handling and shipping. For very large orders, we can also arrange bulk pallet packaging to reduce waste.
