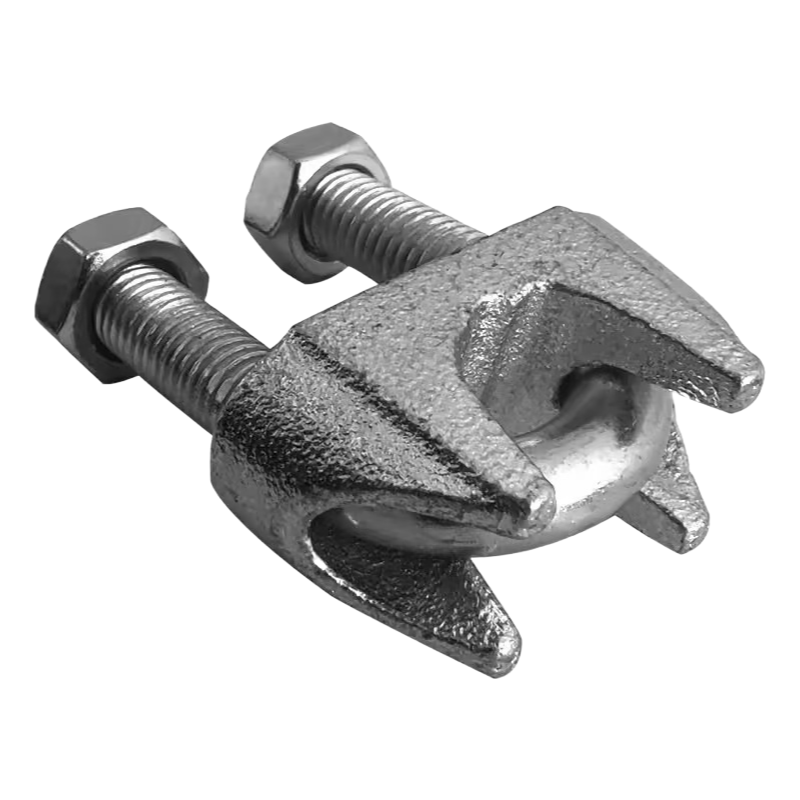

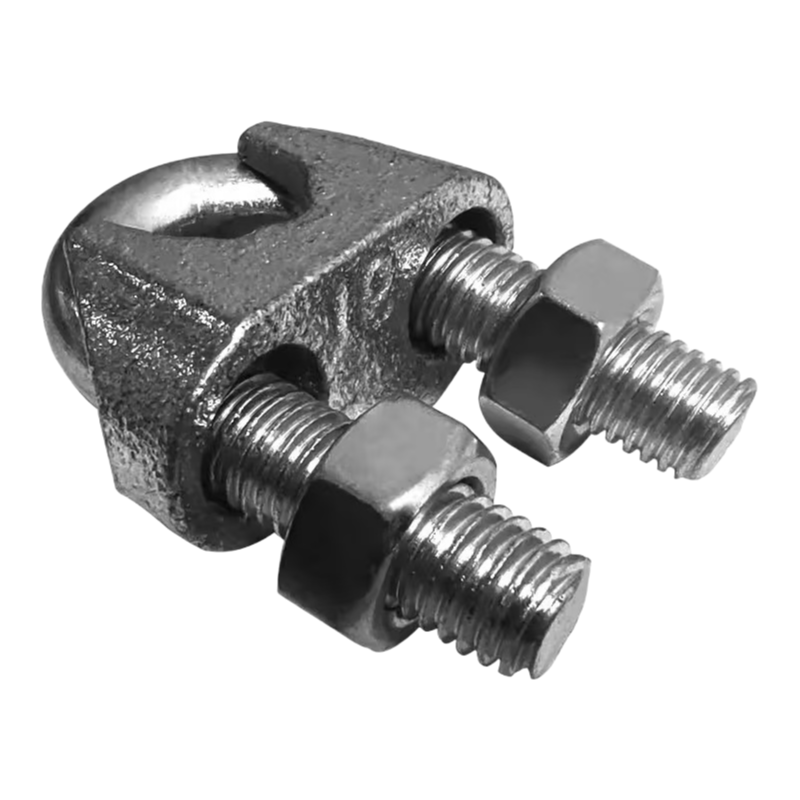

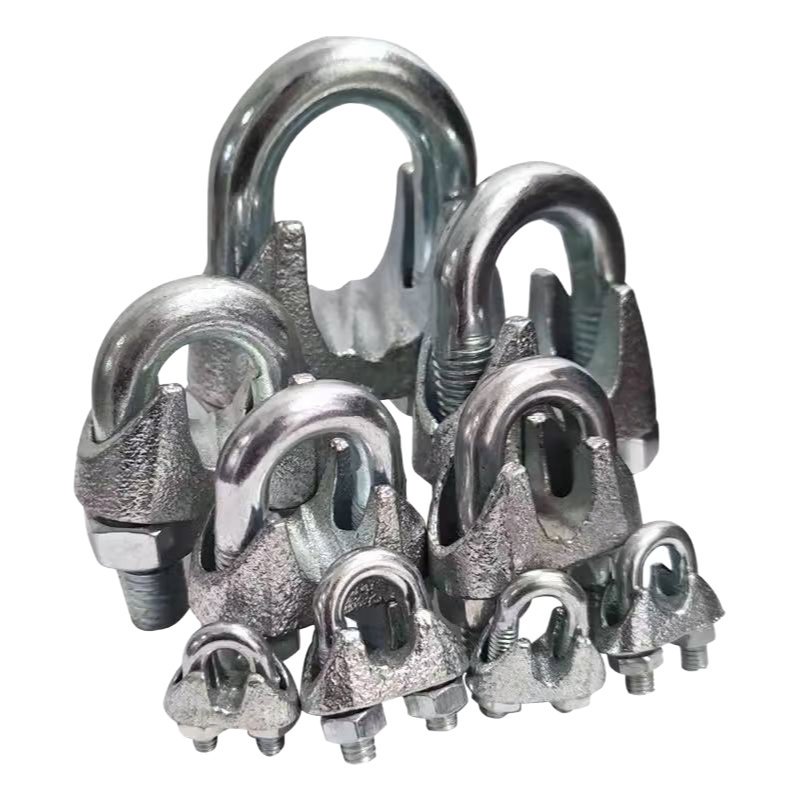

These clips are offered in fifteen sizes covering 3mm through 40mm rope diameters, with weight per hundred pieces ranging from 1.4 kg for the smallest up to 104 kg for the largest. The electro-galvanized zinc finish provided a consistent protective layer, though I'd note the coating is thinner than hot-dip alternatives — fine for indoor or sheltered outdoor use but not for constant saltwater exposure.

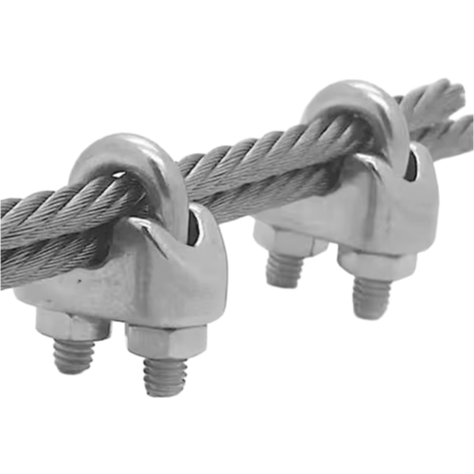

You'll find them used most often in fencing tensioning, handrail cable terminations, and animal enclosure runs. They also handle lashing and towing tasks where loads stay below 80-90% of the cable's rated breaking strength. Just don't spec them for overhead lifting or any safety-critical rigging — that's not what this design is built for.
Sourcing from our production line means you skip the typical distributor markup. We maintain stock on all common sizes from 3mm through 22mm, with the larger diameters (26-40mm) typically shipping within two weeks. Pricing per unit drops noticeably once you order above 500 pieces of a single size.
Every clip conforms to DIN741 dimensional standard, with cast malleable iron saddles that hold shape under load rather than cracking. The U-bolt threads are rolled, not cut, which improves nut seating and reduces galling during installation. Honestly, for non-lift applications, these match the performance of pricier forged steel clips at a fraction of the cost.

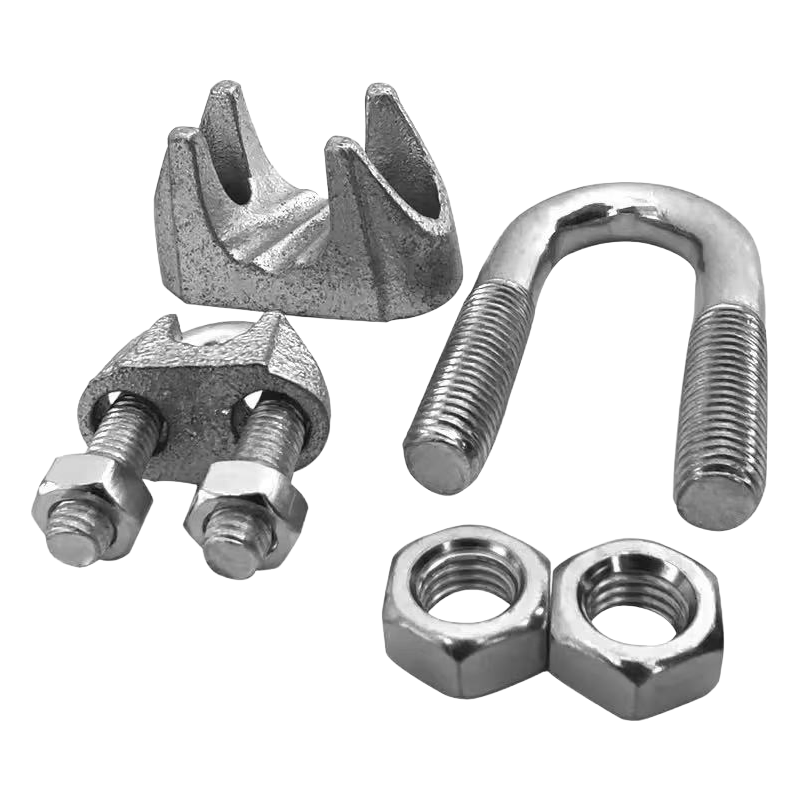

Documentation includes material test certificates and dimensional inspection reports for each production batch. If your buyer requires third-party load testing, we can arrange that at cost — just specify it with the order. The clips ship with hex nuts already assembled on the U-bolt, so your crew can start terminating cable immediately.
We usually start at 500 pieces per size for stock items, but we can do smaller trial orders if you're testing the product. Just reach out and we'll work something out.
For standard sizes like 3mm to 16mm, lead time is around 7-10 days. Larger sizes from 19mm up to 40mm might take 15-20 days, depending on the quantity.
Yes, we can supply a mill test certificate and a galvanizing thickness report upon request. Just let us know what your buyer requires when you place the order.
We can offer hot-dip galvanized or stainless steel options for the same DIN741 design, but the malleable iron clips shown here are only available with the zinc-plated finish. Minimum order for custom finishes is usually 2000 pieces.
Keep them in a dry, indoor area with low humidity. If the packaging gets opened, reseal it or store the clips in a sealed container to stop moisture from reaching the zinc coating.
