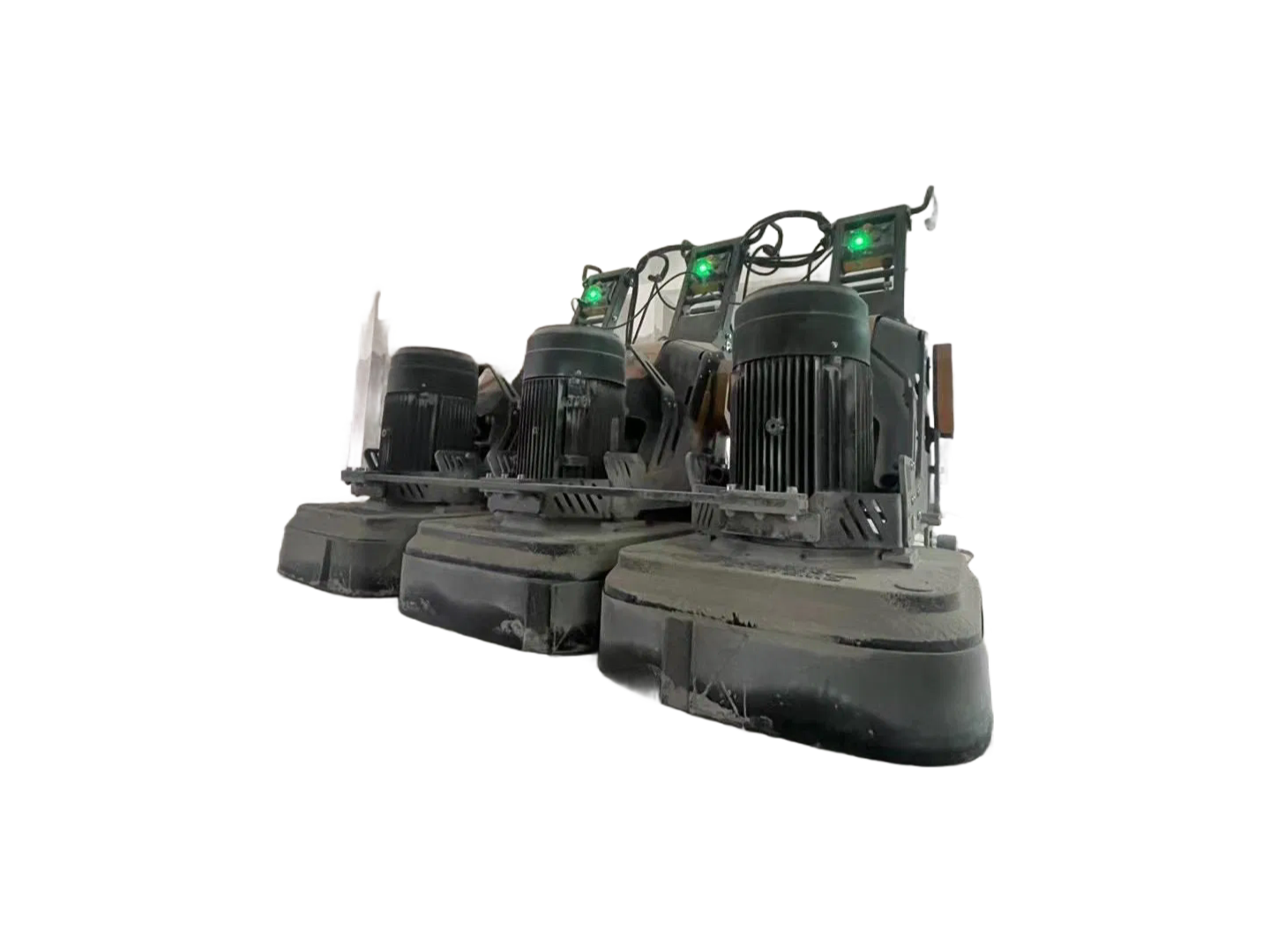

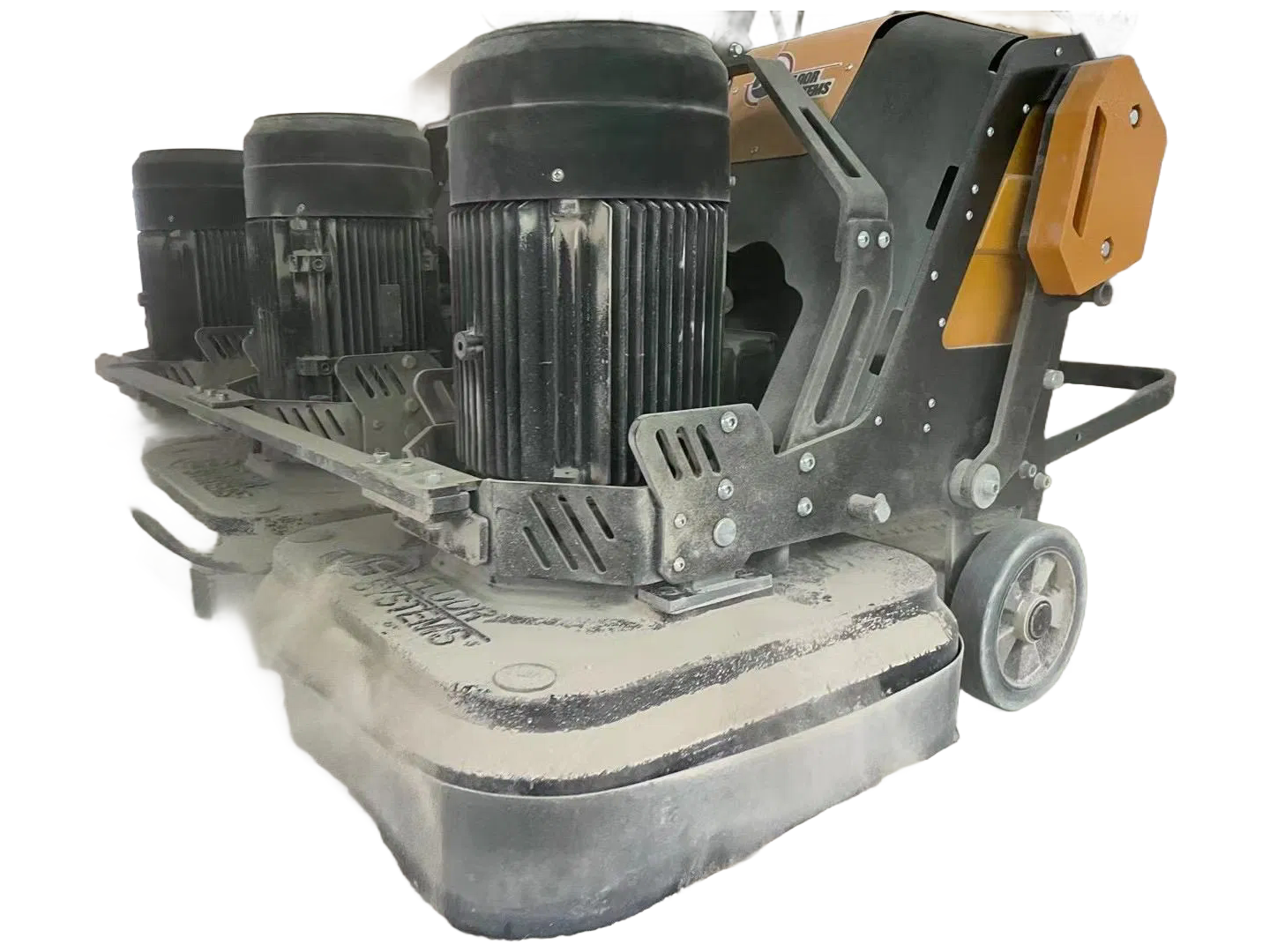

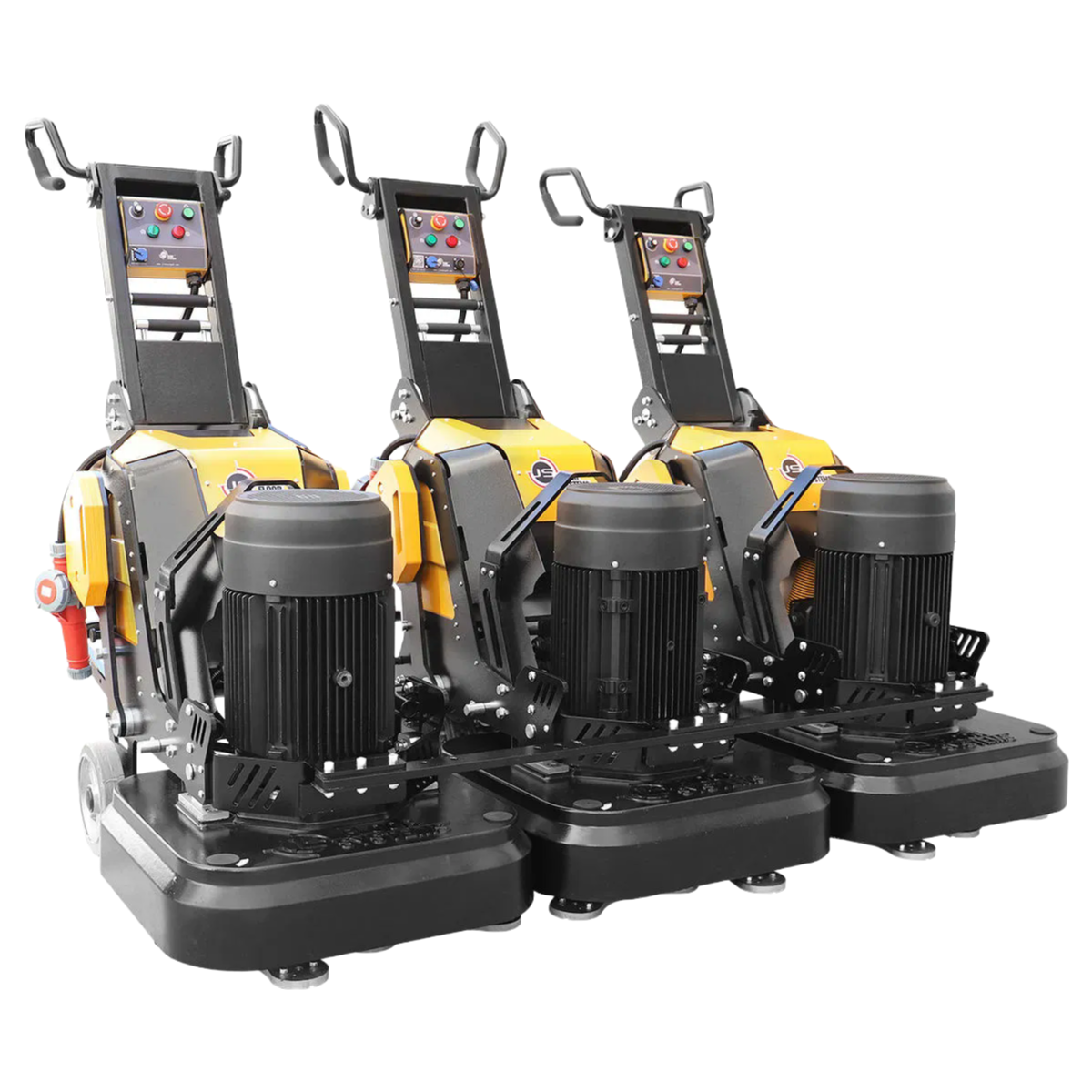

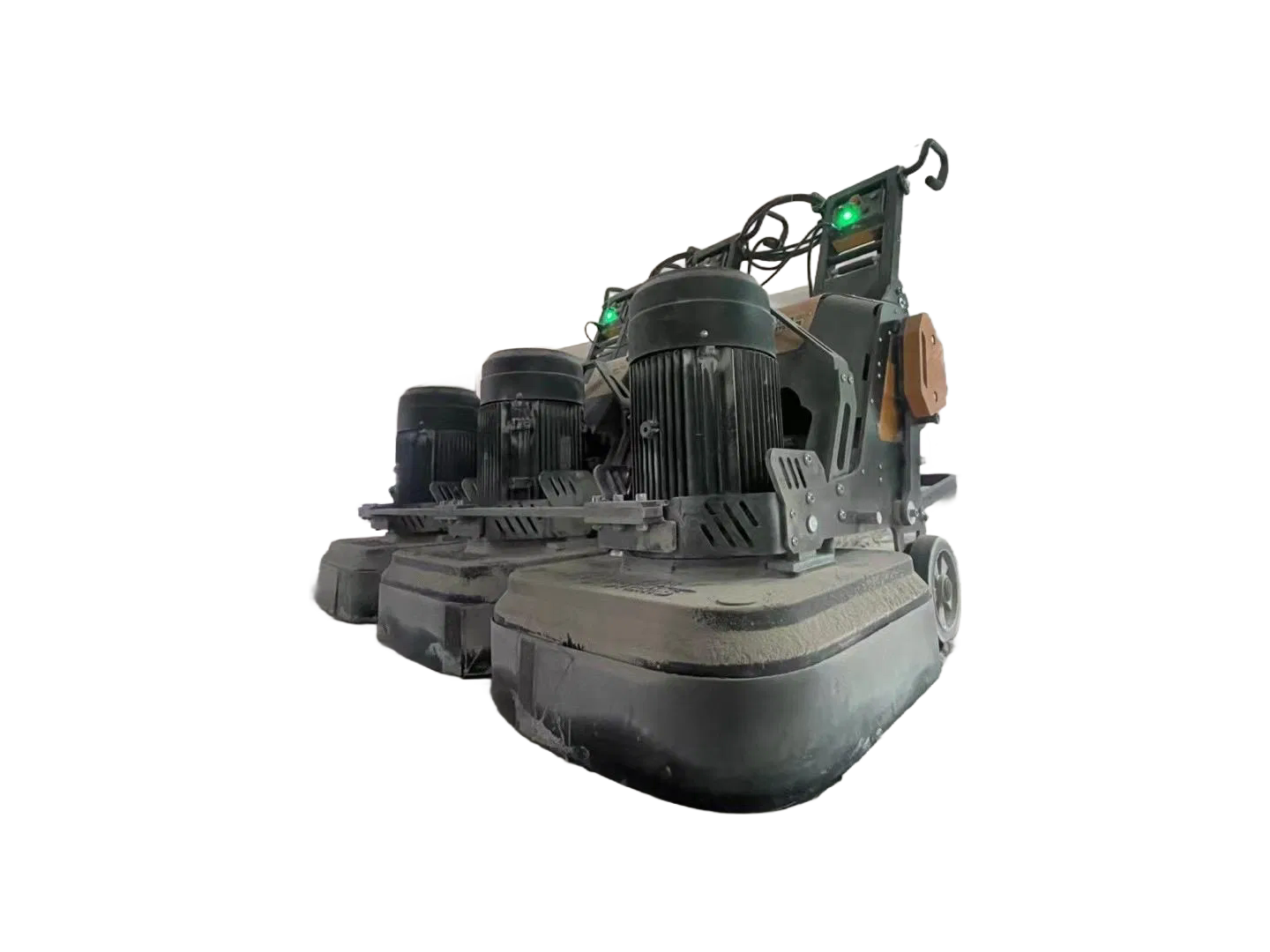

The F1 Team Professional Floor Grinder is a high-performance concrete surface preparation machine designed for heavy-duty grinding and polishing applications. This versatile equipment combines the functionality of both remote control and manual operation modes, making it suitable for various project requirements.
Key Features:

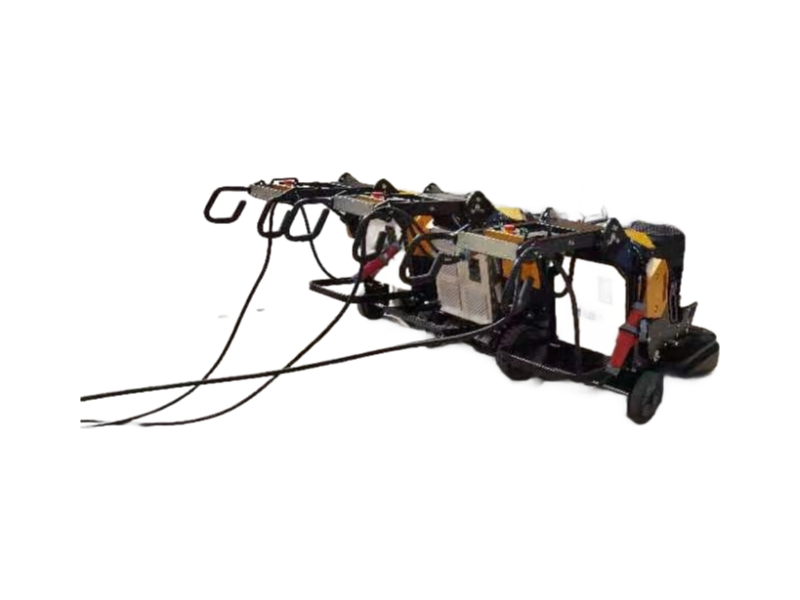

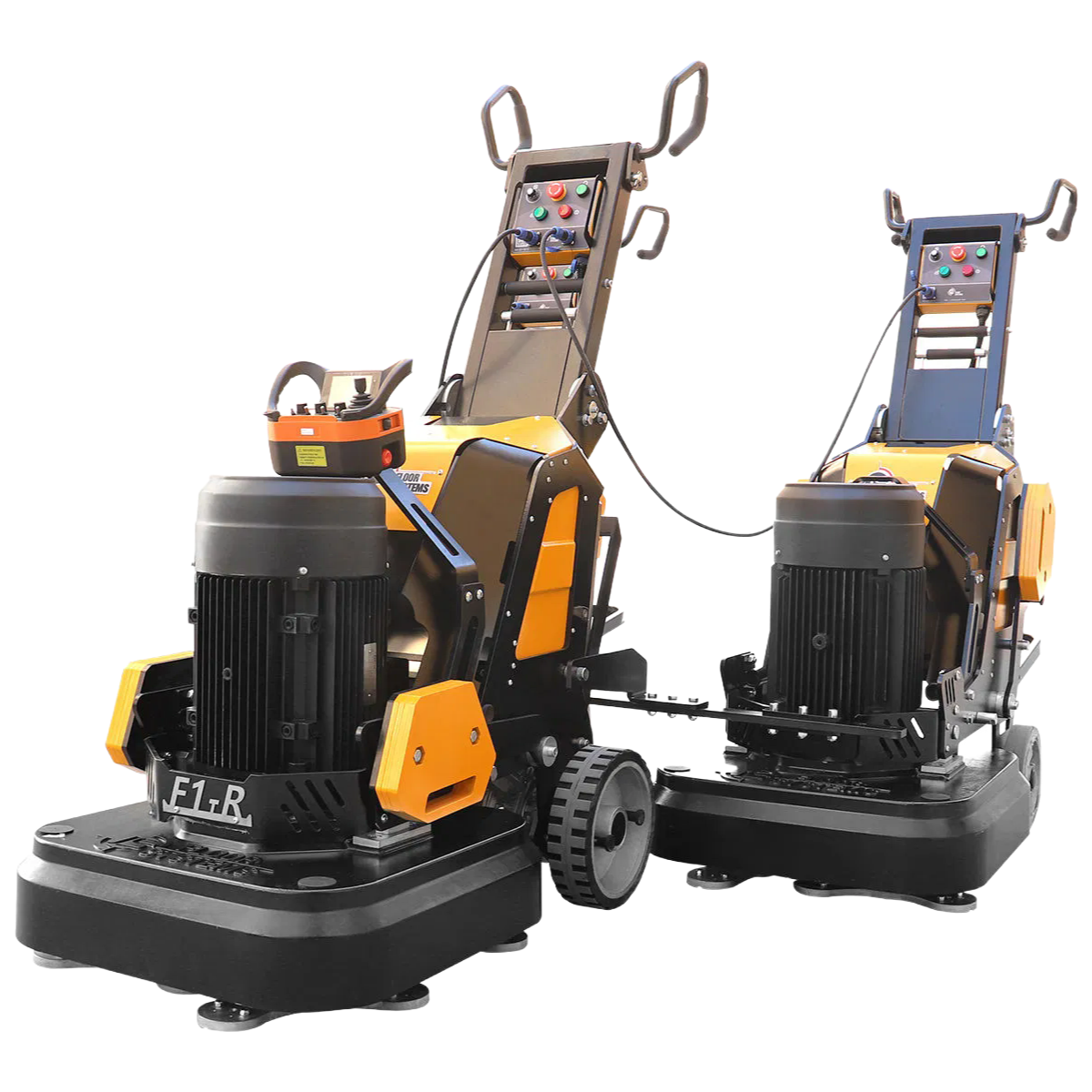

1. Multi-functional Design: Can be quickly disassembled into one remote control grinder and two hand push grinders within minutes for different work scenarios
2. Powerful Performance: Equipped with three 20HP motors delivering exceptional grinding power for tough concrete surfaces
3. Intelligent Control System: Features remote control operation with one-click start and synchronous speed adjustment
4. Versatile Operation: Multiple combined application forms including straight line and S-pattern grinding with working widths of 1.8m or 2.5m
5. Advanced Engineering: Aluminum alloy gearbox with auto-balancing bottom system for stable operation
6. Comprehensive Compatibility: Works with all types of grinding/polishing pads including PCD, metal, resin, and fur burnish pads
7. Ergonomic Design: Adjustable handle height for operator comfort during extended use
8. Efficient Dust Collection: 50mm dust port for effective debris removal during operation
Technical Specifications:
- Model: F1 Team
- Power: 20HP × 3 motors
- Voltage: 3-phase 380V
- Current: 30A × 3
- Rotating Speed: 0-1800 RPM (adjustable)
- Grinding Heads: 4 × 3 configuration
- Weight: 1359 kg
- Dimensions: 1300 × 750 × 1200mm (per unit)
- Dust Port: 50mm diameter
Applications:
Ideal for grinding and polishing various floor surfaces including:
- Concrete floors
- Stone surfaces
- Terrazzo floors
- Epoxy coatings
- Marble and granite
This professional floor grinder is designed to handle the most demanding surface preparation tasks with efficiency and precision. Its robust construction and advanced features make it suitable for commercial and industrial applications where high-quality floor finishing is required.
