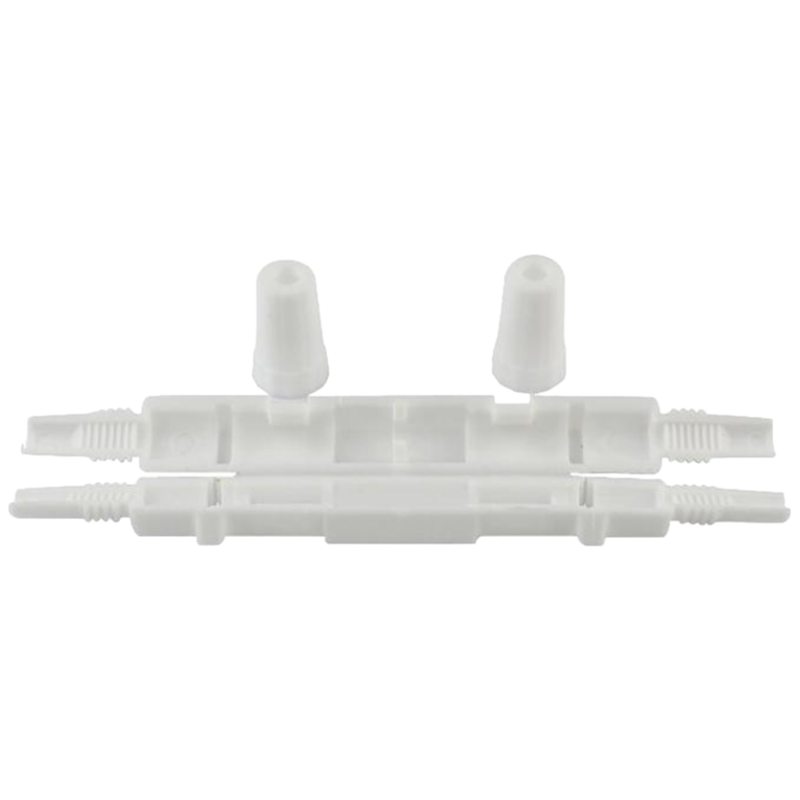

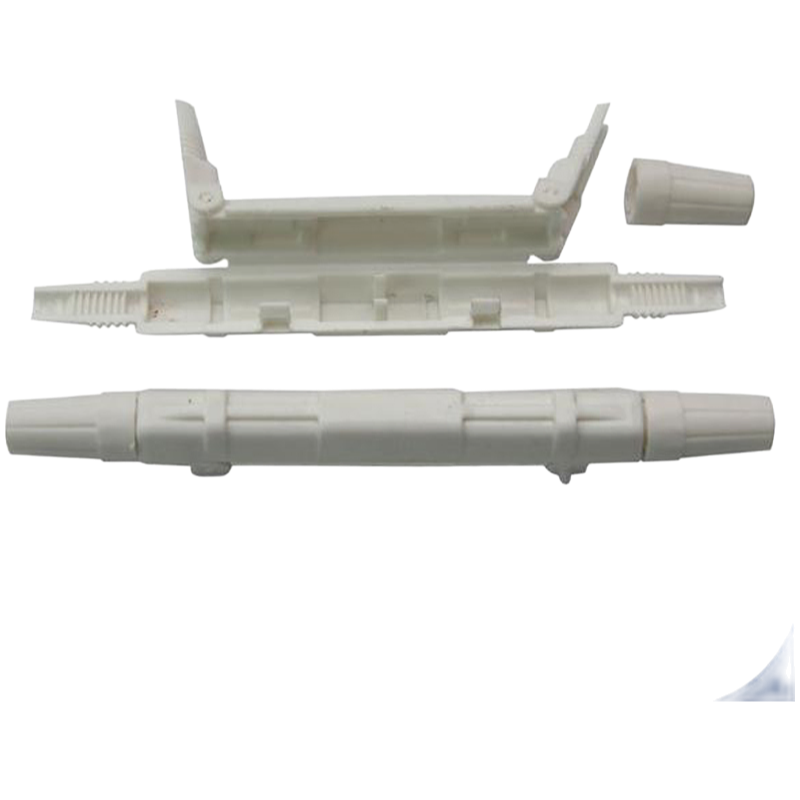

The drop cable splice protection box, also referred to as a drop cable splice enclosure, is engineered to securely hold and protect up to 1-2 subscriber drop cables in FTTH indoor applications. It functions as a critical termination point, facilitating the connection between drop cables and pigtail cables for seamless access to Optical Network Terminals (ONT). This enclosure integrates fiber splice connections within a robust, durable housing, ensuring optimal performance and longevity.
Constructed with precision, the box features a rectangular shape and is moulded for consistency and reliability. It supports single-mode fibers, specifically compliant with SM G652D or G657A standards, with a fiber diameter of 125um. Key performance metrics include an average insertion loss of ≤0.2dB at wavelengths of 1310nm and 1550nm, a tensile strength exceeding 50N, and a bending radius greater than 15mm. The compact dimensions of 12x12x102mm make it easy to install in various settings without occupying excessive space.
Applications extend to fiber distribution frames and network equipment, where it provides essential protection and organization for fiber connections. The product supports direct splicing, eliminating the need for additional connectors and reducing potential points of failure. It is available with brand options including Fiberlink or customized OEM/ODM services, allowing for tailored solutions such as logo printing and specific design modifications based on client requirements.
Quality assurance is a priority, with stringent manufacturing processes ensuring a defective rate below 0.2%. The enclosure is packaged in PVC for safe transportation and storage. As a product originating from China, it adheres to international standards and is classified under HS Code 8536700000. This drop cable splice protection box is ideal for telecommunications providers, network installers, and OEM partners seeking reliable, high-performance fiber management solutions.
