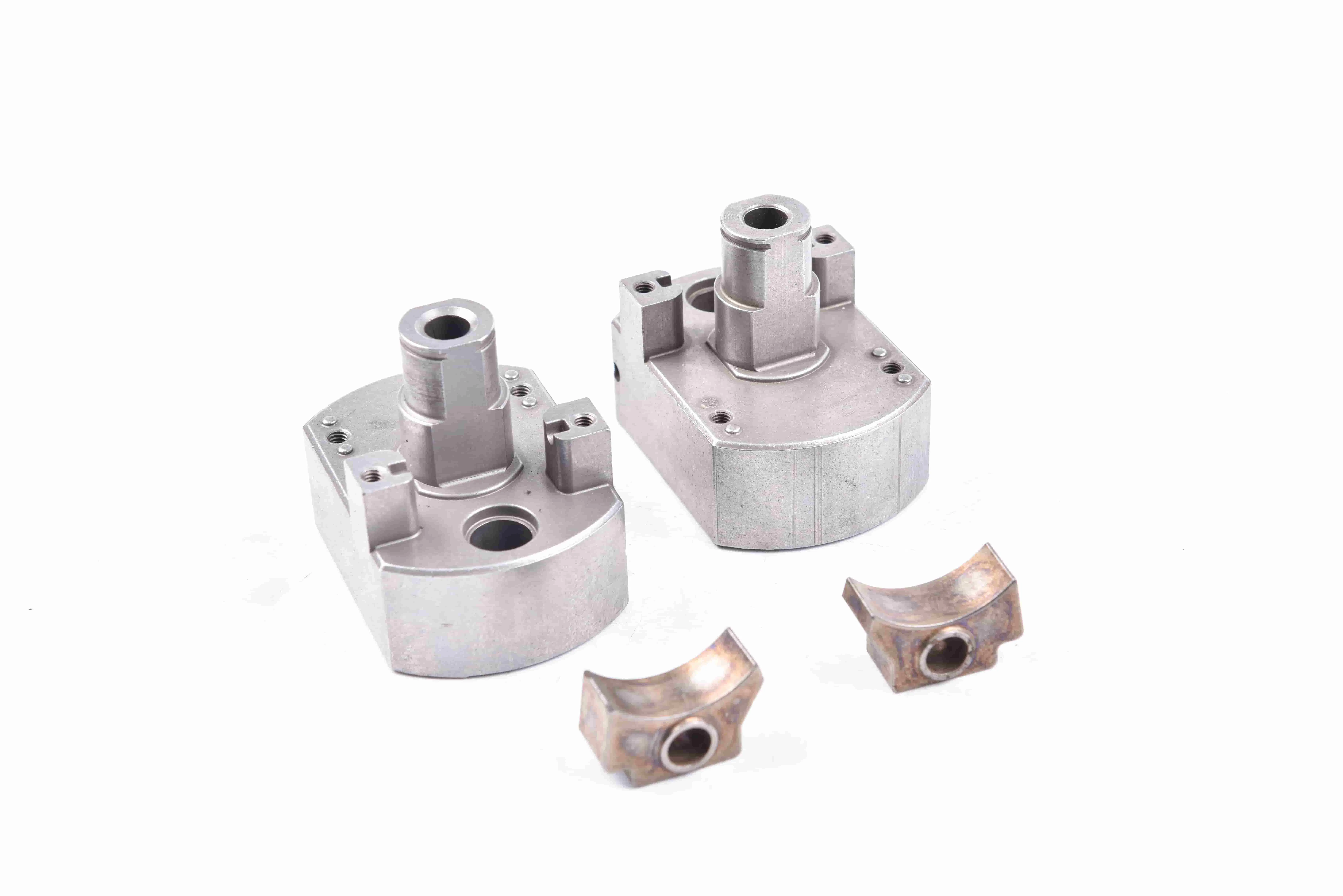

High-Performance Impact Block for Vehicle-Mounted Electric Torque Wrench Accessories

We've seen enough failures from machined steel blocks that crack under sustained load, which is why this one uses powder metallurgy with a steam oxide layer and oil immersion—the density runs 6.8 to 7.2 g/cm³, and it holds HRC 45-50 across the part, not just at the surface.

Basically, teh steam treatment creates a porous oxide that soaks up oil, giving you corrosion resisance that passes a 96-hour salt spray test, and the dimensional tolerance is ±0.05mm so it seats properly in the wrench housing without slop.

Impact resistance is rated at 3200 impacts per minute, which is actually better than most standdard blocks for this torque range (up to 500 N.m), and it operates from -20°C to 120°C without losing temper—we usually have stock for common vehicle-mounted models.

One thing we don't recommend is using this block in continuous-duty industiral robots, where the cycle time exceeds 15 seconds of sustained hammering; the powder metal structure handles intermittent loads better.

Customization is available for specific wrench models, but expect a lead time of 20 days or so for non-standard geometry—we do the sizing after sintering, so the MOQ is typically 500 pieces for a custom run.

Also, the ISO 9001 certification covers full production line, and COAs are issued per batch, but if you need third-party HPLC data on the oil immersion, that's an extra request.
