Industrial Grade Wood Plank Multi Rip Saw with 2600RPM Spindle Speed for Panel Furniture

US$ 12500.00 ~ 14500.00
Min.Order: 1
Product origin: Zhengzhou, Henan, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model NO. : ELA1300 Series
  • Type : Multi Rip Circular Saw
  • Power Type : Electric
  • Control Mode : CNC/Manual
  • Automatic Grade : Automatic
  • Precision : High Precision (±0.1mm)
  • Certification : CE, ISO
  • Customized : Available
  • Spindle Speed : 2600 RPM
  • Saw Blade Diameter : 205-270mm
  • Min Processing Width : 200mm
  • Material Thickness Range : 5-60mm
  • Spindle Motor Power : 11-33kW
  • Feeding Speed : 0-17m/min
  • Voltage : 380V/50Hz/3phase
  • Overall Dimensions : 1750×1700×1100mm
  • Weight : 2800kg
  • Dust Collection : 150mm Pipe Connection
  • Warranty : 12 Months

The wood plank multi rip saw is a professional industrial cutting machine designed for processing various wood materials including solid wood composite flooring, laminate flooring, panel furniture, wooden packaging boxes, laminated timber and photo frames. This high-performance machine can saw materials into multiple pieces of equal or different specifications in one operation.

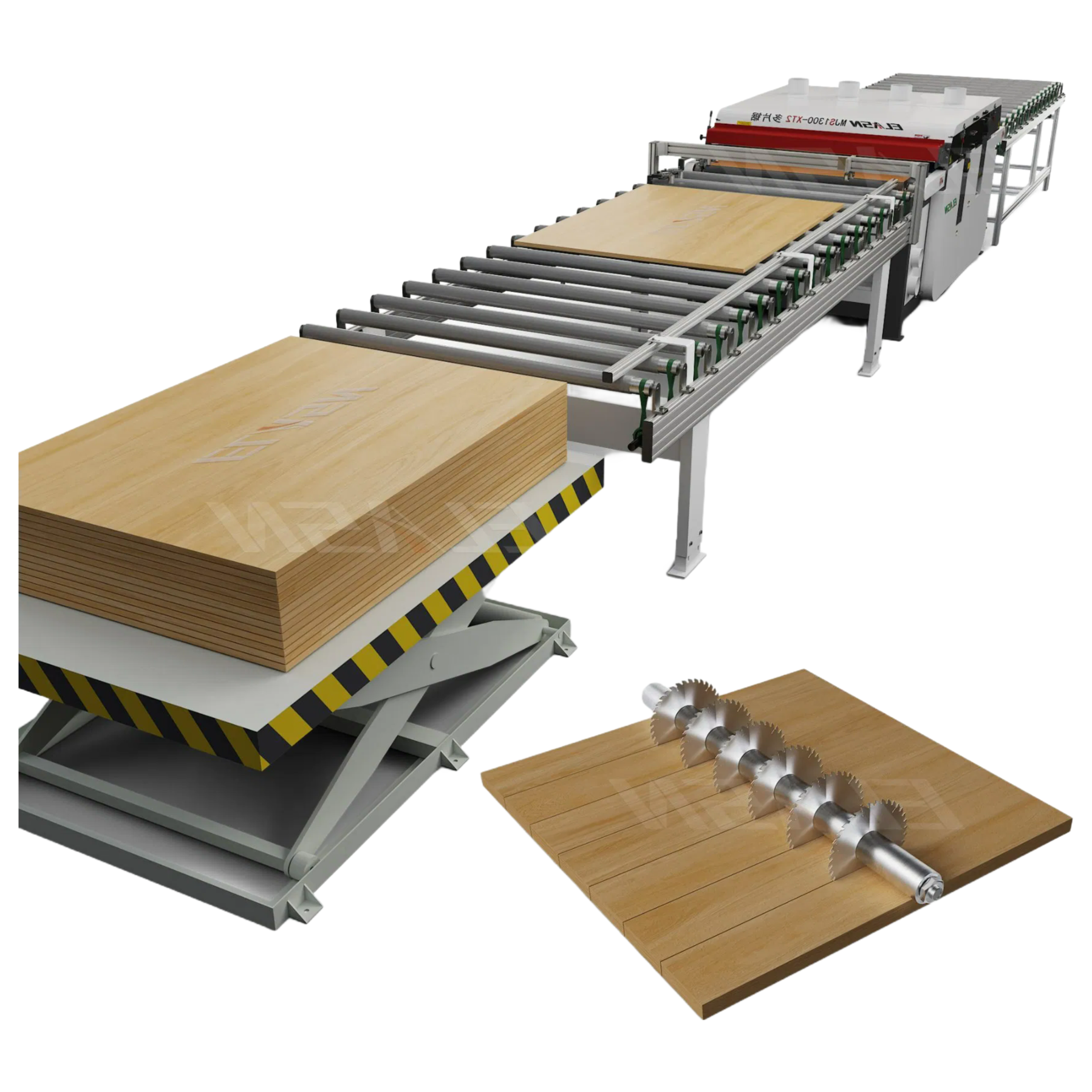

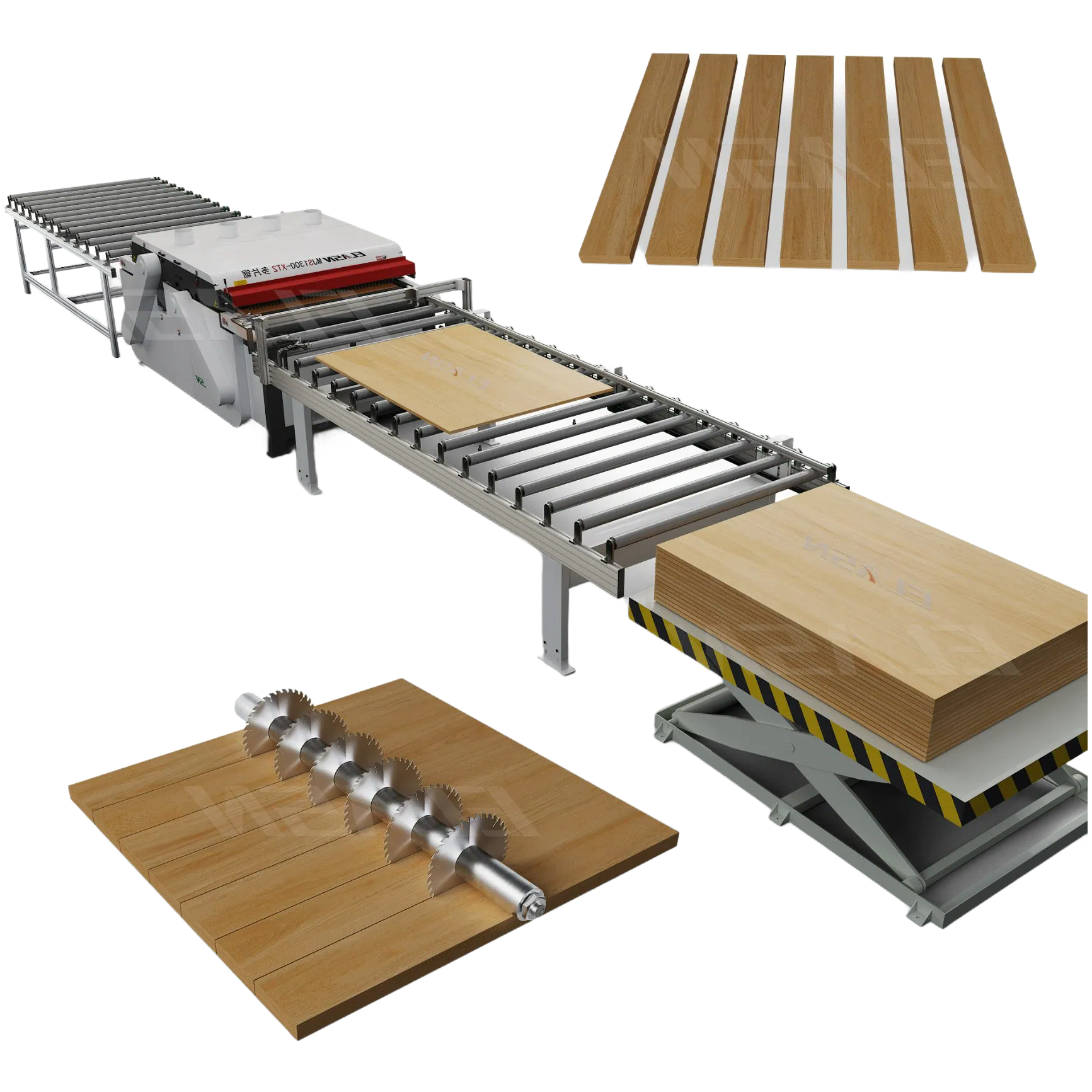

Wood Plank Multi Rip Saw

Our precision-engineered saw shaft ensures exceptional smoothness and straightness of cut surfaces. The machine features a fully enclosed protective cover for safety and can be customized according to specific processing requirements. The track-type transmission feeding system provides stable and precise material handling during operation.

Wood Cutting Machine Operation

Key features include digital/manual lifting options for the spindle and upper pressing frame, strengthened spindle and axle bed construction, anti-bouncing plate protector, and environmental dust protection devices. The machine utilizes high-quality alloy wear-resistant saw blades for extended service life.

The intelligent integrated power distribution system ensures easy operation with safety and stability. The spindle is made of #45 steel with NSK high-speed wear-resistant bearings and copper motor for reliable performance. Various models are available to accommodate different material thicknesses and processing requirements.

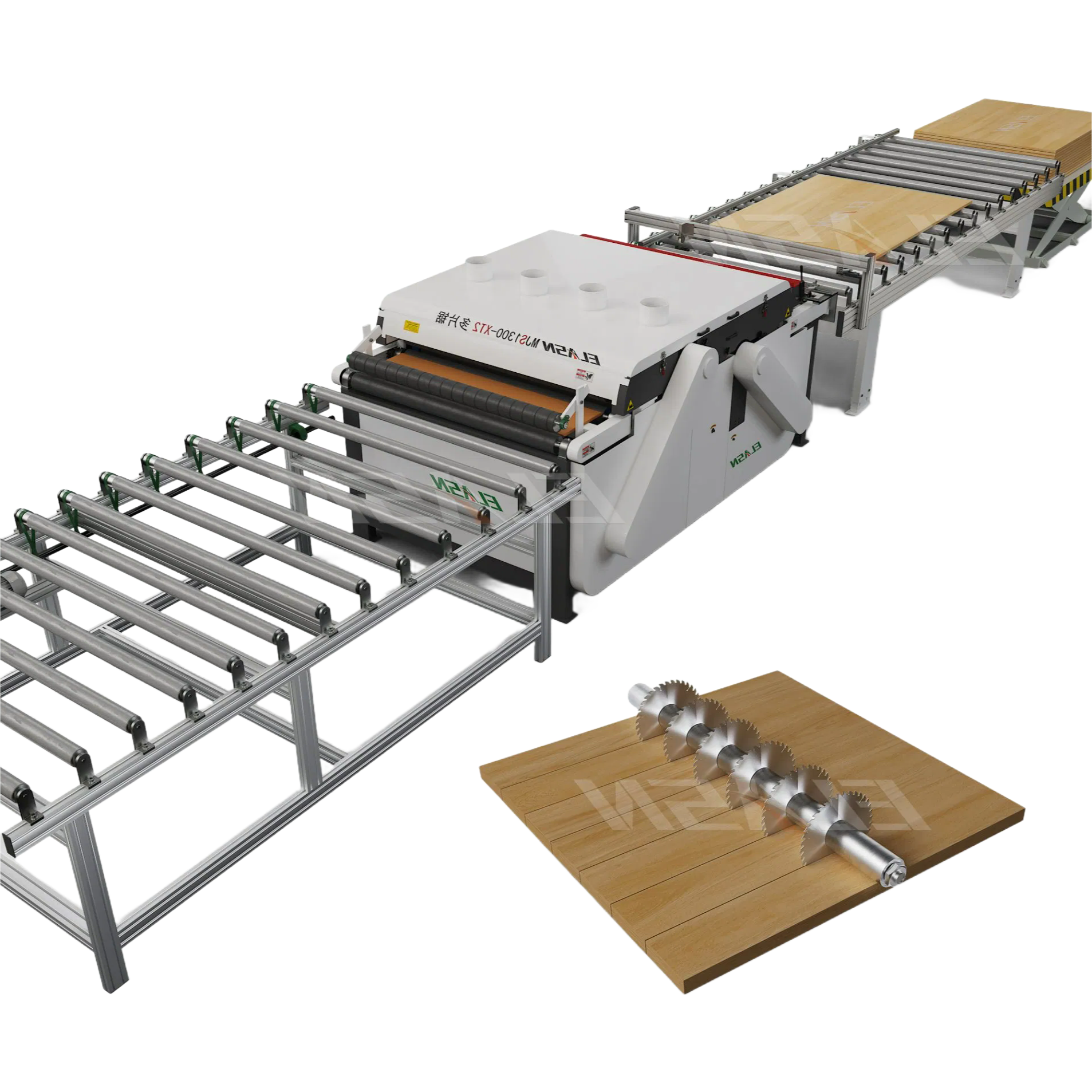

Wood Saw Machine Components
