Customizable 63A Low Voltage Circuit Breaker for Commercial Lighting Distribution Systems

US$ 1 ~ 3.9
Min.Order: 100
Product origin: Shanghai, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 21 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : EDB1-63
  • Rated Voltage : 250V/500V/750V/1000V DC
  • Rated Current : 6A-63A
  • Breaking Capacity : 6kA/10kA
  • Tripping Characteristic : Type B (3-5x In), Type C (5-10x In)
  • Poles Available : 1P, 2P, 3P, 4P
  • Mounting Type : DIN Rail (EN50052)
  • Protection Degree : IP55
  • Mechanical Life : 20,000 operations
  • Electrical Life : 10,000 operations
  • Certifications : CE, CB, CCC, ISO9001
  • Arc-extinguishing Medium : Air
  • Energy Limitation Class : 3
  • Temperature Range : -25°C to +55°C
  • Standards Compliance : IEC/EN 60898-1, IEC606947-2

The EDB1-63 series circuit breakers are designed for reliable circuit protection in various DC applications. These breakers feature a compact DIN rail mounting design with excellent electrical performance characteristics.

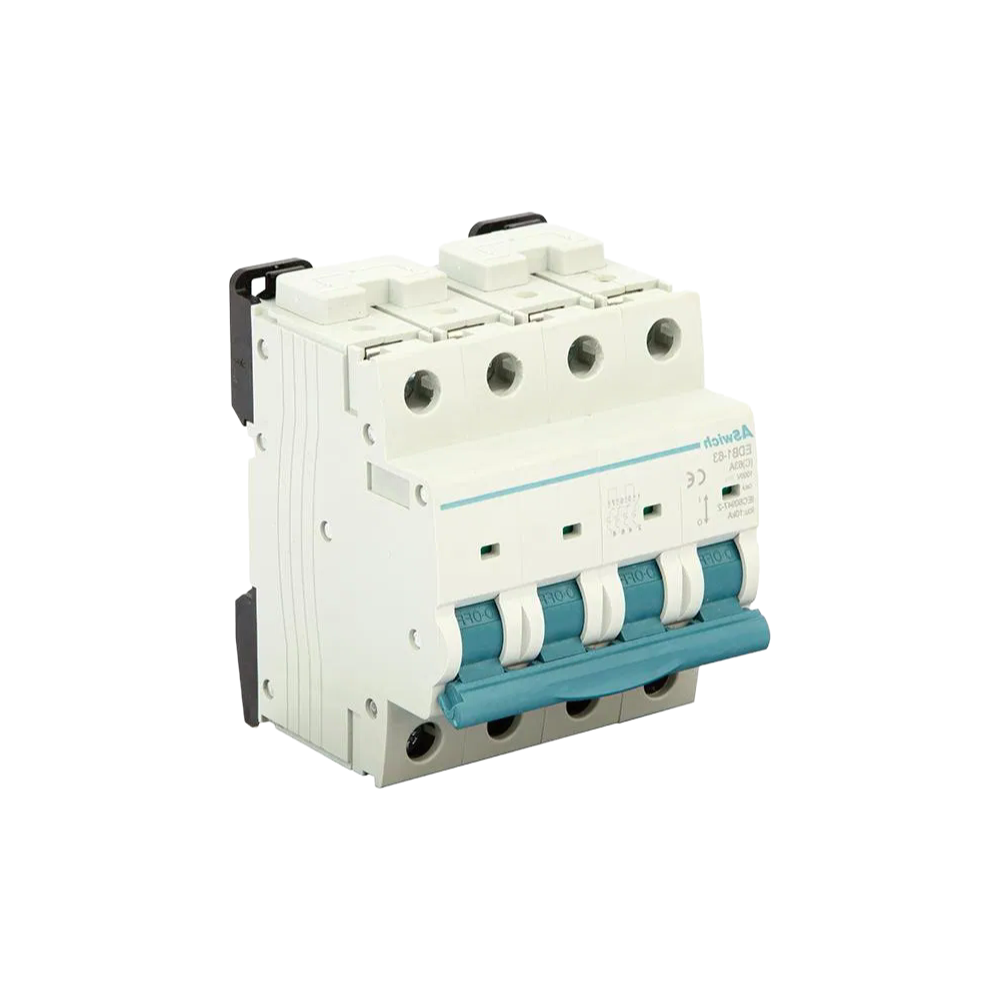

EDB1-63 Circuit Breaker Front View

With rated voltages up to 1000V DC and current ratings from 6A to 63A, these breakers provide effective protection against overloads and short circuits. The Type B and C tripping characteristics ensure appropriate response to different fault conditions according to IEC/EN 60898-1 standards.

EDB1-63 Circuit Breaker Side View

Key features include high breaking capacity (up to 6kA/10kA), energy limitation class 3, and robust construction with IP55 protection rating. The breakers undergo rigorous testing including mechanical endurance (20,000 operations) and electrical endurance (10,000 operations) to ensure long service life.

EDB1-63 Circuit Breaker Installation

These circuit breakers are particularly suitable for photovoltaic systems, communication equipment, and commercial lighting distribution networks. The multi-pole versions (1P to 4P) provide flexible configuration options for various circuit protection requirements.

EDB1-63 Circuit Breaker Technical Details

Manufactured with high-quality materials and strict quality control, the EDB1-63 series holds multiple international certifications including CE, CB, CCC, and ISO9001-2000. The breakers feature reliable terminal connections and comply with IEC/EN606947-2 standards for safety and performance.
