Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction
Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction
Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction
Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction
Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction
Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction

Heavy Duty Diesel Mining Tricycle with 5000kg Load Capacity for Mining and Construction

US$ 700.00 ~ 2800.00
Min.Order: 1
Product origin: Qingdao, Shandong, China
Category: Toys
Product Name: Toys
Availability:In Stock
Product Review : 107 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model NO. : GD5TON GD6TON
  • Power : Diesel
  • Engine Model : YC4DK90-T3 GIIIYUCHAI
  • Engine Power : 66kW/89HP with Turbo
  • Max Torque : 240Nm
  • Transmission : Hydrostatic YJ280
  • Drive System : 4×4
  • Brake System : Wet Brake
  • Wheelbase : 2570mm
  • Track Width : 1130mm
  • Overall Dimensions : 5500×1470×1700mm
  • Dump Box Dimensions : 2400×1460×700mm
  • Dump Box Volume : 2.5m³
  • Box Thickness : Bottom 8mm, Side 6mm
  • Dumping System : Double Cylinder
  • Gross Weight : 5000kg
  • Load Capacity : 5000kg
  • Ground Clearance : 190mm
  • Turning Radius : 5000mm
  • Max Gradient : >14°
  • Max Speed : 21km/h
  • Dump Height : 3100mm
  • Loading Height : 1500mm
  • Traction Force : 70kN
  • Emission Standard : Euro 5
  • Warranty : 1 Year
  • Steering : Hydraulic Articulated
  • Tire Brand : Chaoyang Mining Tire
  • Paint System : Electrophoretic Coating

Our heavy duty mining tricycles and 4x4 dump trucks are engineered for demanding work environments. These robust vehicles feature powerful diesel engines and durable construction to handle heavy loads in mining, construction and agricultural applications.

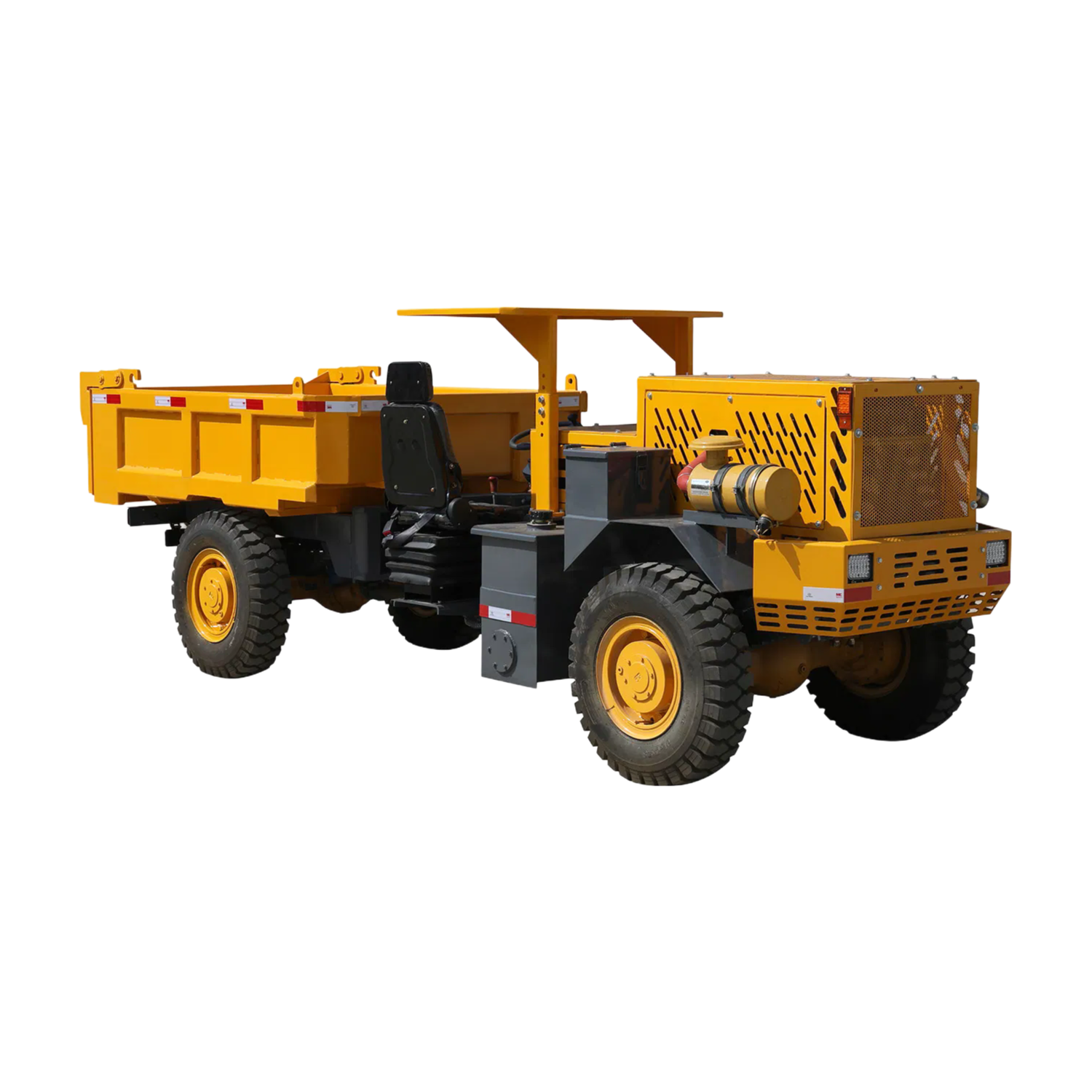

Mining Tricycle Front View

The mining tricycle series comes with a spacious 2.5m³ dump box constructed with 8mm thick bottom plate and 6mm side walls for maximum durability. The hydraulic dumping system allows for efficient material unloading with double cylinder operation.

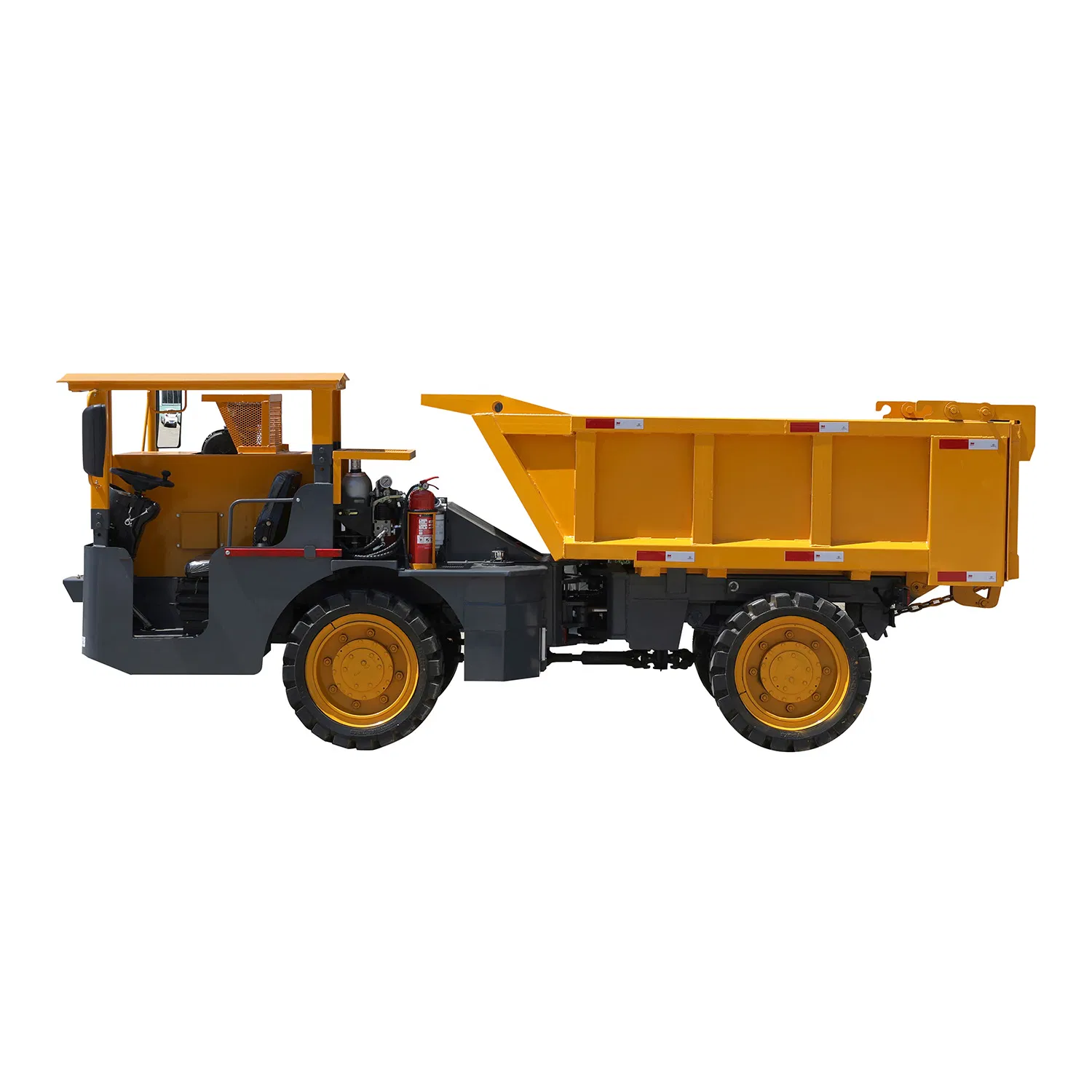

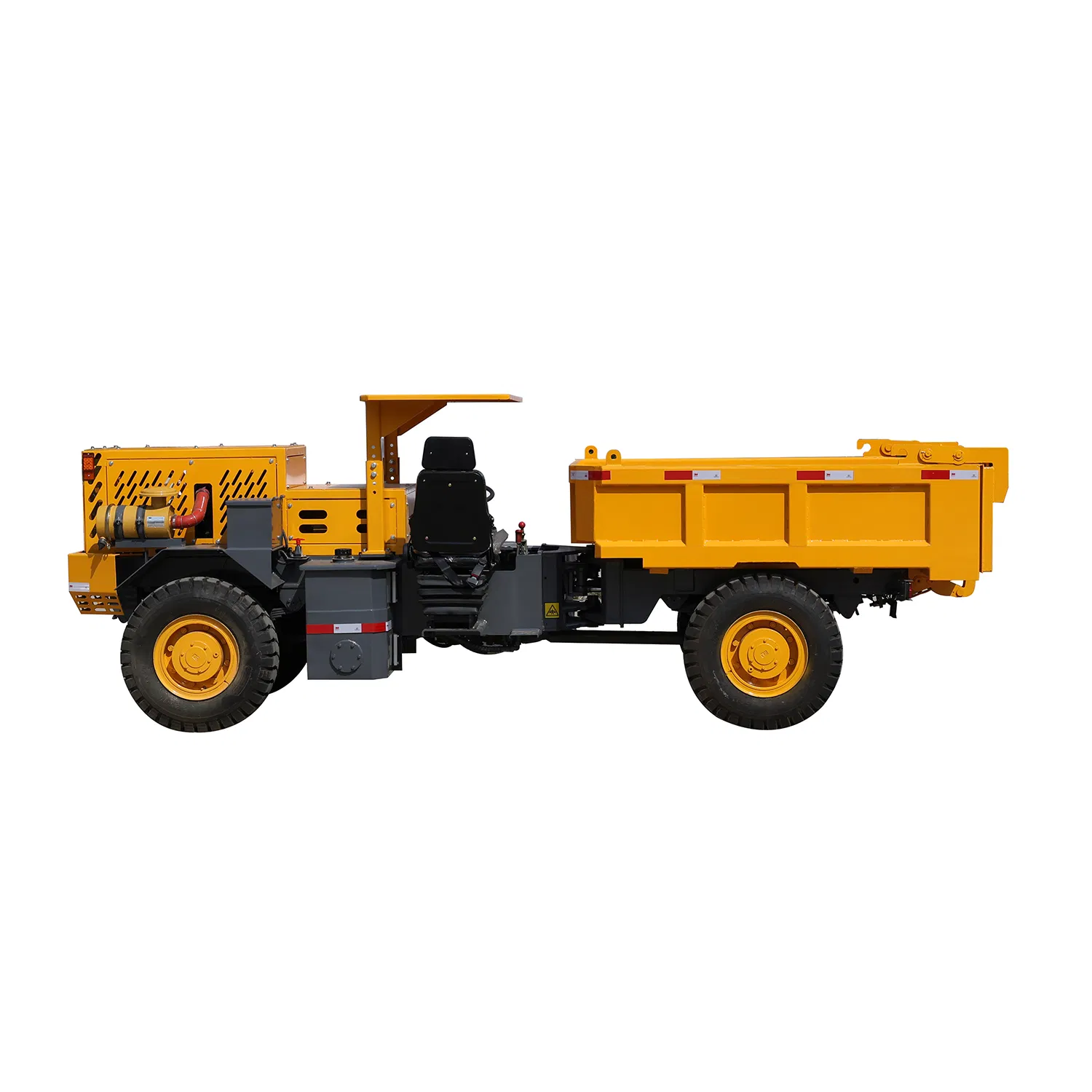

Mining Truck Side View

Key features include 4x4 drive system, wet brake technology, and articulated steering for excellent maneuverability in confined spaces. The vehicles can handle gradients up to 14° with a maximum speed of 21km/h when fully loaded.

Tricycle Loading Demonstration

We offer both left and right drive configurations to meet different market requirements. The cab can be customized with roof or full enclosure options for operator protection in various working conditions.

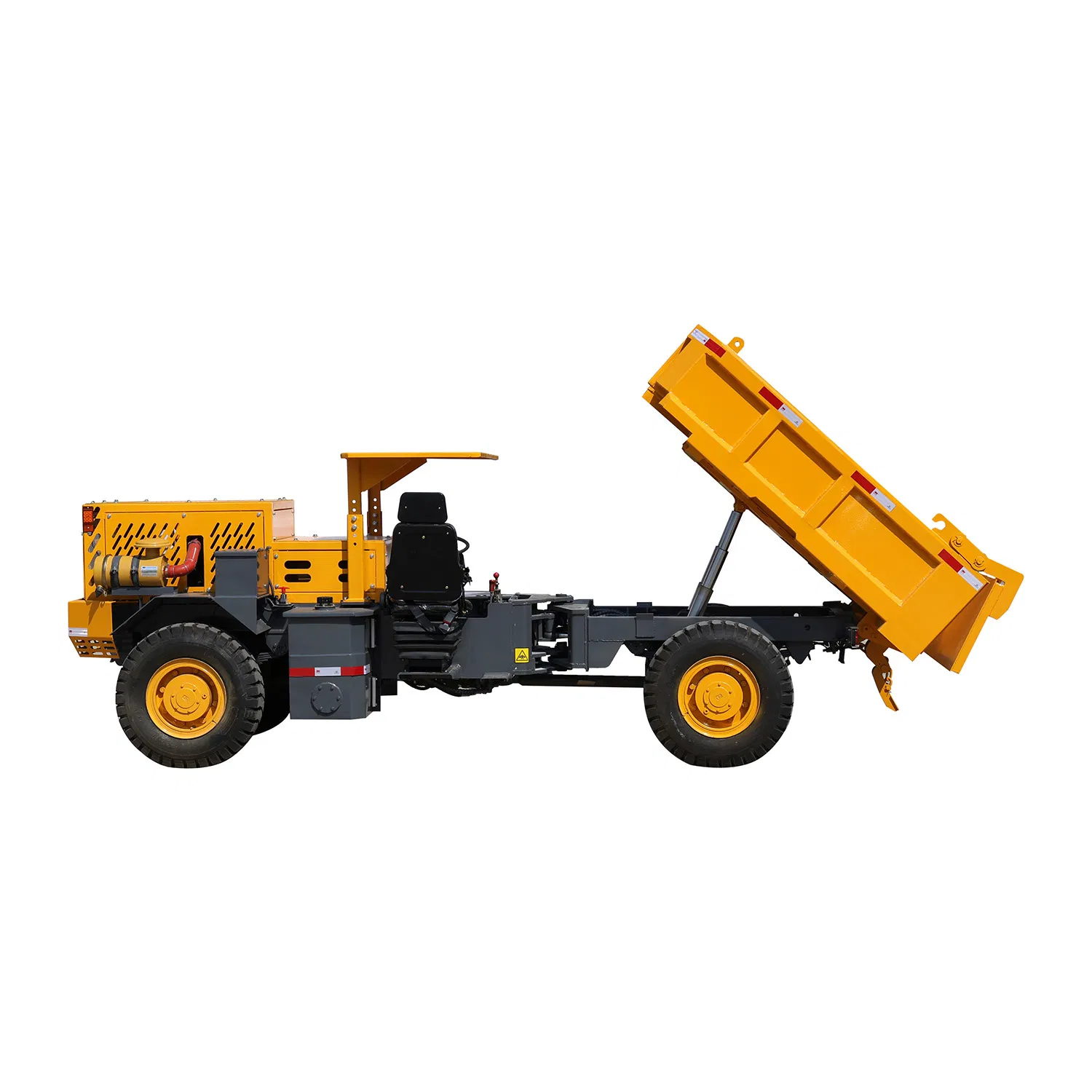

Truck Dumping Operation

Our mining vehicles are equipped with reliable YC4DK90-T3 GIIIYUCHAI diesel engines producing 66kW (89HP) with turbocharger, delivering 240Nm maximum torque for excellent pulling power. The hydrostatic transmission provides smooth operation and easy control.

Engine Compartment Detail

The chassis features a welded construction with 190mm ground clearance and 36×12.5-20 heavy duty tires suitable for rough terrain. The 2570mm wheelbase provides stability when carrying full loads.

Mining Tricycle in Operation
