ISO9001 Certified 60mm AC Gear Motor for Food Packaging and Printing Applications ISO9001 Certified 60mm AC Gear Motor for Food Packaging and Printing Applications
ISO9001 Certified 60mm AC Gear Motor for Food Packaging and Printing Applications ISO9001 Certified 60mm AC Gear Motor for Food Packaging and Printing Applications
ISO9001 Certified 60mm AC Gear Motor for Food Packaging and Printing Applications ISO9001 Certified 60mm AC Gear Motor for Food Packaging and Printing Applications

ISO9001 Certified 60mm AC Gear Motor for Food Packaging and Printing Applications

US$ 20.00 ~ 100.00
Min.Order: 1
Product origin: Wenzhou, Zhejiang, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 7 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model NO. : 2RK6GN-C
  • Power : 6W
  • Frame Size : 60mm
  • Voltage : 220V AC
  • Frequency : 50Hz/60Hz
  • Current : 0.12A (50Hz), 0.11A (60Hz)
  • Start Torque : 600g.cm (50Hz), 500g.cm (60Hz)
  • Rated Torque : 487g.cm (50Hz), 400g.cm (60Hz)
  • Speed : 1200rpm (50Hz), 1450rpm (60Hz)
  • Gear Ratio Range : 3:1 to 180:1
  • Shaft Type : Round shaft/Gear shaft
  • Protection Class : Closed Type
  • Certification : ISO9001, CCC, UL, CE
  • Operation Mode : Reversible
  • Bearing Type : High-quality Ball Bearing

The 2RK6GN-C series AC gear motor is a high-performance industrial motor designed for various automation applications. With its compact 60mm frame size and 6W power output, this motor delivers reliable operation in demanding environments.

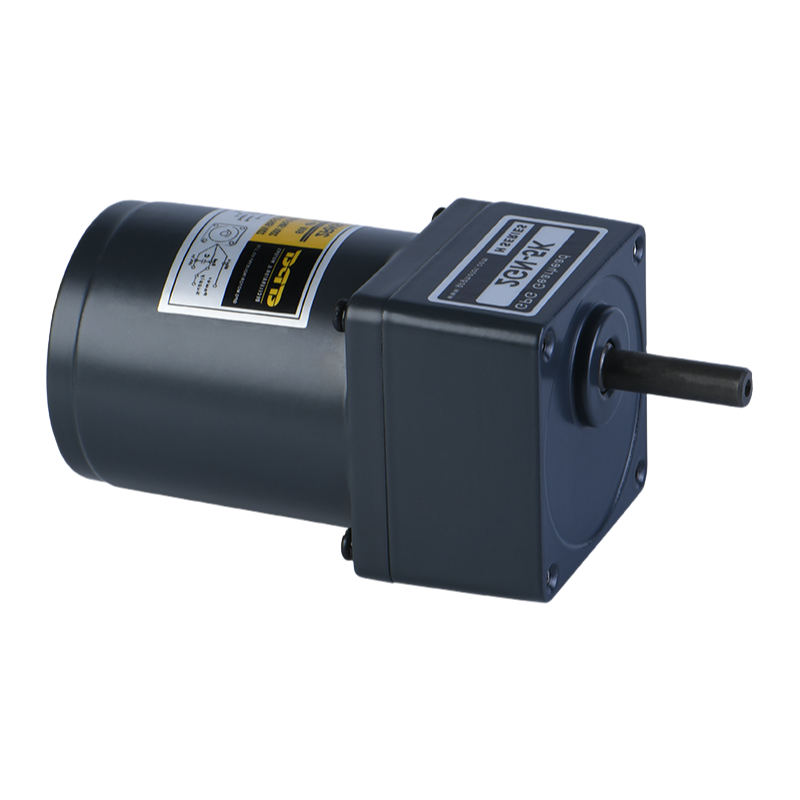

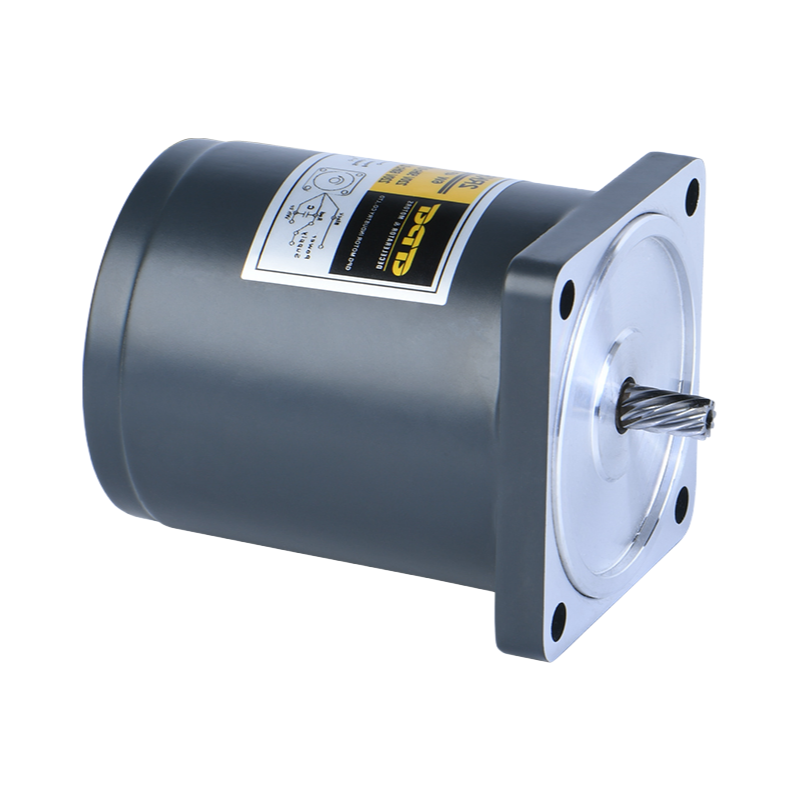

2RK6GN-C AC Gear Motor

Constructed with precision die-cast aluminum housing, the motor offers excellent heat dissipation and durability. The single-phase design operates at 220V/50Hz or 220V/60Hz, providing flexibility for different power systems.

AC Gear Motor Internal Structure

Key features include a silicon steel stator core for efficient magnetic performance, high-quality copper windings, and medium carbon alloy steel rotor shaft. The motor comes with multiple gear ratio options from 3:1 to 180:1, allowing for precise speed control in various applications.

Applications include industrial automation, food processing equipment, packaging machinery, printing systems, and material handling devices. The motor's reversible operation and variable speed capabilities make it suitable for diverse automation requirements.

AC Gear Motor Application

With ISO9001, CCC, UL, and CE certifications, this motor meets international quality and safety standards. Custom configurations including through-hole mounting, terminal box options, and electromagnetic brakes are available upon request.

F***Q 2026-01-31

Zippy delivery was the first thing that impressed me. The motor arrived well ahead of the estimated schedule, which was a fantastic start. The packaging was exceptionally robust and secure, clearly designed to protect industrial components. Every item was individually wrapped and cushioned, showing great care in the shipping process. Zero damage upon arrival is always the goal, and it was certainly achieved here. Zoning in on the product quality, the motor feels solid and well-made. The construction appears precise, and the finish is clean, which aligns with the expectations set by the ISO9001 certification mentioned. It has a substantial, professional feel right out of the box. Zenith in terms of service; the communication from the seller was proactive and clear. They provided timely updates and were readily available to answer a pre-purchase query I had about specifications. The overall experience felt very smooth and professional. While I haven't integrated the motor into my application yet for a full operational test, the initial impressions regarding the logistics, the apparent build quality, and the customer service are overwhelmingly positive. This transaction sets a high standard for purchasing industrial components online.

W***E 2026-01-04

A truly seamless experience from start to finish. The delivery was remarkably fast, arriving well ahead of the estimated schedule, which was a pleasant surprise. The packaging was professional and secure, ensuring the product was perfectly protected during transit. Upon inspection, the build quality of the motor is immediately apparent; it feels robust, well-engineered, and precisely manufactured. The finish is excellent, with no visible imperfections. Communication from the seller was proactive and helpful throughout the process, answering my preliminary questions promptly and providing clear tracking information. This level of service inspires confidence. While I have not yet integrated it into our system for final testing, the initial impressions regarding its physical construction and the overall transactional experience are overwhelmingly positive. The motor appears to be exactly as described and seems perfectly suited for demanding industrial environments. The combination of efficient logistics, apparent high-quality materials and workmanship, and outstanding customer support makes this a highly commendable purchase. I am optimistic about its performance and would certainly consider this supplier for future needs based on this initial interaction alone.

W***W 2025-12-20

Excellent experience from start to finish. The shipping was incredibly fast, arriving well ahead of the estimated delivery window. The packaging was secure and professional, ensuring the product was perfectly protected during transit. Regarding the motor itself, the build quality is immediately apparent. It feels robust, well-constructed, and precisely machined. The finish is clean, and all components fit together seamlessly, which speaks volumes about the manufacturing standards. The service provided by the seller was equally impressive. Communication was clear, prompt, and helpful from the initial inquiry through to the post-delivery confirmation. Any questions I had were answered thoroughly and courteously. Overall, this was a very smooth transaction. The combination of rapid logistics, superior product quality, and outstanding customer support makes this a highly recommended supplier. I am thoroughly satisfied and confident in the product’s application for our needs.

F***G 2025-12-08

Q: The delivery was exceptionally prompt, arriving well ahead of the estimated schedule. The packaging was secure and professional, ensuring the product was perfectly intact upon arrival. Regarding the quality, the motor appears to be solidly constructed with robust materials, giving a strong impression of durability suitable for industrial settings. The service provided was commendable; communication was clear and responsive throughout the ordering process. Overall, a very satisfactory experience from logistics to the initial quality inspection and customer support.

H***B 2025-10-07

Wow, the delivery was incredibly fast and efficient, arriving well ahead of the estimated schedule. The packaging was secure and protected the item perfectly during transit, which I truly appreciate. In terms of quality, the motor feels robust and well-manufactured, showing no signs of defects or issues upon inspection. The customer service team was exceptionally helpful and responsive, answering all my queries promptly and professionally. Overall, a very satisfying experience from start to finish, and I would definitely recommend this to others based on these aspects alone.

V***Y 2025-10-04

Delivery was incredibly fast and efficient, arriving well ahead of schedule. The quality of the motor appears robust and well-manufactured, meeting my expectations for industrial use. Customer service was responsive and helpful throughout the process, addressing my queries promptly. Overall, a smooth and satisfactory experience.

F***V 2025-07-20

Keenly impressed with the overall experience from this purchase. The delivery was remarkably swift, arriving ahead of schedule, which was a pleasant surprise. Packaging was secure and professional, ensuring the product was well-protected during transit. Quality-wise, the motor appears robust and well-constructed, meeting expectations for industrial use. Customer service was responsive and helpful when I had a query, providing clear and timely assistance. A smooth and satisfactory transaction overall.
