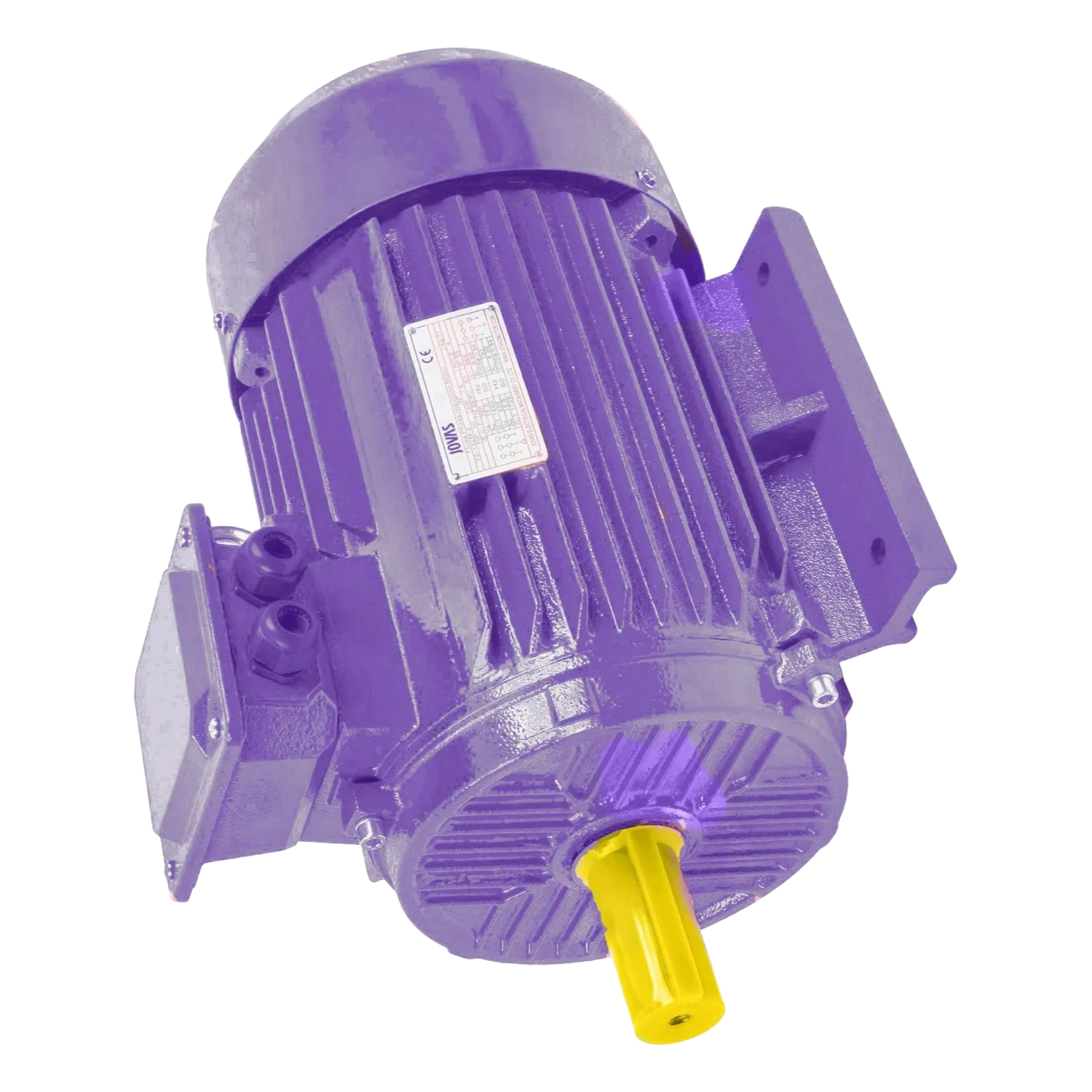

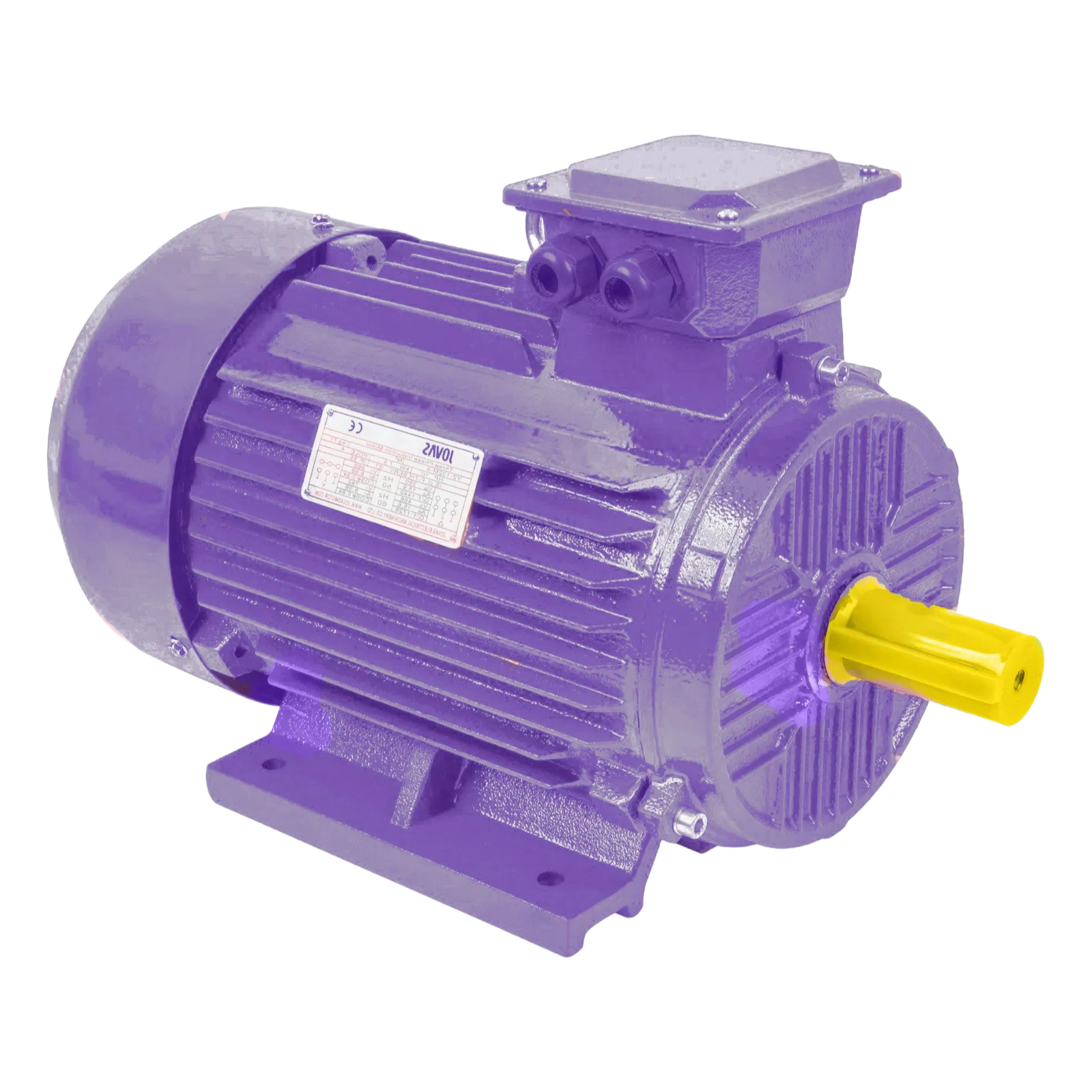

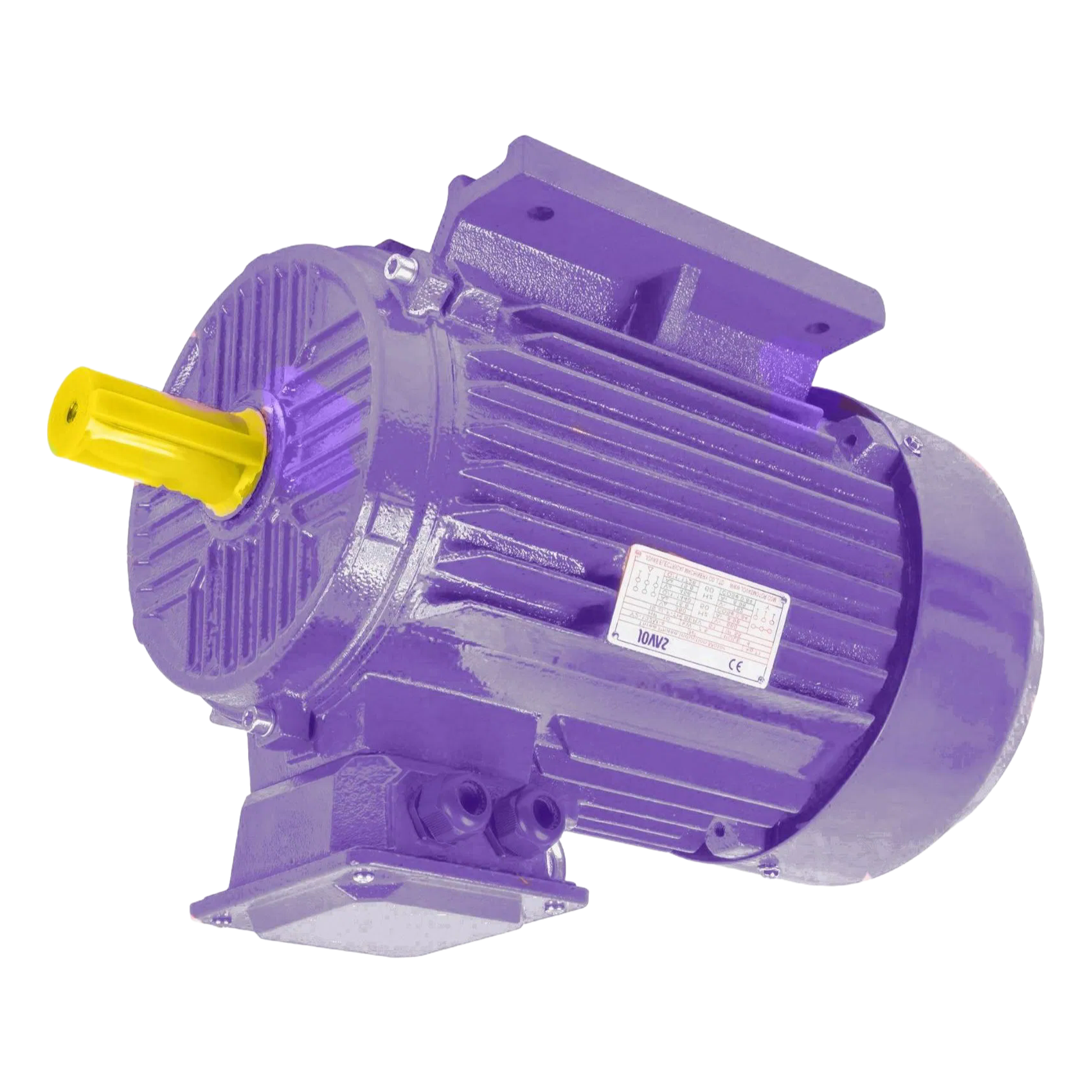

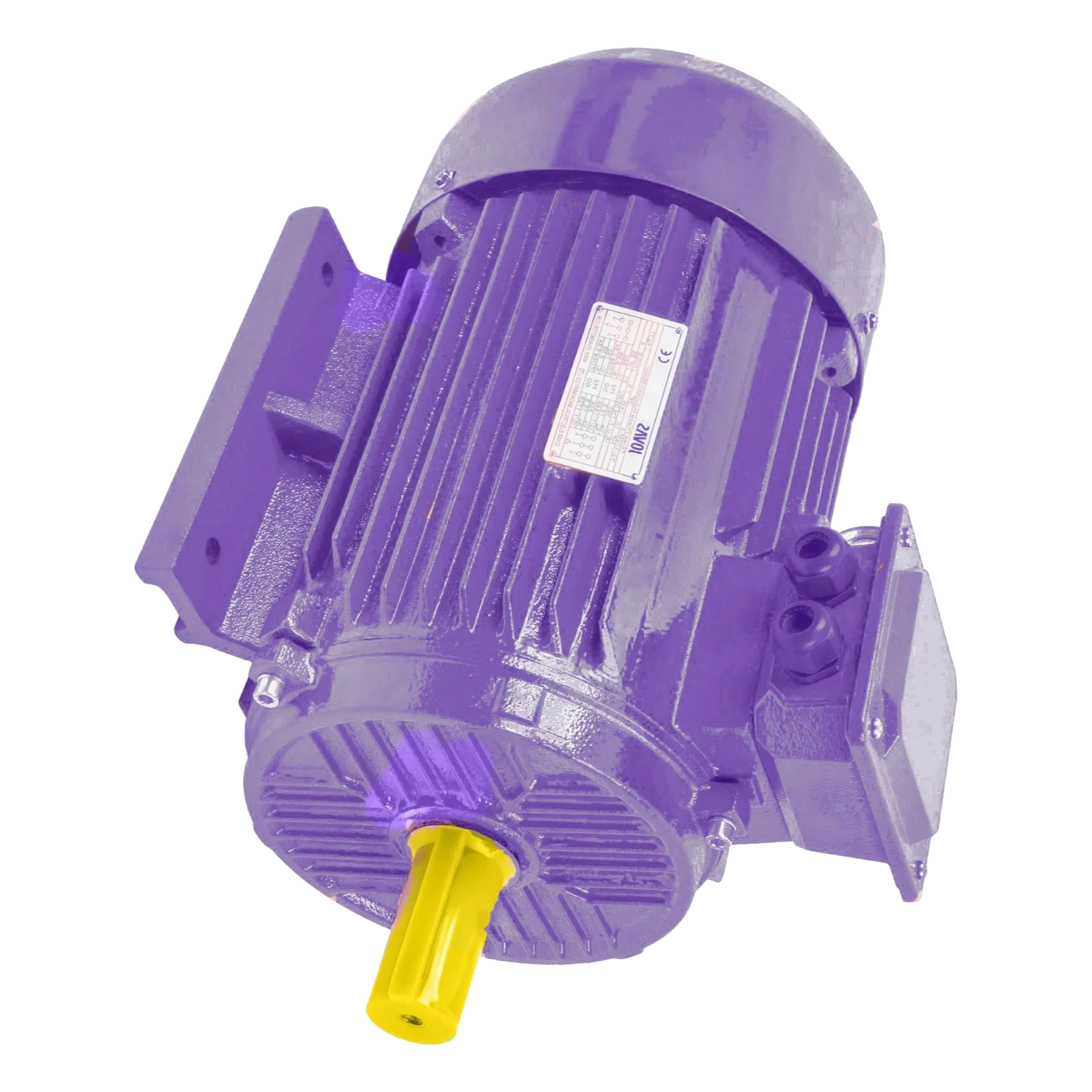

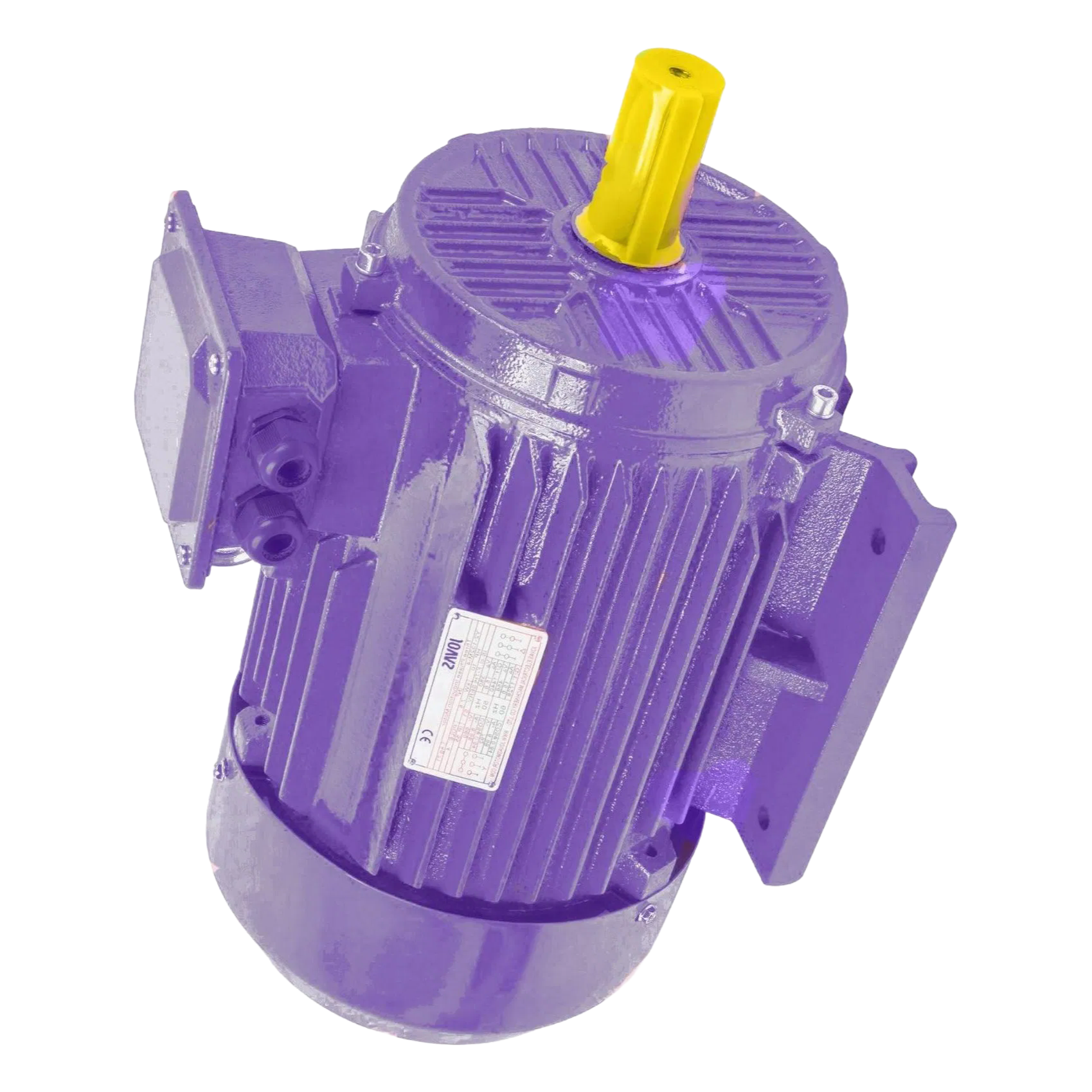

The YE2 series three-phase asynchronous cast iron electric motor is designed for industrial applications with a power range of 0.75-375kW and frame size from 80-355. This motor series meets IE2 efficiency standards and features robust construction for reliable performance in demanding environments.
With IP55 protection level and F class insulation (155°C), these motors are suitable for operation in various industrial settings. The cooling method is IC411, ensuring effective heat dissipation during continuous operation. The motors can operate in ambient temperatures ranging from -15°C to +40°C at altitudes not exceeding 1000 meters above sea level.
The installation dimensions of YE2 series motors conform to IEC 60034 standards, featuring a rational structure, attractive appearance, high efficiency, and low noise operation. These characteristics make them ideal for driving various mechanical equipment including fans, pumps, machine tools, compressors, and transport machinery.
Applications extend to harsh environments such as petroleum, chemical, steel, and mining industries. The motors are available with 2, 4, 6, or 8 poles, offering flexibility for different speed requirements. Voltage and frequency can be customized according to specific user requirements.
Key advantages include high starting torque, excellent overload capacity, and stable operation. The motors feature cast iron housing for durability and are available in various mounting configurations including foot, flange, and double shaft end options.
With certifications including ISO9001 and CCC, these motors meet international quality standards. The compact design and efficient performance make them suitable for both new installations and replacement applications in industrial settings.
