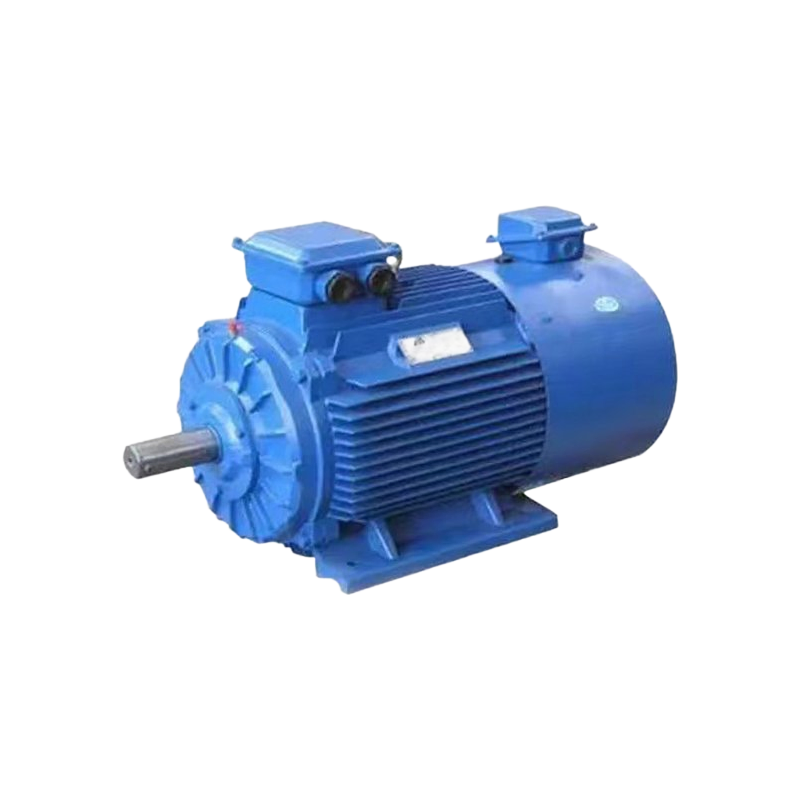

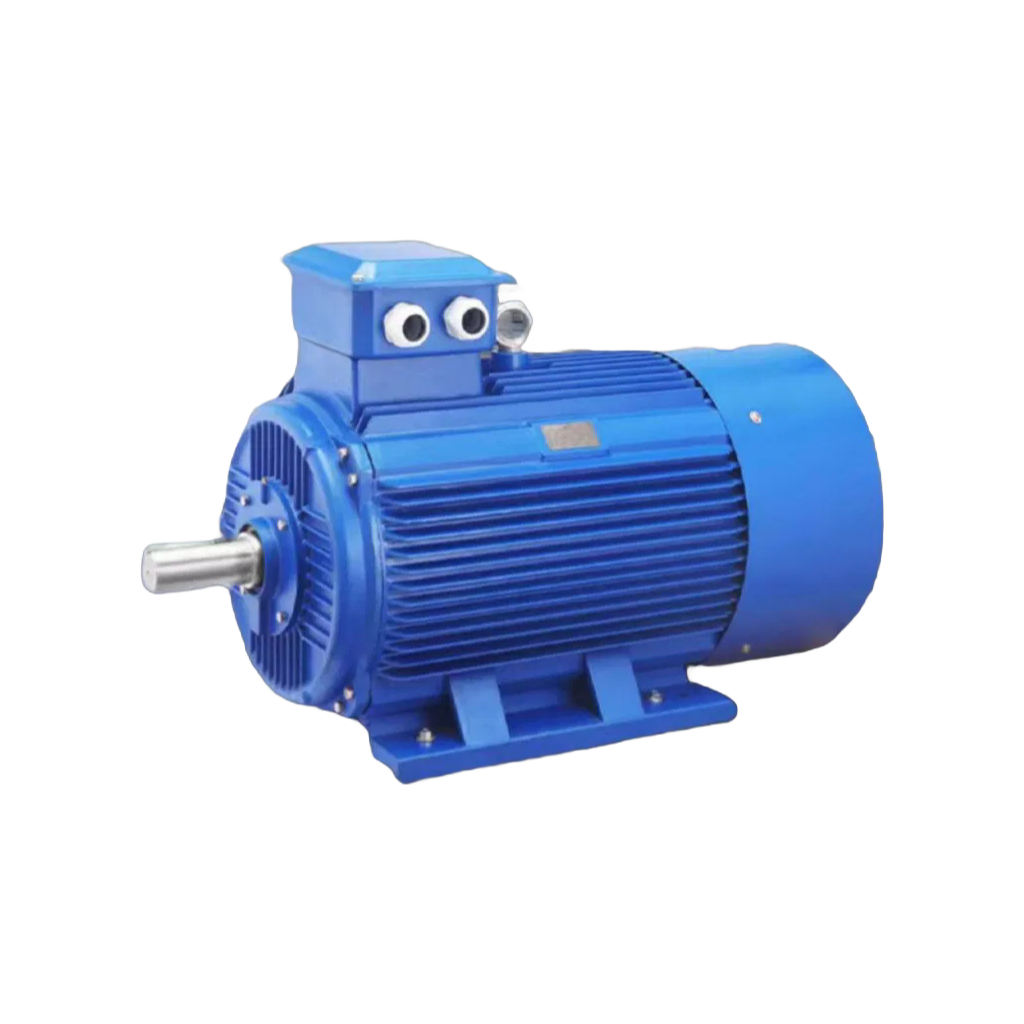

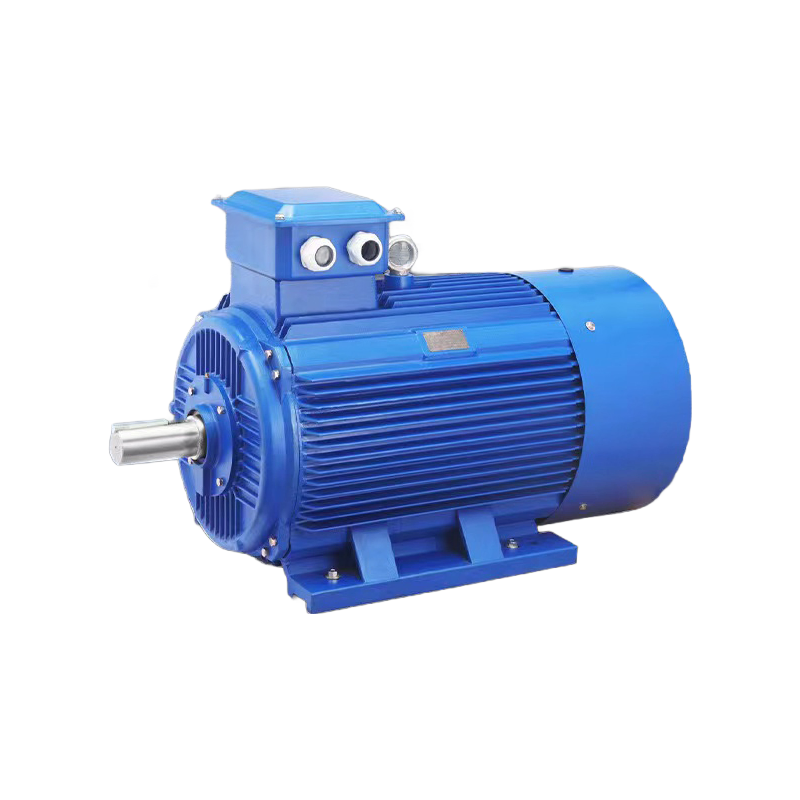

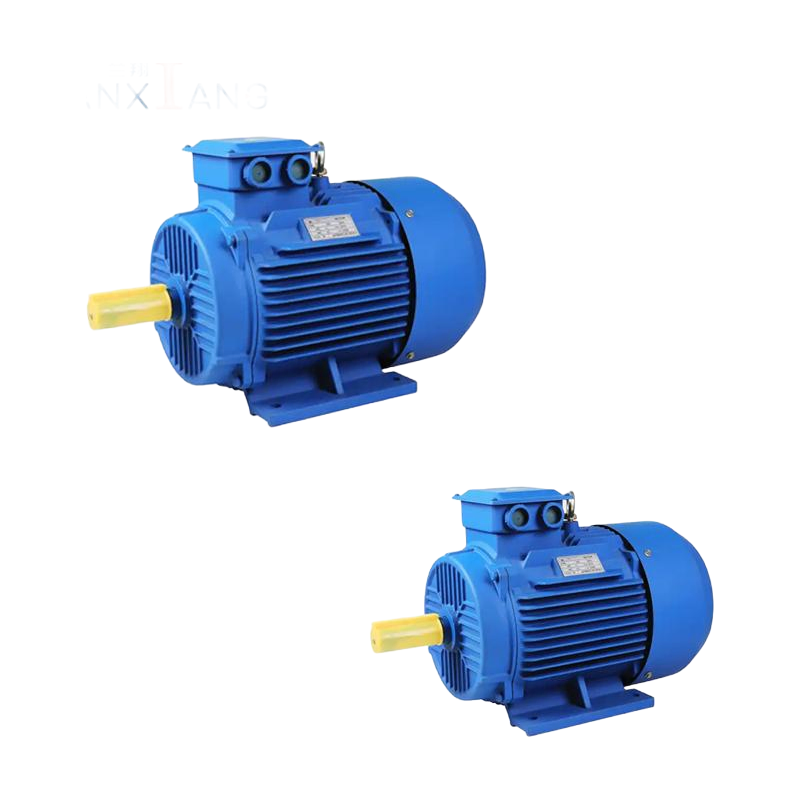

Thanks for reaching out about teh 22kw unit—we ship these pretty regularly for pump drives, and the 980rpm speed is good fit for centrifugal loads. It's basically YE2-200L2 model with cast iron housing, so it handles continuous duty well.
The IP55 rating means it's dust-tight and splash-proof, which most buyers find adequate for standerd indutrial environments, though you'd want a higher rating for washdown zones. F-class insulation gives you a thermal buffer, and we usually have stock on the B3 mounting version.
Noise stays at 75dB or below, and vibration is ≤2.8mm/s—those numbers are better than older IE1 designs for sure. One thing to note: it's 1000m max altitude, so if your site is higher, we'll need to derate it (typically 1% per 100m above that).
Direct on-line starting is fine for most pump applicaion, but if you're driving a high-inertia load, you might consider a soft starter. We've got the CCC and ISO9001 certs on file, and COAs are available per batch.
Lead time is roughly 20 days or so for a single unit, and the MOQ is just one. Weight is about 180kg, so plan for lifting gear—shaft diameter is 55mm, which mates with standard pump couplings.
Our standard MOQ is 10 units for this model, but we can discuss lower quantities for first-time orders or sample requests.
Lead time is usually 15-20 working days for standard orders, depending on stock availability and order volume.
Yes, we supply ISO9001 and CCC certificates with each shipment, and copies can be shared before purchase if needed.
Yes, we can adjust the winding to suit 60Hz or other voltages, but that may affect the speed and torque. Just let us know your requirements.
Store it in a clean, dry place with ambient temperature between -15°C and +40°C, and keep it covered to avoid dust and moisture.
