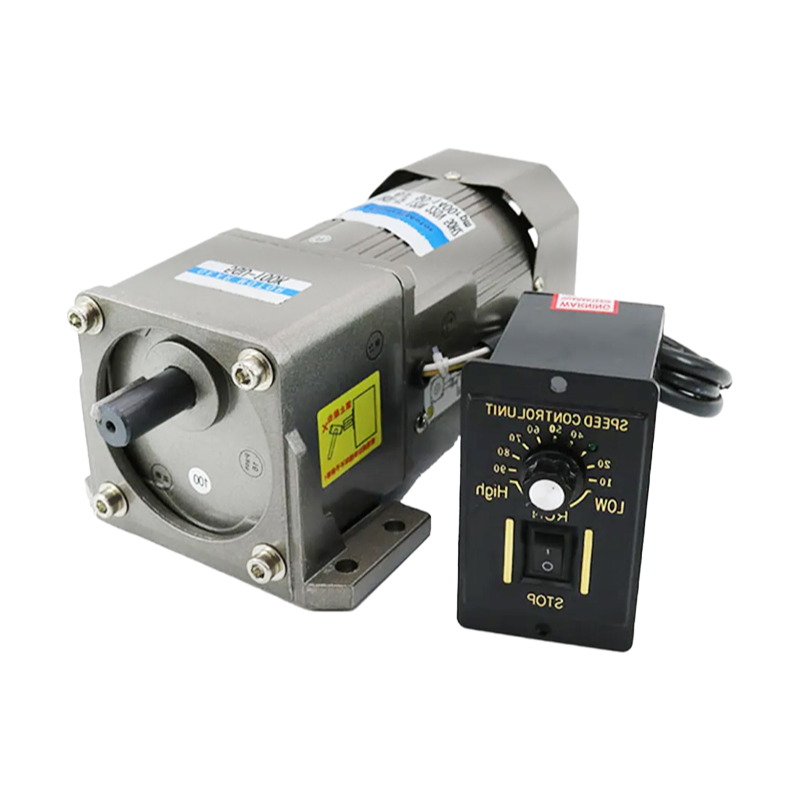

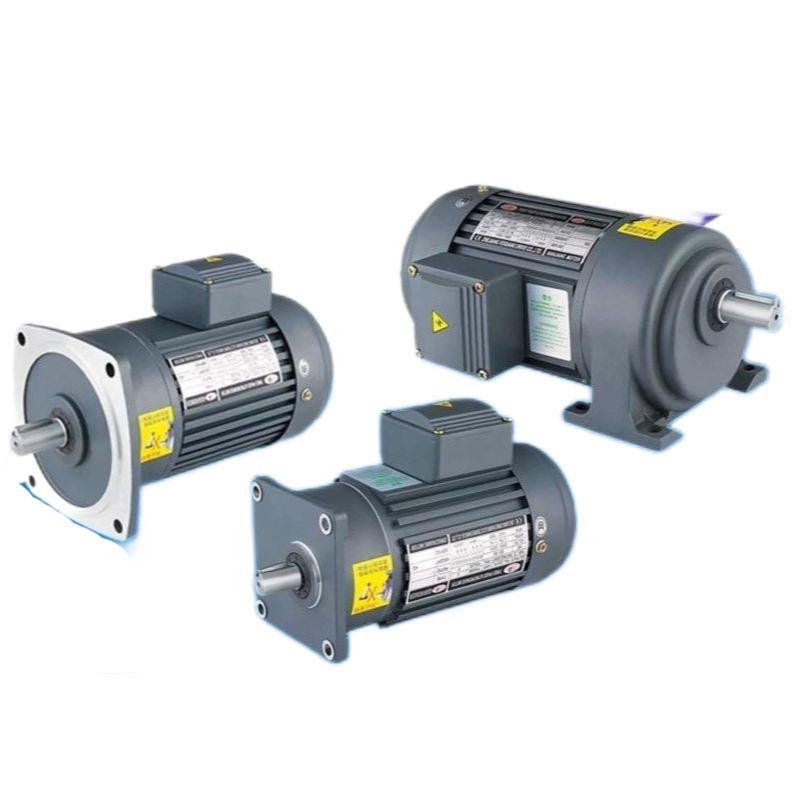

Customizable AC Geared Motors with Gearbox 3-200 Ratio for Industrial Machinery Applications

Our premium AC geared motors deliver exceptional performance for industrial applications. Available in both single phase and three phase configurations, these motors offer power outputs ranging from 1/8HP (100W) up to 5HP (3700W) to meet diverse operational requirements.

The motor series features robust construction with waterproof protection, making them suitable for demanding environments. With voltage options including 110V, 220V, 380V, and up to 460V, these motors provide flexibility for various electrical systems worldwide. The frequency compatibility covers both 50Hz and 60Hz operations.

Customization options include multiple gearbox types (#1-#6) with adjustable ratios from 3-200, allowing precise speed control. The motors deliver output shaft torque ranging from 0.19-127 kg/m, with rated speeds of 1350/1680 rpm for optimal performance in industrial machinery applications.

Accessory options enhance functionality, including gearboxes, terminal boxes, forced cooling fans, electromagnetic brakes, and thermal protection systems. The motors feature durable shaft types including pinion shaft, round shaft, and keyway configurations to suit different installation requirements.
