We're shipping these at roughly 25 units per month to large animal hospitals, so lead time is typically 10–15 working days after order confirmation, but verify bulk MOQ—we usually have stock, but confirm for orders above 50 units or so.

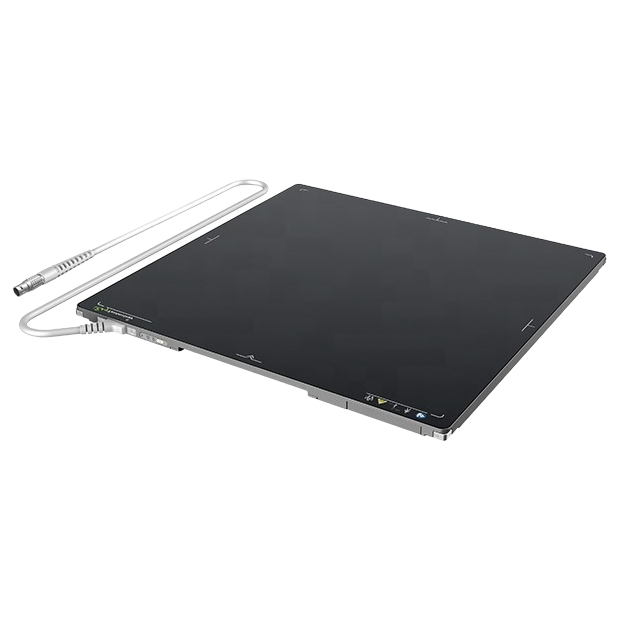

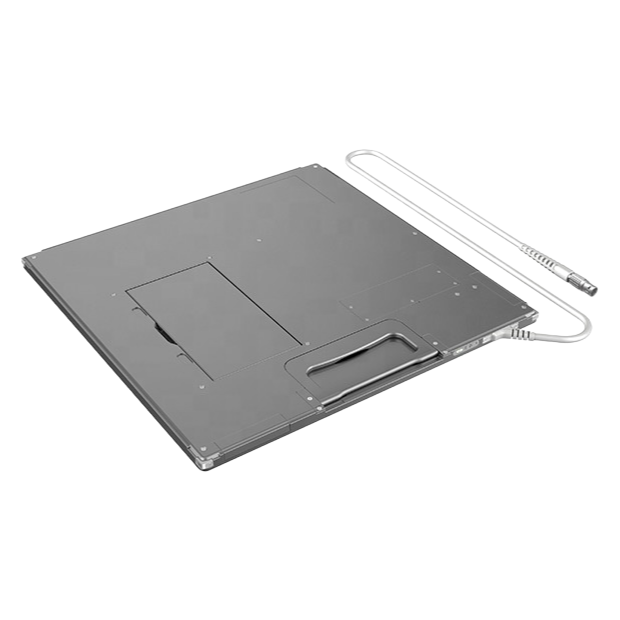

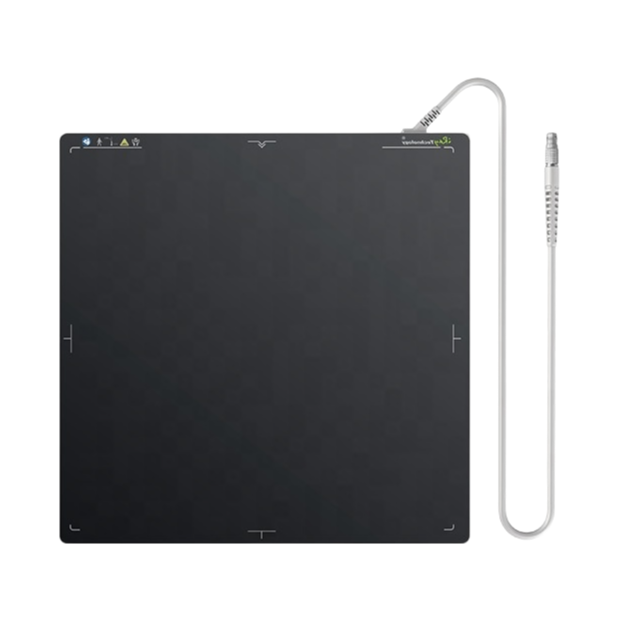

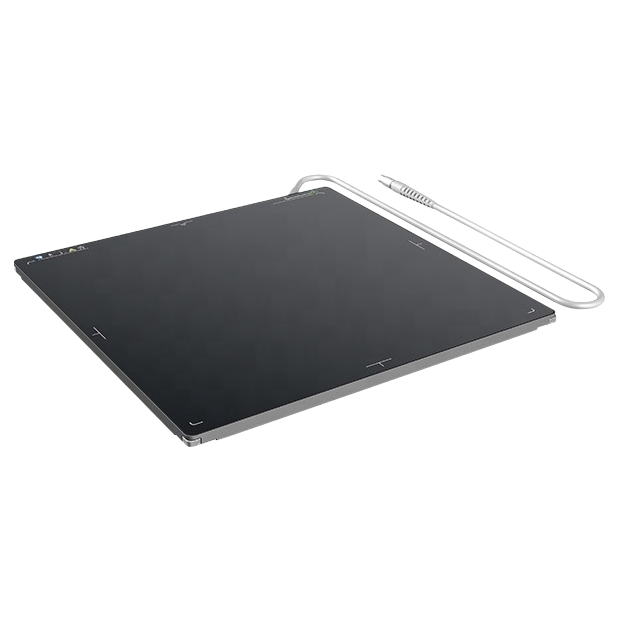

You'll get a 17x17 inch panel with CsI direct deposition, not just a bonded layer, which means it resolves finer bone detail at 3.6 lp/mm compared to most GdOS panels running at 2.5–3.0 lp/mm—most buyers upgrading from CR plates notice difference imediately.
16-bit AD conversion matters here because of that it handles the wide range of large animals—think horse stifles or dog thorax where soft tissue and bone need to show in one frame without blowing out highlights.
The AED trigger mode is basically the one everyone uses for typical radiographic setups, but if your X-ray generator doesn't support it, you'll want to go with Prep or Software—check your generator's capabilities first.
4kg and 460mm square makes it easier to handle than teh older 7kg panels, though the 15mm thickness means you'll need to ensure your table slot or wall stand clearances accomodate that (usually 2-4 weeks retrofit projects).
Operating humidity tops out at 80% non-condensing, so it's not suited for unventilated mobile units in humid climates—we've had a few returns form that scenario, and it's just not the right fit for that appliction.
We can start with a single unit for evaluation, but typical MOQ is 2 pieces for regular orders. If you need a larger volume, just let us know and we can discuss pricing.
Standard lead time is around 15-20 working days from order confirmation. If you're in a hurry, we can sometimes expedite to 10-12 days depending on stock.
Yes, each unit ships with a calibration certificate and inspection report. We also provide the gain and offset correction files for your setup.
No, the 139μm pixel pitch is fixed for this model. For finer detail, you'd need to look at a different detector line with smaller pixels, but this one already delivers 3.6 lp/mm spatial resolution.
Keep it in a dry, clean environment between -10 and 55°C, with humidity below 80% RH non-condensing. Avoid direct sunlight and dust, and store it flat to prevent any pressure on the sensor area.
