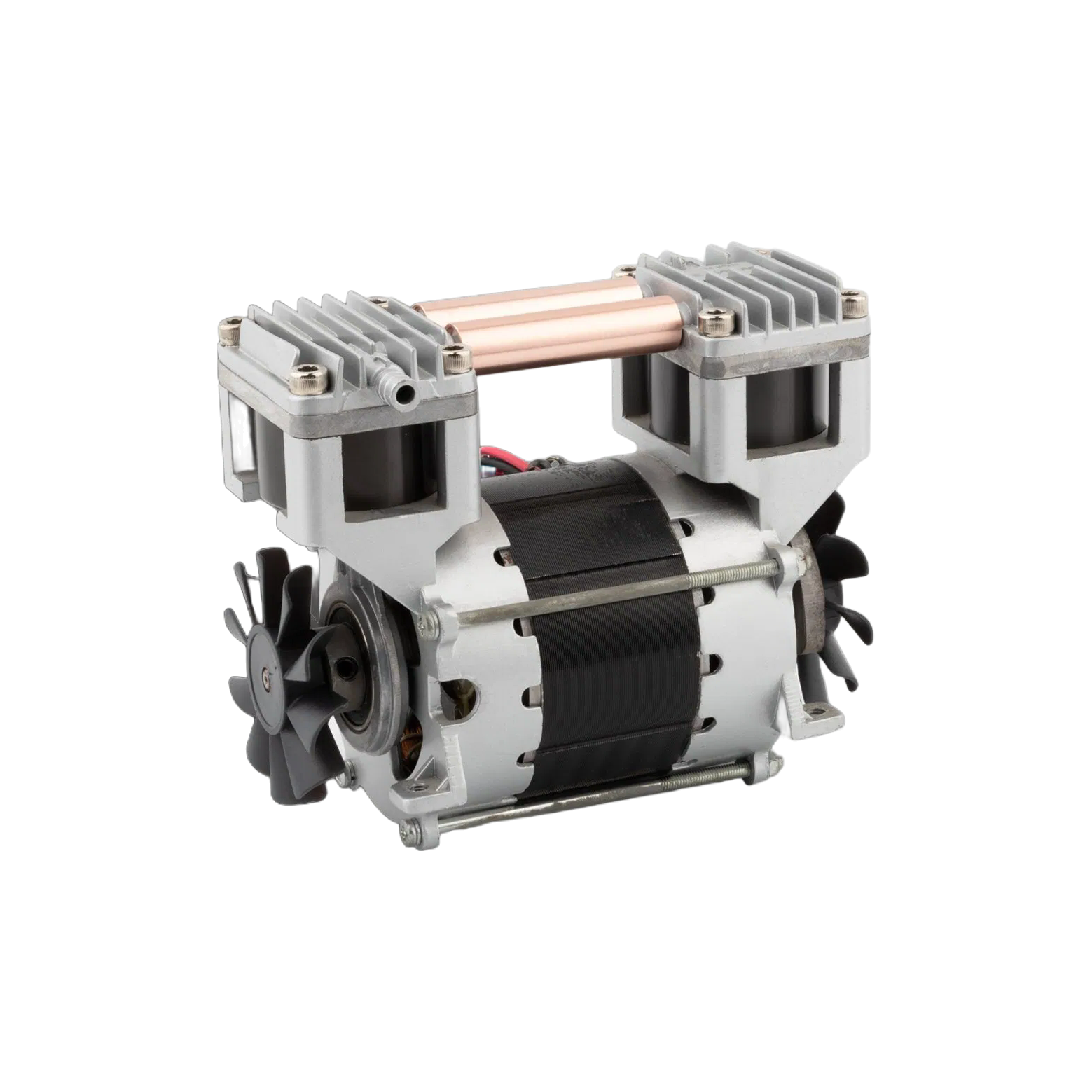

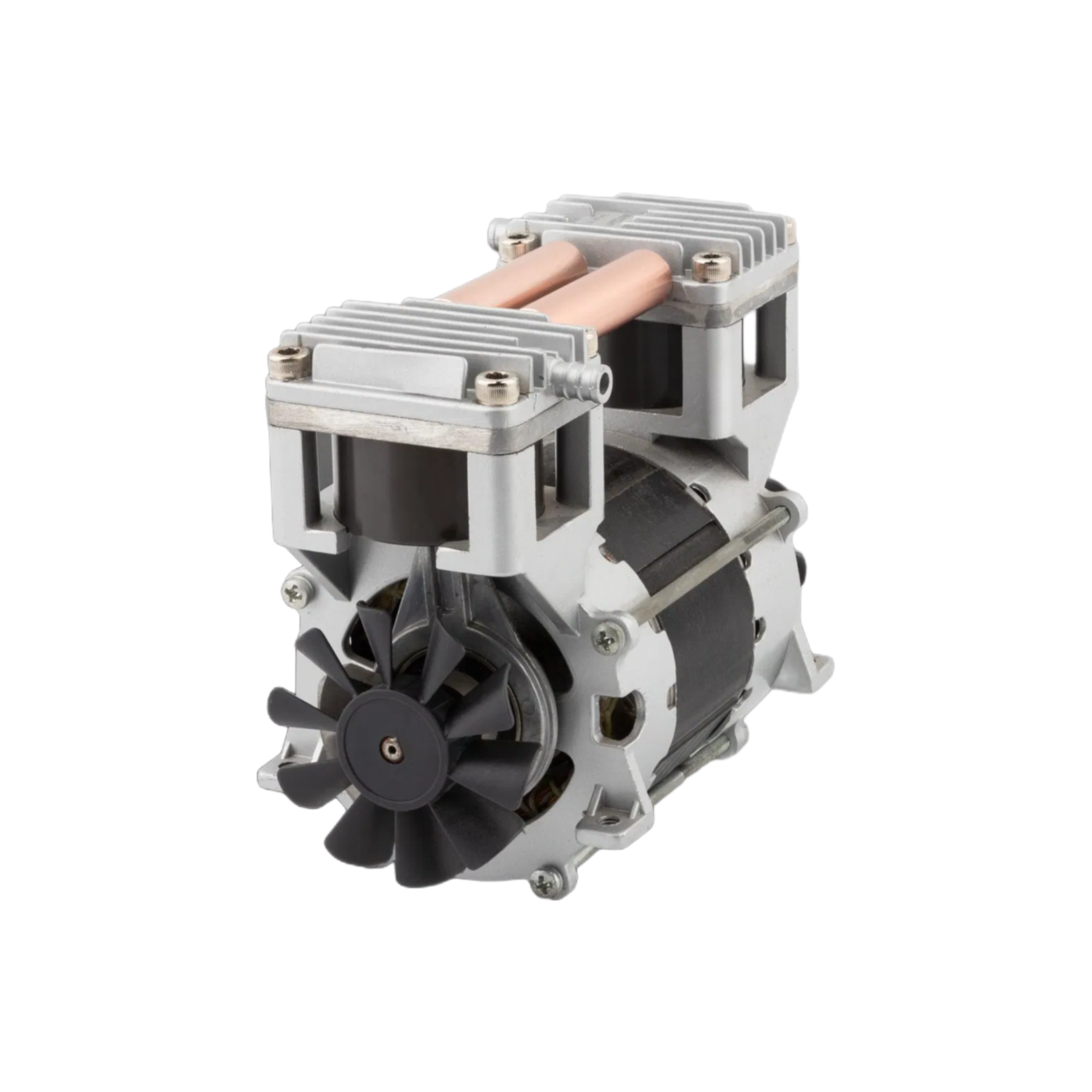

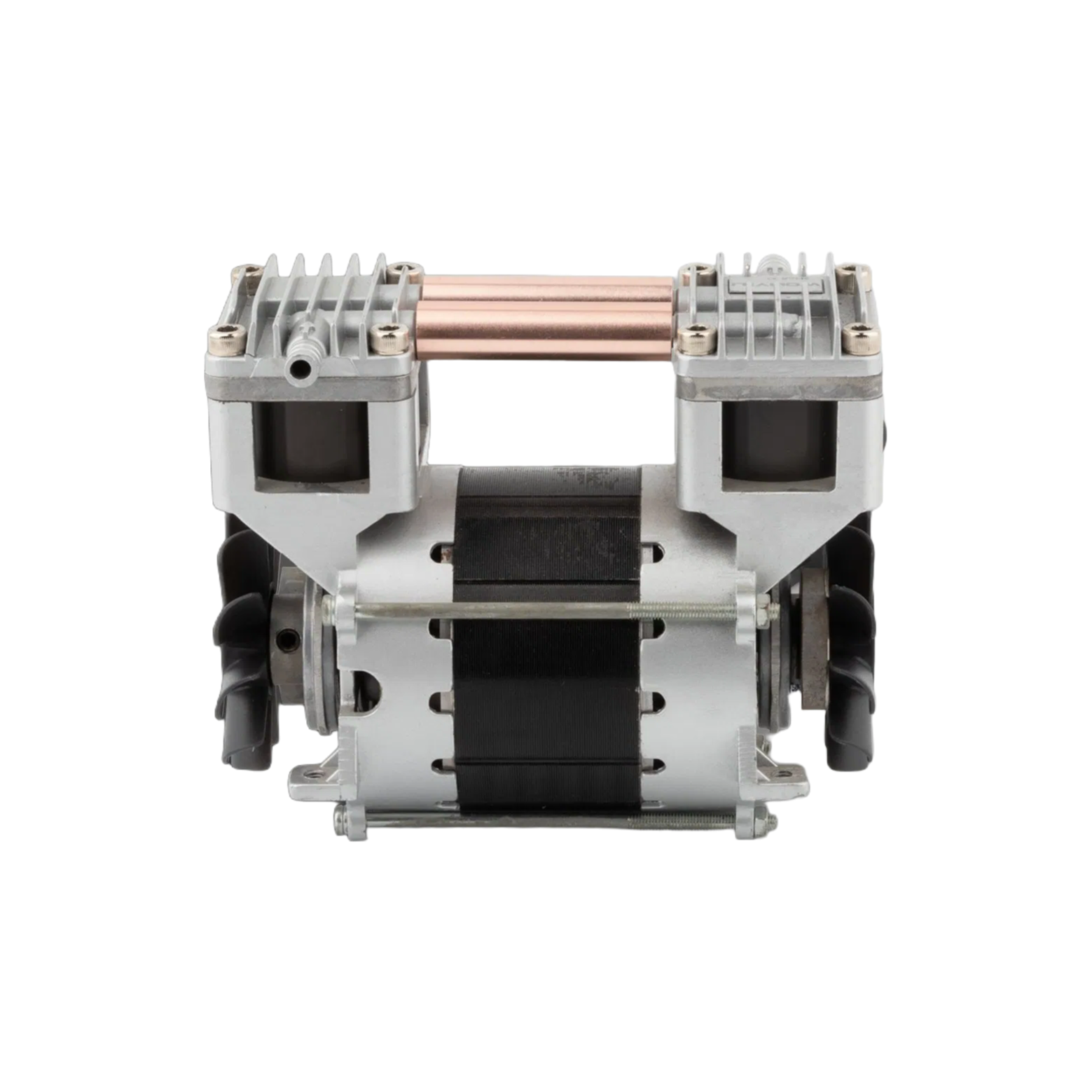

Especially in ventilators and oxygen concentrators where any oil vapor is a non-starter, this rocking piston design delivers a clean 50L/min flow without hydrocarbon contamination—steel construction keeps it substantial but not bulky at roughly L100x74mm, so it’s easy to shoehorn into an existing chassis.
The 0.12kw single-stage unit pulls to 200kpa at under 58 dB, which is quieter than most diaphragm alternatives we’ve handled, and the air cooling means no liquid loop to maintain or leak, basically plug-and-play if you’ve got teh cord.
We’ve seen these used in nitrogen generation skids where the oil-free output saves on downstream filtration, but it’s not suited for high-presure pneumatic tools over 200kpa—that’d be wrong compressor altogether.
Stock on the PM0200C is usually steady, but some buyers order the twin-head variant; lead time can slip to 20 days or so during peak months, so check before committing to a tight build schedule.
The 2-year limited the motor and rocking mechanism, but the reed valves are consumables. That’s a detail we mention because first-time buyers don’t always factor in valve replacement (typically every 12-18 months under continuous use).
Our MOQ for the PM0200C is typically 50 units per order, but we can discuss smaller trial orders depending on your needs.
Lead time is usually 25-30 days after order confirmation, as these are built to order. We can expedite if you need a rush.
Yes, we can supply a test report confirming the <58 dB noise level and oil-free operation, plus a CE certificate if needed.
Yes, standard packaging includes an intake filter and a check valve. Other accessories like a pressure switch are optional add-ons.
The 0.12kw motor can be wound for 110V or 220V 50/60Hz. Just specify your voltage when ordering, and we'll adjust it.
