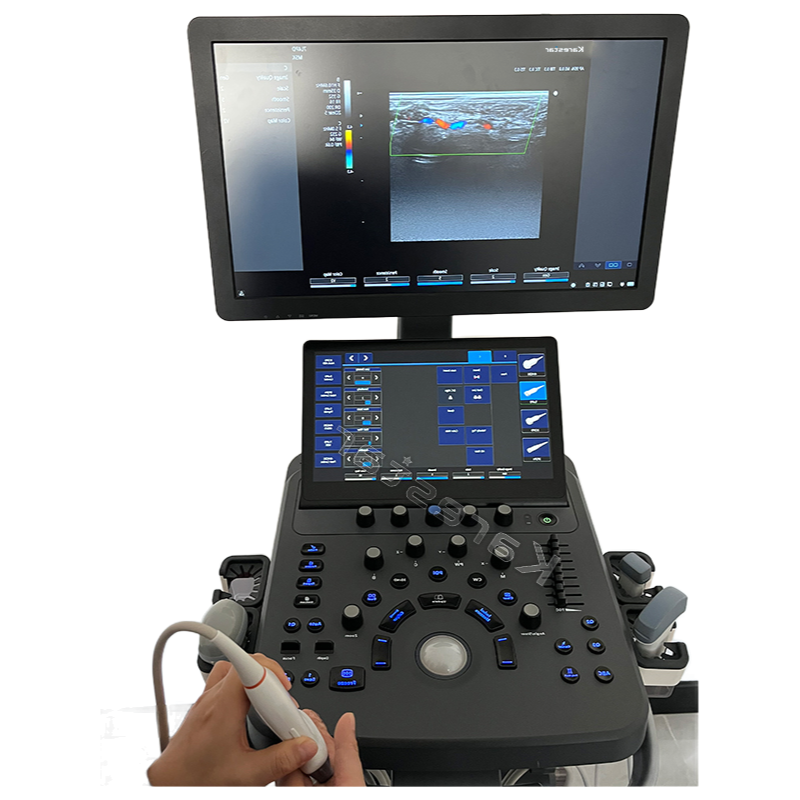

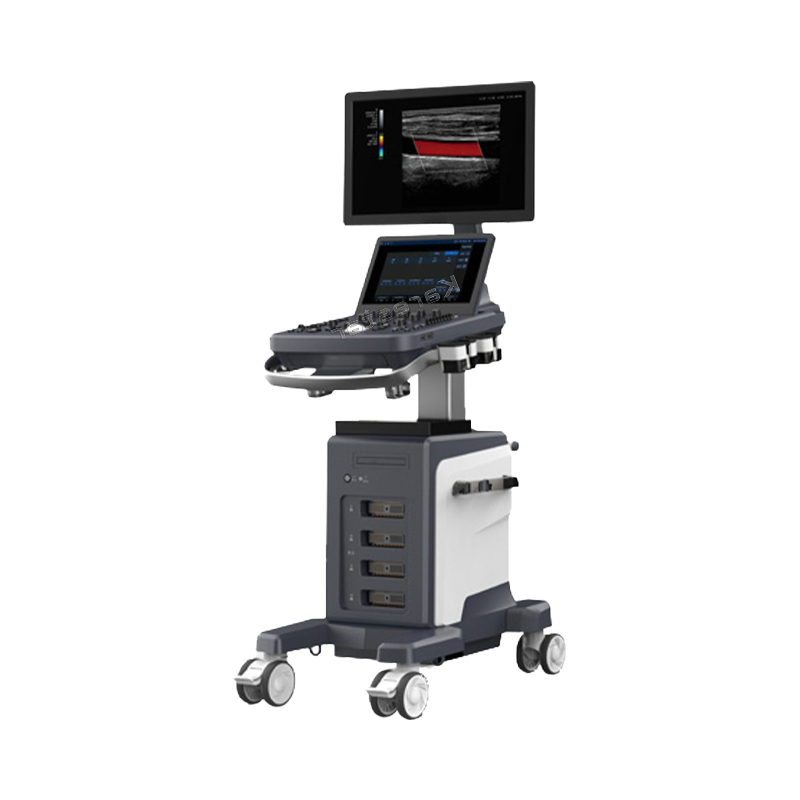

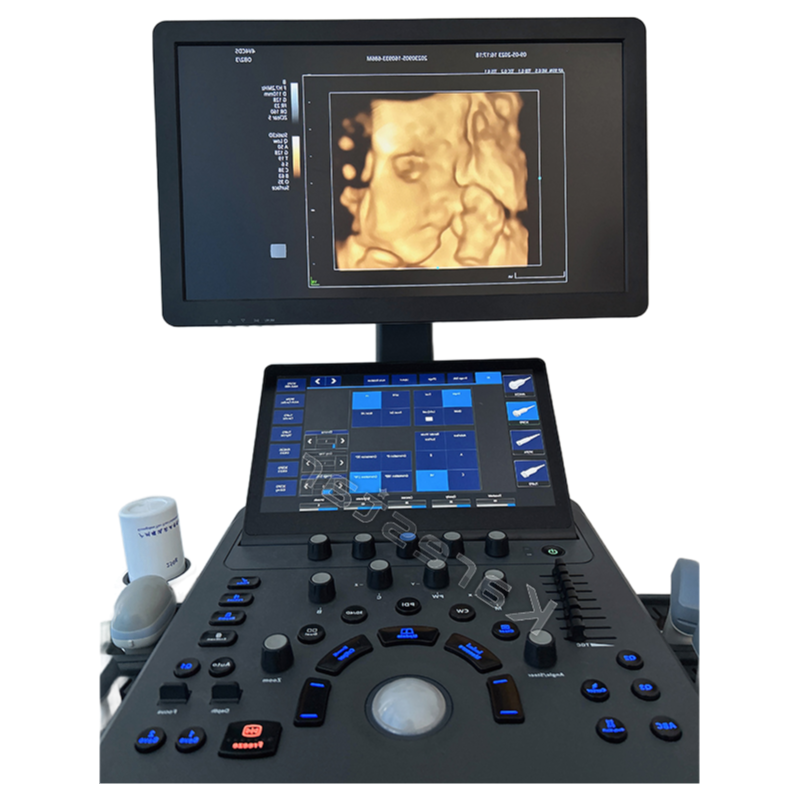

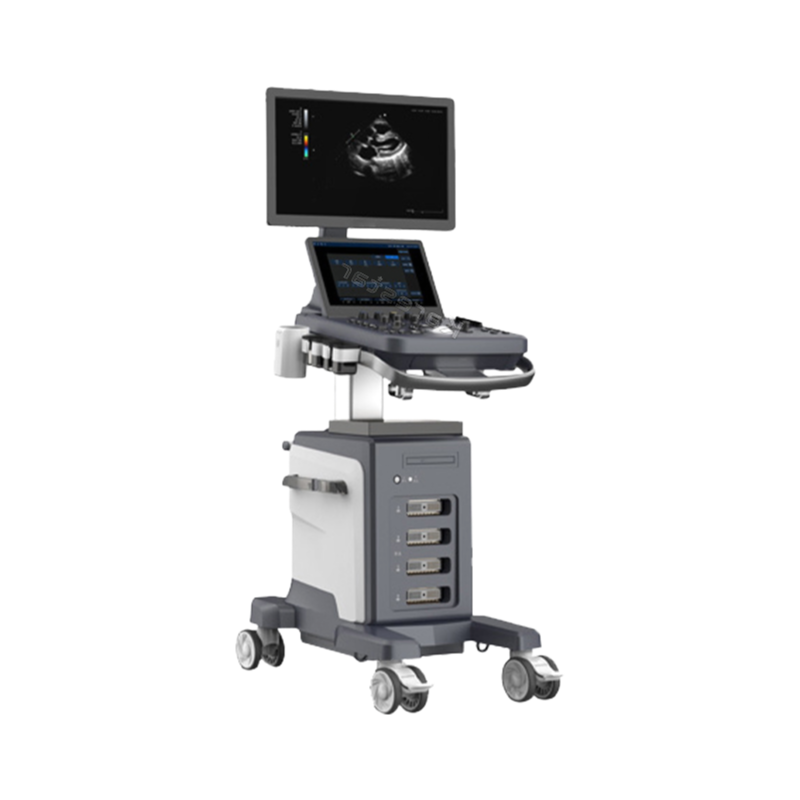

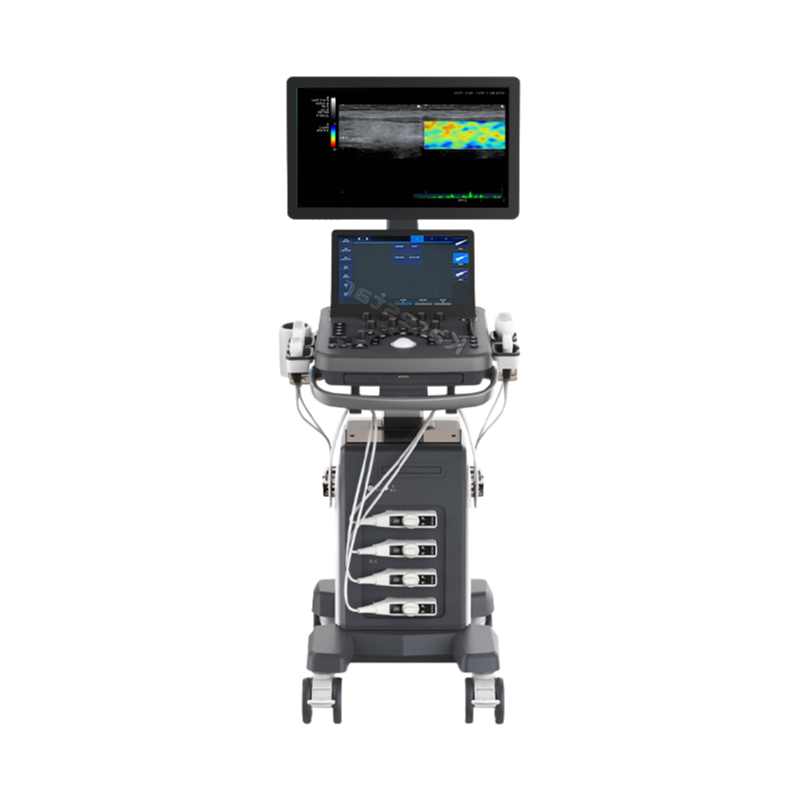

High-Performance Hospital Trolley Ultrasound Machine with 21.5-Inch Monitor and Touch Screen

This professional-grade trolley hospital doppler ultrasonic equipment is engineered for high-precision veterinary diagnostics. It integrates 4D cardiac color doppler technology, providing detailed imaging for a wide range of animals including canine, feline, bovine, equine, suidae, and ovine species. The system is equipped with a 21.5-inch high-resolution color display and a 13.3-inch touch screen for intuitive operation and clear visualization of results.

With four activated transducer connectors and one pen probe port, the ultrasound machine supports versatile probe options, including convex array, linear array, trans-vaginal, micro-convex, phased array, and 4D volume probes. These probes offer basic frequencies ranging from 2.0MHz to 12.0MHz and harmonics frequencies from 1.5MHz to 6.1MHz, ensuring adaptability to various diagnostic needs. The depth range varies from 20mm to 420mm depending on the probe type, facilitating comprehensive examinations.

The ultrasound system boasts advanced imaging functionalities such as B mode, B steer, 2B/4B, M mode, B/M, CDFI, PDI, CM, PW, anatomic M mode, 3D/4D, panoramic, color panoramic, and TDI. Additional features include raw data storage for offline analysis, EFOV (Extended Field of View), SCI (Spatial Compound Imaging), FCI (Frequency Compound Imaging), TSI (Tissue Specific Imaging), HR Flow, and dual live synchronization. These technologies enhance image quality and diagnostic accuracy.

Designed for ease of use, the machine includes a hidden draw-out keyboard, gel heating cup, and options for built-in Li-ion battery, elastic imaging, CW mode, TDI, TVI, TEI, TVM, TVD, static 3D, 4D module, and more. It supports multiple body marks (over 200) and languages including English, Chinese, French, Russian, and Spanish. The system is DICOM compliant, facilitating seamless integration into veterinary practice management systems.

Constructed with durability in mind, the unit has dimensions of approximately 528mm (width) x 1235mm~1435mm (height, adjustable) x 607mm (thickness) and weighs around 65kg. It features a robust hardware configuration with 8GB DDR4 RAM and a 500GB HDD for efficient data handling. Connectivity options include USB ports, video outputs (VGA, HDMI), ECG port, network port, and printer support for thermal or laser printers.

This ultrasound machine is ideal for veterinary clinics and hospitals seeking reliable, high-performance diagnostic equipment. It is certified with CE, FDA, EEC, and ISO13485 standards, ensuring quality and safety. Customization options are available for OEM and private labeling, making it suitable for bulk orders and specific requirements. The product is supplied with comprehensive after-sales support and periodic follow-ups to ensure customer satisfaction.
