High Energy 10 Bar Shockwave Physiotherapy Device with 21Hz Frequency

A physio treating someone with chronic plantar fasciitis will fire this up and start working around the heel and arch, hitting the fascia at different angles until the tissue gets that distinct tap-tap sensation, and it’s usually about 15 minutes per session with the 21Hz frequency keeping rhythm steady enough to avoid bruising but still deep enough to break up scar tissue.

It’s not for vascular issues like varicose veins, and don’t use it directly over bone fractures, but for tennis elbow or frozen shoulder it basically does what a deeper manual therapy would take three times as long to accomplish, and we’ve found the 10 bar max energy is plenty for most muscle groups (back tension rarely needs more than 6 bar anyway).

The radial wave head—what it does is transfer pneumatic presure through a bullet that lasts about 2 million shots or so, which in practice means you’ll replace it every 6 months if you’re doing 30 patients a week, and 5 spare bullets come with the unit, each one roughly 2,000,000 impacts before the tip wears down.

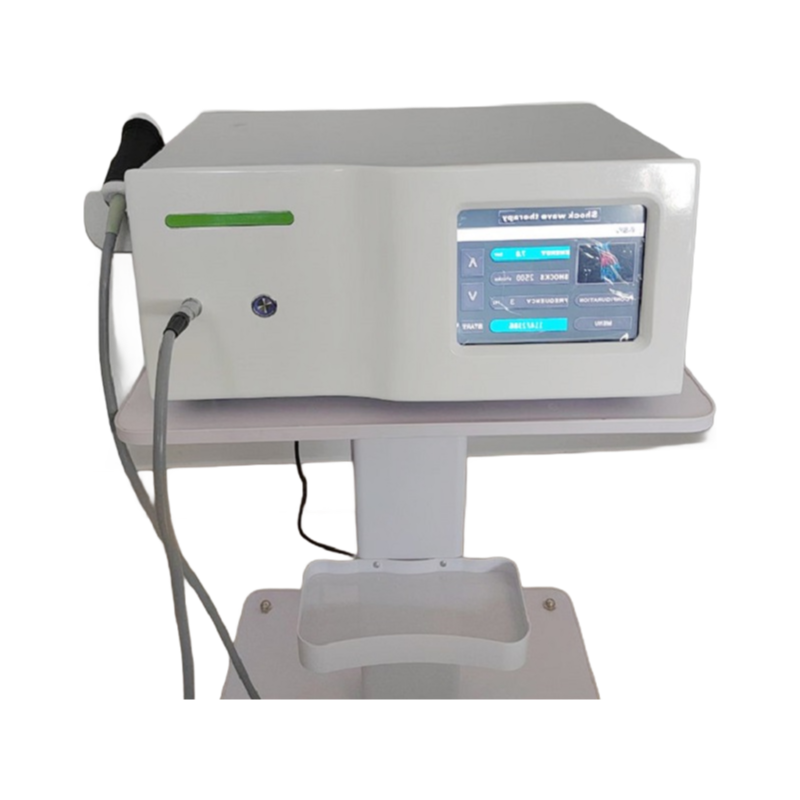

Spec-wise the MNLT-SW3 draws 282VA and runs on either 110V or 220V without a transformer, which meant we didn’t have to rewire the treatment room, and the 24kg weight (53x43x44cm) is manageable on a wheeled cart but not something you’d want to lift onto a shelf daily.

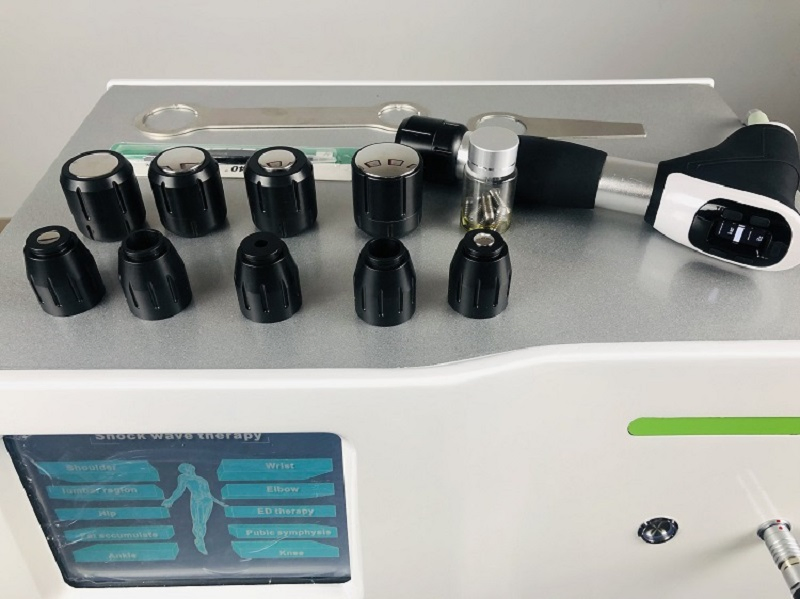

10 applicator heads included—5 concave for flatter areas like teh back and 5 convex for joints and bony spots—and while most buyers go with the continuous mode for deep work, the 4-pulse setting is actually better for trigger points in the neck where you want shorter bursts.

Stock is usually avaliable but check lead time on bulk orders, and the CE and ISO13485 certs are on file if your compliance team needs them.
