Compact Veterinary Anesthesia System with APL Valve and Pressure Gauge

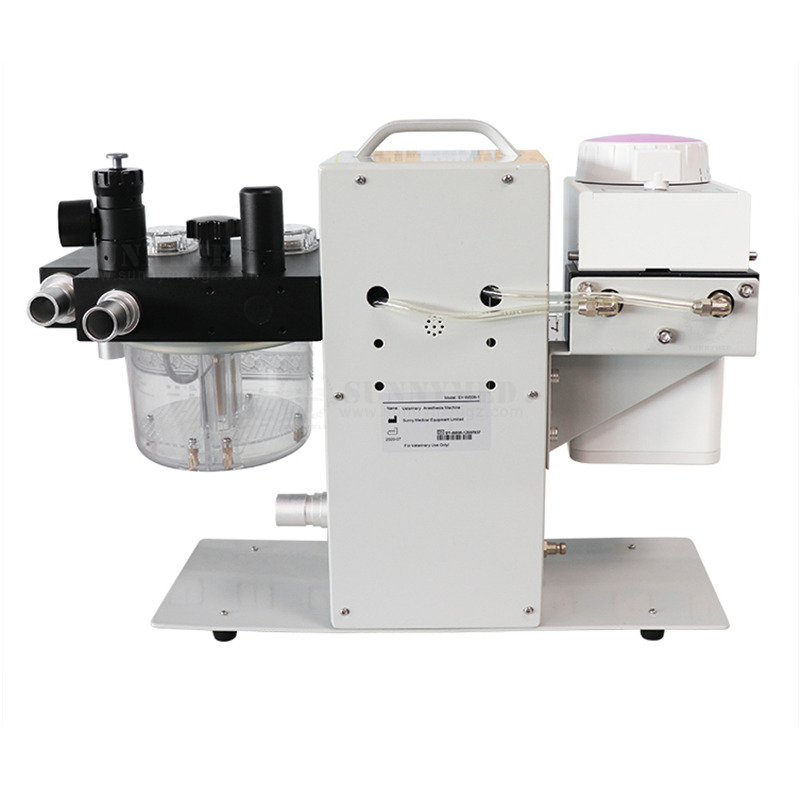

The SY-W006-1 Veterinary Anesthesia Machine represents the latest in animal surgical care technology. This compact yet powerful system is designed specifically for veterinary clinics, hospitals, and research facilities requiring reliable anesthesia delivery for small animal procedures.

At the heart of the system is the high-precision O2 flow meter system, offering dual-tube configuration with adjustable flow rates from 0-1L/min to 10L/min. The optional O2/Air two-tube configuration provides additional flexibility for various clinical requirements.

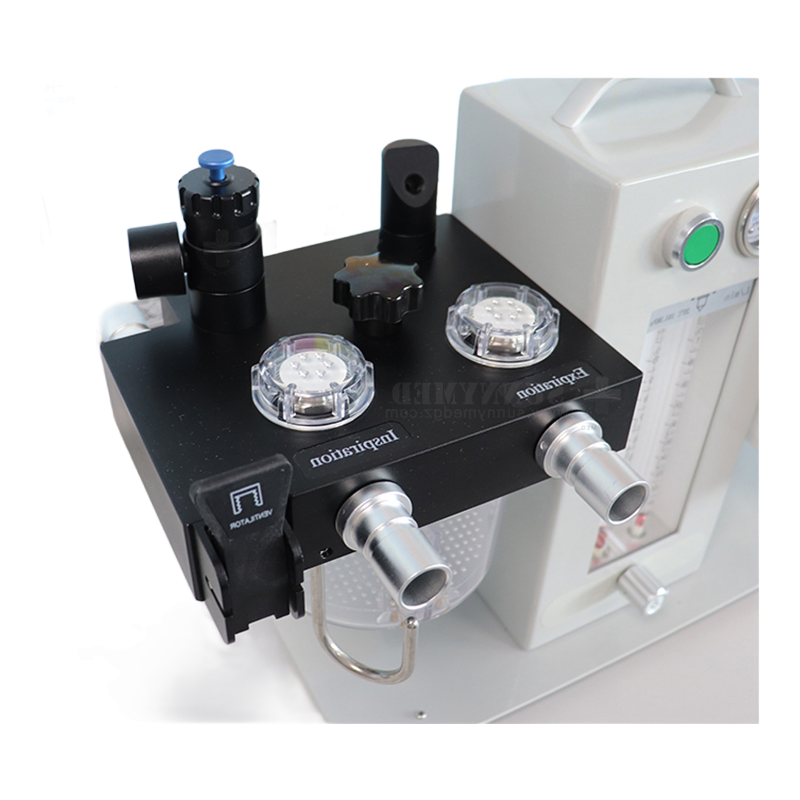

The integrated CO2 circle absorber system includes multiple critical components: APL valve for pressure limitation, airway pressure gauge for real-time monitoring, soda lime chamber for CO2 absorption, and dedicated inspiration/expiration valves. The 1-liter soda lime chamber is designed for easy maintenance and replacement.

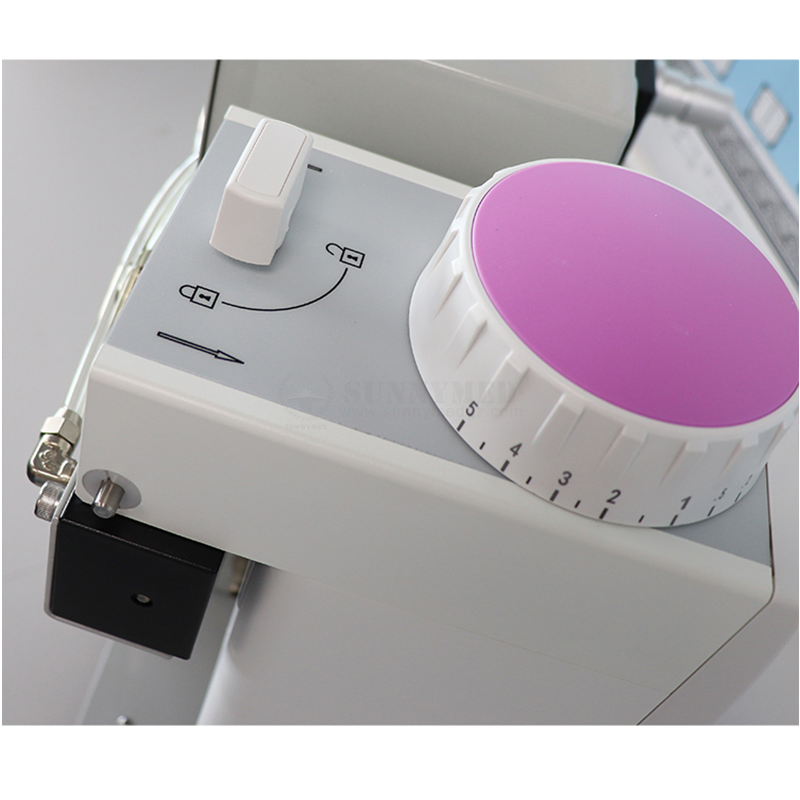

For anesthesia agent delivery, the machine features a professional TEC3 vaporizer compatible with multiple agents including Enflurane, Isoflurane, Halothane, and Sevoflurane. The selectatec mounting system ensures secure vaporizer placement with compatibility for cage mounting configurations.

The breathing circuit options include both open and closed configurations, with standard Bains connector for Jackson or Bains breathing circuits. The comprehensive airway pressure gauge provides dual-scale measurement (0-100cmH2O and 0-10Kpa) for precise monitoring.

Designed for clinical efficiency, the SY-W006-1 features a convenient O2 flush valve (25-75L/min) and operates with standard O2 gas sources at 0.3-0.4MPa pressure. The system's compact design includes a top handle for easy mobility and is compatible with standard medical trolleys.
