Production batches do vary slightly in color from the coating process, though we maintain tolerances and retest if the galvanized finish strays beyond 10% of spec — it's pretty much what you'd expect from hot-dip work at this price point. We usually run a 30kN tensile test on three samples per 500-unit batch, so consecutive lots are consistent within about 2kN variance if that matters for your guy wire setup.

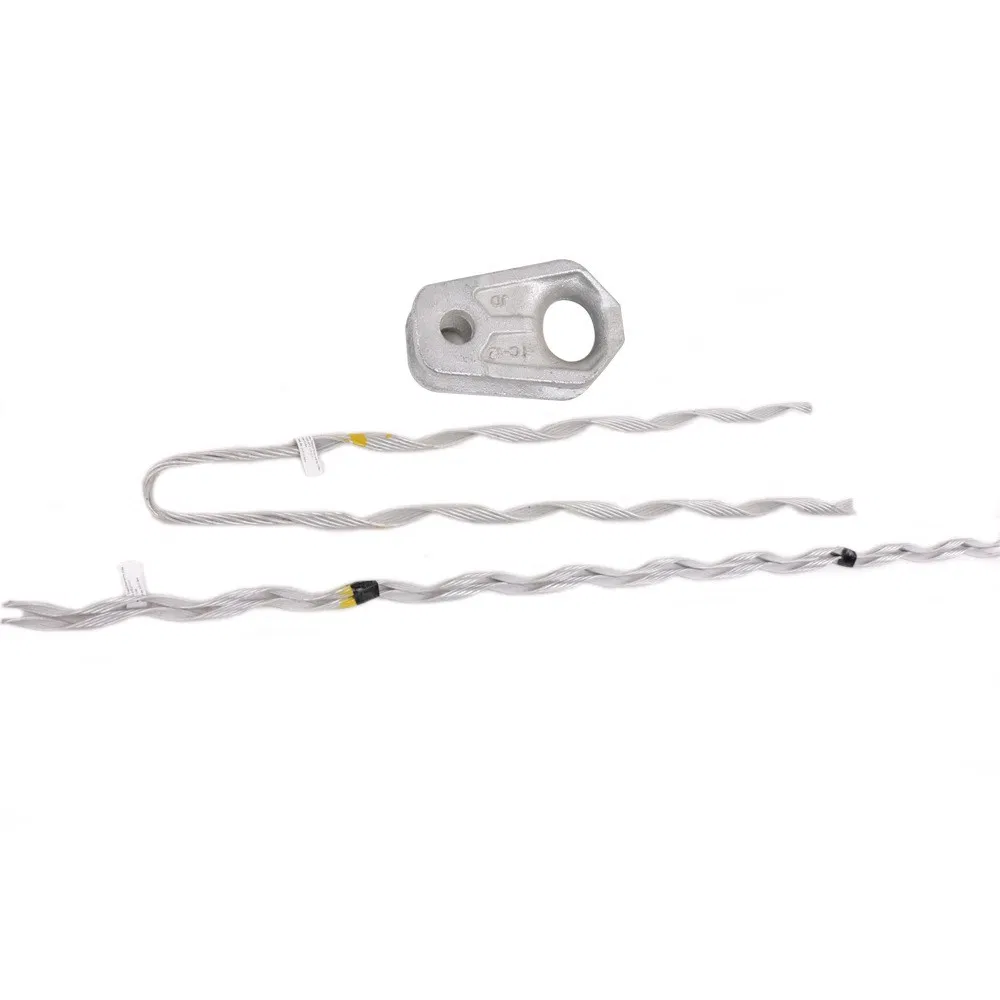

Its main limitation is that the C-type clamp cannot be reused after insallation — the preformed design deforms permanently for that 100% holding capacity of the wire's rated strength, so plan your layout carefully. And the 3-22mm cable diameter range covers most overhead earthwire and wire rope jobs, but your span limit is basically 300 meters before you need intermediate supports. We've had buyers try it on tower anchors with smaller gauge wires, and it works fine as long as you match the color-coded size marker to the cable OD.
What it does is wrap around bare galvanized steel without into the strands — the grip distributes tension evenly, which is better than standerd clamps for maintaining wire integrity over temperature swings under heavy loads. ISO and CE certs cover the galvanizing thickness and the 30kN rated tensile strength (unless you need a specific coating certifcate for a utility spec). Actually, should we run an extra retest on the peel adhesion at your request? MOQ on retested lots is 300 units, lead time about 20 days or so.
We ship in standard export packaging — usually 50 clamps per corrugated carton with poly bags to prevent surface scuffing, and the color is often yellow or black, though green and orange are available if you want visibility markers for aerial bundles. I'd say most buyers go with black for standard guy wire anchoring to blend with environment, but it's a preference thing. 5. Holding capasity is 100% of the cable's tensile rated strength per manufacurer data, but for anything below 5mm cable you'll need to verify thread count because the grip might slip with fewer strands. The RoHS marking on the zinc isn't really relevant for outdoor power transmission, but it's there if you're importing into regulated regions.
Our MOQ is typically 500 pieces per size, but we can be flexible depending on stock. Just reach out to confirm availability.
Yes, we include CE, RoHS, and ISO certifications with every order. Just let us know if you need them in a specific format.
That 30kN rating is for the complete clamp assembly, so it matches the wire's rated strength. It holds 100% of the wire's breaking load without slipping.
We can do custom colors for orders over 2000 pieces, but standard colors like yellow, black, orange, and green are always in stock.
We use standard export packaging: each clamp is individually wrapped to prevent scratches, then packed in sturdy cartons or wooden crates depending on quantity. That keeps them safe during long sea shipments.
