The 45mm stroke length moves smoothly through the full compression cycle without needing a second pump on 32mm PEX, and that’s where most manual tools stall out.
We’ve seen these hold up fine on REHAU HIS 311 systems and underfloor heating loops, but if you’re working with thin-wall alumnum-PEX, jaw alignment can feel a bit loose — it’s not a precision fit for every brand.

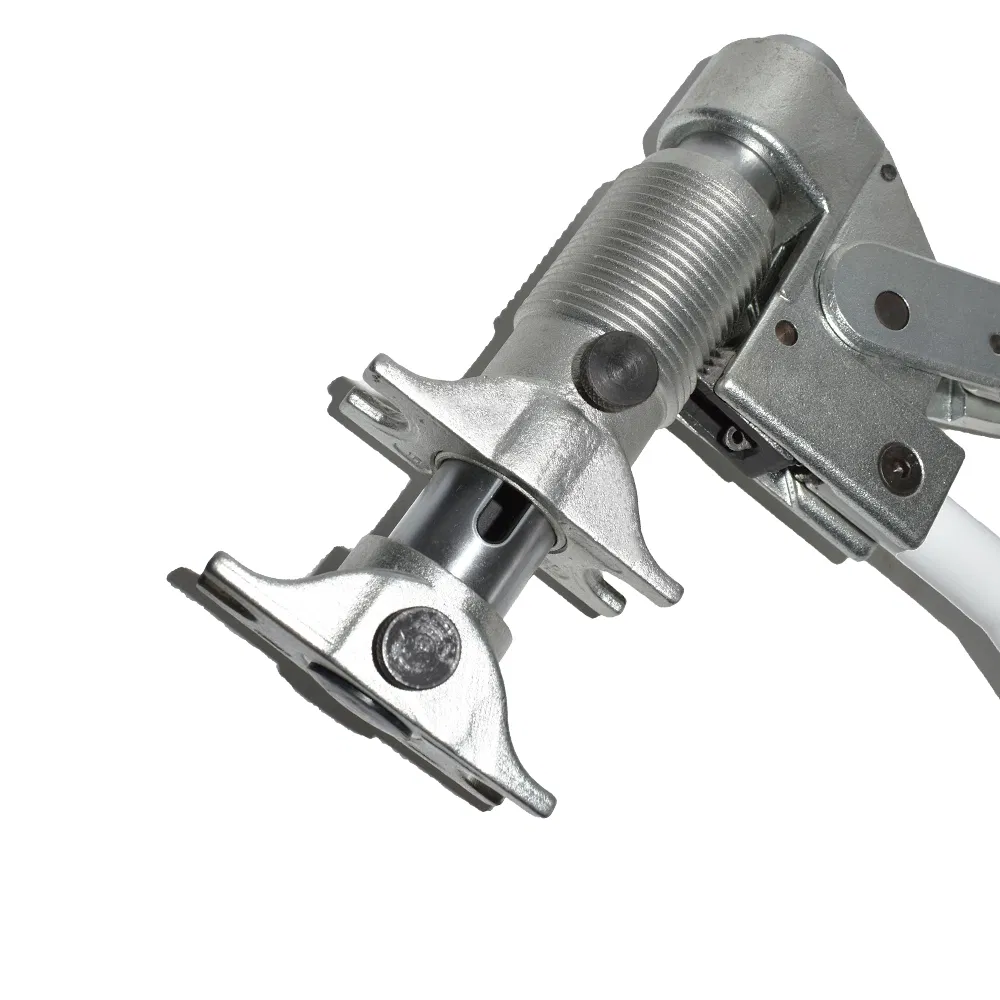

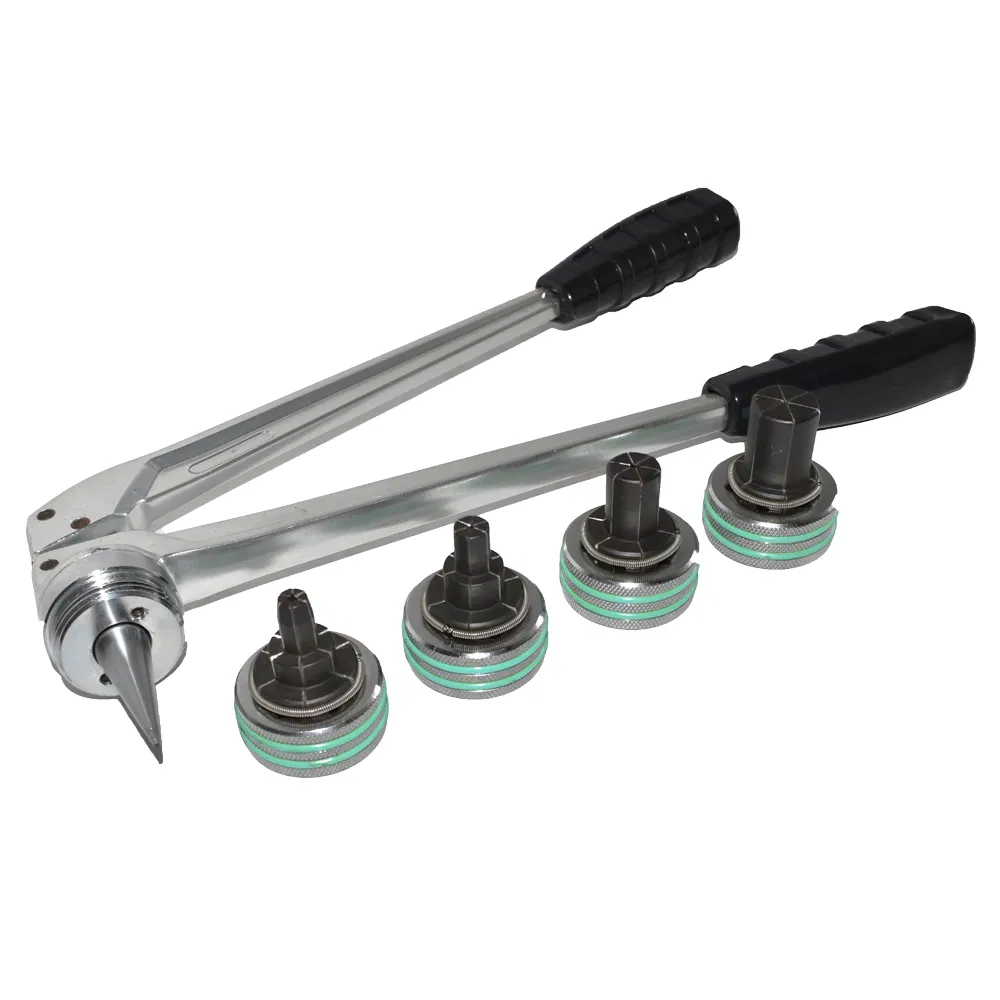

Each set ships in a plastic case with cutouts for the four expansion heads (16, 20, 25, and 32mm), and the double compression jaws mean you’re not swapping parts between runs on 20mm and 25mm.
The ISO cert covers the steel body and hydraulic cylinder, but we usually have stock — confirm lead time if you need 50 units or so, since the manual assembly line handles about 200 a week.
One thing that’s easy to miss is the handle length; at 280mm overall, it’s actually shorter than most hydraulic presses, which helps in tight cabinet corners but gives you less on the 32mm die — you’ll need two hands and a solid stance.
Most buyers just grab teh 3.2kg kit and go, but it’s not suited for continuous on 32mm — the manual pump gets tiring after 40-50 joints in a shift, and the steel body will heat up form friction if you push it faster than one joint every 20 seconds.
It handles up to 32mm PEX pipes, with expanding heads for Φ16, Φ20, Φ25, and Φ32mm sizes.
It's ISO certified, so you get a quality guarantee that meets international standards.
We offer a 1-year warranty covering any manufacturing defects.
The tool weighs 3.2kg and comes in a plastic case measuring 280×150×80mm, easy to carry on site.
Yes, we can customize the expanding heads or packaging based on your order volume—just contact us for details.
