It handles 700 bar working presure, which is 10,000 psi for those who prefer imperial, and the max torque range spans from 2534Nm all the way up to 39585Nm depending on which model you pick.
The alumnum titanium alloy body keeps it light enough to maneuver in tight spots, and we've seen these used extensively in petroleum refineries and construction sites where bolt sizes range from 18mm to 110mm. 3% repeat accuracy is better than most hydraulic wrenches at this price point.
What it does is eliminate hose tangling with that 360° x 360° rotary connector setup—you can work in confined areas without fighting the hoses. The power head and cassette are interchangeable with Hytorcs systems, so if you've already got some of those, you can swap components. Not suited for marine environments without extra corrosion treatment, by the way.
Most buyers go with the 8XLCT or 14XLCT for general construction work, but the 30XLCT is the heavy lifter for large flanges in metallurgy appliction. Nut hex sizes run from 27mm to 155mm, so it covers pretty much all standard industiral fasteners.
We usually have stock on the common models, but OEM orders typically require 20 days or so for customiaztion—confirm lead time if you need a specific color or branding. Warranty is 12 months, and we provide a COA with each unit. The 4XLCT is easier to handle in tight spaces than the bigger units, something buyers don't always think about.

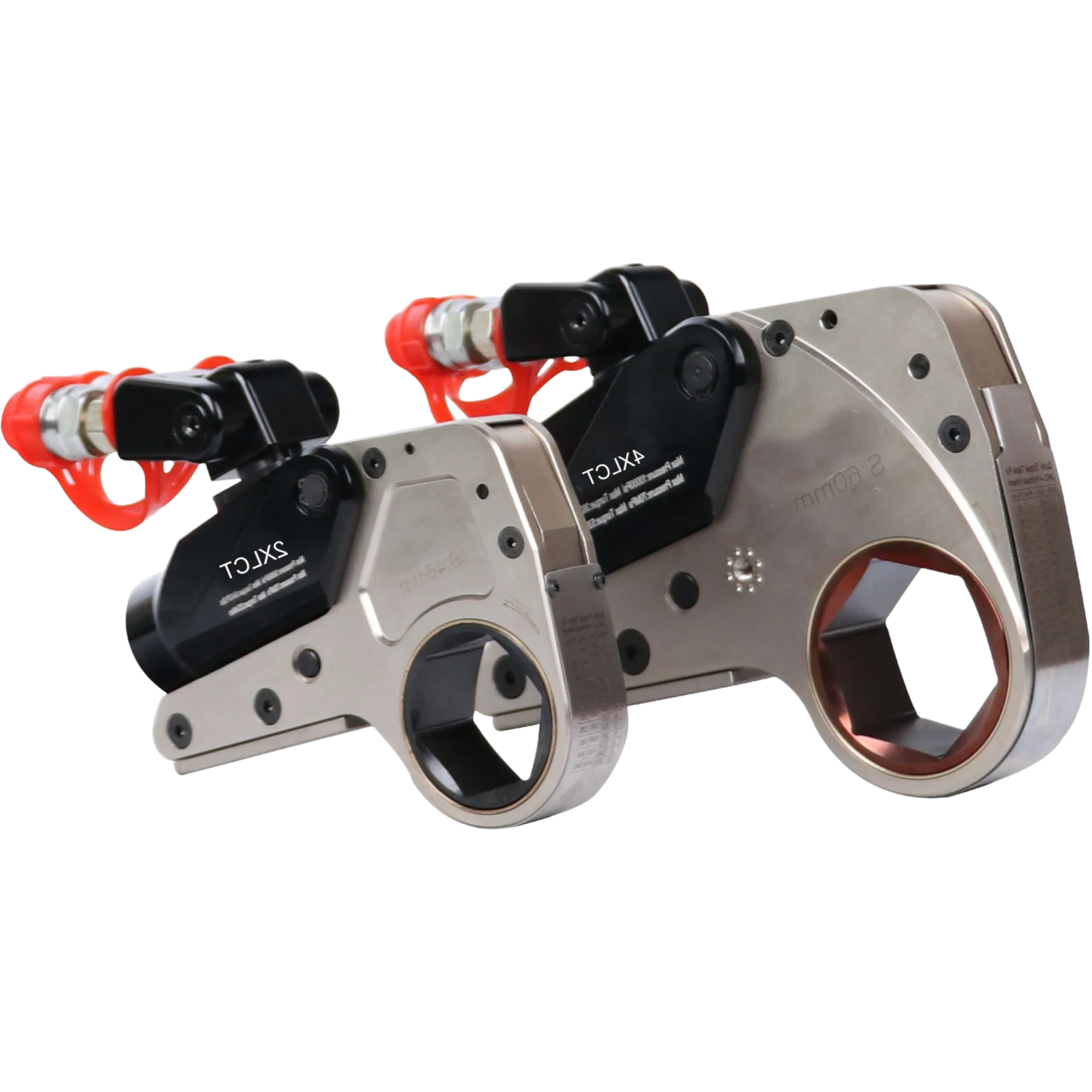

The 2XLCT goes from 2534Nm to 39585Nm, while the 30XLCT maxes out at 39585Nm. Basically, the numbers in the model name hint at the torque capacity, so 2 is the smallest and 30 is the biggest.
The standard setup is 360° x 360° hose rotation, but if you need a different rotation angle for tight spots, we can adjust it under OEM service. Just let us know what you need.
For OEM orders, we typically start at 50 units, but it depends on the complexity of the customization. If you're looking at a smaller batch, we can discuss it case by case.
Yes, every unit comes with ISO and CE certification documents included in the package. We can also send you copies before shipping if you need them for your records.
Keep them in a dry, clean environment at room temperature, away from extreme heat or moisture. The aluminum titanium alloy resists corrosion, but storing them in their original case helps keep the accuracy spot on.
