High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use
High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use
High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use
High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use

High Quality H07V-U H07V-F H05V-U PVC Insulated Electrical Wire for Industrial Use

US$ 0.05 ~ 5.00
Min.Order: 500
Product origin: Tianjin, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : H07V-U / H07V-F / H05V-U
  • Type : PVC Insulated Electrical Wire
  • Conductor Type : Solid or Stranded Bare Copper
  • Conductor Standard : DIN EN 60228 Class 1 or 2
  • Insulation Material : PVC
  • Available Colors : Red, Black, Blue, Brown, Grey, White, Green/Yellow, Yellow, Green
  • Rated Voltage (H07V) : 450/750V
  • Rated Voltage (H05V) : 300/500V
  • Test Voltage (H07V) : 2500V
  • Test Voltage (H05V) : 2000V
  • Operating Temperature Range : +5°C to +70°C
  • Bending Radius : Min. 4× diameter
  • Standards : IEC 60227-3, DIN VDE 0281-3
  • Certifications : ISO9001, CE, CCC, CSA

Our H07V-U/H07V-F/H05V-U series PVC insulated copper wires are designed for reliable electrical installations in various industrial and residential applications. These wires feature high-quality materials and strict manufacturing standards to ensure safety and performance.

The H07V-U/H07V-F models are suitable for dry locations, switchboards, and indoor fixed installations. They can be installed in surface mounted, embedded conduits, or on suitable objects. The H05V-U model is designed for protected fixed installations within equipment and lighting units, as well as for installations in pipes above and below gypsum, specifically for signal and control circuits.

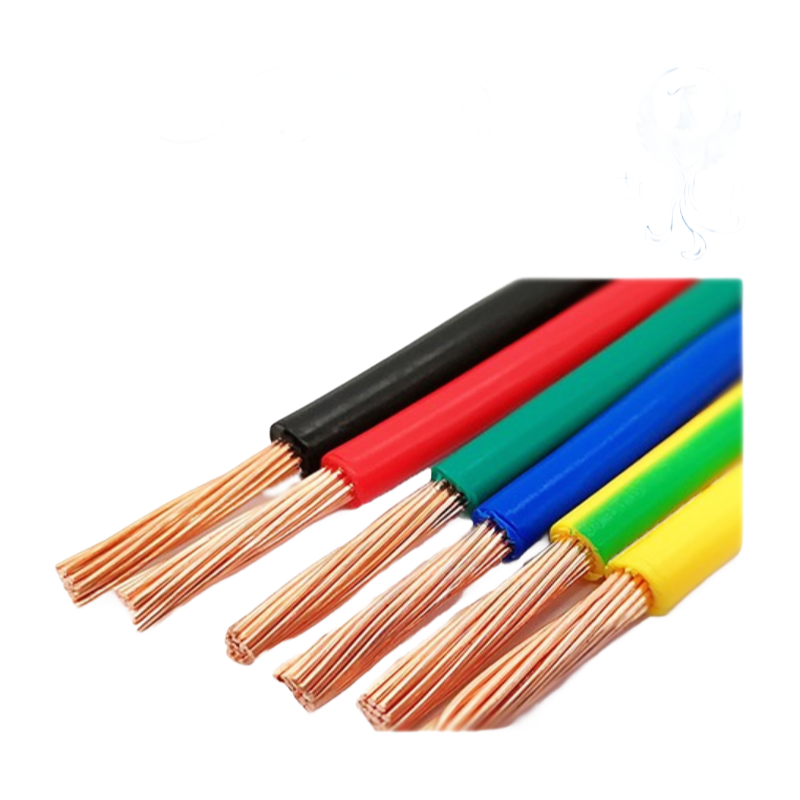

H07V-U PVC Insulated Wire

All our wires feature either solid or stranded bare copper conductors according to DIN EN 60228 Class 1 or 2 standards. The PVC insulation provides excellent electrical properties and durability. Available in multiple standard colors including red, black, blue, brown, grey, white, green/yellow, yellow, and green for easy circuit identification.

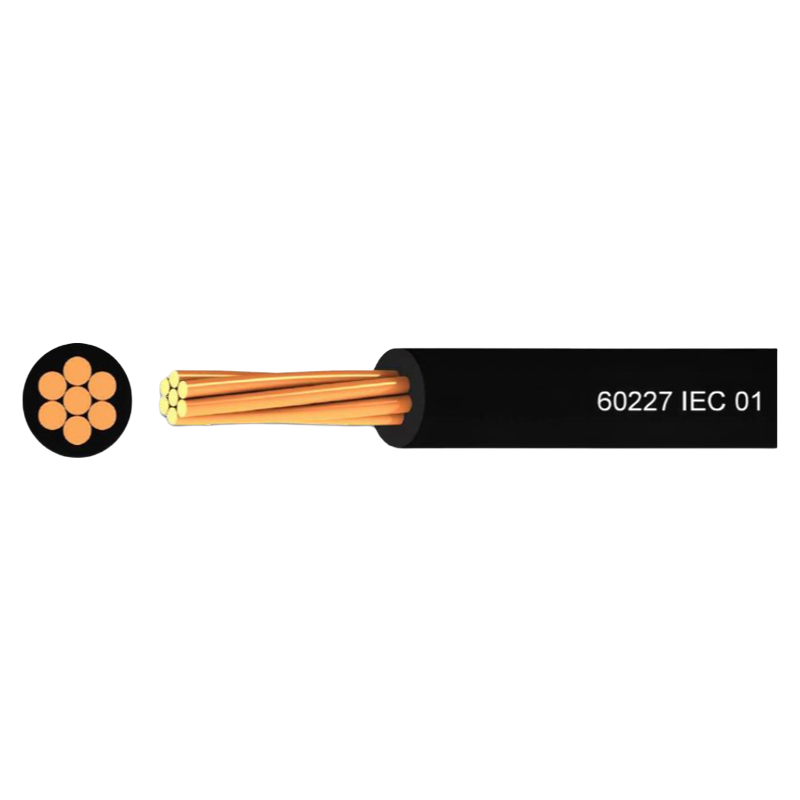

H07V-F Wire Cross Section

The H07V-U/H07V-F wires have a rated voltage of 450/750V and can withstand a test voltage of 2500V, while the H05V-U model is rated for 300/500V with a 2000V test voltage. All products operate within a temperature range of +5°C to +70°C with a maximum conductor temperature of 70°C.

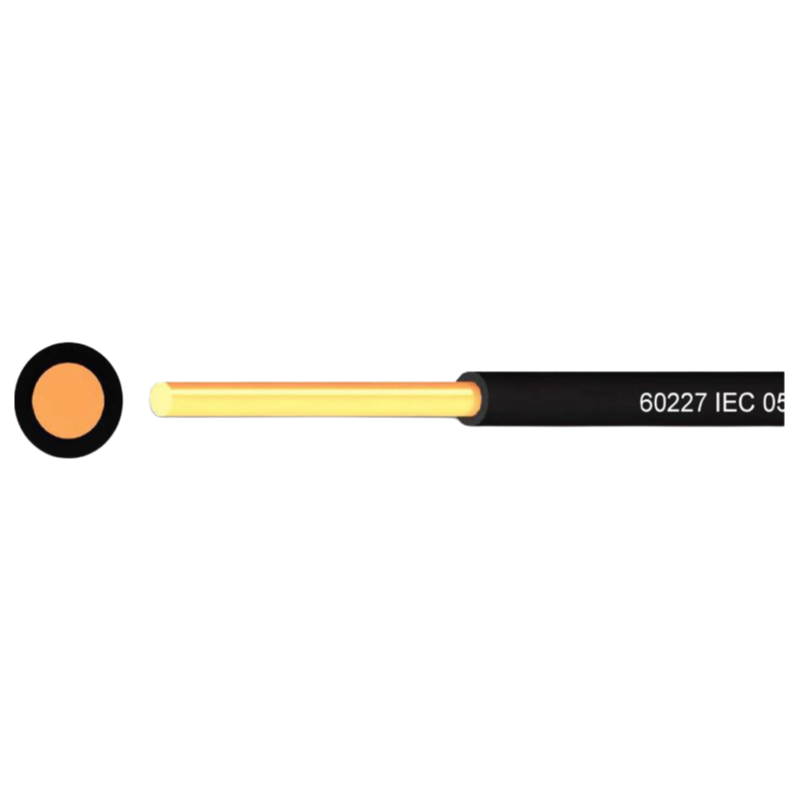

H05V-U Wire Sample

Our wires comply with international standards including IEC 60227-3 and DIN VDE 0281-3, and carry multiple certifications such as ISO9001, CE, CCC, and CSA. The minimum bending radius is 4 times the wire diameter to prevent damage during installation.

Wire Packaging
