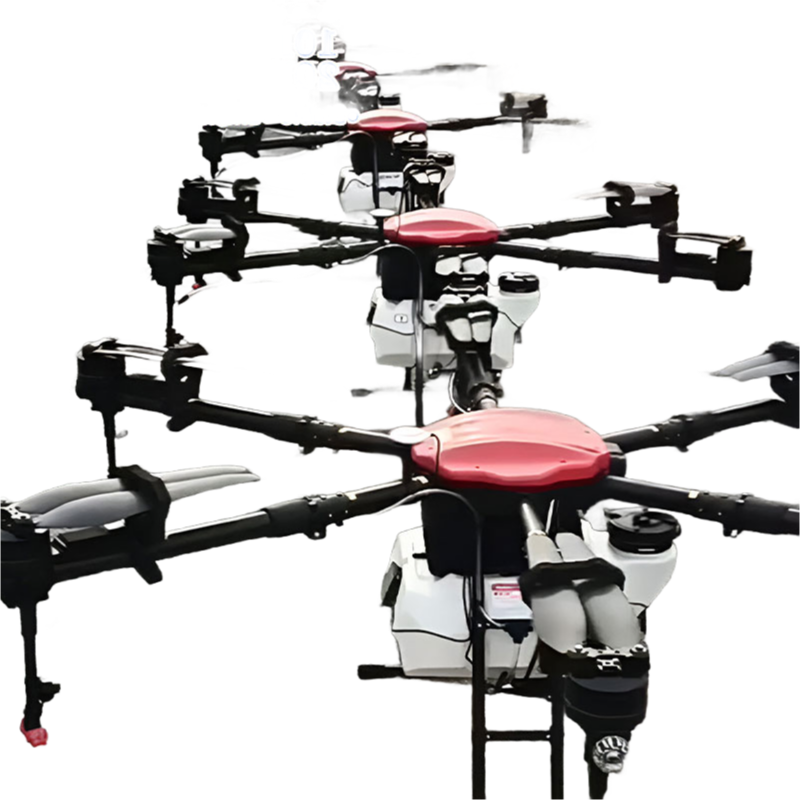

The TTA T20 agricultural spraying drone represents advanced technology for modern precision farming applications. This professional-grade UAV system combines robust construction with intelligent features to deliver efficient crop protection solutions.

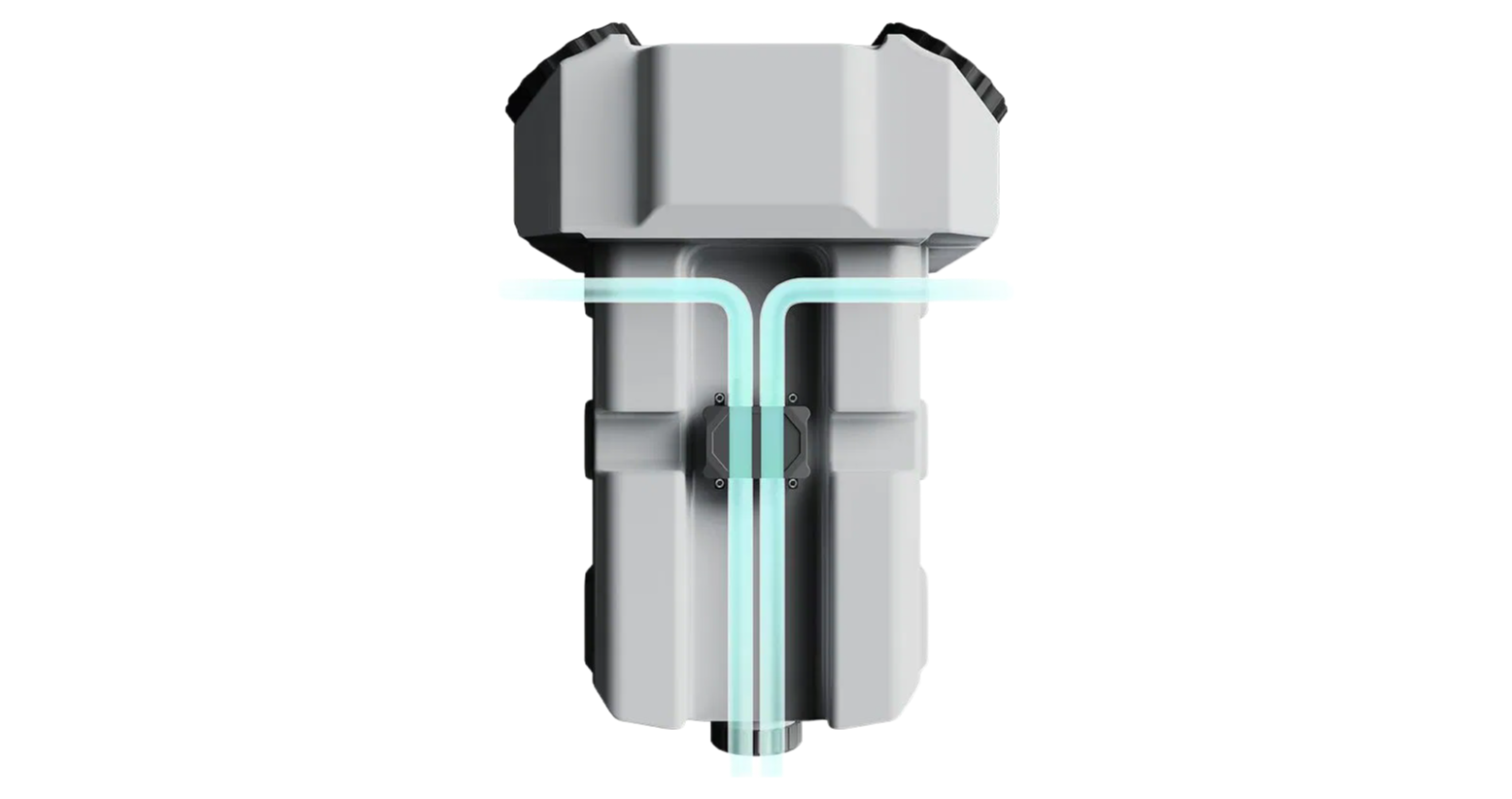

Equipped with a 30-liter pesticide tank and four high-efficiency nozzles, the drone achieves a spray width of 6-9 meters with droplet sizes between 170-265μm. The dual water pump system provides adjustable flow rates up to 8L/min for precise chemical application.
The RTK positioning system ensures centimeter-level accuracy (horizontal ±1cm, vertical ±2cm) for complete field coverage while preventing damage to neighboring crops. One base station can support multiple drones working simultaneously for large-scale operations.

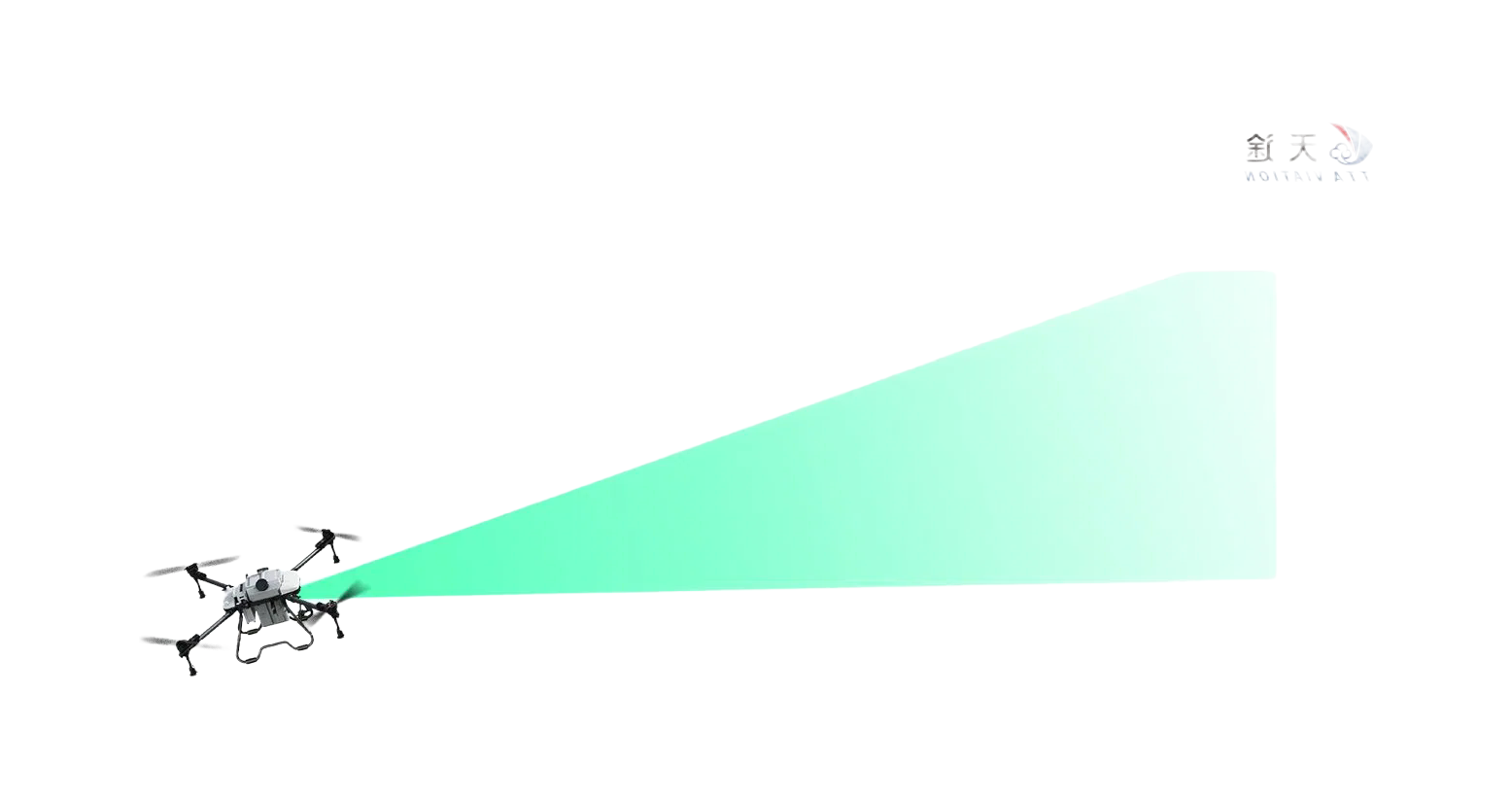

Key operational modes include preset route planning via GCS, KML file import, and quick scanning mode where operators simply set A/B points. The terrain following module adapts to undulating fields, while front/back obstacle avoidance sensors enhance flight safety.
With a maximum takeoff weight of 68.3kg (empty weight 20.8kg), the drone delivers 10-13 minutes of flight time with full payload. The included 30000mAh battery provides sufficient power for multiple spray cycles.
Additional features include FPV cameras for real-time monitoring, dual LED lights for night operations, and IP56-rated waterproof construction. The system is designed for spraying various agricultural inputs including pesticides, fertilizers, and disinfectants.
The complete package includes the drone, remote controller, batteries, charger, assembly tools, and professional packaging. With a work efficiency of 2-3 hectares per 10 minutes, this solution significantly improves agricultural productivity.
