PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating
PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating
PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating
PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating
PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating
PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating

PTC-H1C Advanced Drone Monitoring Device with 5.8GHz Detection and IP65 Waterproof Rating

US$ 23888.00 ~ 39999.00
Min.Order: 1
Product origin: Shenzhen, Guangdong, China
Category: Electronics
Product Name: Electronics
Availability:In Stock
Product Review : 6 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model NO. : PTC-H1C
  • Frequency Range : 900MHz, 1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz
  • Detection Distance : 1-10km
  • Drone Detection Number : ≥5 drones
  • Azimuth Error : ≤1.5° (RMS)
  • Location Error : ≤10m
  • Ready to Use : ≤120s
  • Weight : ≤18kg (Adapter excluded)
  • Size : 520mm*415mm*224mm (Case closed)
  • Power Consumption : ≤100W
  • Battery Run Time : ≥4h (Dual batteries)
  • Operating Temperature : -20°C to 65°C
  • Storage Temperature : -40°C to 70°C
  • Waterproof Rating : IP65 (Case closed)
  • Screen Size : 10.1 inches
  • Brightness : 500cd/m²
  • Resolution : 1080P (1920*1200)

It picks up drones form about a kilometer out, but we've seen it lock onto signals at over 8 kilometers in open terrain with clear line of sight—that's teh kind of range you actually get, not just a spec on paper.

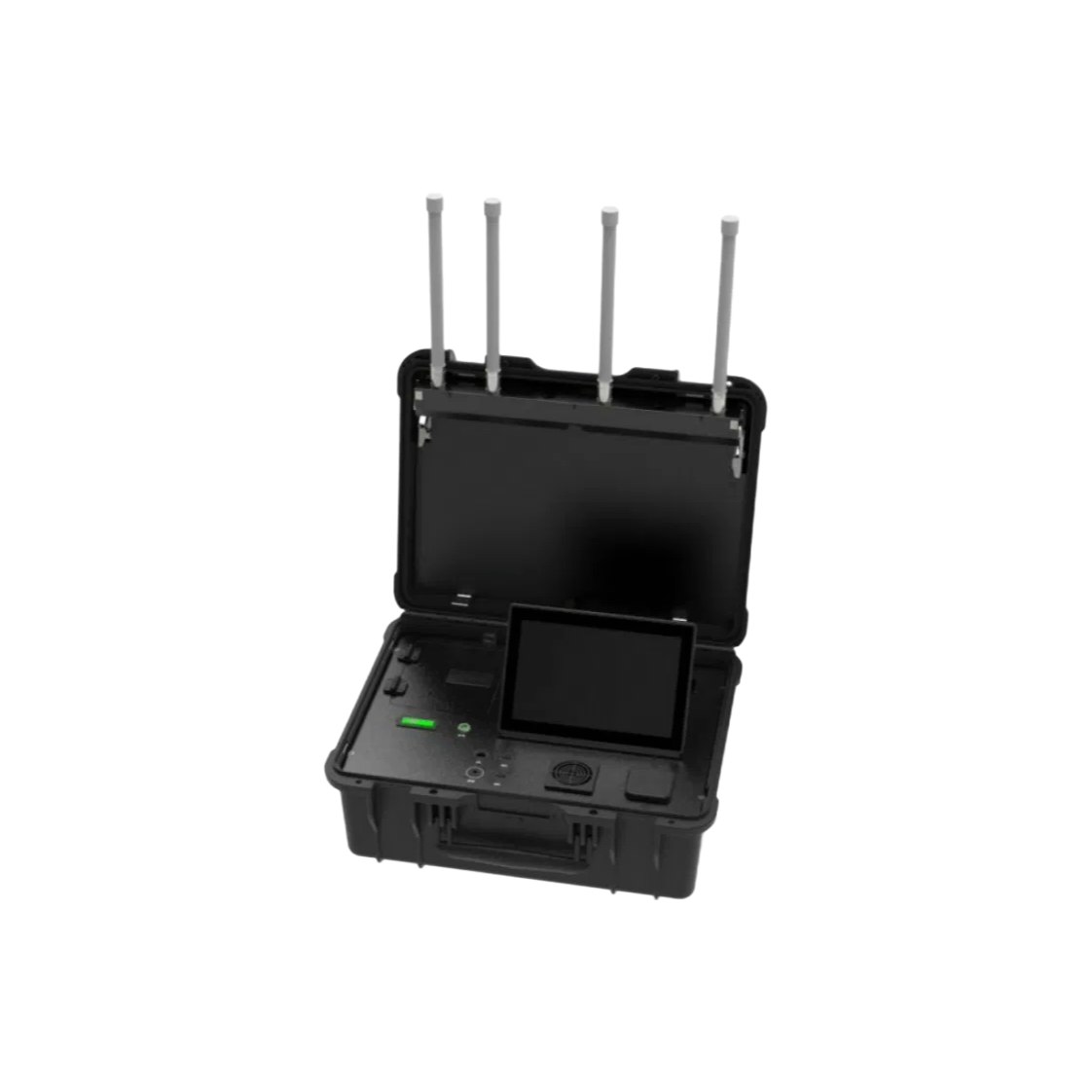

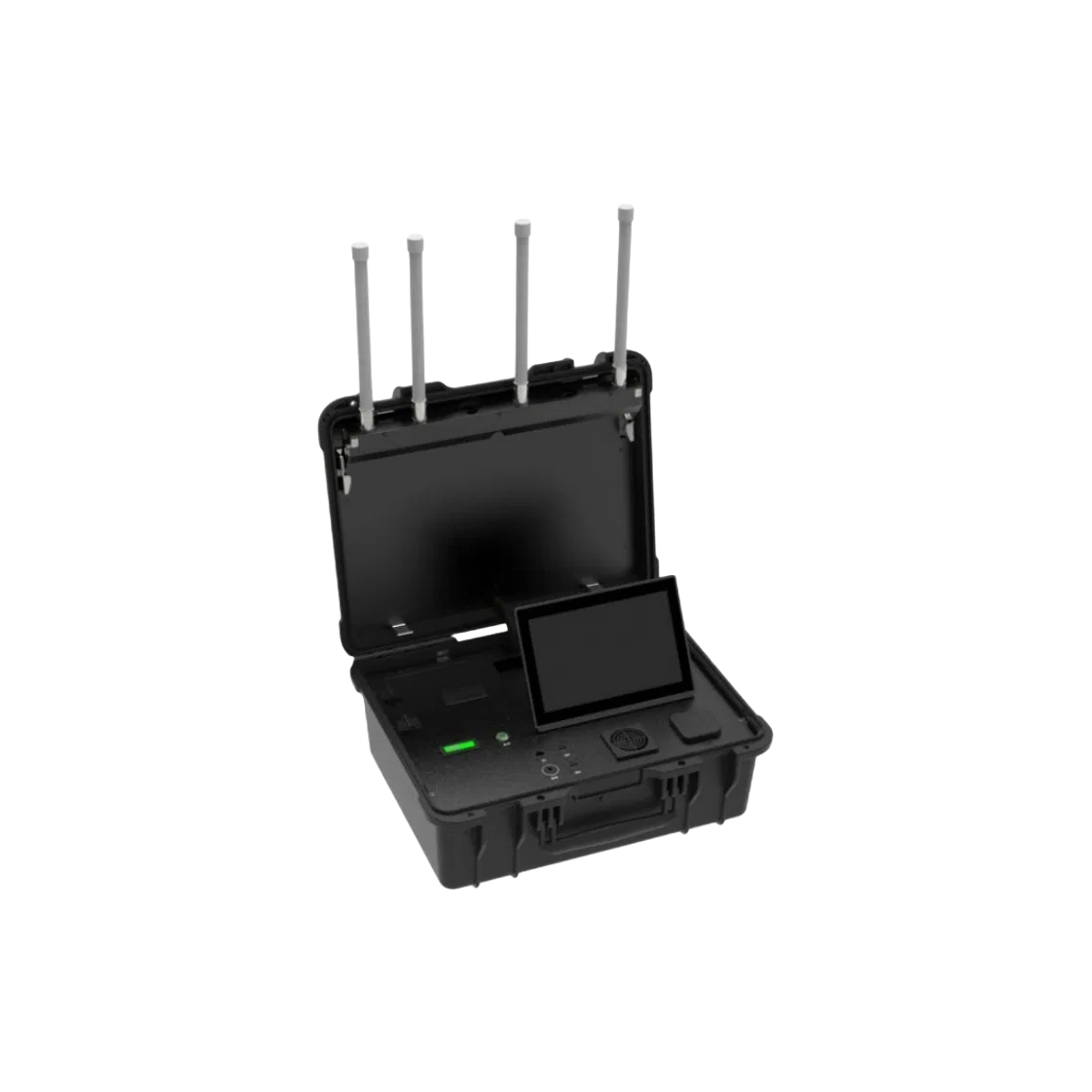

PTC-H1C Drone Detector

Basically, it covers all the common bands you'd expect: 900MHz, 1.2GHz, 2.4GHz, 5.2GHz, and 5.8GHz, so it'll catch DJI, Autel, FIMI, even DIY FPV rigs and WiFi drones, though it's not great for detecting micro drones that barely emit a signal anyway.

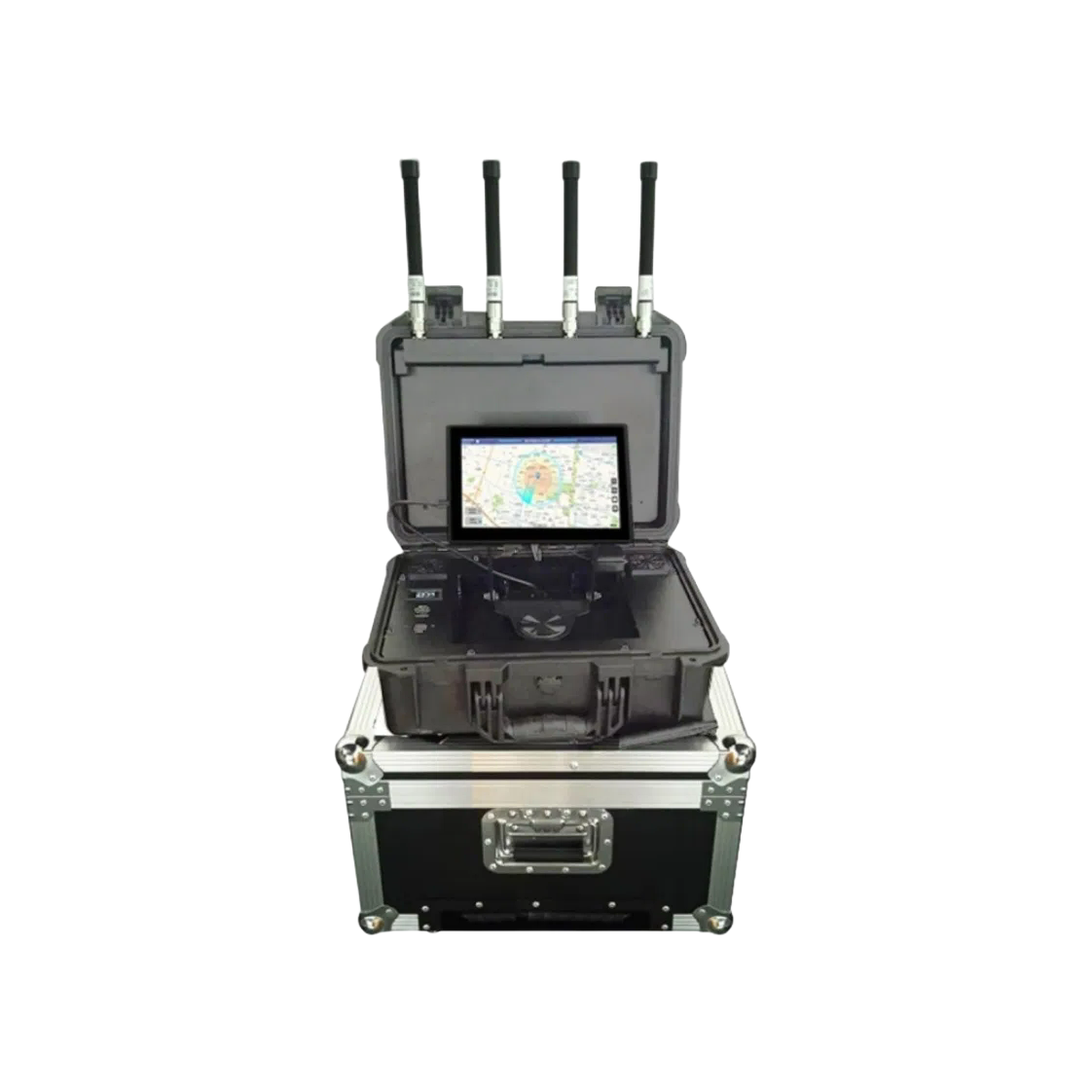

PTC-H1C in Operation

The azimuth error is under 1.5 degrees RMS, and location error stays within 10 meters or so—pretty tight for a portable unit—but what a lot of buyers don't realize is that the battery run time is about 4 hours on the dual batteries, and you can hot-swap them if you're quick about it.

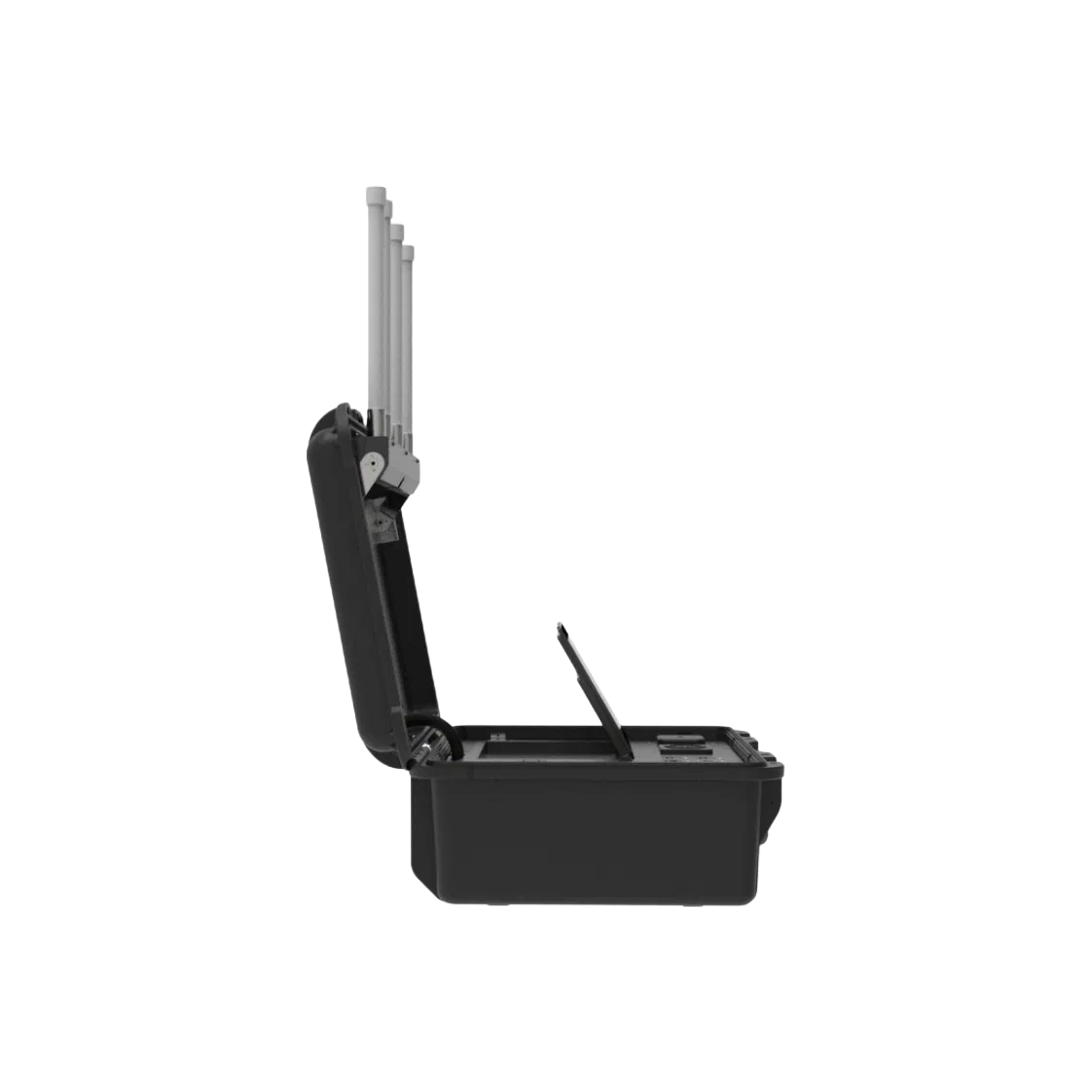

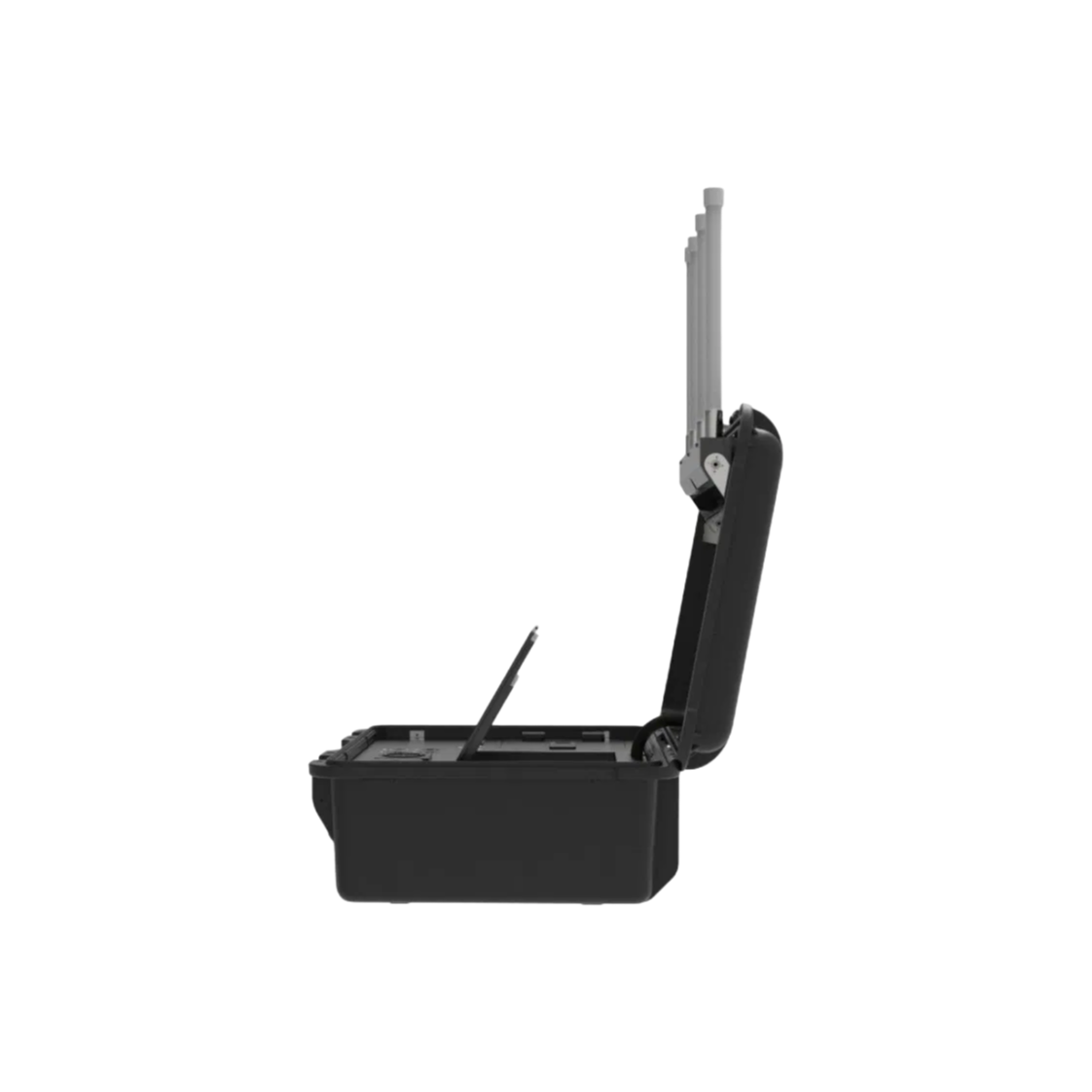

PTC-H1C Portable Design

We usually stock the standdard IP65 case (closed) with a 10.1-inch 1080P screen at 500 cd/m² brightness, which is fine for daylight use, and the whole thing weighs under 18 kilograms without the adapter, so it's manageable for one person to carry.

PTC-H1C Touch Screen

Customiztion is possible—we've done different frequency profiles for some clients, and the casing can be painted in non-standard colors—but the lead time for that is typically 30 days or so, whereas standard units ship within 2 weeks.

PTC-H1C Applications

Anyway, power consumption stays under 100W, and it runs on 100-220V AC, so you'll need a decent external supply or a generator if you're out in the field for more than a few hours.

Frequently Asked Questions

What's the minimum order quantity (MOQ) for the PTC-H1C?

MOQ is typically 1 unit for initial orders, but we can discuss volume discounts if you need 10+ units. Just let us know your expected quantity.

Do you have test reports or certifications for the IP65 rating and frequency detection accuracy?

Yes, we provide a factory test report for the IP65 waterproof rating and a calibration certificate for the azimuth and location error specs. Third-party certification is available at an extra cost.

Can the detection range be customized beyond the standard 1-10km?

The standard unit is fixed at 1-10km for the given frequency bands, but we can adjust the firmware for specific range requirements if you order 50+ units. Contact us with your needs.

How is the device packaged for shipping, and what's the recommended storage condition?

It ships in a foam-lined hard case with the dual batteries installed separately. Store it at -40°C to 70°C, and keep the case closed to maintain the IP65 seal.

What's the typical lead time for a single PTC-H1C unit?

Lead time is around 10-15 business days for a single unit, as we assemble and test each one. For urgent orders, we can expedite to 7 days with a small rush fee.
