It basically picks up drone signals across five common frequency bands — 900MHz right through 5.8GHz — and the detection range of 1 to 10km is heavily dependent on line-of-sight and terrain, so don't expect max range in a city or over a hill.

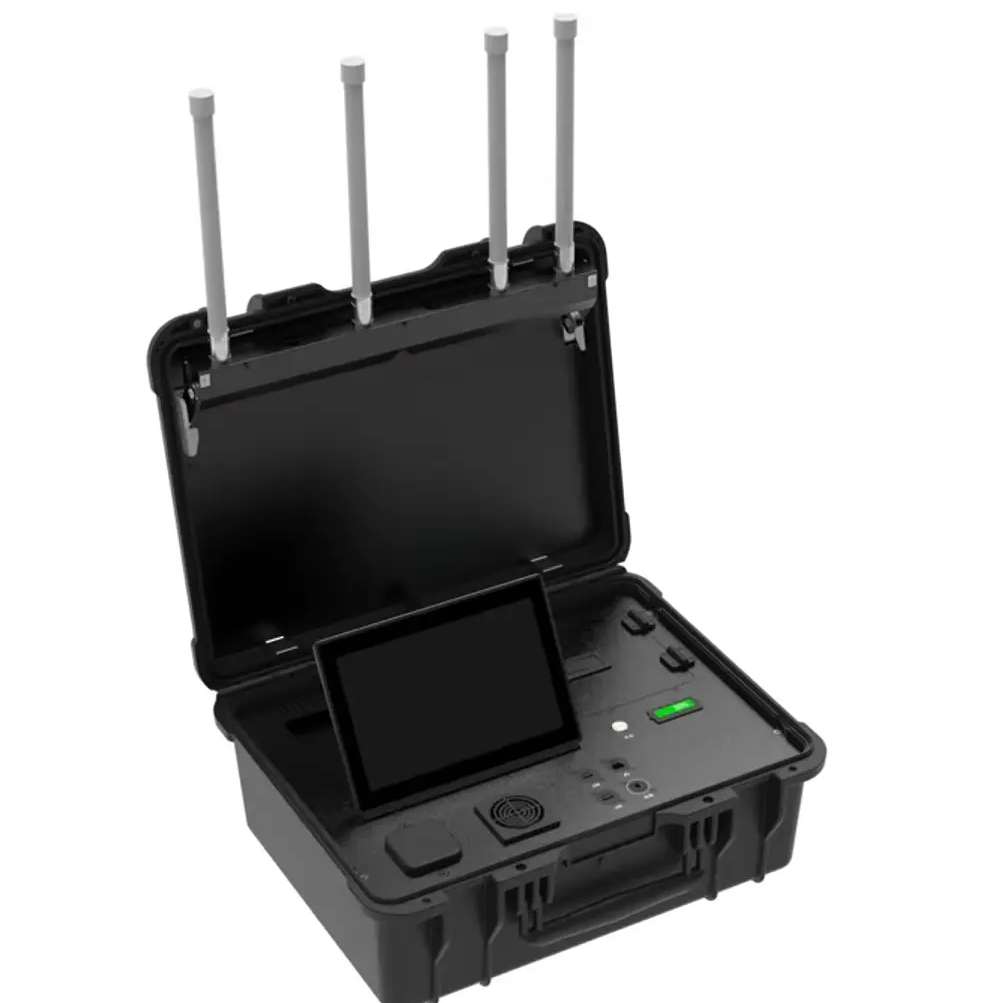

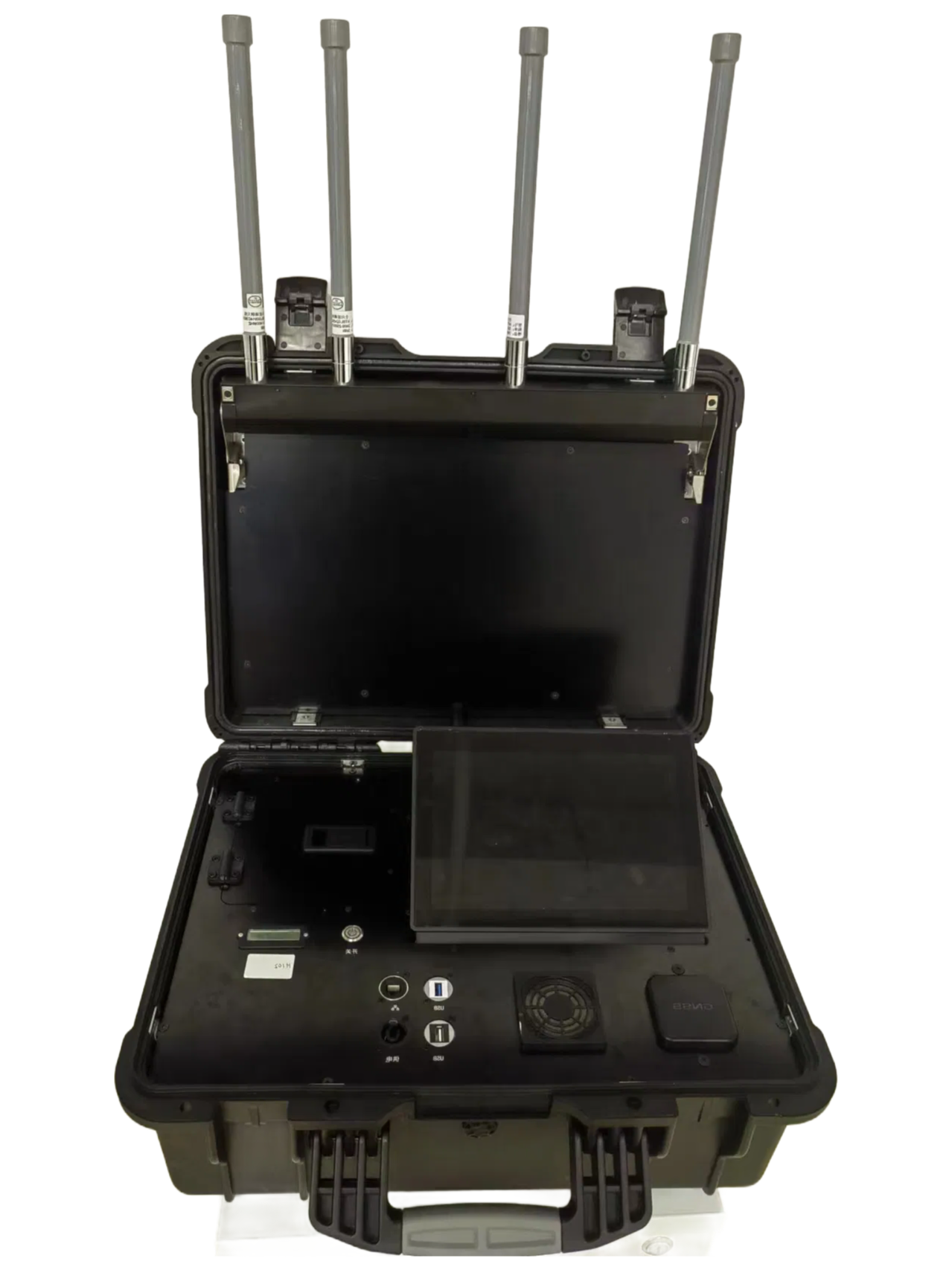

Most folks deploying this in border or restricted zone work actually use it networked with other units rather than standalone, though the suitcase form factor at 24kg is portable enough for a single person to move between patrol spots — the 10.1-inch touch screen makes field navigation pretty straightforward.
We've seen it used for event security too, but it's really not optimized for indoor drone monitoring; IP65 rating only holds when the case is closed, meaning you'll want to keep it covered during rain or heavy dust exposure even in standby mode.
The battery gives you about 4 hours continuous operation, but we usually have stock and lead time is around 20 days or so — just confirm before ordering since MOQ can shift depending on volume.
What it does is record flight paths and locate both the drone and its controller, which is better than consumer-grade detectors for this kind of perimeter work—just be aware the 24kg weight makes sustained carry tiring, so plan for vehicle or fixed-position use mostly.
Anyway, operating temp form -20°C to 50°C covers most climates, and the 520mm x 415mm x 224mm dimnesions fit standerd vehicle trunks, though you'll want to order a carry bag separately based on typical buyer feedback.
No, the 1-10km range is environment-dependent. In open areas with clear line of sight you'll get the full range; urban, mountainous, or heavy interference zones will reduce it. Real-world tests typically show 5-7km in mixed conditions.
Our standard MOQ is 5 units for initial orders. If you're trialing or need fewer, we can discuss a pilot quantity — just reach out to our sales team.
Yes, it supports networked deployment and secondary deployment modes, so you can link it into your command center or integrate with other monitoring systems. We can provide the integration specs on request.
Each unit ships with a CE certificate, FCC compliance report, and IP65 waterproofing test results. We can also provide a factory calibration certificate and a detailed test report upon request.
Store it in a dry, temperature-controlled environment between -20°C and 50°C, with the case closed to maintain IP65 protection. Lead time is typically 4-6 weeks from order confirmation, depending on current production load.
