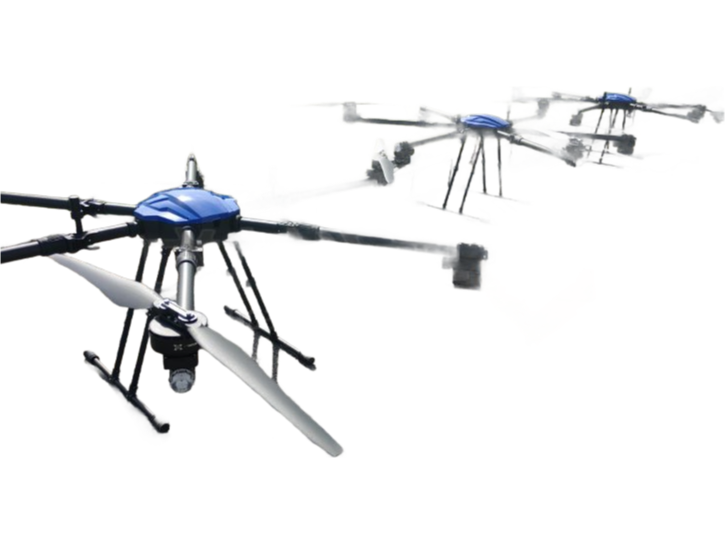

So you're looking at heavy-lift drones for real field work—power line patrols, ag spraying, industrial mapping—and you've probably been burned by consumer-grade stuff that can't handle wind or dust, the HF101Y is built for that kind of abuse, carbon fiber airframe keeps it light at 6.7kg empty but it'll lift 20 to 30 kilos depending on your setup, and that's a genuine payload range we've tested with actual spray tanks and sensor gimbals.

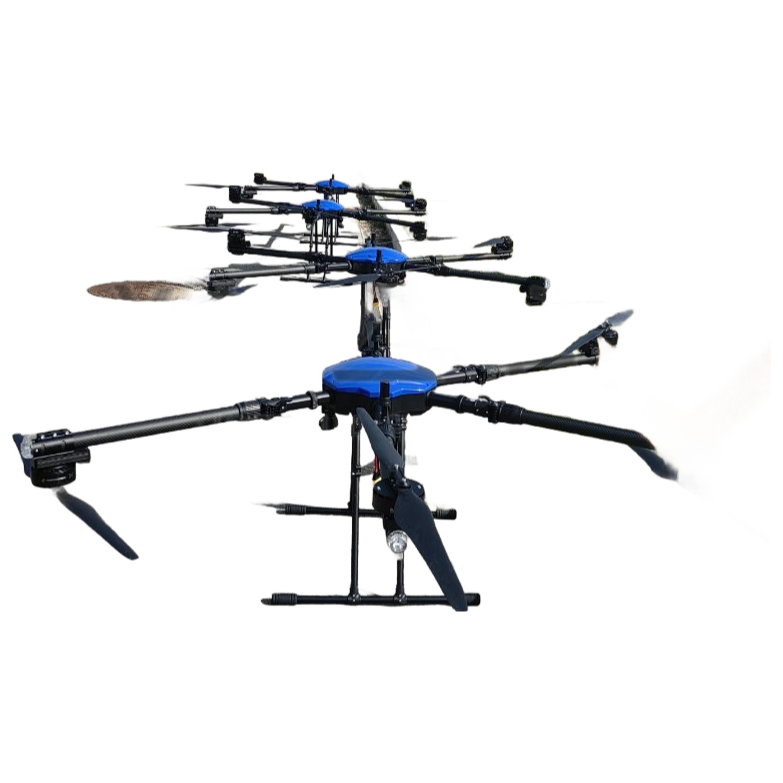

Control radius is over 15km, and we usually get 30 minutes flight time at max take-off weight of 30kg, but if you're flying light you're looking at 60 minutes or so—that 1850mm wheelbase isn't just for show, it gives you stability in gusty conditions that smaller frames just can't match, and the arms fold for transport which is basically essential if you're moving between job sites.
One thing buyers don't always think to ask is that the PX4-based flight controller is custom-tuned for indutrial work, not just off-the-shelf open source—we've adjusted the vibration damping and GPS rejection for higher tolerance than most stock systems, and that matters when you're flying near power lines or over uneven terrain where signal dropouts can happen.
You'll get visible light micro pod and remote control as standard, but honestly for spraying or surveying you'll want to add your own payload—we don't include spray tanks or LiDAR units because every operation has different requirment, and the 2717mm by 2717mm footprint gives you plenty of mounting options on the underside.
It's not ideal for tight indoor work or anything requiring stealth operation—the thing is loud, it's big, and it's meant for open skies, so if you need a quiet close-range unit this isn't your bird, but for heavy lifting in harsh environments it's pretty much the workhorse we've been shiping for years with minimal returns.

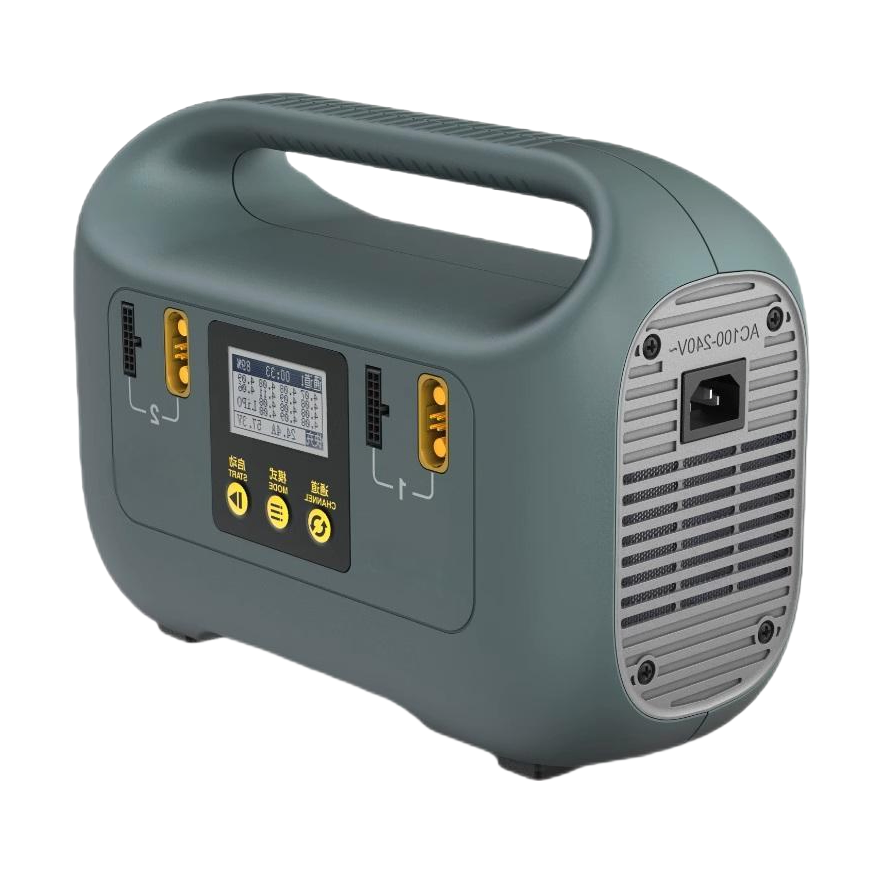

When you order, we'll send the airframe with flight controller installed, the micro pod, remote, and a basic charger—batteries are separate based on your voltage preference (we usually recommend 12S or 14S packs, roughly 22Ah to 30Ah depending on your target flight time), and our company can provide a COA for the carbon fiber or the electronics if your compliance team needs it, but lead time is typically 20 days or so for standard configurations.
We provide CE, FCC, and RoHS certifications as standard, plus a full test report for flight time, payload, and range. If you need a specific certificate for your country, let us know so we can check availability.
The standard MOQ is 1 unit for the base model. If you need custom payload mounts or software tweaks, the MOQ might go up to 5 units depending on the complexity. We’ll confirm after we review your requirements.
The 15km control range is tested in open, interference-free areas with the drone at 120m altitude. In urban or mountainous environments, expect it to drop to about 10-12km. We recommend testing at your site first if range is critical.
The carbon fiber frame and PX4-based flight controller handle the 30kg load well—we’ve stress-tested the foldable arms to 35kg. At max payload, you’ll see a slight reduction in agility, but stability holds fine for tasks like spraying or surveying.
We ship in a custom foam-lined aluminum case to protect the carbon fiber frame and foldable arms. Lead time is 15-20 working days for standard orders, plus shipping. If you need faster, we can prioritize for a small fee.
