We’ve been getting too many complaints about limited flight windows for our longer monitoring gigs, so I ordered the TPS220M-6KW tethered station — it’s basically the only way to keep a heavy drone airborne for 24 hours straight without swapping batteries or landing every twenty minutes or so.

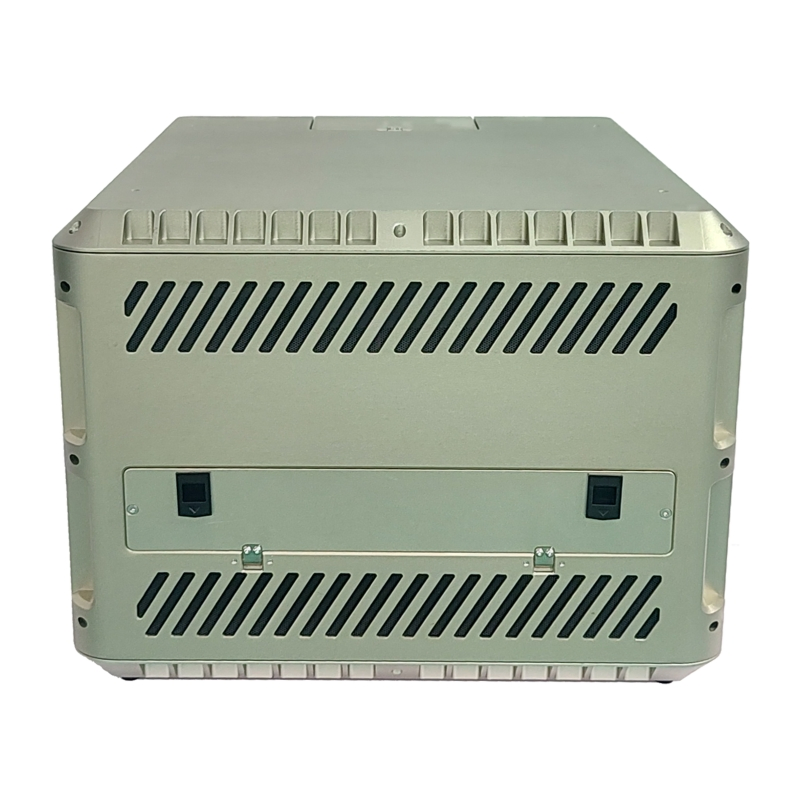

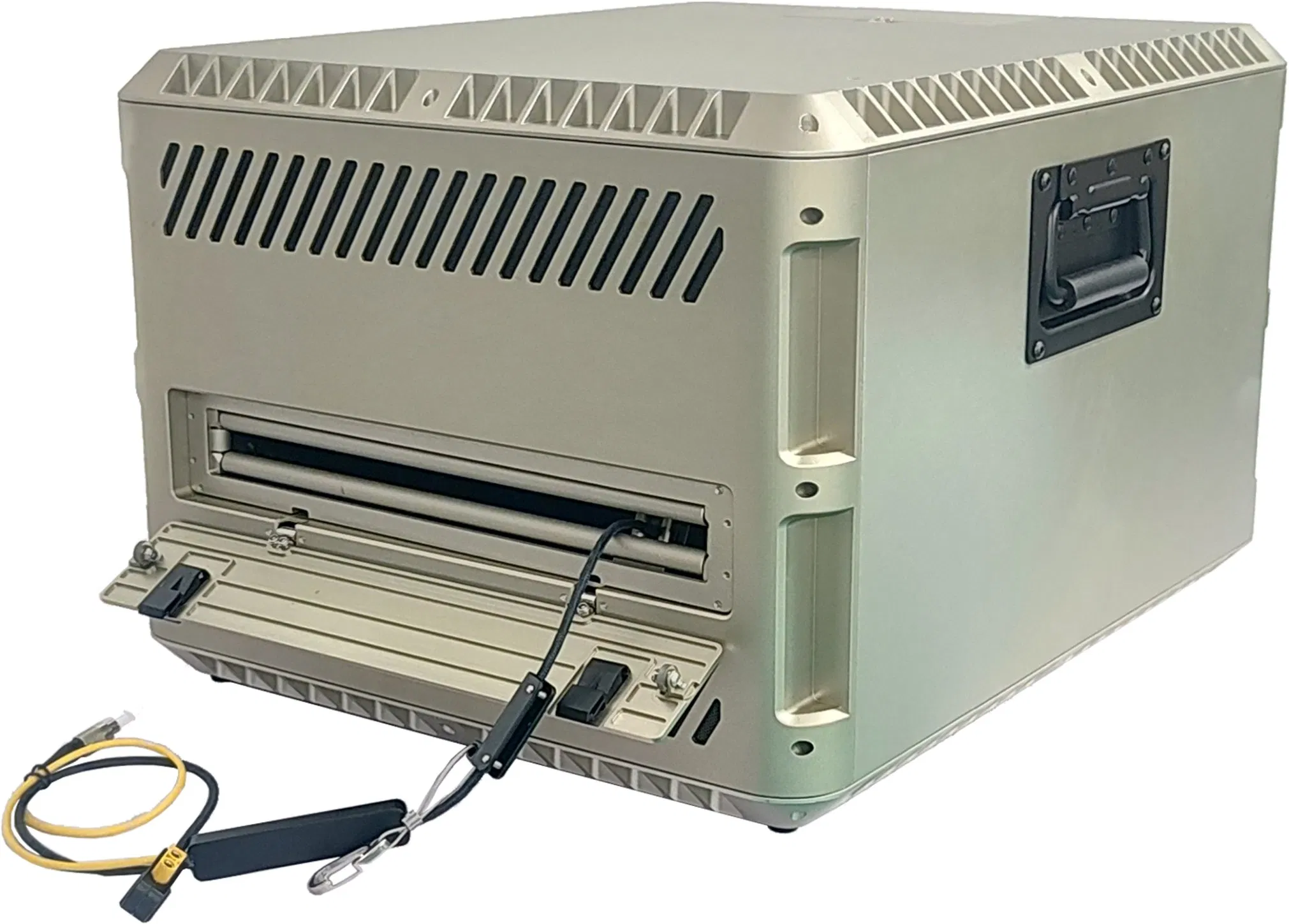

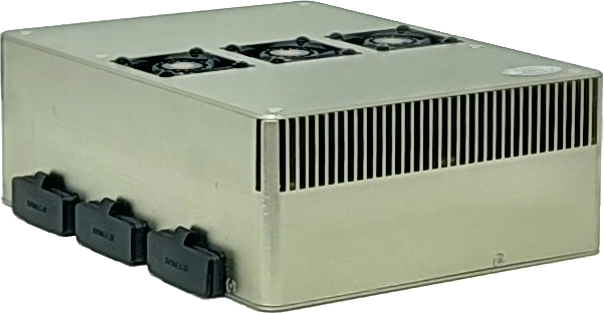

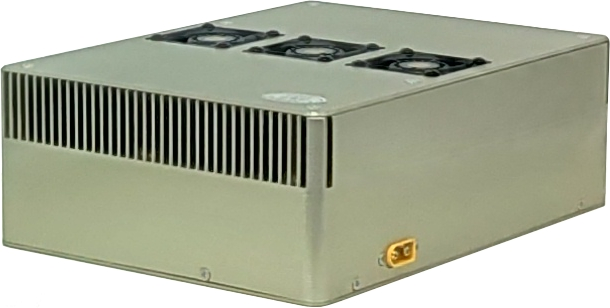

The ground unit weighs 17.5kg give or take 0.5kg, and it feeds 190-240V AC form the outlet into adjustable 600-810V DC output up to 7000W continuous with an 8000W peak capability, while the air module delivers a steady 50V DC at 6000W — the cable itself has tensile strength rated at 150kg or better, which should handle most wind conditions well below 3000m altitude.
IP54 on the airborne end and IPx4 on ground module means you won’t have to baby it in light rain or dust, but don’t expect submersible performance if someone takes a landing too hard near standing water — I’d still tarp the ground box if the forecast looks wet for hours.

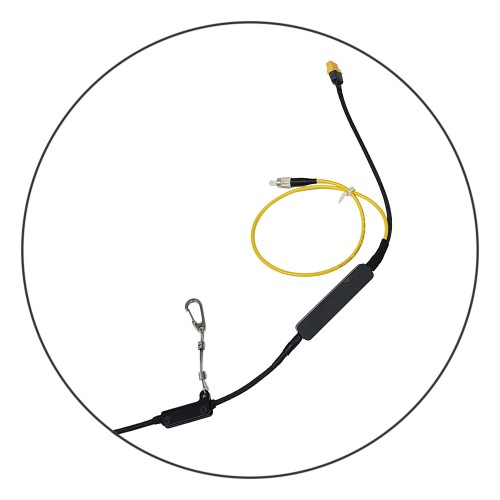

Cable management is handled automatically with adjustable retraction from 0 to 2 meters per second and tension control set between 0-15 newtons, so teh spool itself won’t jerk your platform during ascent or descent; we usually have the 220m cable in stock, but confirm lead time if you need something longer or with an optional fiber optic link for high-data relaying.
Operating tempearture from -20°C to 45°C, and it’s got humidity tolerance up to 80% RH, so it’s good for field work across most seasons — the insulation on the main line checks out at a minimum of 3500VDC, which is better than the typical industrial tethered setups I’ve seen from cheaper vendors with loose COAs.
We typically require a minimum of 2 units for first orders, but for larger projects we can discuss a single unit sample order. Just reach out to our sales team to confirm.
Lead time is around 15-20 working days after order confirmation, depending on current production load. We can expedite if you have an urgent deadline—just let us know upfront.
Yes, absolutely. Every unit ships with a copy of our ISO9001 certification and a factory test report. We can also provide additional compliance docs if your project requires them.
The retraction speed is adjustable from 0 to 2 meters per second, and you can set the tension anywhere from 0 to 15 Newtons. This lets you match the cable payout to your drone's flight behavior, keeping it taut without stressing the tether.
Store the ground module in a dry, indoor space between -40°C and 65°C, ideally with humidity below 80% RH. Keep the cable coiled neatly on its spool—don't kink it—and avoid direct sunlight for long periods to protect the insulation.
Delivery was incredibly swift and efficient. The logistics team handled everything seamlessly, providing regular updates from dispatch to arrival. The packaging was robust and secure, ensuring the product arrived in pristine condition without any signs of damage. Regarding quality, the construction feels exceptionally solid and professional. All components appear to be manufactured to high standards, with precise fittings and durable materials that inspire confidence in its longevity and performance. The service provided was outstanding from start to finish. The support team was responsive, knowledgeable, and proactive in addressing pre-delivery inquiries. Post-delivery communication has also been excellent, with clear instructions and a willingness to assist further if needed. Overall, a very smooth and satisfactory experience that exceeded expectations in terms of coordination, product integrity, and customer care.
Fantastic experience overall. The shipping was remarkably swift and well-handled. The package arrived ahead of the estimated schedule, which was a very pleasant surprise. Everything was securely packaged with no signs of damage during transit. Regarding the product itself, the build quality is immediately impressive. It feels robust and engineered for serious industrial use. The materials and construction inspire confidence for long-term deployment. Customer service deserves special mention. The support team was proactive and incredibly helpful during the ordering process, answering all preliminary questions with clarity and patience. While I have not yet deployed the system for its intended continuous flight operations, the initial setup and inspection process was straightforward. The unit arrived in perfect condition, exactly as described. This initial interaction regarding logistics, perceived quality, and support has been exceptionally positive and sets a high standard.
Xceptional service from start to finish. The ordering process was straightforward, and the customer support team was incredibly responsive to my initial inquiries. Regarding logistics, the shipment arrived ahead of the estimated schedule, which was a very pleasant surprise. The packaging was robust and secure, ensuring that the unit was perfectly protected during transit. The quality of the power station itself is immediately apparent. The construction feels solid and professional, exactly as described for an industrial-grade solution. It has a substantial, well-engineered feel that inspires confidence for demanding applications. While I have not yet deployed it for extended field operations, the initial setup and inspection revealed excellent craftsmanship and attention to detail. The service aspect has been equally impressive. The documentation provided is clear and comprehensive. Furthermore, the support staff followed up proactively to ensure the delivery was successful and to offer assistance with any preliminary questions. This level of post-purchase attention is commendable and not always standard. Overall, this appears to be a premium product backed by a reliable and efficient company. The combination of prompt shipping, superior build quality, and outstanding customer care makes this a highly recommended purchase for anyone in need of a serious tethered power solution. The entire experience has been smooth and professional, exceeding my expectations for an online transaction of this nature.
Great experience with this purchase! The shipping was incredibly fast and reliable, arriving well ahead of schedule, which was a pleasant surprise. The quality of the product is outstanding; it feels durable and well-made, exceeding my expectations. Customer service was top-notch too—they were responsive and helpful throughout the process. Overall, I'm very satisfied and would recommend this to others.
