We’ve done a lot of these heavy-lift frames, and the SD-T410/SD-T440 is pretty much a workhorse for anyone needing to move 10 kg or so—our company can customize the battery setup, labeling on the unit, even arm length if you’ve got a specific payload profile.

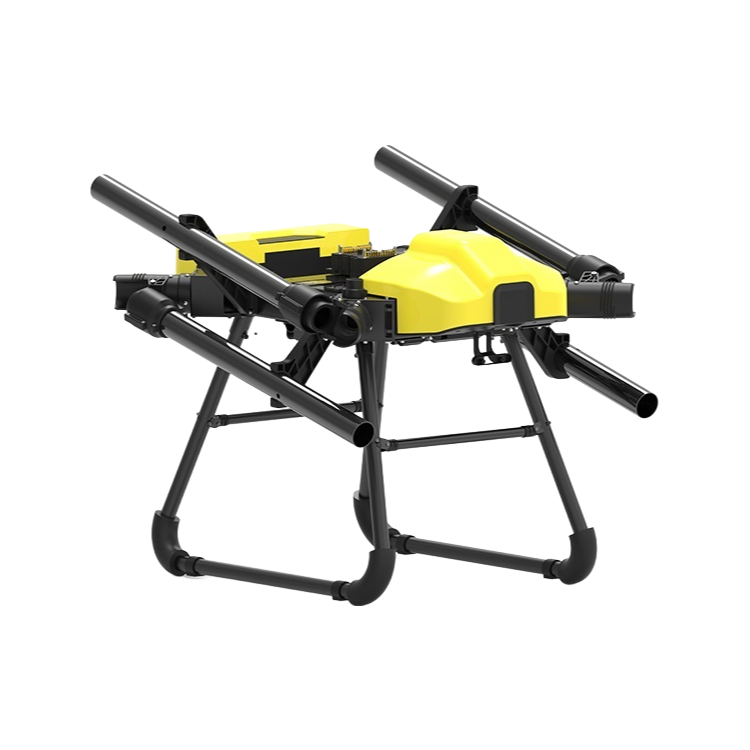

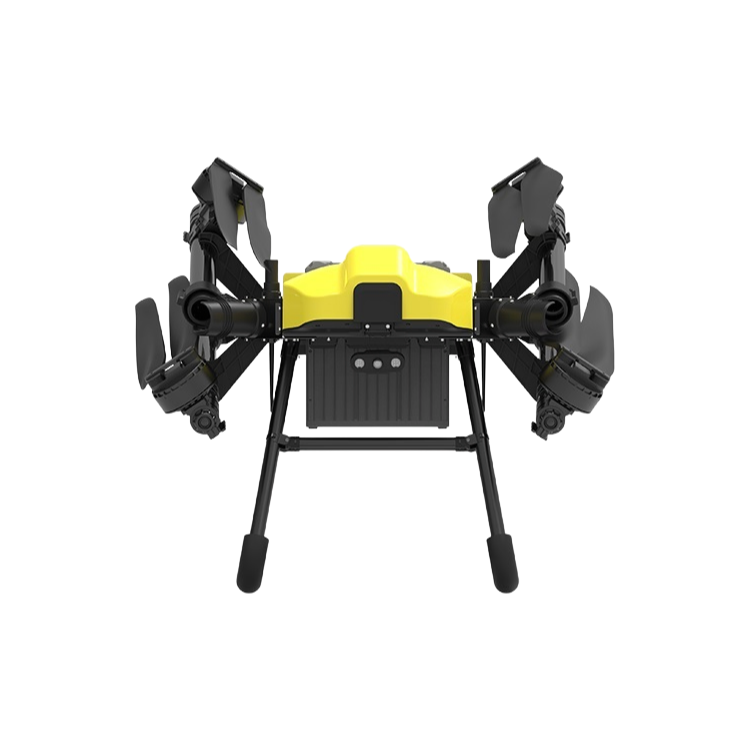

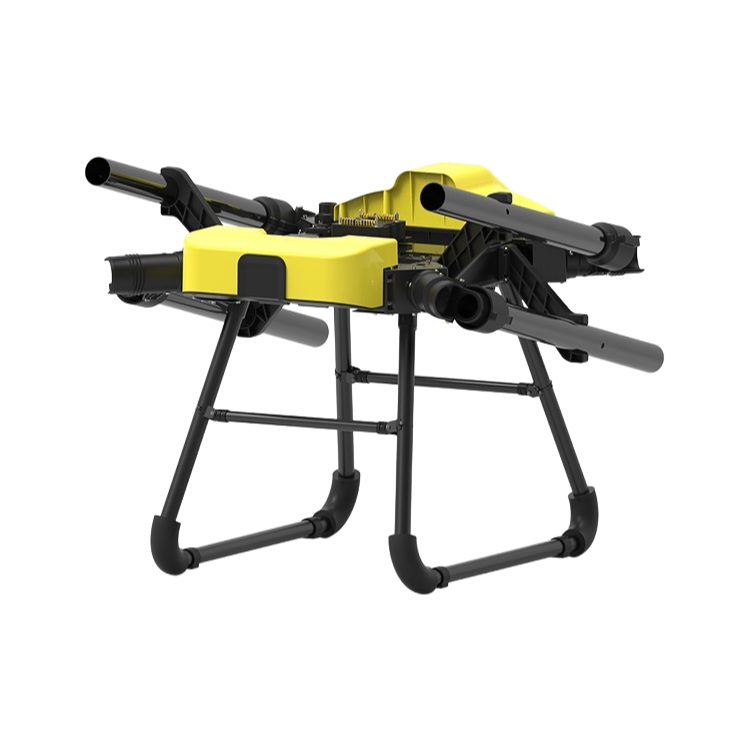

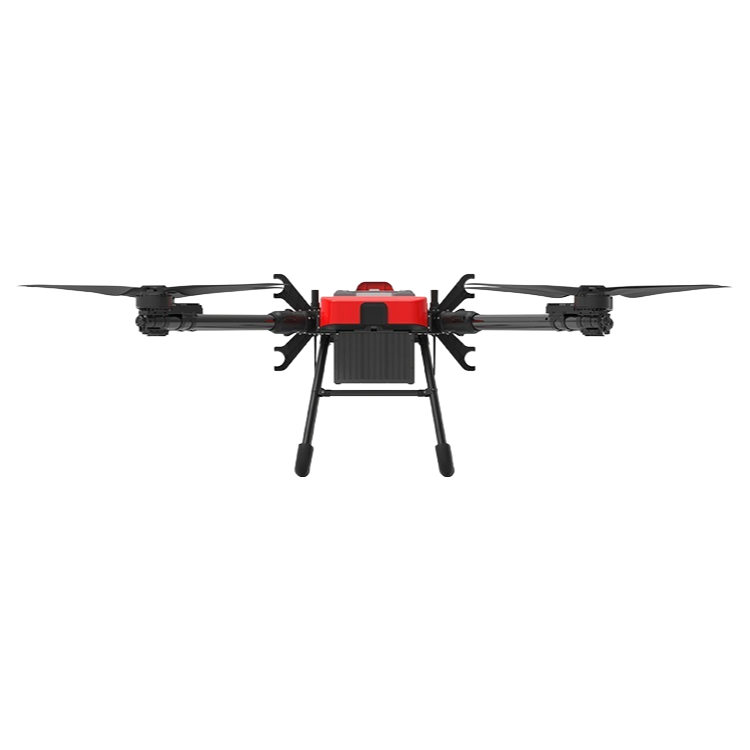

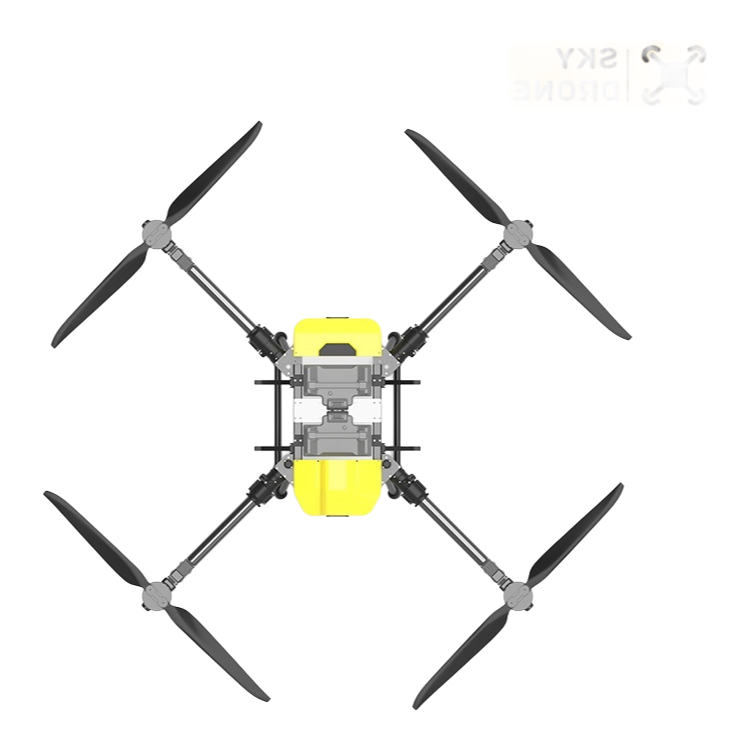

It’s a carbon fiber frame, 5.3 kg dry, with a 1612 mm wheelbase and those 37×40 mm tubes that give it a stiffness most buyers don’t expect until they handle one—the folded size is 620×620×630 mm, which fits in a standard car trunk (usually 2-4 weeks lead time for custom builds).
12S 16000mAh LiPo is the recommended battery, and with no load you’ll hover about 25 minutes; at full 10 kg payload that drops to 14 minutes, give or take a minute depending on wind. Most people go with the X8 flight controller, but we’ve seen some use it for firefighting dilevery where they swap the battery for a smaller one to fit a hose system.
It’s not really suited for heavy rain—basic anti-rain rating means you don’t want to fly through a downpour, but light drizzle is fine. One thing we learned is the arm attachment points need periodic checking after rough landings, but teh carbon fiber holds up better than aluminum for this weight class.
application range form agriculture spraying to forestry transport, and we’ve had clients use it for industiral inspection with a custom payload mount—just tell us the vial size or container shape you need, and we’ll adjust the landing gear spacing accordingly.
ISO9001 certified, so the qualiy control is consistent across batches, and we usually have stock on the standard model but confirm lead time for any custom concentration or bulk synthesis orders—10 units or so is the MOQ for custom labeling.
The bare frame weighs 5.3 kg. That's the carbon fiber structure and arms — no battery, motors, or payload included.
MOQ is typically 10 units for custom builds, including color changes or payload bracket modifications. We can discuss smaller runs for evaluation units.
Standard lead time for a custom batch is 25 to 35 working days, depending on the complexity of your modifications. We'll confirm a firm timeline after reviewing your specs.
Yes, we include a copy of our ISO9001 certificate with every order. A factory audit report is also available upon request.
Absolutely. We can adjust the battery bay dimensions for non-standard packs, as long as the total weight doesn't push you past the 35 kg max takeoff weight.
