Compact 40x31x6mm 24GHz Radar Module with ±70m/s Velocity Detection Range

Compact 40x31x6mm 24GHz Radar Module with ±70m/s Velocity Detection Range

US$ 1 ~ 170

Min.Order: 1

Product origin: Changsha, Hunan, China

Category: Electronics

Product Name: Electronics

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

High Power 8.5KW Gasoline Generator with 38L Fuel Tank for Agricultural Drone Charging

US$ 8800.00 ~ 8400.00

AL4-22 Agricultural Spray Drone 22L Capacity with 8 Nozzles for Efficient Crop Protection

US$ 4600.00 ~ 4200.00

High Performance 50W RF Module for Anti-Drone Applications 5150-5350MHz

US$ 118.00 ~ 338.00

Compact HF101D Micro Drone with 1080P Image Transmission for Close Range Reconnaissance

US$ 11500.00 ~ 9500.00

Customizable HF101Y Industrial Drone with 15km Control Range for Harsh Environments

US$ 12000.00 ~ 10000.00

Model Number : SP25
Frequency Band : 24GHz ISM Band
Modulation Type : FMCW
Detection Range : 0.10-30m
Distance Accuracy : ±0.10m
Distance Resolution : 0.75m
Velocity Range : ±70m/s
Velocity Resolution : 2.4m/s
Field of View : 100°(H)×38°(V)
Update Rate : 50Hz

Output Power : 12dBm EIRP
Power Supply : 4.0-12VDC
Power Consumption : 0.5W
Operating Temperature : -40°C to +85°C
Protection Rating : IP66
Dimensions : 40×31×6mm
Weight : 4g
Interface : UART (115200bps)

The SP25 is a high-performance K band Doppler radar module utilizing advanced FMCW modulation technology. This industrial-grade radar sensor is designed for precise detection of moving objects with superior accuracy in distance and velocity measurement.

24GHz FMCW Radar Module Radar Module Applications

Engineered with separated TX/RX antennas, the SP25 achieves excellent isolation between transmitting and receiving links. The coplanar RF MMIC and antenna design minimizes RF link loss, while the Taylor algorithm-based antenna pattern synthesis delivers superior side lobe suppression below -15dB.

Key applications include: distance measurement and anti-collision systems for railway vehicles, robotics, UAVs, and industrial machinery; intelligent radar lighting control systems; and vehicle blind spot detection solutions.

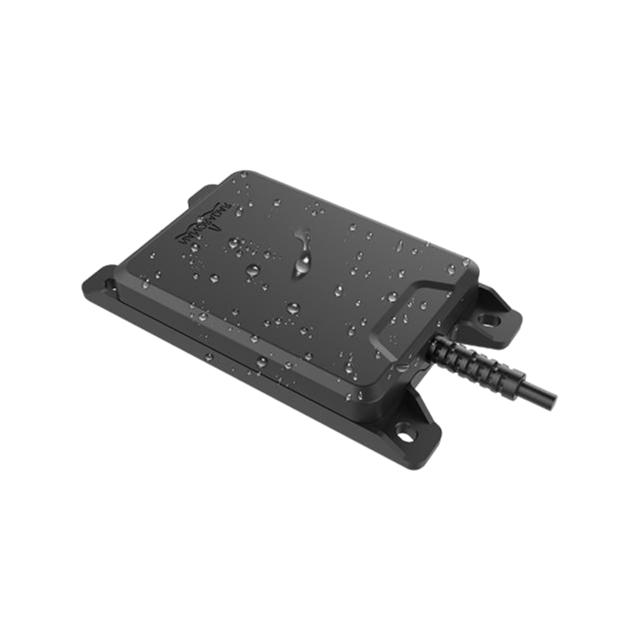

The compact 40×31×6mm form factor makes the SP25 ideal for space-constrained installations. With IP66 protection rating and wide operating temperature range (-40°C to +85°C), this radar module performs reliably in demanding industrial environments.
