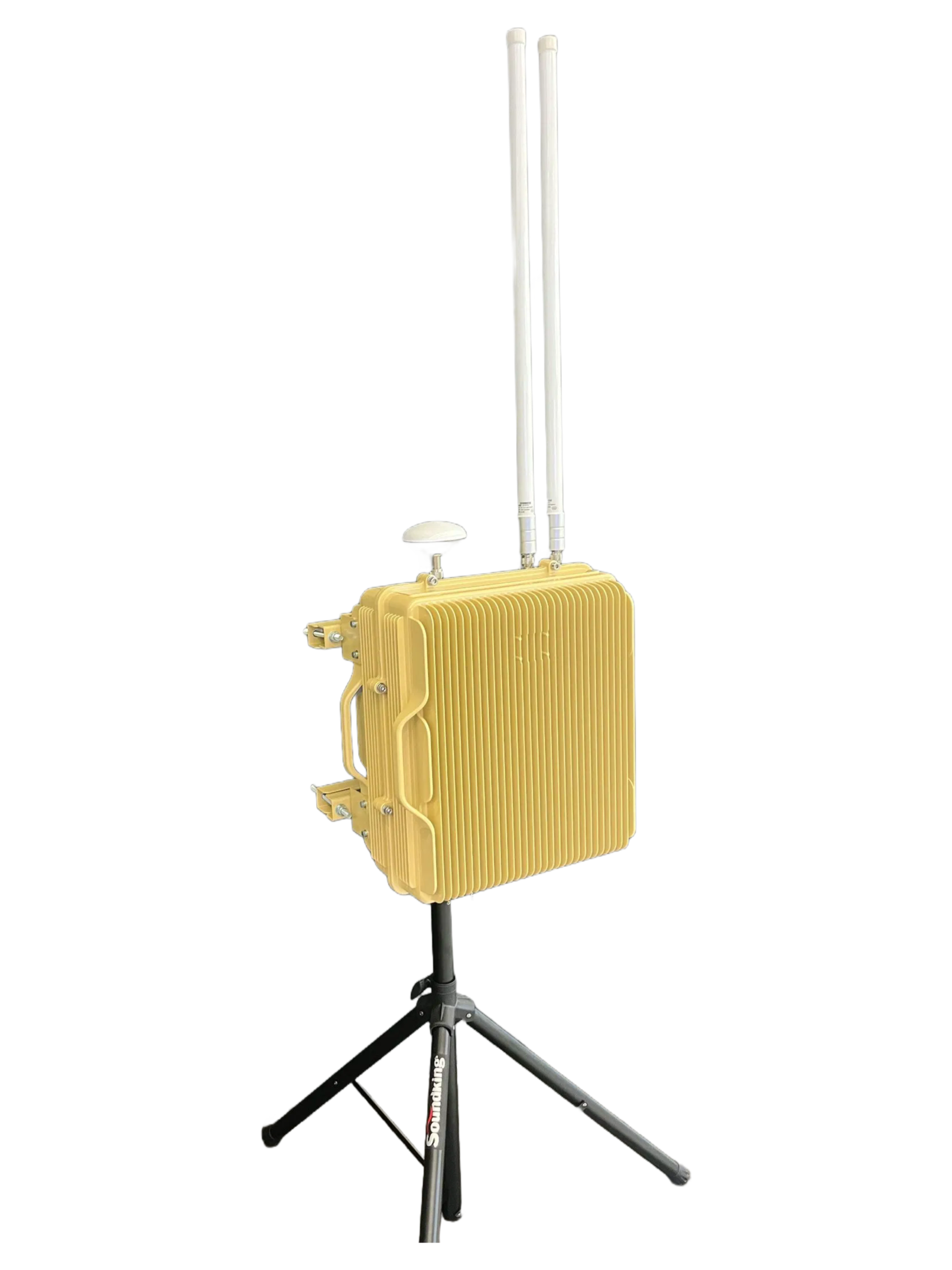

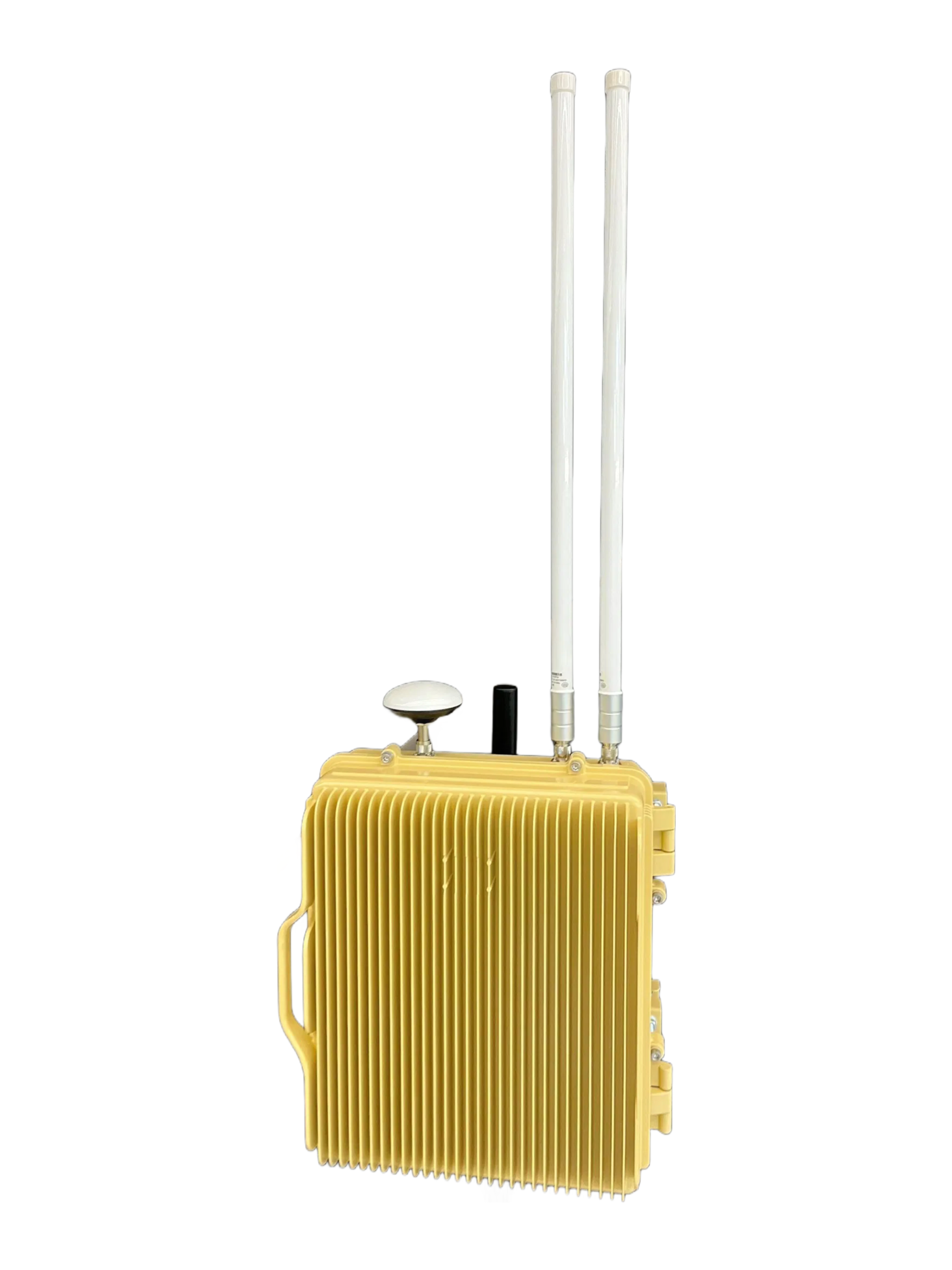

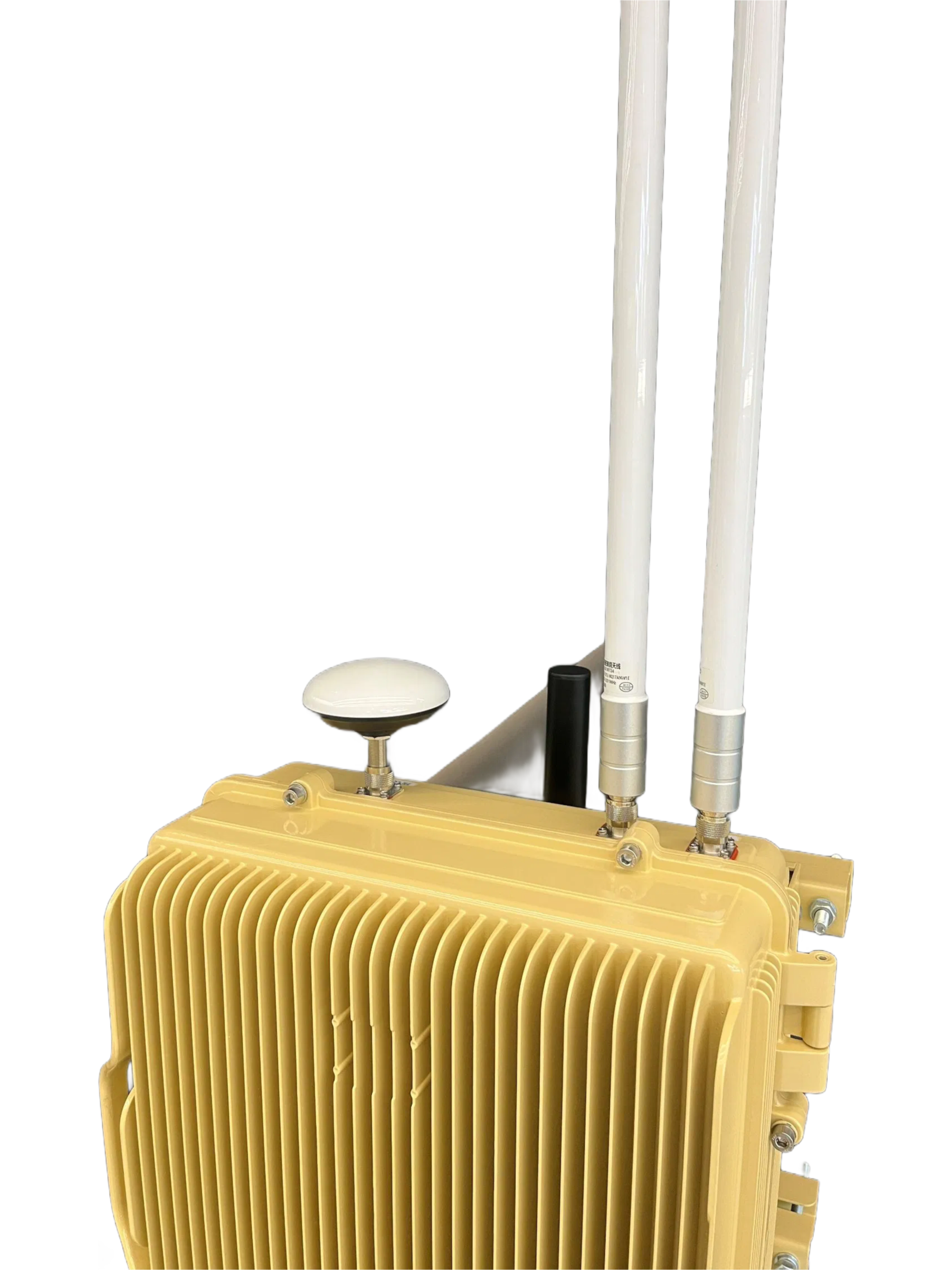

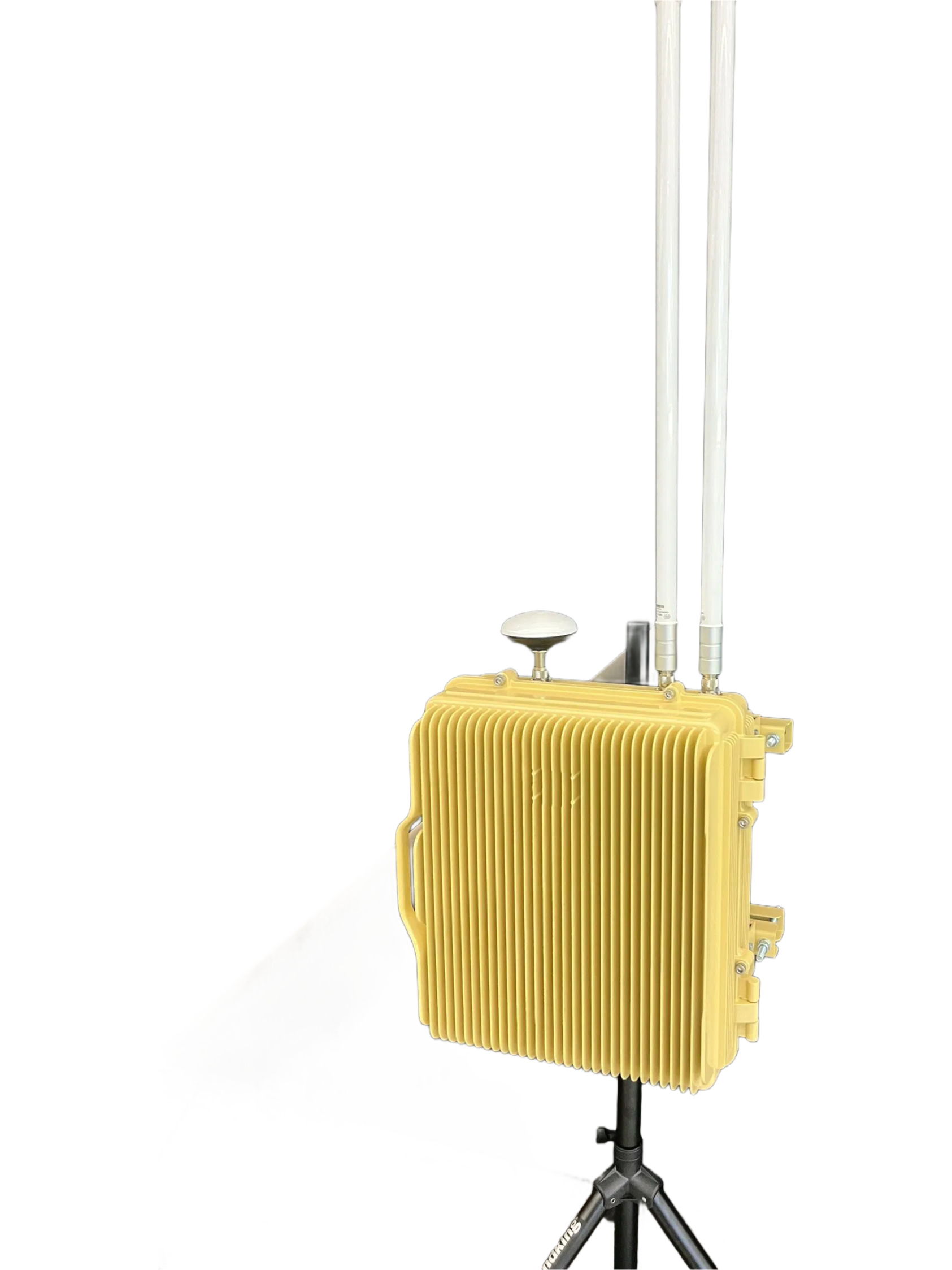

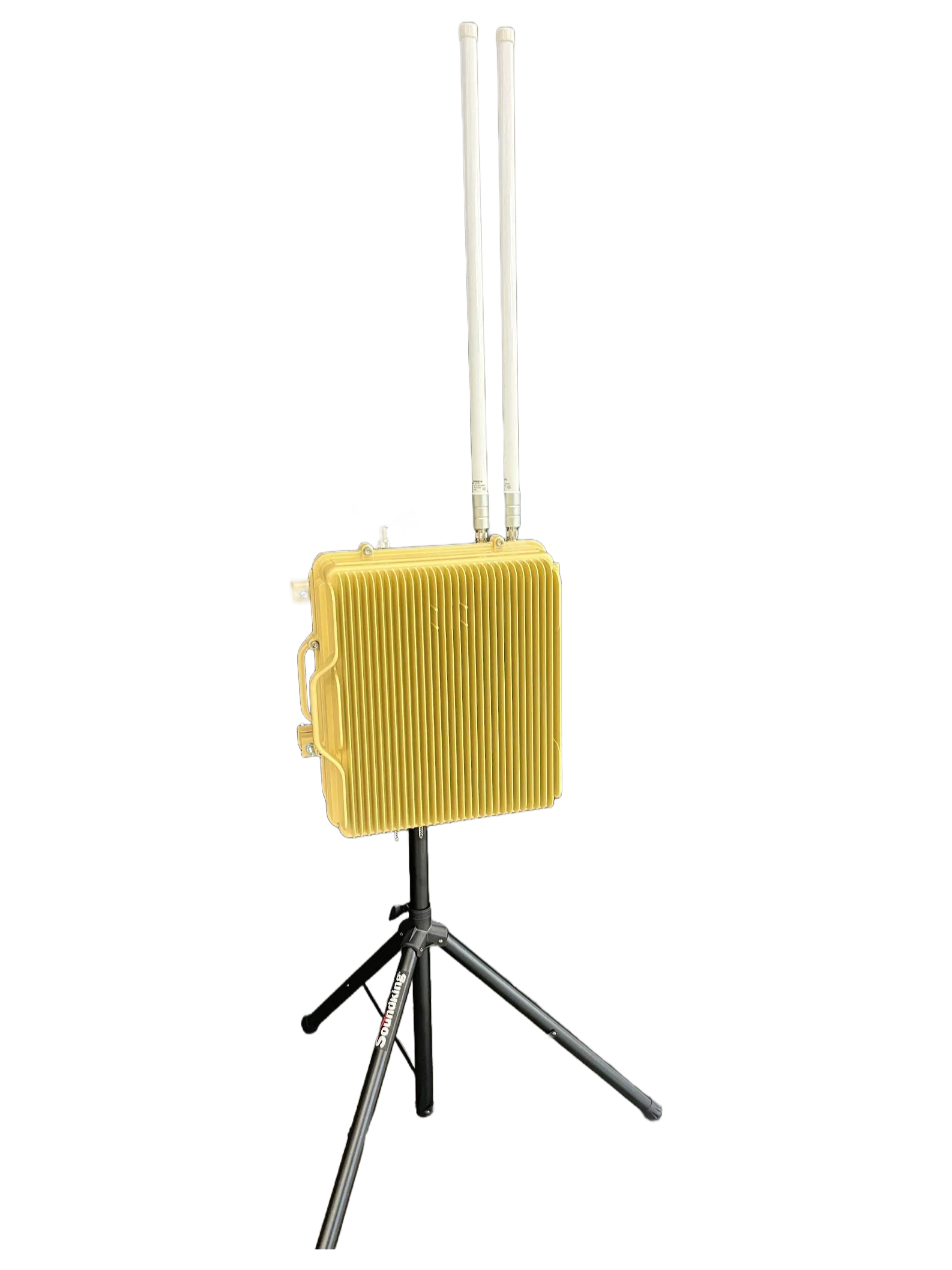

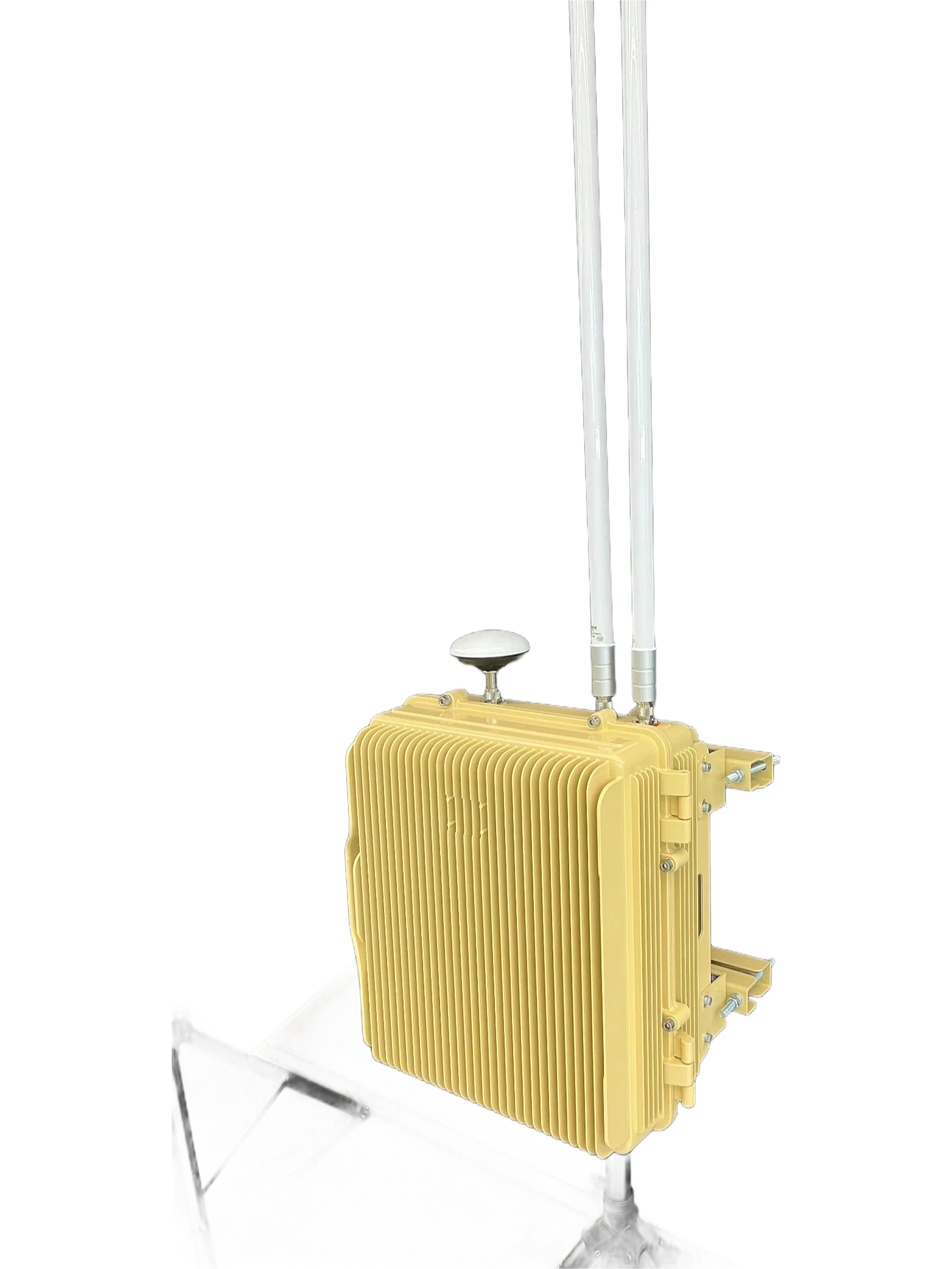

The 10km/30km GNSS Spoofing Device is a cutting-edge anti-Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone system designed to protect sensitive areas from unauthorized UAV intrusions. This advanced equipment creates controlled interference with satellite navigation signals, effectively neutralizing drone threats within its operational range.
Key Features:
• No-fly zone functionality: Prevents drone takeoff within designated coordinates and forces airborne drones to land automatically
• Directional displacement capability: Allows precise control over drone movement direction and speed within effective range
• Customizable movement patterns: Enables straight-line or circular drone movement with adjustable speed, center point, and diameter
• System integration: Compatible with radar and radio detection equipment for coordinated drone defense strategies
• Safe area redirection: Guides detected drones to user-specified secure locations when used with radar systems
• Multi-system support: Simulates GLONASS, GPS, BDS, and Galileo navigation signals with configurable position settings
• Continuous operation: Designed for 24/7 unattended operation with remote power and transmission adjustment
• Ephemeris management: Supports download and loading of satellite ephemeris data
Technical Specifications:
• Frequency bands: BDS B1/B2, GPS L1/L2, GLONASS L1/L2, Galileo E1
• Effective range: ≥10km or ≥30km options available
• Coverage: 360° azimuth, -5° to 40° elevation
• Power requirements: AC 220V
• Environmental rating: IP65 protection
• Dimensions: 500×400×220mm (W×D×H)
• Weight: ≤20kg
• Temperature range: -20°C to +65°C operating, -25°C to +70°C storage
This professional-grade anti-drone solution is ideal for protecting critical infrastructure, military installations, government facilities, and private properties from unauthorized drone activities. The system's modular design and remote management capabilities make it suitable for both permanent installations and mobile operations.
