Wholesale J599/26WG Series High-Density Contact Connectors Factory Direct

Wholesale J599/26WG Series High-Density Contact Connectors Factory Direct

US$ 10.00 ~ 50.00

Min.Order: 10

Product origin: Nanjing, Jiangsu, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

Premium Hi-Fi Gold Plated Y Spade Speaker Connector for High-End Audio Systems

US$ 1 ~ 2.1

Wholesale J599/26WG Series High-Density Contact Connectors Factory Direct

US$ 10.00 ~ 50.00

Factory Wholesale MPO Female APC Single Mode Fiber Loopback Test Cable

US$ 15.00 ~ 20.00

OEM/ODM Available Endoscope Light Guide Cables with High Transmittance Glass Fiber

US$ 100.00 ~ 150.00

High-Quality Stainless Steel Nipple Adapter and Pipe Fittings for Industrial Applications

US$ 0.10 ~ 1

Standard Compliance : MIL-DTL-38999
Shell Material : Aluminum alloy, Stainless steel, Titanium alloy
Insulator Material : Thermoset or Thermoplastic
Seal Material : Silicone rubber
Contact Plating : Gold-plated copper alloy
Contact Types : Crimp, Welding, PCB
Durability : ≥500 cycles
Vibration Resistance : 60g sinusoidal, 41.7-49.5g random
Operating Temperature : High temperature resistant
Contact Density : High density design

Special Features : Anti-loosening mechanism, Anti-oblique function

Our J599 series connectors comply with MIL-DTL-38999 standard, featuring fast connection with three heads and anti-loosening mechanism. These compact connectors offer light weight design with high contact density, suitable for various industrial applications.

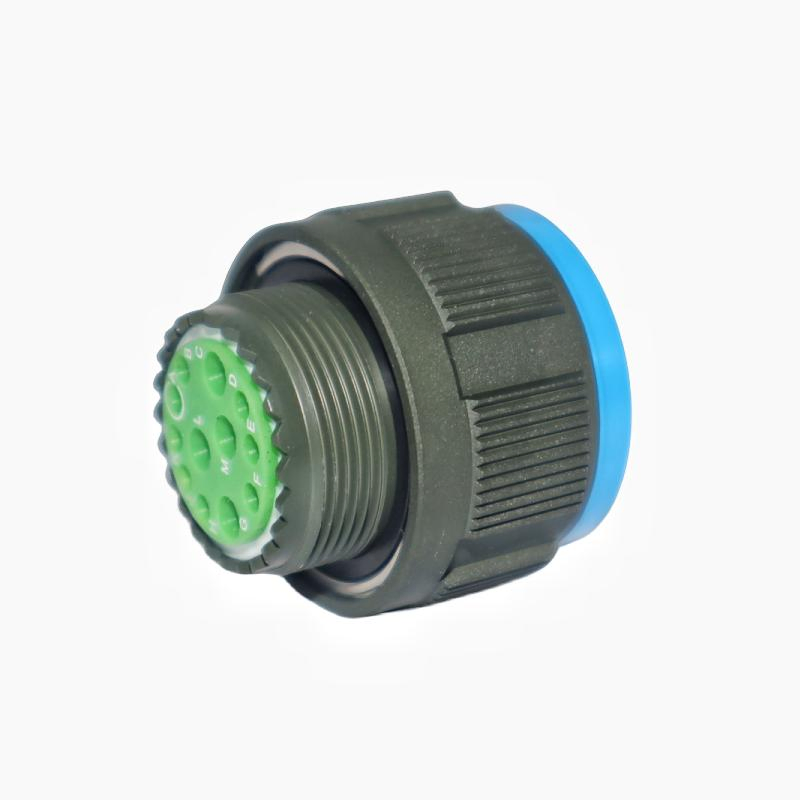

J599 series connector overview

The connectors provide excellent electromagnetic shielding function with removable crimp contacts that feature anti-oblique function. Designed for harsh environments, they demonstrate high-intensity vibration characteristics at high temperature and perform well in bad weather conditions.

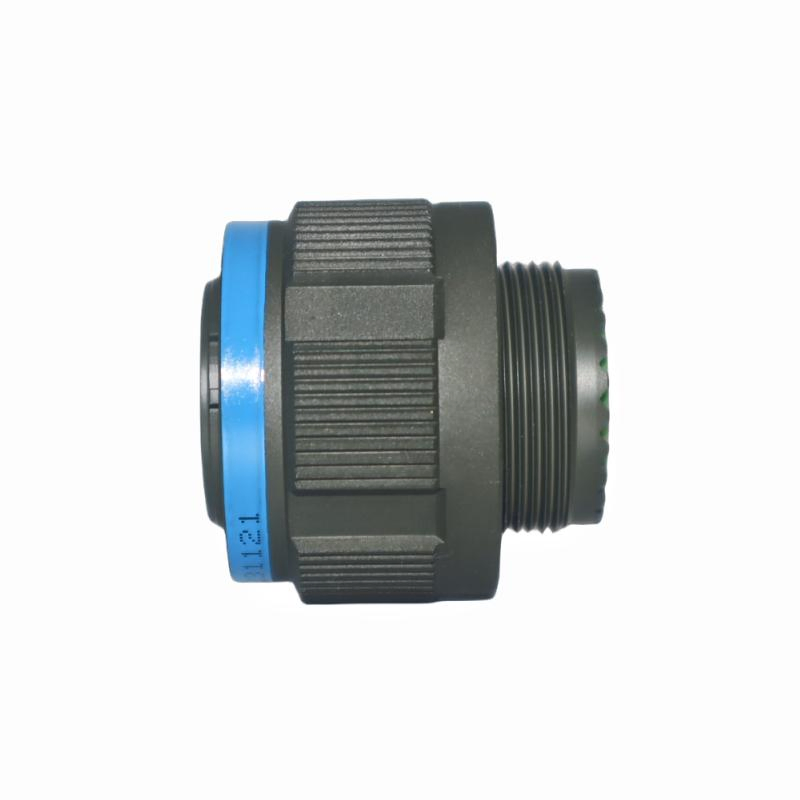

J599 connector detail

Special contact hole positions allow assembly of fiber contacts (16# position) and coaxial/shield contacts (12#, 10#, 8# positions). The durable construction ensures reliable performance in demanding applications.

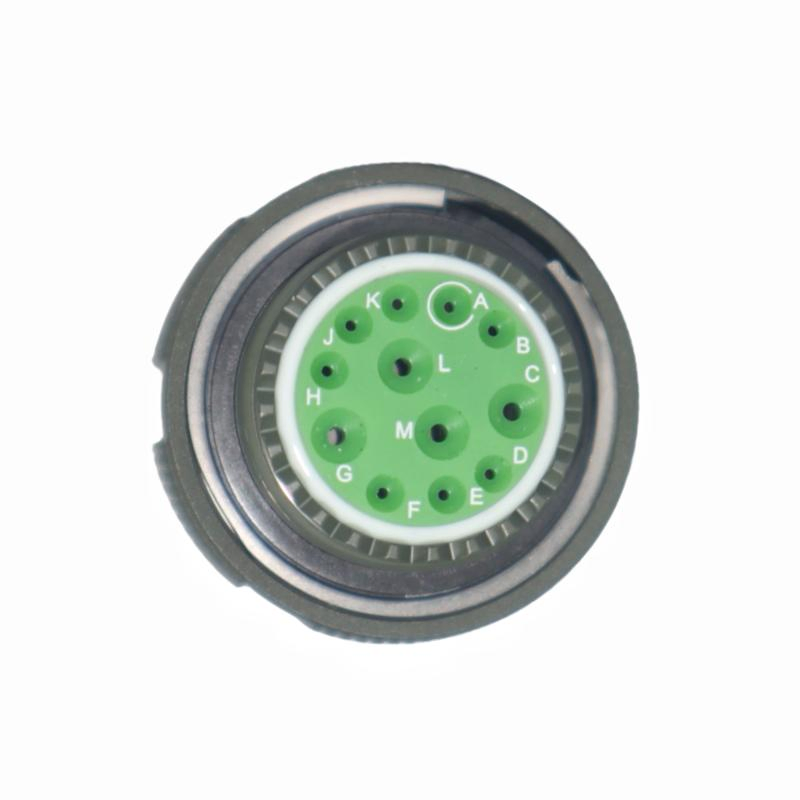

J599 connector specifications

Available in various configurations including J599/26FB01SLA, J599/26WH34SHC, J599/26WH34SLB and other models to meet different connection requirements. Custom configurations are available upon request.

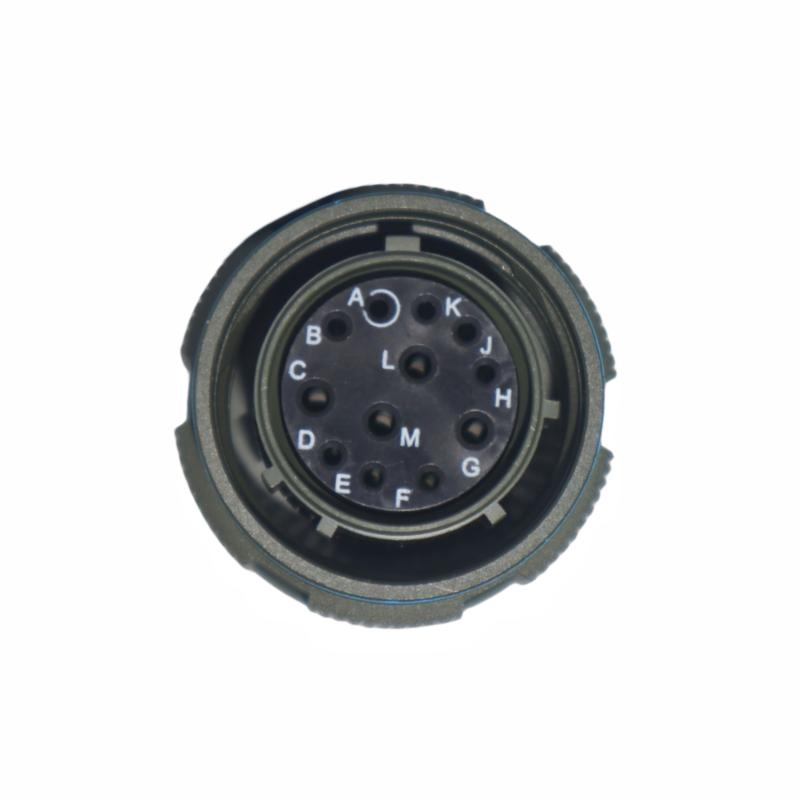

J599 connector variants
