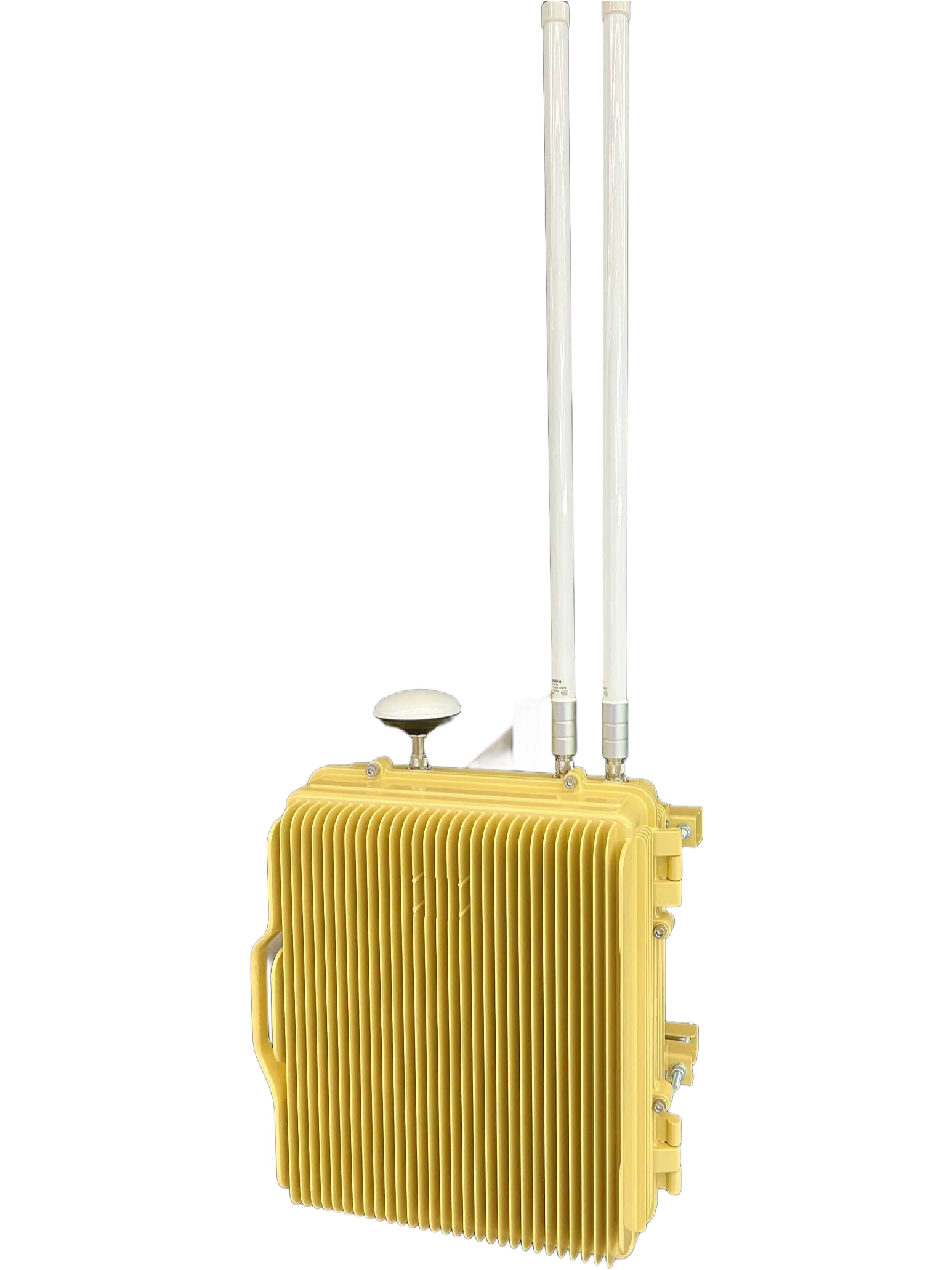

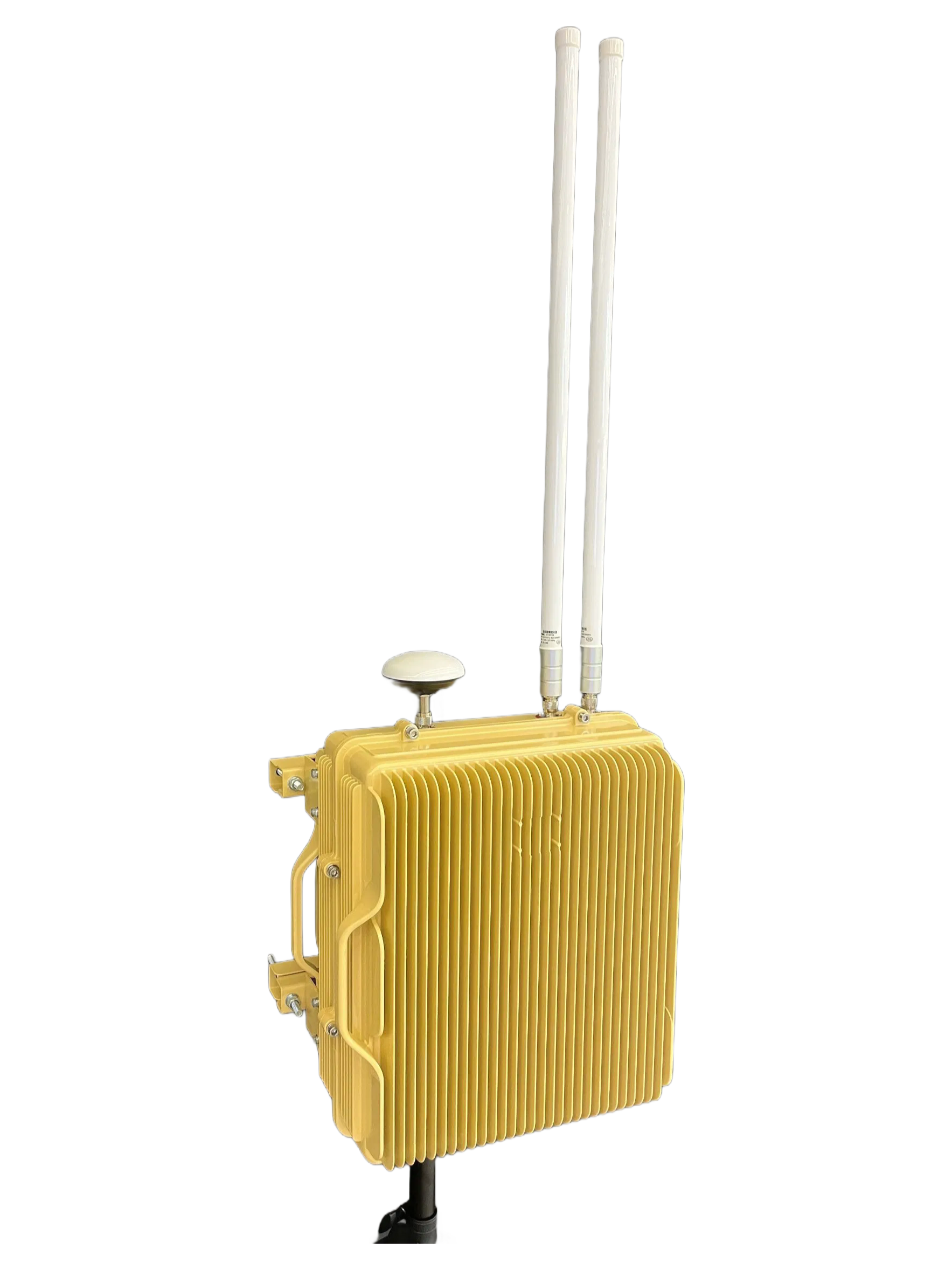

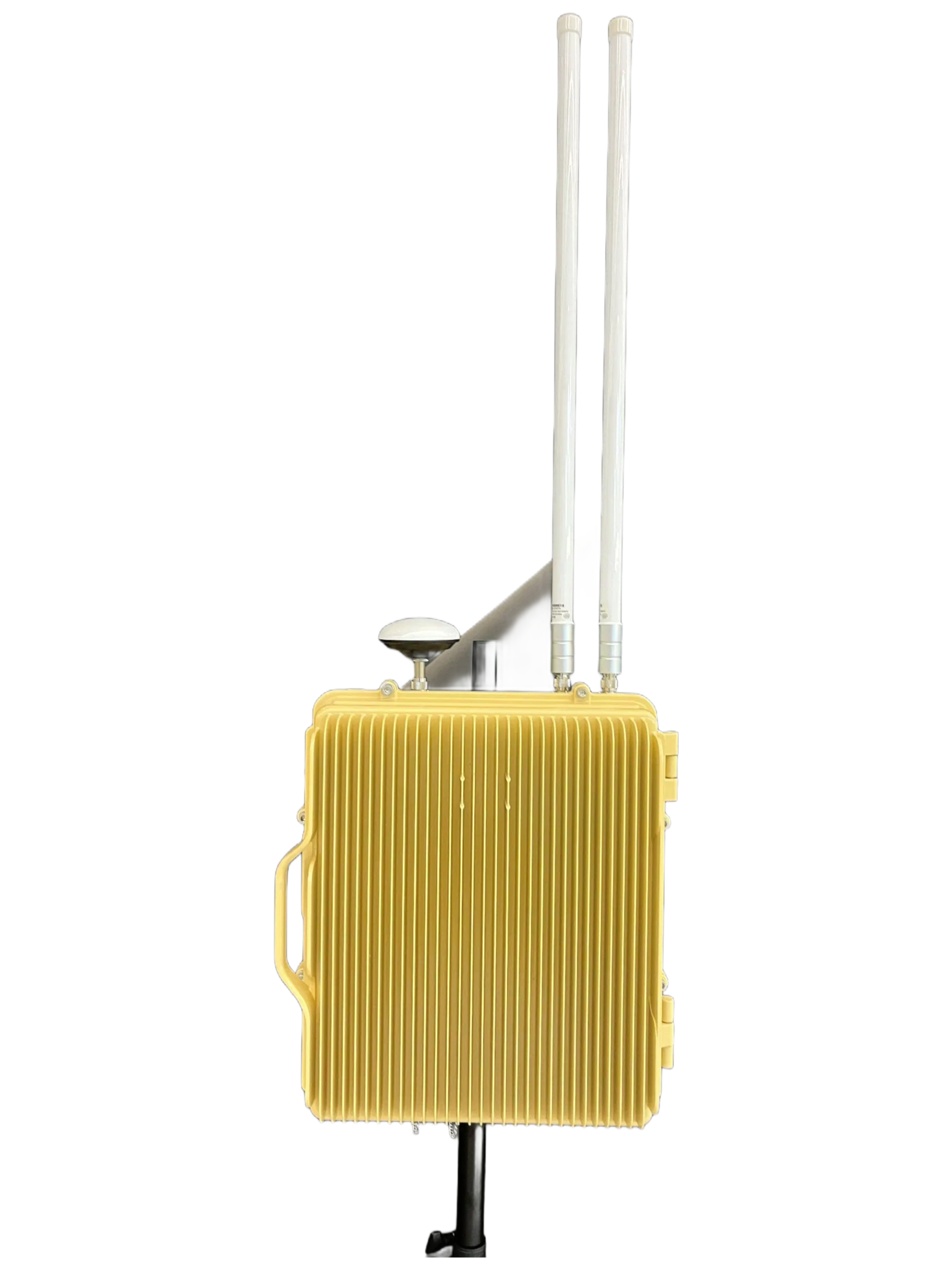

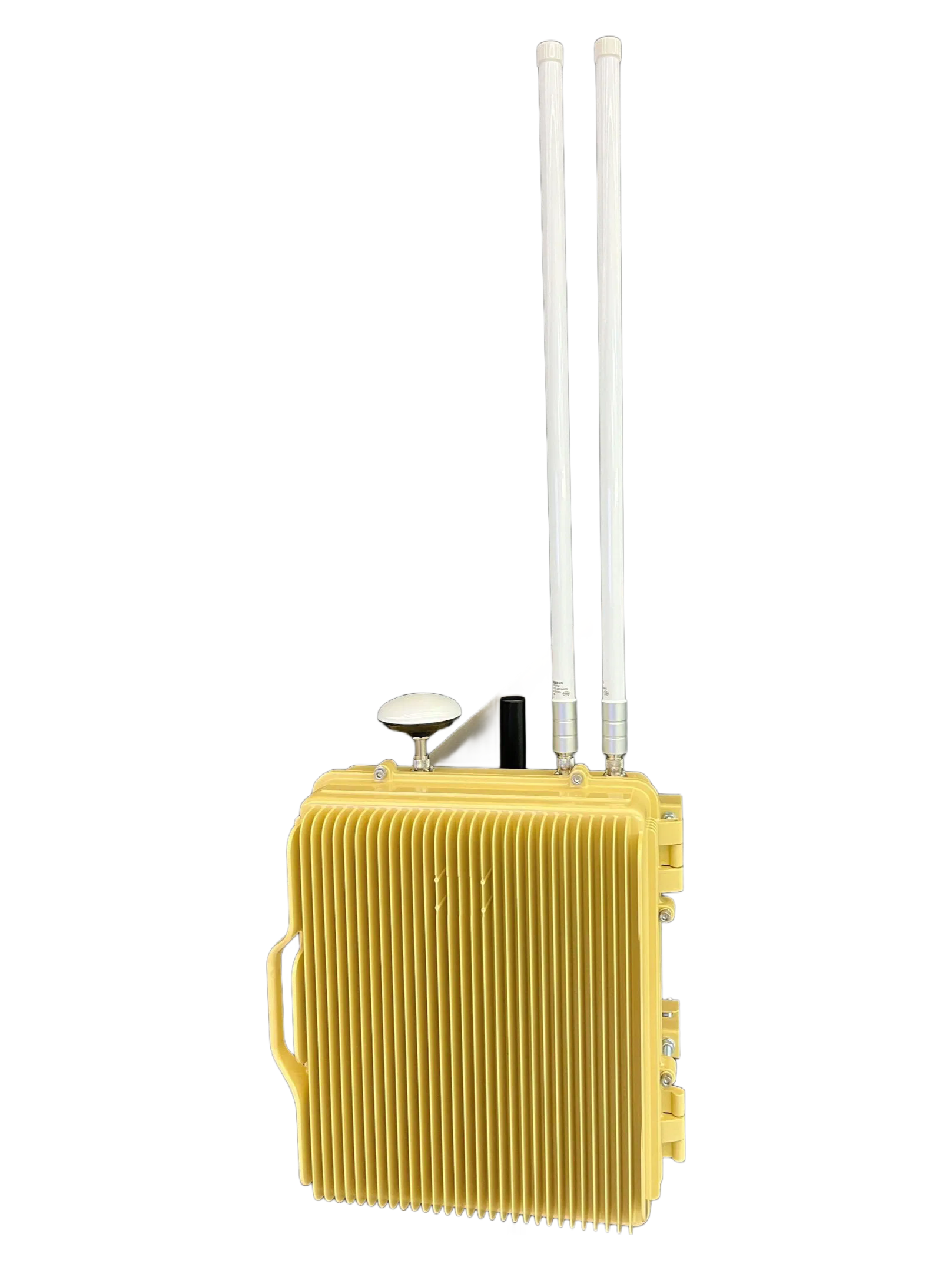

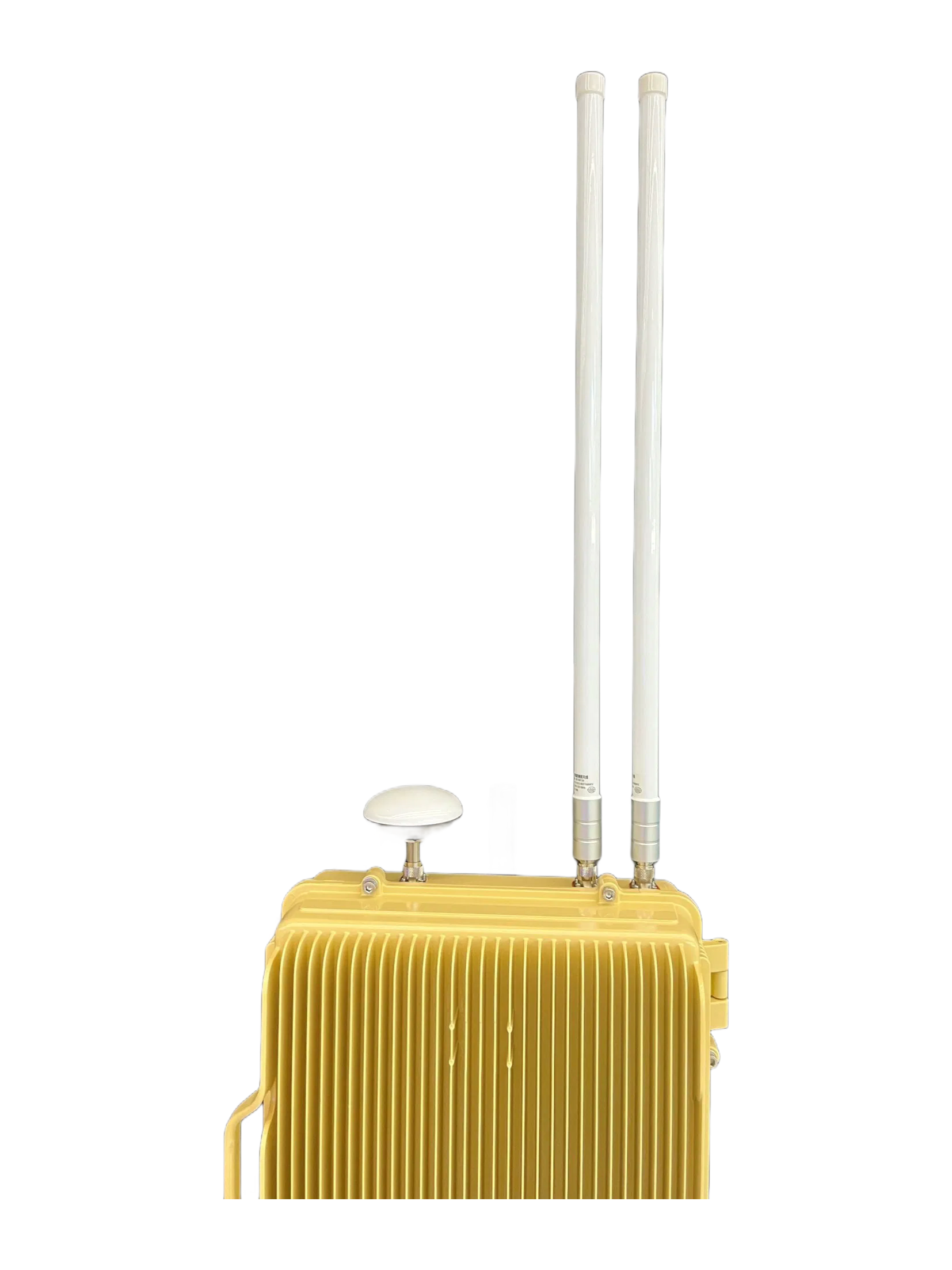

30km Long Range Anti-Drone GPS Spoofer Jammer with Directional Navigation System

The 30km Long Range Anti-Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone GPS Spoofer Jammer is a cutting-edge security solution designed to protect sensitive areas from unauthorized drone activities. This advanced system utilizes sophisticated GPS spoofing technology to effectively counter drone threats within a 30km radius.

Key Features:

• Advanced no-fly zone functionality prevents drone takeoff and forces airborne drones to land automatically

• Directional displacement capability allows controlled movement of drones within the operational range

• Simulates straight-line or circular drone movement with customizable speed and trajectory parameters

• Seamless integration with radar systems for enhanced detection and response coordination

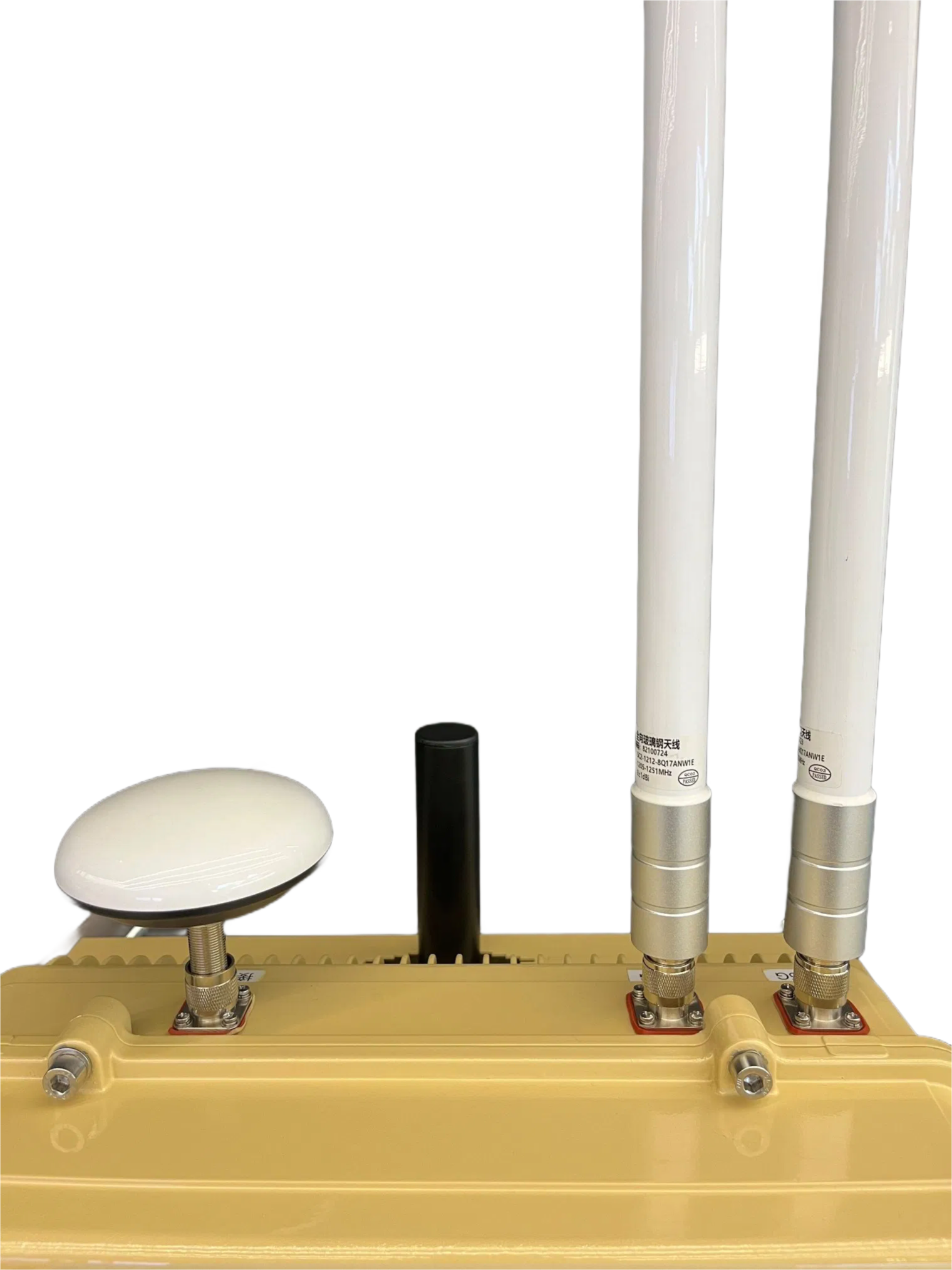

• Three-antenna system configuration for optimal signal reception and transmission

• High-precision spoofing with positioning accuracy better than 20 meters when radar-linked

• Multi-system compatibility supporting GLONASS, GPS, BDS, and Galileo navigation signals

• 24/7 continuous operation capability for uninterrupted security coverage

• Remote operation features including power adjustment and signal transmission control

Technical Specifications:

• Spoofing Frequency Bands: BDS B1/B2, GPS L1/L2, GLONASS L1/L2, Galileo E1

• Effective Range: ≥30km (configurable to 10km)

• Azimuth Coverage: 360° full directional protection

• Elevation Coverage: -5° to 40° for comprehensive airspace control

• Power Requirements: AC 220V standard input

• Operational Temperature Range: -20°C to 65°C

• Storage Temperature Range: -25°C to 70°C

• Environmental Protection: IP65 rated enclosure

• Physical Dimensions: 500mm × 400mm × 220mm (W×D×H)

• System Weight: ≤20kg for portable deployment

This professional-grade anti-drone solution is designed for military installations, government facilities, airports, and other high-security locations requiring reliable drone countermeasures. The system's advanced spoofing technology provides non-destructive drone neutralization while maintaining operational flexibility through customizable parameters and remote management capabilities.
