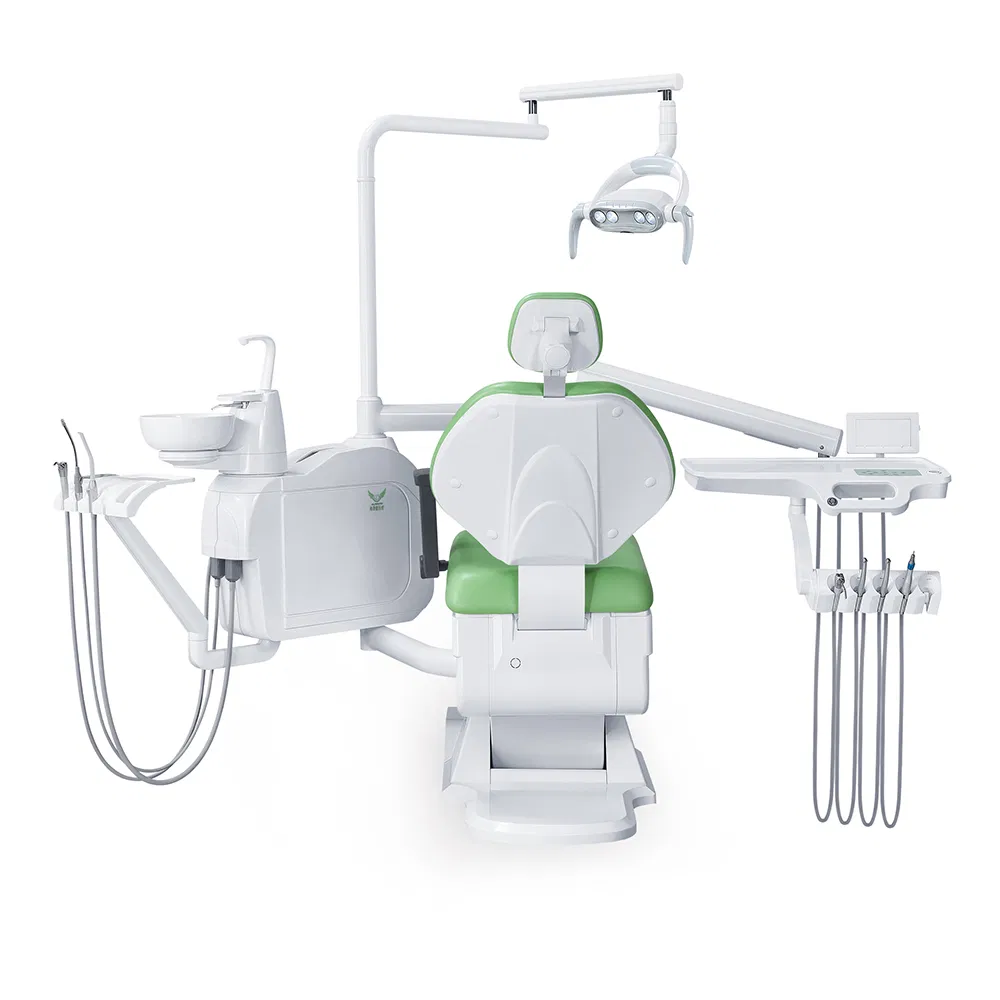

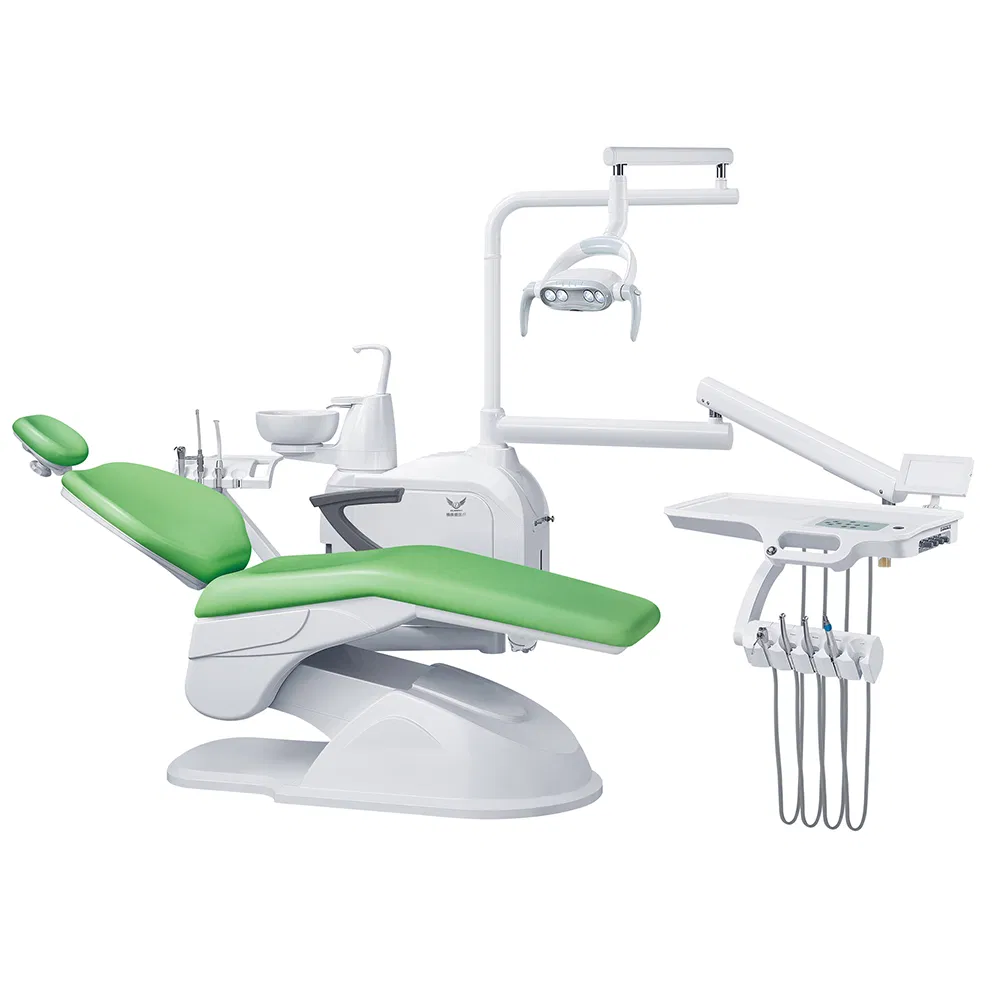

The GD-S200 dental chair unit is a professional-grade dental equipment solution designed for modern dental practices. This CE and FDA certified system combines advanced functionality with ergonomic design to enhance dental procedures and patient comfort.

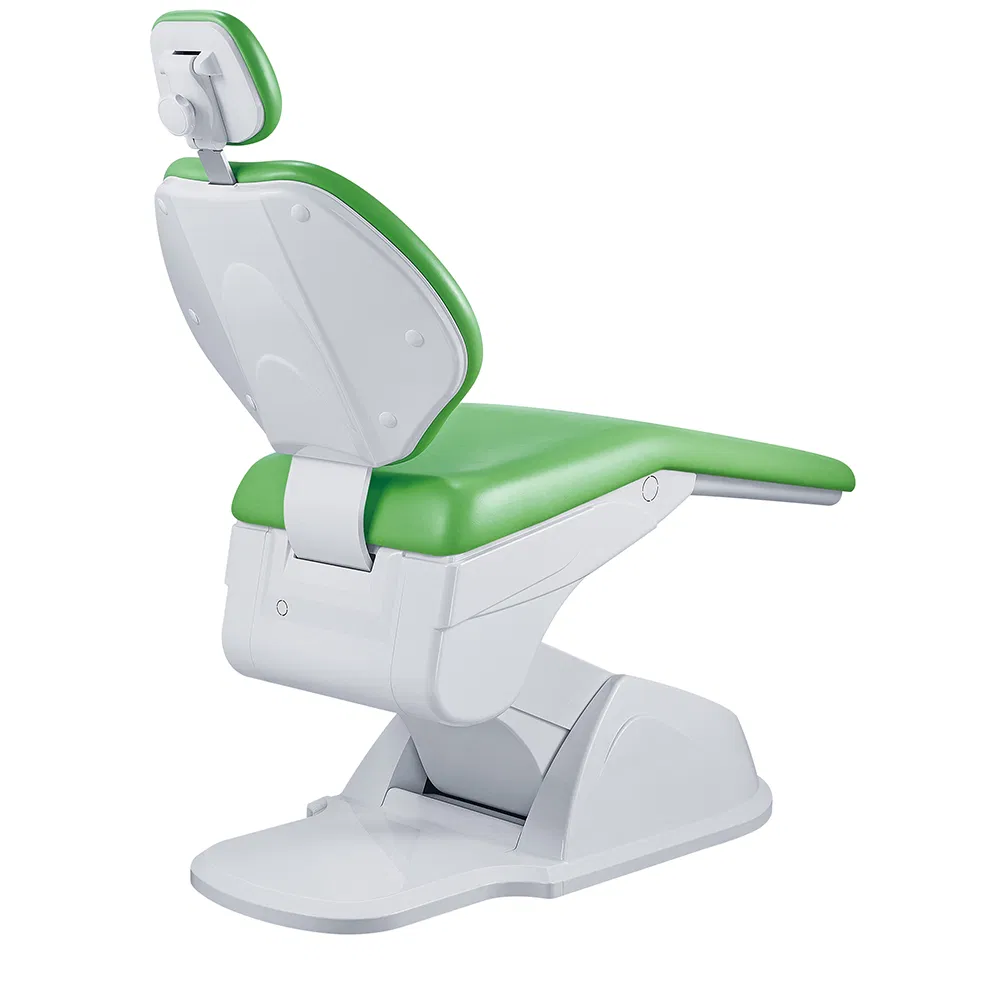

The dental chair features a high-quality Taiwan motor and an adjustable LED sensor operating light for optimal illumination during procedures. With 9 programmable positions and an articulate headrest, practitioners can easily position patients for various treatments. The unit includes a chair-instrument lock system and multi-function foot control for convenient operation.
The operation tray comes with a hanging type instrument tray and features either 2-hole or 4-hole air tubing hoses from Taiwan. The built-in 24V X-ray viewer and three-way syringe add to the unit's diagnostic capabilities. The main control panel provides easy access to all chair functions.

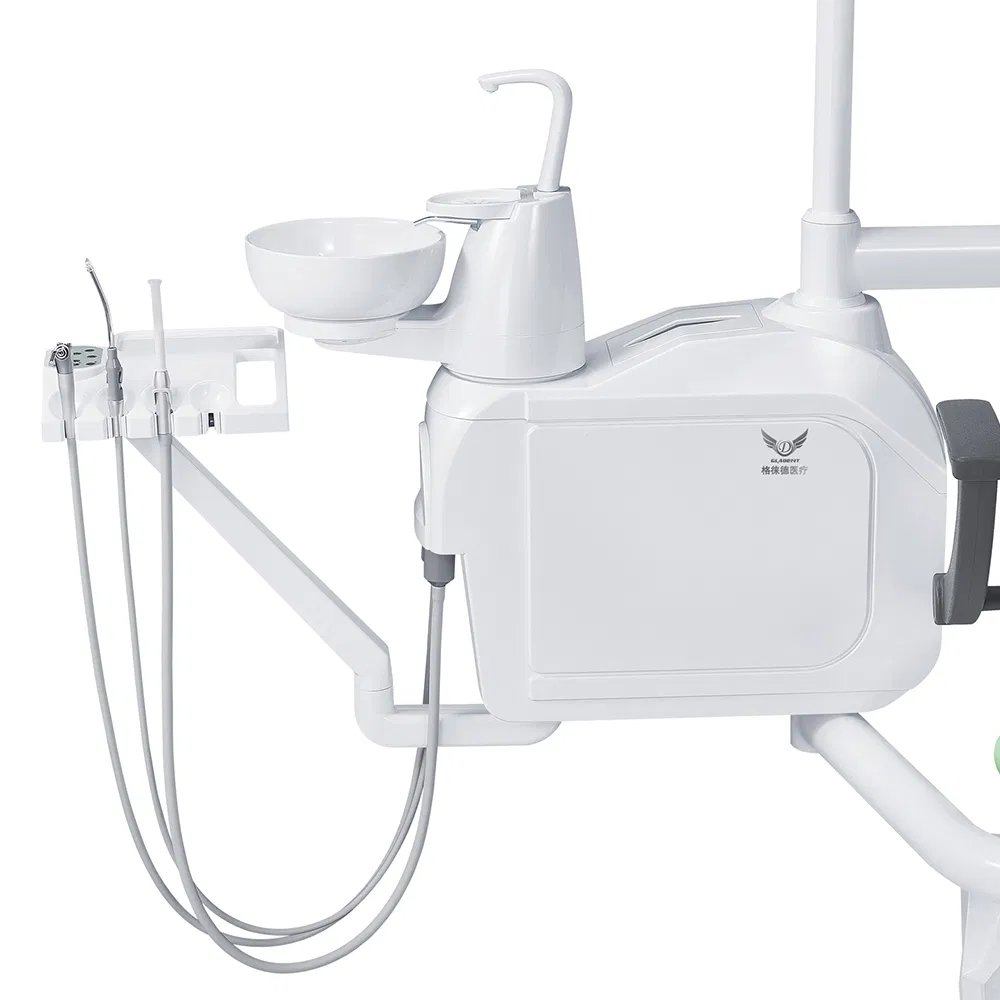

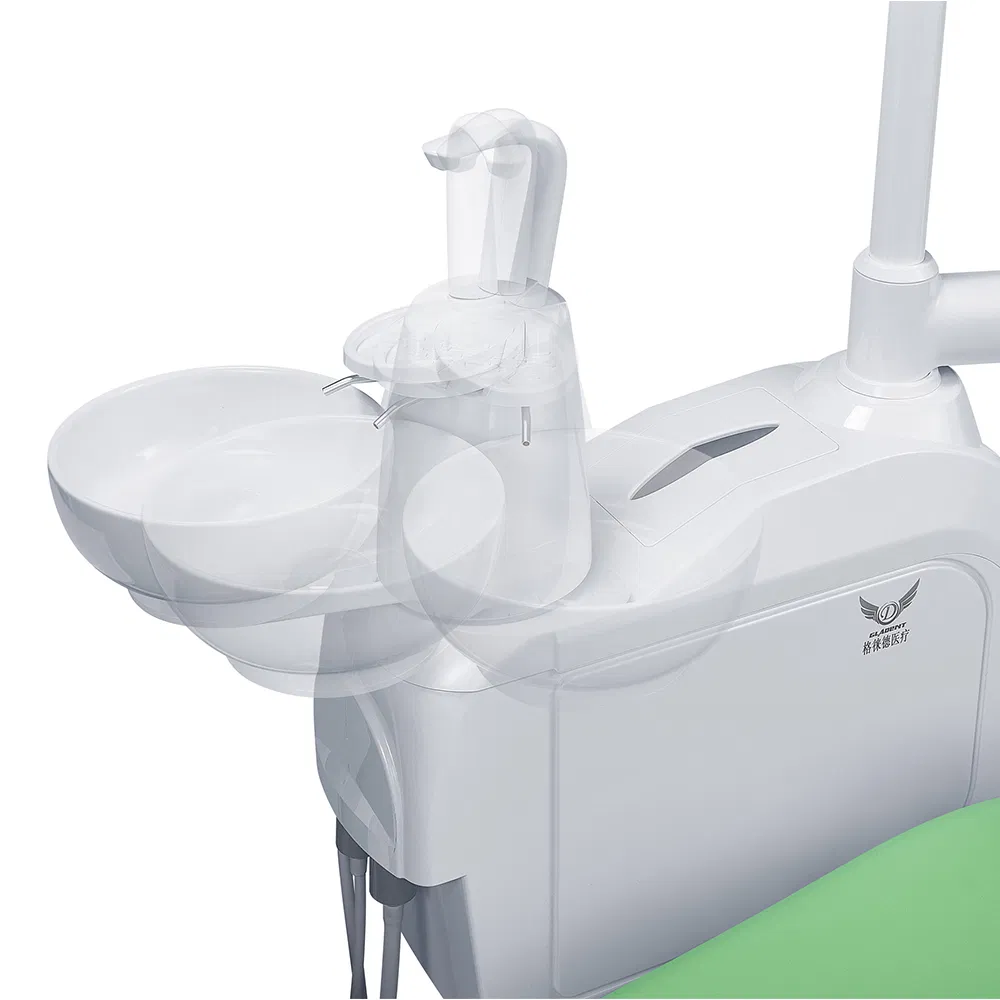

The unit box includes a rotatable ceramic spittoon, suction filter, pure water system, and 24V water heater for complete functionality. The assistant tray features another three-way syringe along with a high suction and saliva ejector system, plus its own control panel.
Additional options include various types of dental operating lights, top-mounted instrument trays, fiber handpiece tubes with light systems, high and low speed handpieces, built-in ultrasonic scalers, curing lights, dental oral camera systems, leather cushions, suction units, and oil-free air compressors.
The system operates on standard power voltage (220V/110V at 50Hz/60Hz) with motor voltage of 24V. It requires water pressure between 0.2MPa-0.4MPa and air pressure of 0.5MPa-0.8MPa for optimal performance.
