Durable Single-Mode Fiber Optic Cable with 0.27mm OD for High-Speed Data Transmission

We’ve been shipping these for a few years now, and basically the biggest draw is that absurdly thin 0.27mm outer diameter—it handles like fishing line but can push a signal cleanly up to 30 kilometers. The core runs between 0.27 and 0.4mm, which gives it a tighter bend radius than standard single-mode, and at 1550nm you’re looking at ≤0.25dB/km attenuation, so you won’t lose much over long runs. Most buyers go with the LC connectors for compact gear, but we can put FC, ST, or SC on there too.

What it does is eliminate EMI headaches in high-voltge environments, which is why the guys running tethered UAVs or FPV drones love it—no radio interference to fight, and the latency is effectively just the speed of light in glass. We’ve also had some customers use it for remote surveillance links or temporary field networks, but it isn’t great for heavy-duty outdoor burial or repeated re-spooling; the ABS jacket resists cold down to -40°C, but tensile strength is under 100N, so you have to treat it gently.

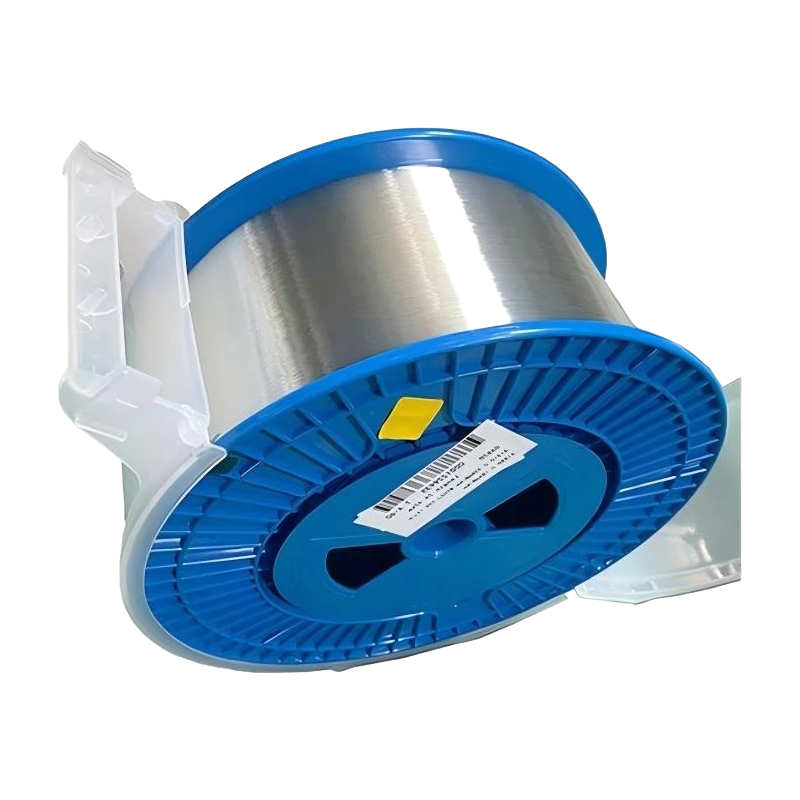

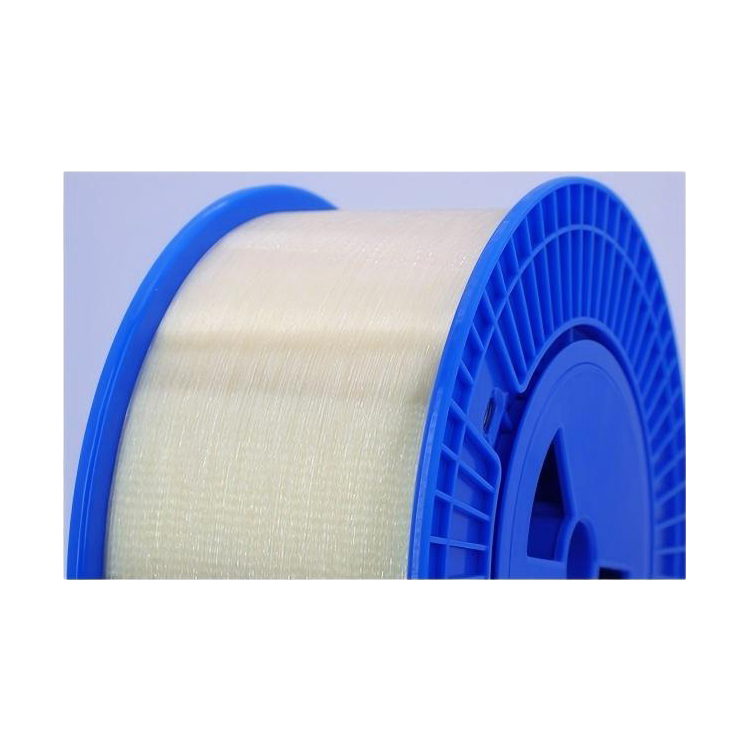

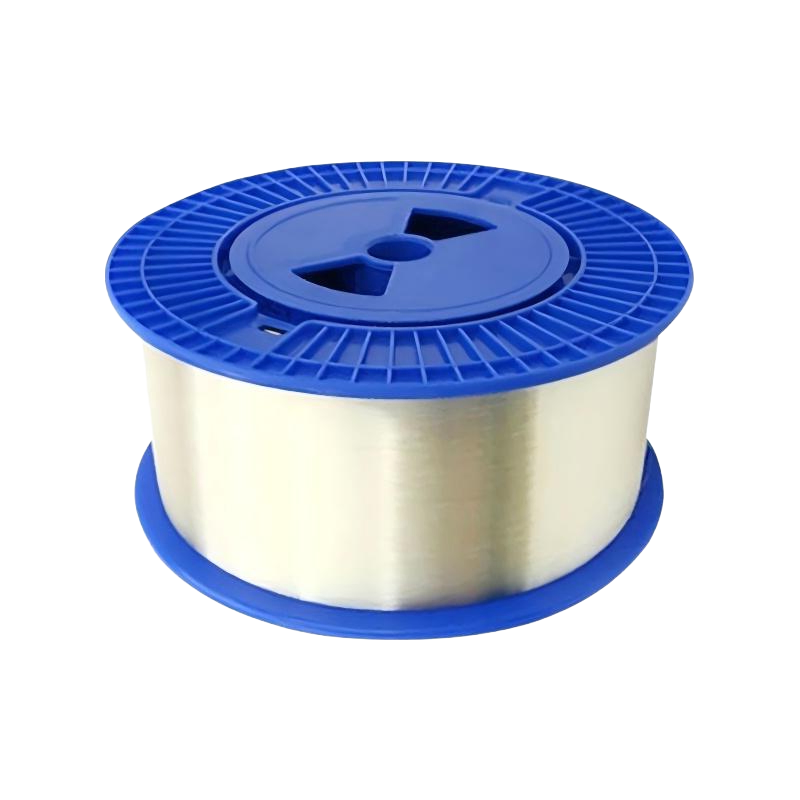

For supply, we usually have stock on 1km reels, and the full 20km spool weighs about 2.4kg, which is surprisingly light. Minimum order is 500 meters or so depending on the connector type you want installed, and we test every reel with a COA from an HPLC-type optical loss test set. Lead time runs roughly 2-3 weeks for custom terminations, but our company can drop-ship plain cable in 5-7 days.

One thing nobody thinks to ask is how the 0.27mm OD affects connector termination—it requires a slightly different ferrule alignment than the 0.9mm stuff, so make sure your splicer has a compatible adapter. Also, while the fiber itself handles -40°C to +85°C, we’ve found that adhesive curing on the ABS jacket can get finicky below -10°C, so warm up the work area if you’re terminating in winter.

Actually, teh 1310nm spec (≤0.35dB/km) matters more for short-reach runs where you want lower dispersion, but the 1550nm numbers are better for that 30km max because the glass has less scatter in that window. We always recommend a COA on the specific reel if you’re pushing past 20km, since attenuation variance from batch to batch can hit 0.05dB/km or so. You’ll want to verify with an OTDR at the 1550nm window before doing a full deployment.

Anyway, we keep the G657A2 in a standdard ABS jacket—transparent, so the cladding layer is visible—and it passes RoHS and CE, though ISO9001 is just on the factory’s production line, not per-spool certifcation. We do not recommend it for permanent aerial drops where the cable might snag on tree branches, but for controlled tether systems it’s pretty much ideal.
