Rated Voltage : 7.2KV, 12KV, 24KV, 35KV
Rated Current : 630A-5000A
Breaking Capacity : 20KA-50KA
Insulation Level : 42KV/1min power frequency, 75KV lightning impulse
Mechanical Life : 30,000 operations
Electrical Life : 30-50 operations at rated breaking current
Contact Material : CuCr alloy
Operating Mechanism : Spring stored energy
Closing Time : 50±10ms
Opening Time : 30±10ms

Contact Pressure : 2000-6000N
Operating Sequence : O-0.3s-CO-180s-CO
Ambient Temperature : -15°C to +40°C
Relative Humidity : ≤95%
Altitude : ≤1000m
Pollution Degree : III
Protection Class : IP4X
Certification : ISO9001, IEC, GB
Customization : Available

The VKJ series high voltage vacuum circuit breakers represent advanced switching technology for medium voltage power distribution systems. These breakers utilize vacuum interrupters that provide superior arc-extinguishing capability and long electrical life.

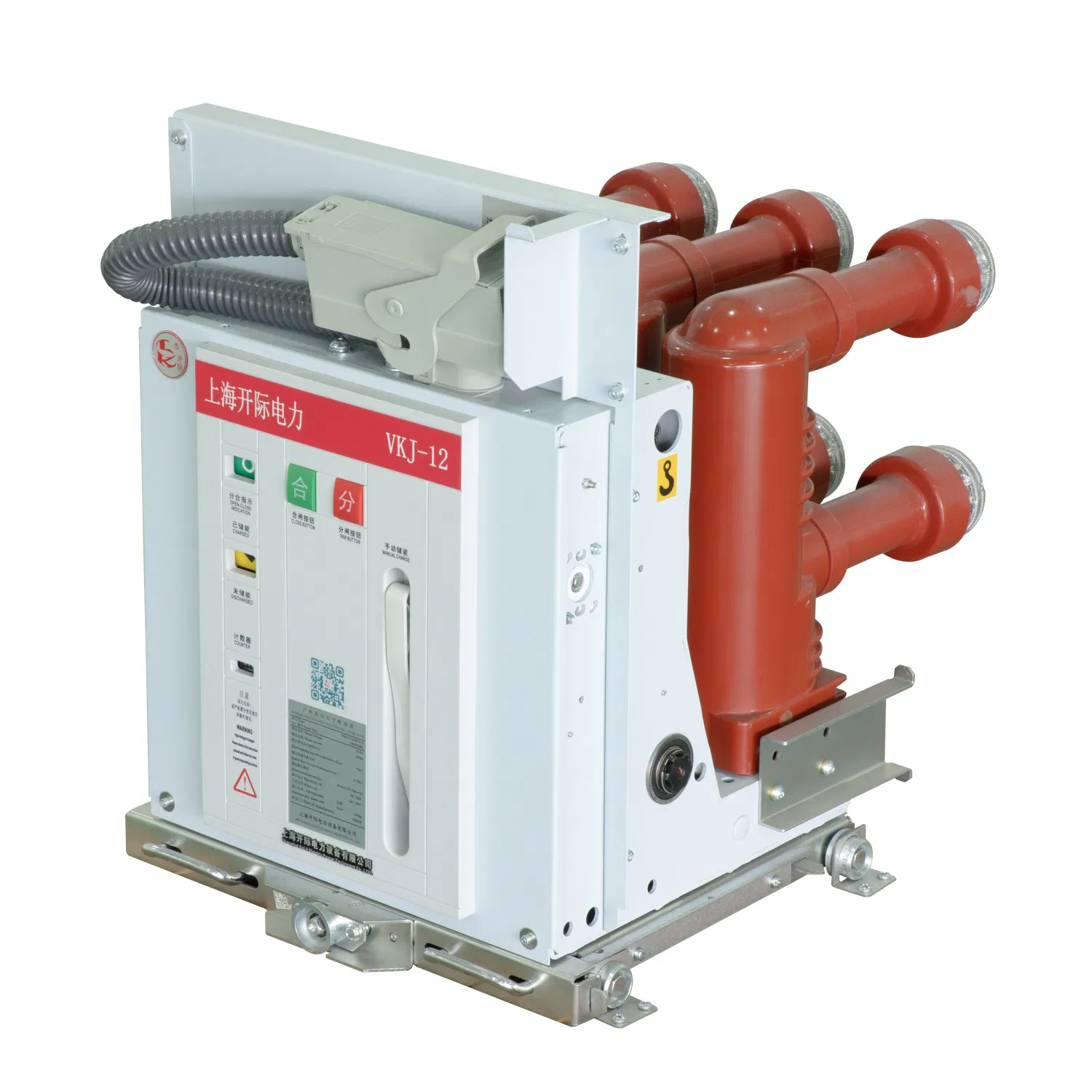

VKJ Vacuum Circuit Breaker Front View

Our circuit breakers are designed for indoor installation in switchgear and controlgear assemblies. The compact design ensures space efficiency while maintaining high performance standards. The main contacts are sealed in vacuum interrupters, eliminating the need for maintenance of the arc-quenching medium.

VKJ Vacuum Circuit Breaker Internal Structure

The operating mechanism features spring energy storage with motor charging, providing reliable operation under various conditions. Both manual and electric operation options are available to meet different application requirements. The breaker can be configured as fixed type or withdrawable type according to installation needs.

Key advantages include high breaking capacity, long mechanical life (up to 30,000 operations), minimal maintenance requirements, and environmental friendliness (no SF6 gas). The products comply with international standards and can be customized to meet specific project requirements.
