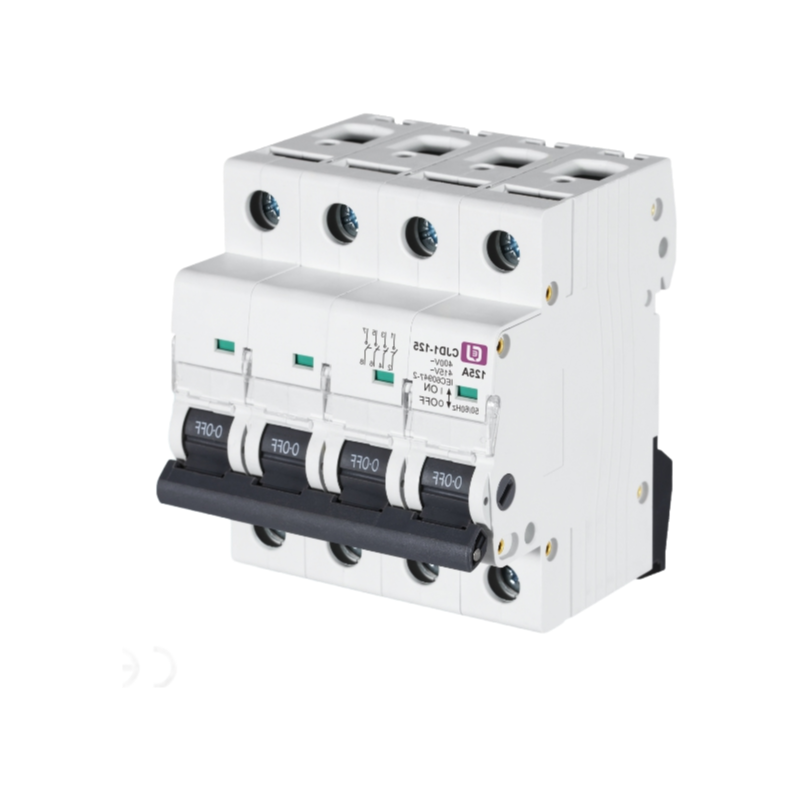

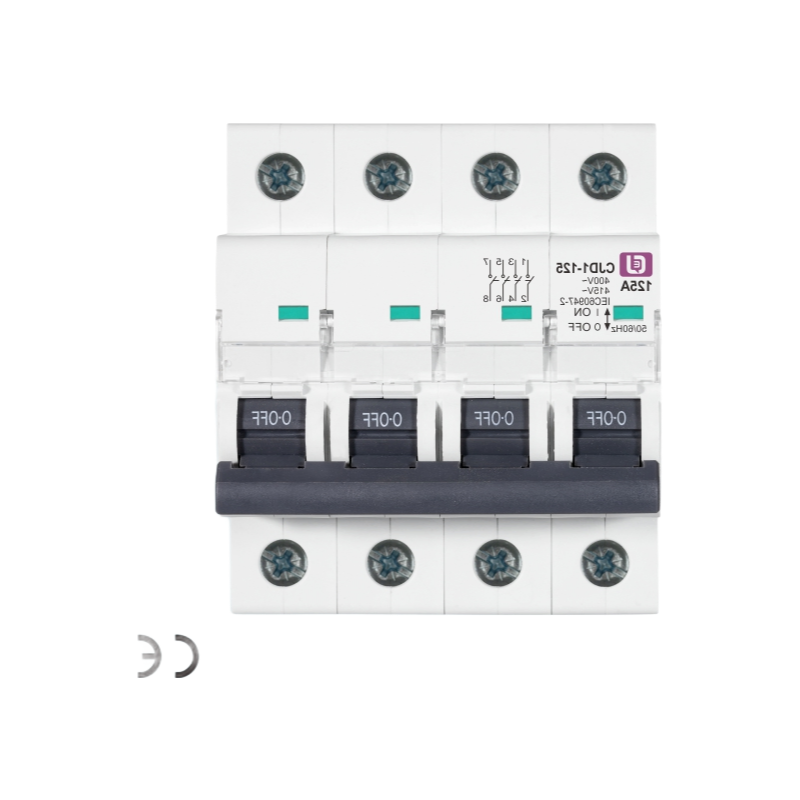

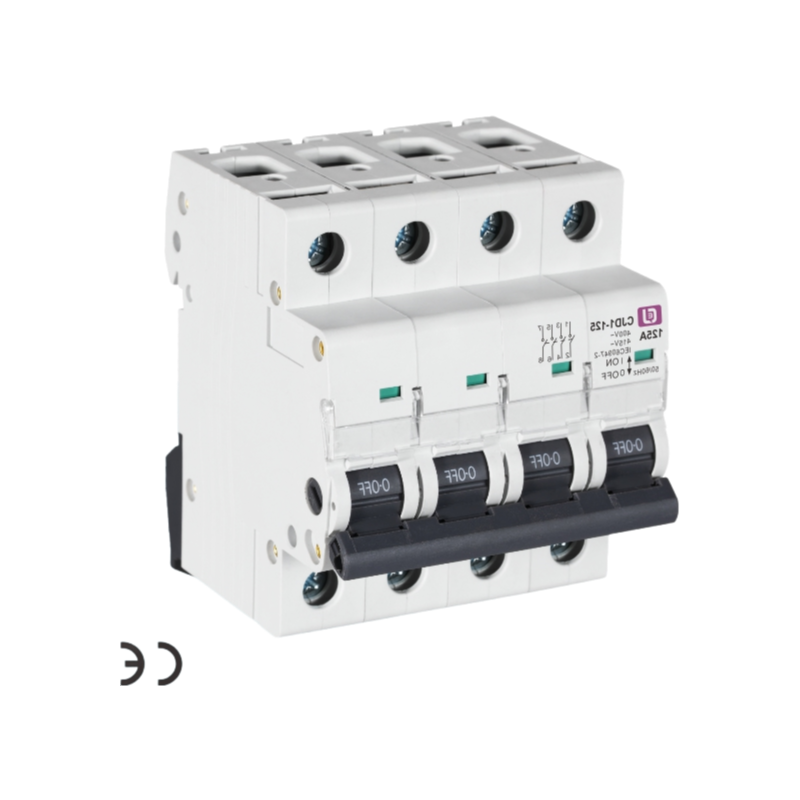

CJD1-125 Series Isolating Switch 4P 125A AC 230/400V IEC60947-3 Certified Circuit Breaker

The CJD1-125 series isolating switch is designed for safe circuit isolation in AC 50/60Hz electrical systems. With a rated voltage of 230/400V and current capacity up to 125A, this switch ensures reliable power disconnection during maintenance operations.

This switch meets IEC60947-3 standards and features visible contact position indication for enhanced safety. The robust construction includes a padlock device to prevent accidental operation during maintenance. The screw terminal connections support rigid conductors up to 35mm².

Key features include high making/breaking capacity, excellent short-circuit current withstand capability (2kA for 1 second), and electro-mechanical endurance of 10000 cycles. The switch is suitable for both household installations and industrial applications requiring reliable circuit isolation.

The CJD1-125 series is available in 1P, 2P, 3P and 4P configurations, with installation options including DIN rail mounting or panel mounting. The design ensures quick energy release operation and complies with international safety standards for electrical isolation devices.
