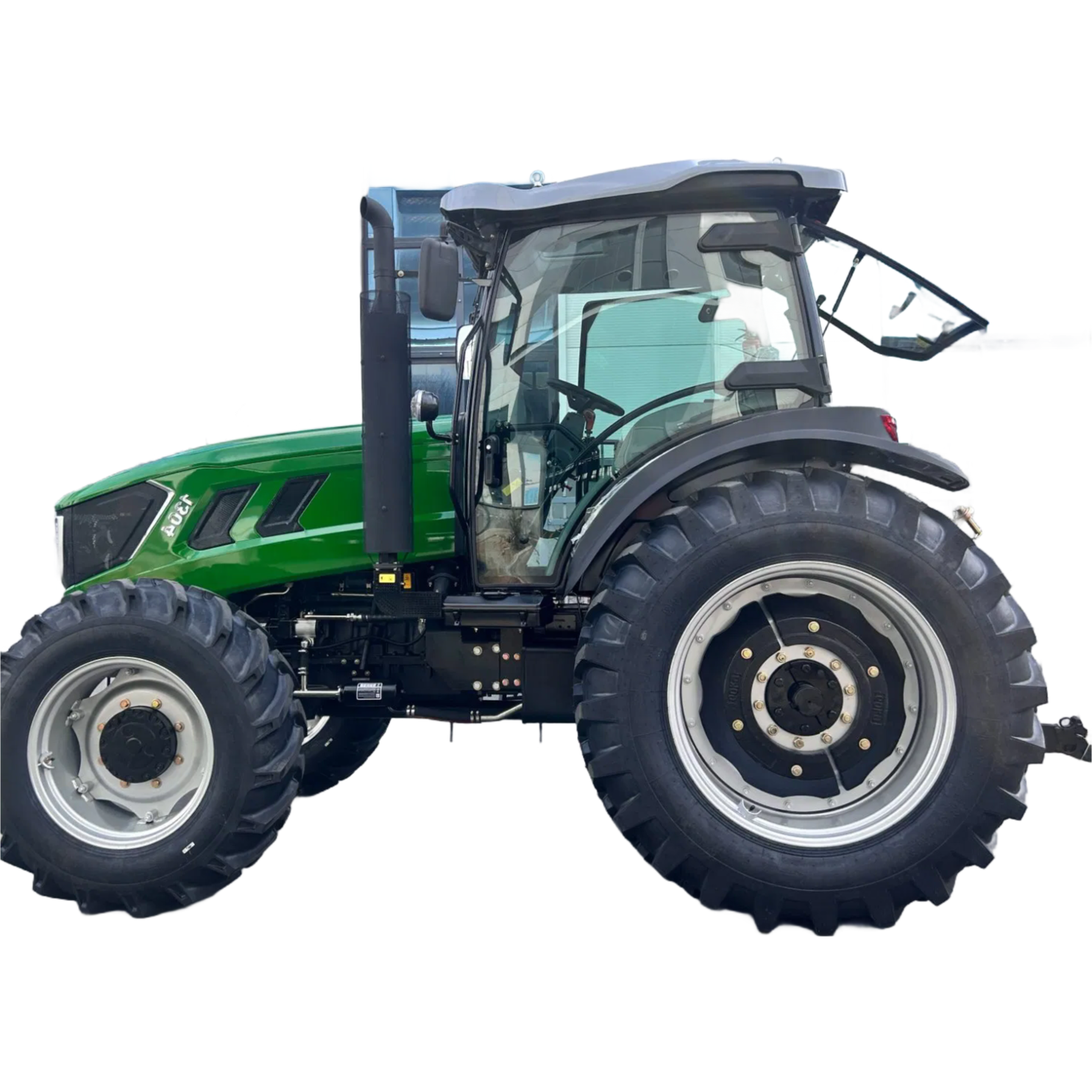

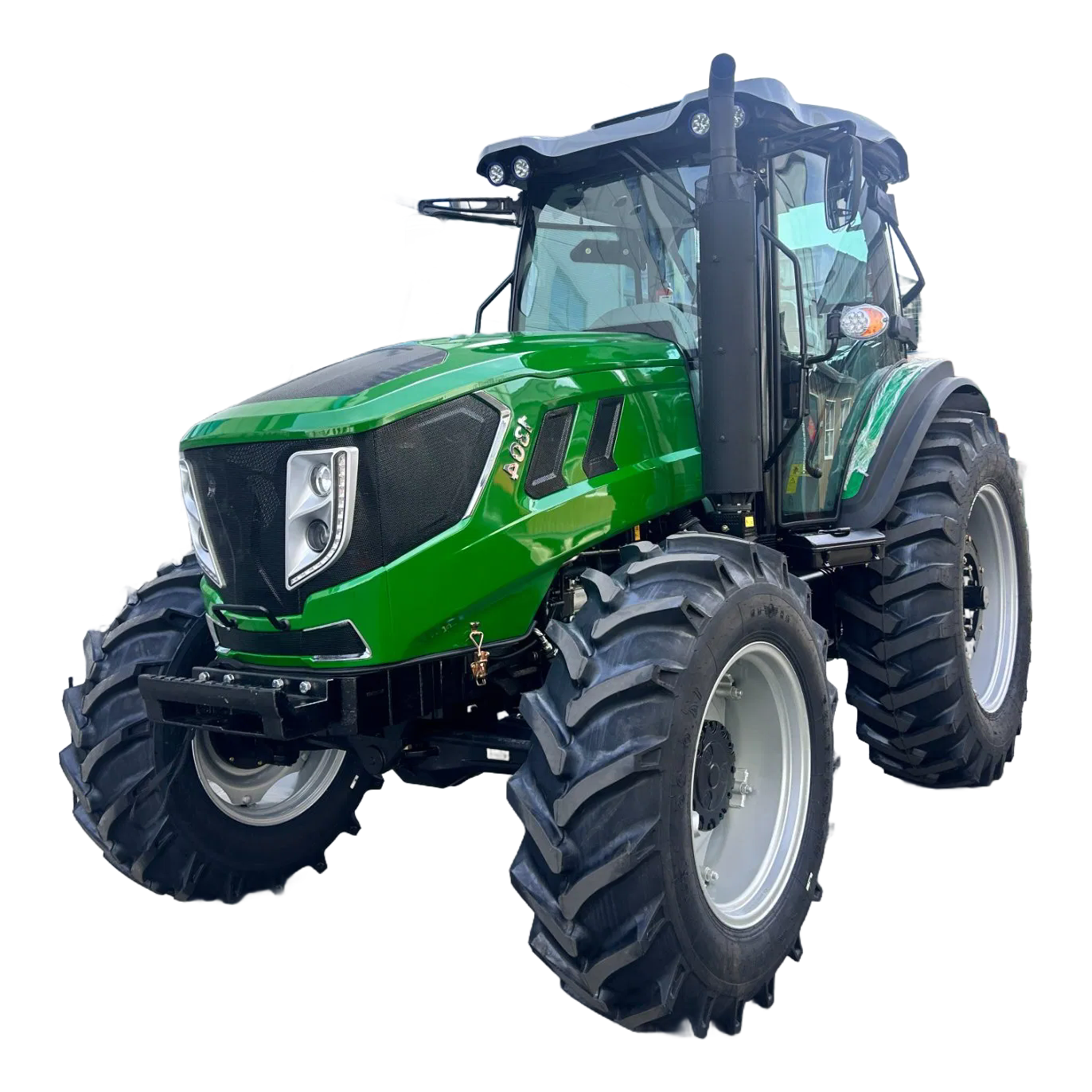

Basically, we build these with a 6-cylinder YTO diesel that cranks out 130HP at 2200 RPM, and the 4WD with a 16 forward plus 8 reverse gearbox gives you solid traction across most field conditions—you'll feel it in heavy tillage or hauling loads.

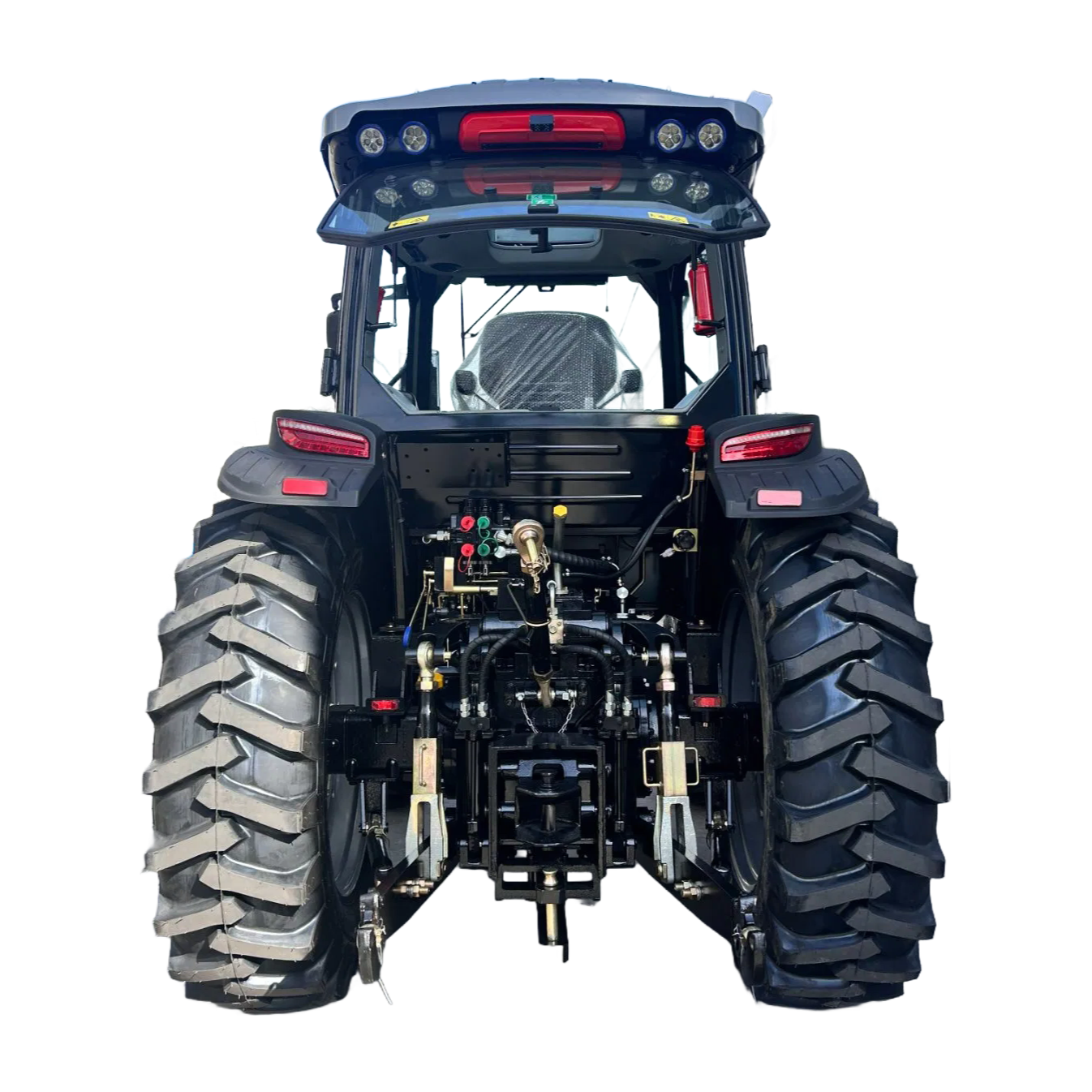

What it does is handle Category II implements through the 3-point hitch, and hydraulic flow sits at either 44 or 55 L/min depending on your setup, so you're not stuck with one option if your equipement needs more oil volume.
Most buyers I deal with go for teh 850 PTO speed for standard rotary cutters, but our company can swap it to 540/1000 RPM (just confirm during ordering) and the spline size varies between 6-35 or 8-38 rectangular—that's typically dictated by your existing attachments.
13-inch double-action clutch is pretty forgiving for daily use, and the fuel tank holds 240L which gives you about 8-10 hours of continuous work (roughly) before refueling, though heavy pulling will burn through it faster.
We've shipped these with both China II and III emission standerd, and the CE certifcation plus OECD testing means you're covered for most export markets—warranty runs one year, but service life averages over a decade if you keep up with oil changes and filter swaps.
One thing though: at 5150kg operating weight and a wheelbase of 2420mm, it's not ideal for tight orchards or narrow row crops—that ground clearance of 390mm helps in wet fields, but turning radius is average for this size class.
Our MOQ is typically 1 unit for stock orders, but if you're looking for a custom configuration or a mixed container, we usually ask for at least 5 units to keep logistics efficient.
For a standard TD1304, lead time is about 25-30 days. If you need a customized version—like a different PTO speed or hydraulic output—it might stretch to 40-45 days depending on parts availability.
Yes, every TD1304 comes with a CE certificate, ISO docs, and OECD test reports included in the shipping package. We'll also email you digital copies ahead of time if you need them for customs clearance.
Absolutely. The TD1304 is available with either 760/850 or 540/1000 PTO speeds. Just specify which one you need when ordering, and we'll set it up at the factory.
We ship it in a steel frame crate with all fluids drained and batteries disconnected. For storage, keep it indoors or under a cover in a dry area—the paint is durable, but prolonged sun or rain can fade it.
