Bulk Order 12V 200Ah Lithium Battery - Parallel/Series Connection for Energy Storage

The 12.8V 200Ah LiFePO4 battery represents the latest advancement in energy storage technology, featuring premium Grade A lithium iron phosphate cells that ensure exceptional performance and longevity. This high-capacity battery is engineered for demanding applications where reliability and durability are paramount.

With an impressive cycle life exceeding 6000 cycles at 80% depth of discharge, this battery significantly outperforms traditional lead-acid alternatives. The advanced battery management system (BMS) provides comprehensive protection against overcharge, over-discharge, short circuit, and temperature extremes, ensuring safe operation in various environments.

The rugged plated iron case offers superior stability and heat dissipation while maintaining a remarkably lightweight profile. Weighing just 12.5kg, this battery is approximately 70% lighter than comparable lead-acid batteries, making installation and transportation significantly easier.

Key technical specifications include a continuous discharge current of 100A and peak current of 200A, making it suitable for high-power applications. The operating voltage range of 10-14.6V ensures compatibility with most 12V systems, while the standard voltage of 12.8V provides stable power output.

Designed for versatility, these batteries can be connected in series (up to 4 units) or parallel (up to 8 units) configurations to create 24V, 36V, or 48V systems for larger energy storage requirements. The silver-plated copper terminals ensure excellent conductivity and corrosion resistance, while the flame-retardant ABS material casing provides IP67 waterproof protection.

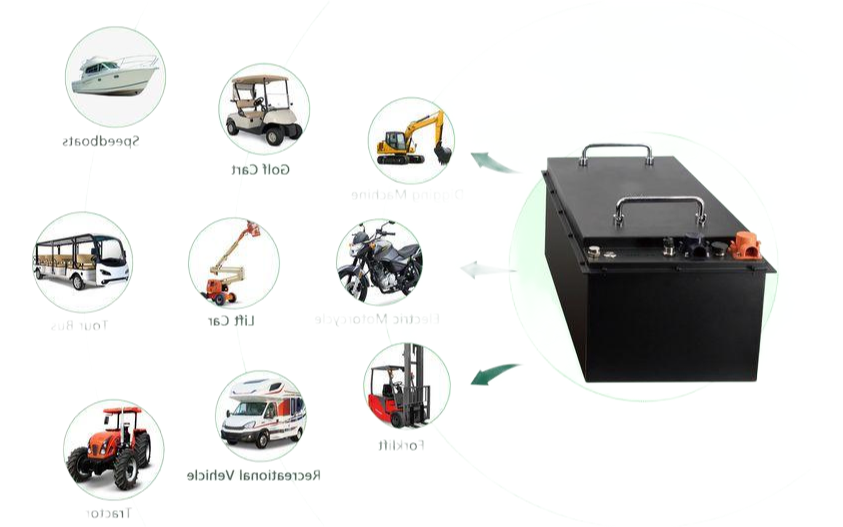

Common applications include:
- Solar energy storage systems
- Golf carts and electric vehicles
- RV and marine power systems
- Off-grid power solutions
- Telecom base stations
- Solar street lighting

The battery's high energy density (up to 160Wh/kg) and low self-discharge rate (less than 3% per month) make it an ideal choice for applications where space and weight are critical factors. Unlike lead-acid batteries, our LiFePO4 batteries maintain consistent performance throughout the discharge cycle, with voltage remaining stable until near complete discharge.

Environmental benefits include:
- No toxic lead or acid
- 100% recyclable
- No memory effect
- Wide operating temperature range (-20°C to 60°C)
- Maintenance-free operation

With a 3-year manufacturer warranty, this 12.8V 200Ah LiFePO4 battery represents a cost-effective, long-term power solution that delivers superior performance across a wide range of applications.
