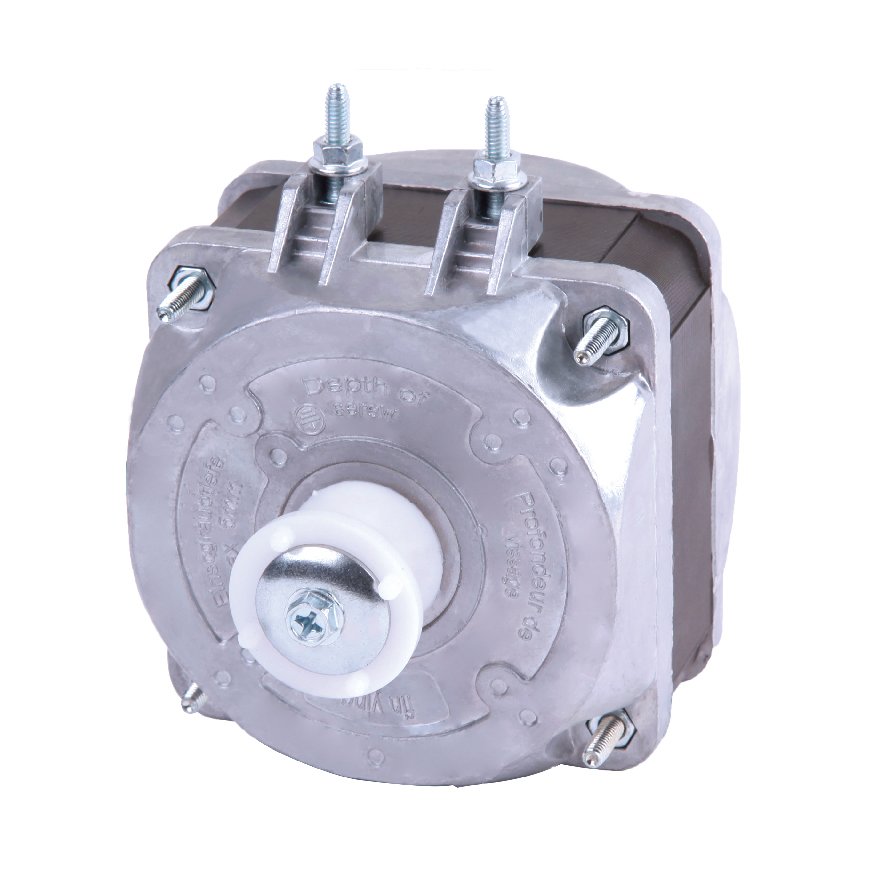

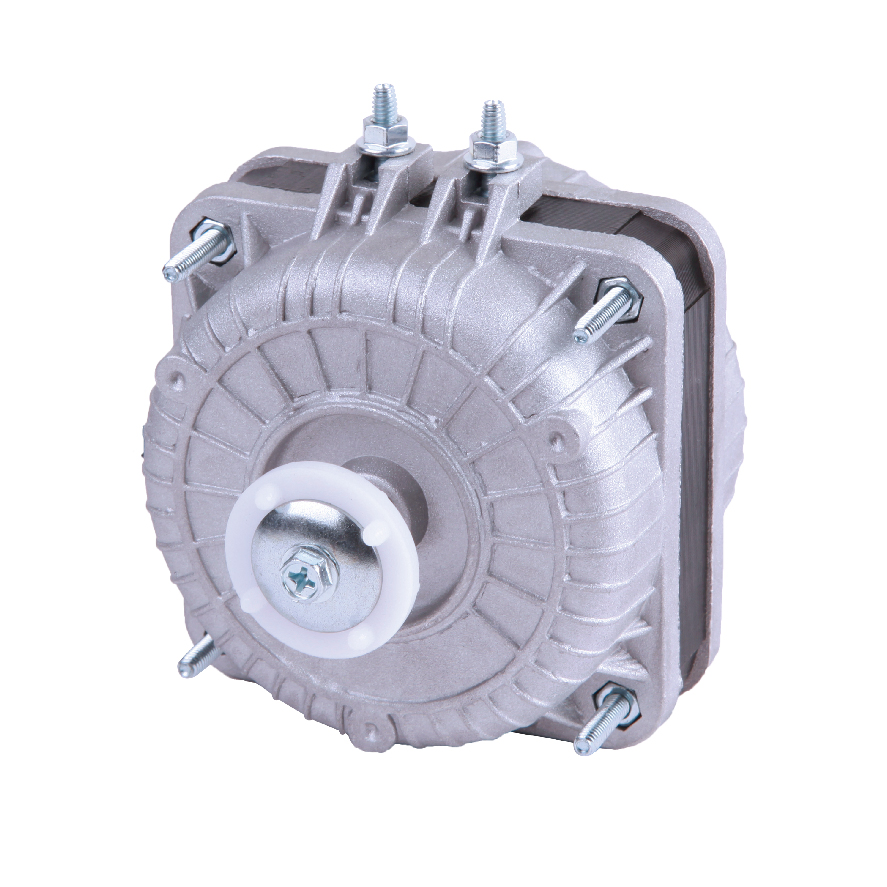

Someone's HVAC unit kicks on in a commercial kitchen or server room, and what it's doing is moving hot air across condenser coils—that's where this motor lives, and it's built for that specific kind of continuous, low-vibration duty.
We've got them in 5W up to 34W, speed range roughly 1300 to 1550 RPM, and fan blade sizes they'll drive are typically 200mm to 300mm—most buyers go with the 10W or 18W for standdard residential condensers, but the 34W handles bigger commercial units fine.
It's a three-phase asynchronous motor, 50/60 Hz compatible, and you can get it in 220-240V or 110-120V depending on your region. The casing is closed-type aluminun, which helps with heat dissipation and keeps debris out, and it's rated explosion-proof (usually 2-4 weeks lead time on that variant).
Starting is variable frequency, so you don't get that hard jolt when it kicks on—smoother on the fan blades and the mounts. Noise is lower than most induction motors this size, but it's not silent; think a steady hum rather than a rattle.
Certifications include ISO9001, CCC, RoHS, and VDE—so it's fine for household appliances like window ACs or HVAC systems, but we wouldn't recommend it for outdoor exposed installations without additonal weatherproofing (the aluminum is good, but the terminals aren't sealed for rain).
We usually have stock on the common voltge/power combos, but confirm lead time for the 5W or the 110V version—those move slower and sometimes sit for 20 days or so before we ship.
The YZF motor works with fan blades from 200mm up to 300mm. That covers most standard condenser fan setups in HVAC and household appliances.
You can order any output power within the 5-34W range. Just tell us the exact wattage you need, and we'll match it to your application.
Our MOQ for the YZF series is typically 500 units per model. If you need fewer, let us know your volume and we can discuss options.
Yes, we include valid copies of the ISO9001, CCC, RoHS, and VDE certificates with every order. You'll get the paperwork you need for compliance.
The standard speed range is 1300-1550 RPM, but we can tweak it for you if needed. Just share your target RPM, and we'll see if it's doable with the same motor design.
I received the motor much faster than anticipated, which was a pleasant surprise given the current global shipping challenges. The packaging was secure and intact, showing no signs of damage during transit. In terms of quality, the motor appears robust and well-constructed, with a solid finish that suggests durability. Customer service was exceptional; the support team responded promptly to my inquiries and provided clear, helpful information. Overall, I'm very satisfied with this purchase and would recommend it to others based on these aspects.
