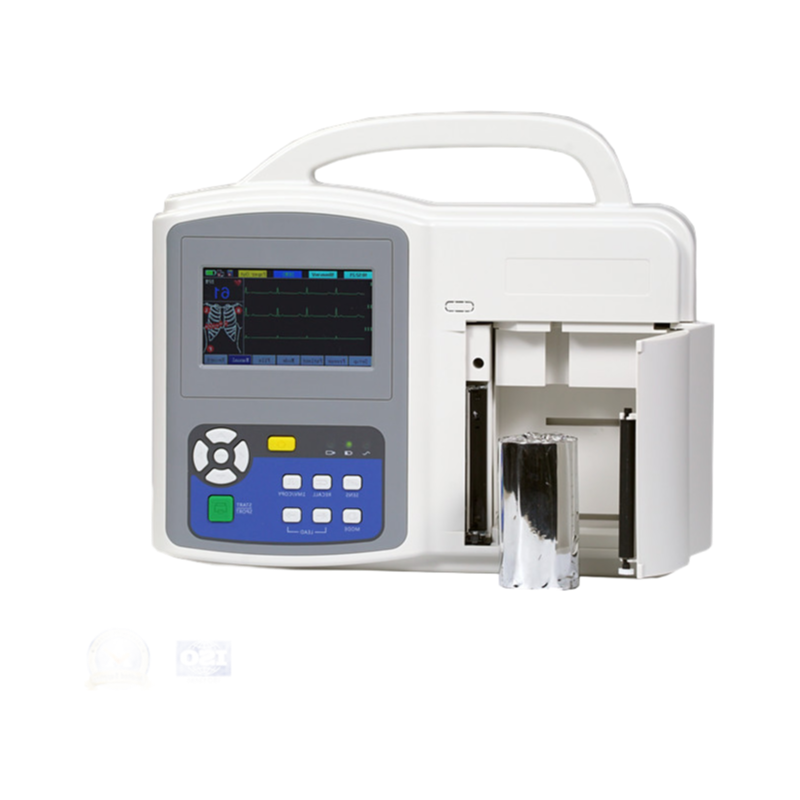

UN8003 3-Channel Touchscreen ECG Machine with Automatic Interpretation for Medical Use

The UN8003 is a high-performance 3-channel ECG machine designed for medical professionals in hospitals, clinics, and emergency settings. This portable device combines advanced ECG monitoring capabilities with user-friendly touchscreen operation for efficient patient diagnostics.

Featuring a 4.3-inch color TFT LCD display with touch panel and keypad input options, the UN8003 offers flexible operation modes including both manual and automatic working modes. The device supports simultaneous 12-lead acquisition with 3-channel recording, providing comprehensive cardiac monitoring.

The ECG machine includes advanced digital filtering technology to resist baseline drift, AC interference, and EMG interference, ensuring clear and accurate readings. With built-in lead-off detection and alert system, the device maintains reliable monitoring throughout examinations.

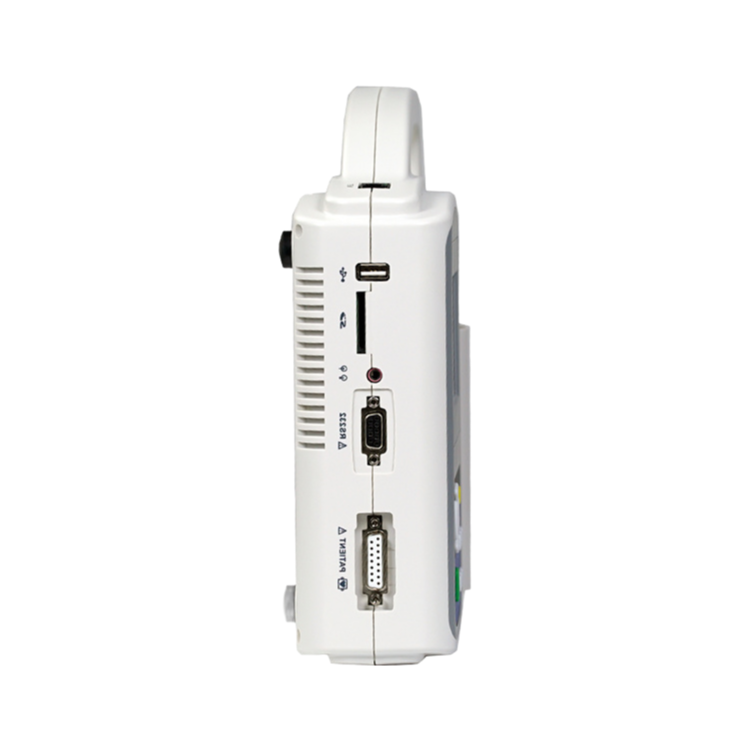

Data storage options include SD card support and 100 patient information storage capacity. The device also features 120 seconds ECG wave freeze and replay function for detailed analysis. Connectivity options include USB/RS232 interfaces with optional ECGNET software.

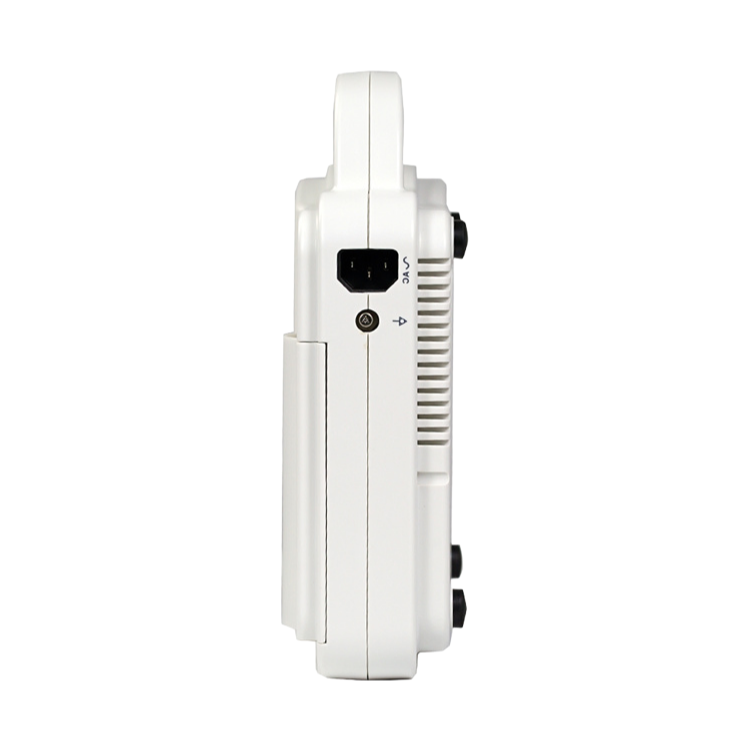

Power options include a built-in rechargeable Li-ion battery supporting up to 3 hours of continuous operation, along with AC power supply compatibility (90-240V@50/60Hz). The device meets international safety standards with floating input circuit and protection against defibrillator effects.

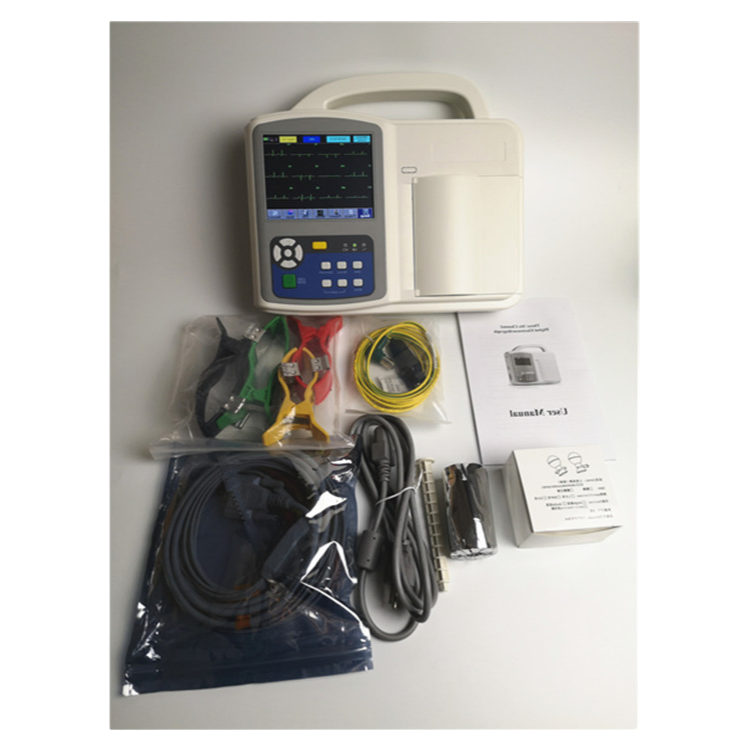

The standard configuration includes patient cable, limb electrodes (4 sets), chest electrodes (6 sets), paper axis, thermal paper, power cord, and AC adaptor. The compact design (285×265×72mm) and lightweight construction (1.5kg with battery) make it ideal for both stationary and mobile use.
