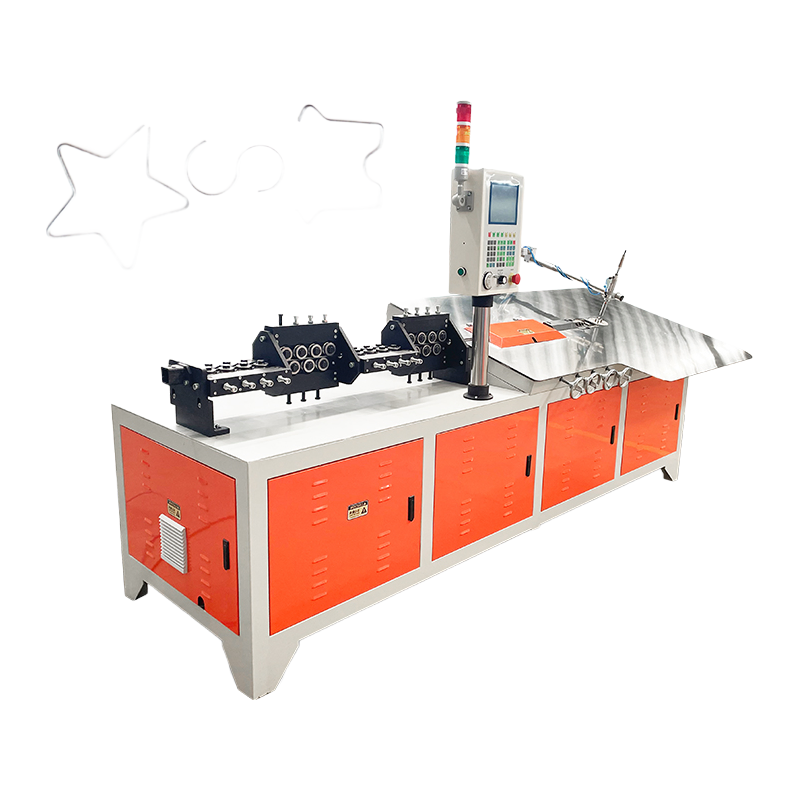

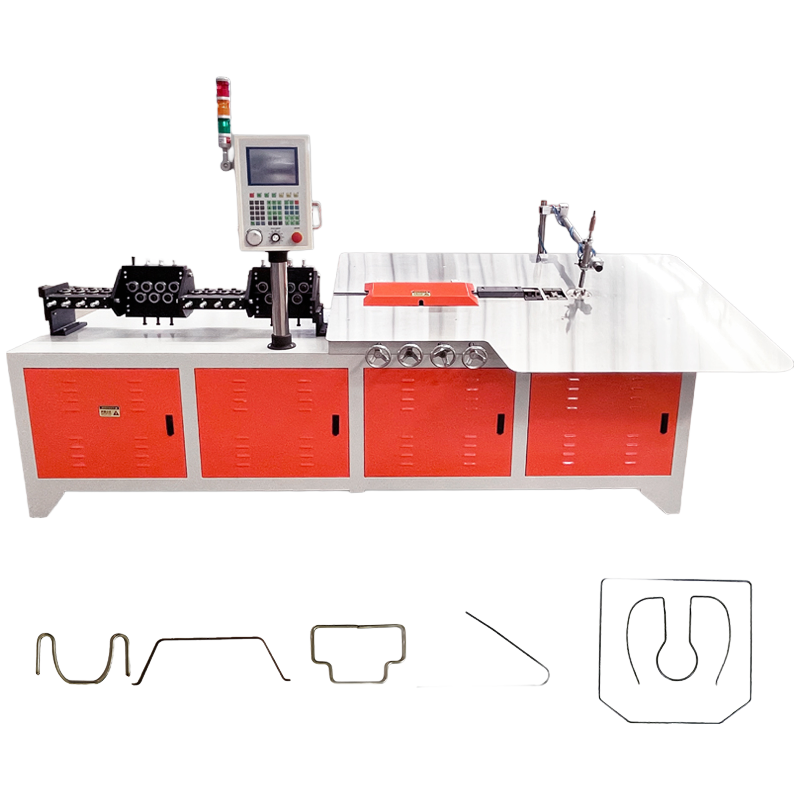

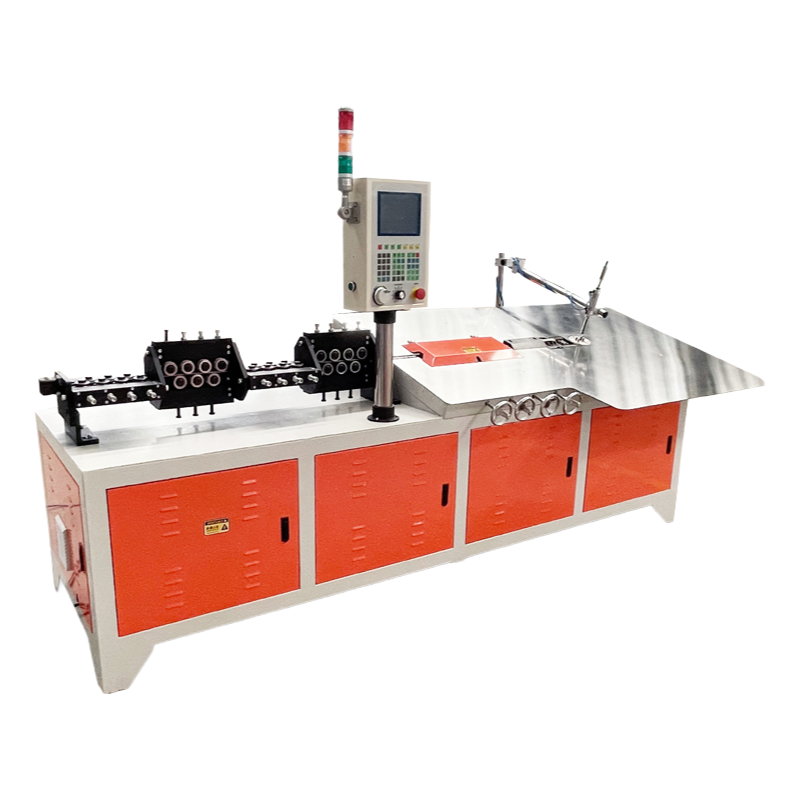

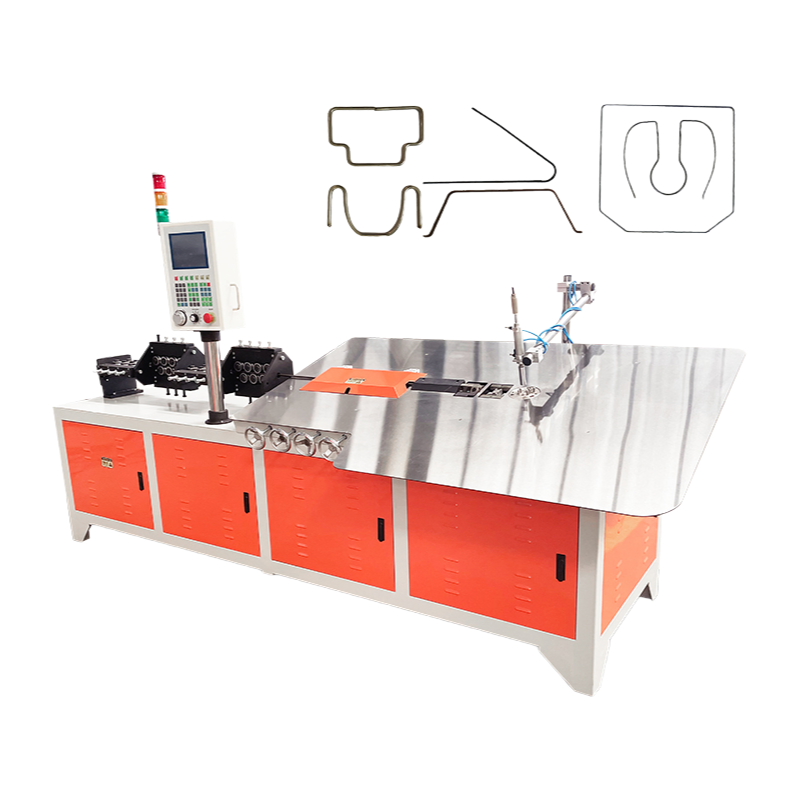

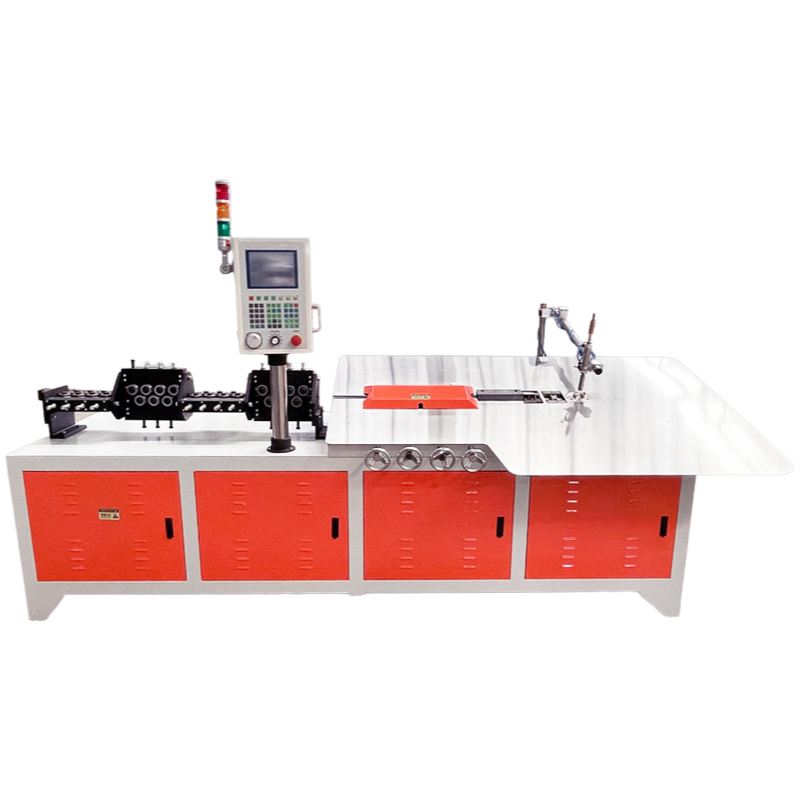

High Precision 2D CNC Wire Bending Machine for Auto and Furniture Industry Applications

We typically keep this in stock for immediate dispatch, but larger orders—say 5 units or more—might need 20 days or so lead time once we double-check. The 380V 50Hz 3-phase power requrement is pretty standerd, though some smaller shops have had to run a dedicated line for it.

Bending speed hits 800 rpm and feeding accuracy sits at plus or minus 0.1 millimeters, which matters a lot when you're iterating on tight-radius furniture frames or automotive brackets. Five of them would fill a 40-foot container, so you'll need to account for the 650 kg each unit weighs and the 2600×1200×1500 mm footprint.

It's not ideal for spring steel over 6mm or anything requiring closed-loop wire guidance—basically, if your wire comes off a spool with twist memory, you'll want our air-feed attachment seperately. The 32-bit control stores 10,000 recipes, so once you dial in that tricky flat wire profile for a seat frame, you can recall it instantly without re-teaching.

Two to eight millimeters on soft wire, but hard wire gives you a tighter window of 3-6mm depending on the alloy. at 25 to 30 pieces per minute for a 200×200 square, which works out to about 1,500 an hour if your straightness is consistent. The whole row pressing feature on the straightener lets you swap form round to square wire without recalibrating rollers—that's the detail most buyers don't think to ask about until they're chasing a last-minute change order.

CE is listed on the certifcation tag, but we don't stock a universal voltage version, so confirm your mains configuration before placing the PO. Power consumption across the three servo motors totals about 9.6 kW peak; anything over a 30-meter cable run should be upsized for voltage drop.
