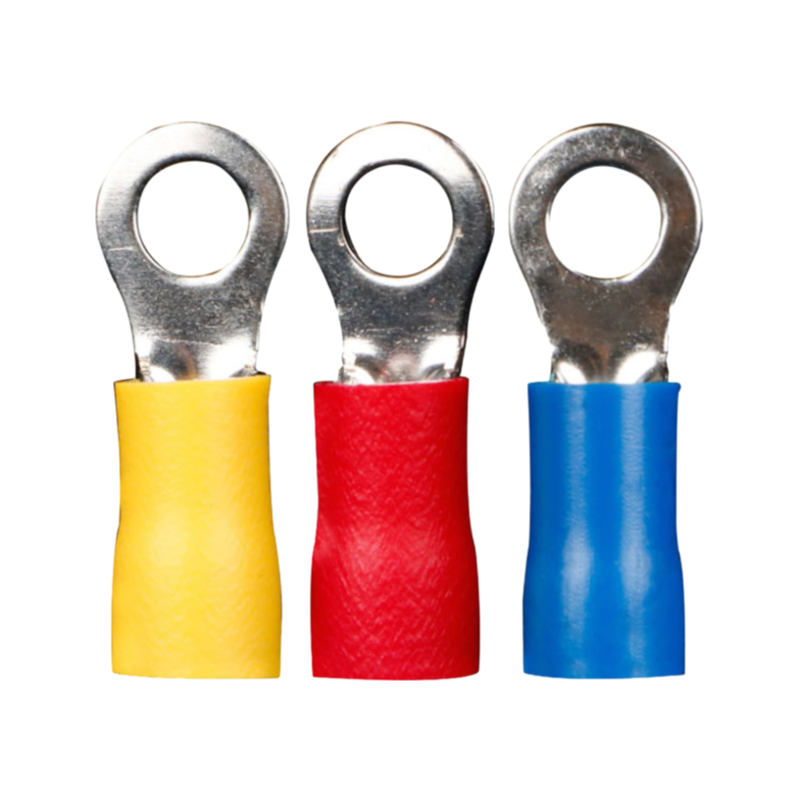

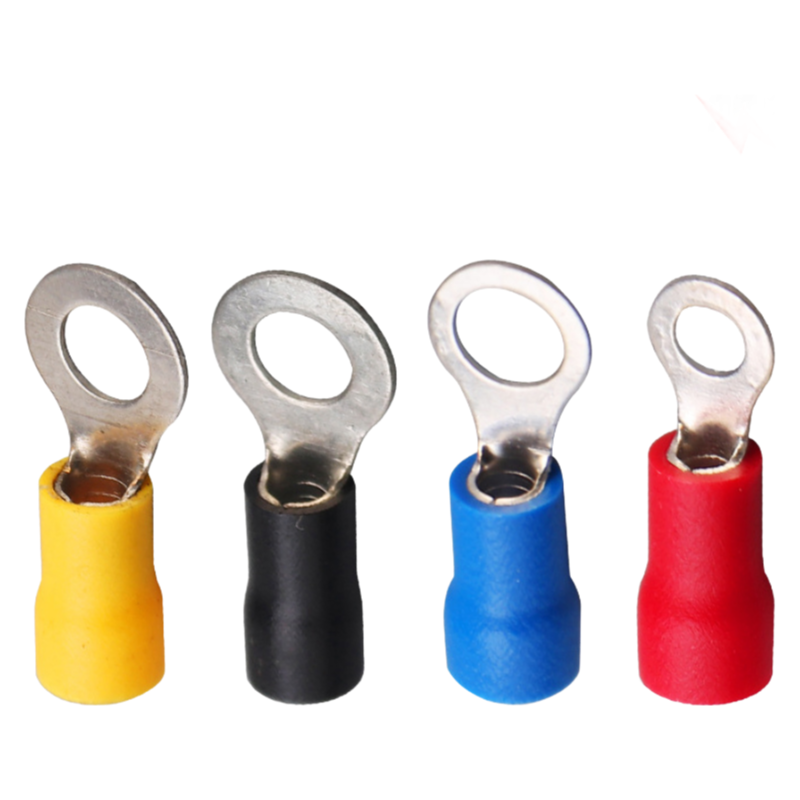

Usually ship within a week, these come in packs of 100 for smaller sizes or 50 for teh 6mm² ones, and we've got red for 0.5-1.5mm², blue for 1.5-2.5mm², black for 4mm², and yellow for 6mm²—the color-coding actually saves a lot of time during install when you're wired up wrong.
It's basically a cold-pressed copper terminal with PVC insulation, good for 19 to 48 amps depending on the wire gauge you're using, and you'll see contact resistance stays under 5mΩ, which matters when you're pushing high currents, and the withstand votage is 2000V AC, though nobody tests that daily, but insulation resistnce is usually north of 1000MΩ so it's solid.
We've had labs use these for testing rigs where they swap connections frequently, but they're not great for continuous high-vibration environments—the hook design can work loose if you don't torque it right, so that's just how it is, but for general power transmission or wiring up control panels, they hold fine form -40°C to +105°C.
Anyway, the MOQ is 500 pieces mixed colors, and we'll provide a COA with each order if you ask for it.
We typically require 1,000 pieces per size and color as the MOQ, but can be flexible for mixed orders. Let us know your needs and we'll work out the details.
Standard lead time is 7-10 business days for production after order confirmation, plus shipping. Rush orders can be arranged for an additional fee.
Yes, we can supply a BS Standard compliance certificate upon request. Just ask your account manager and we'll include it with your shipment.
Custom colors are possible for orders over 5,000 pieces per color, but we need to check minimums for the PVC insulation. Contact our sales team to discuss options.
Store them in a cool, dry place between -10°C and +40°C, away from direct sunlight and moisture. Keep in original packaging to avoid dust and damage before use.
