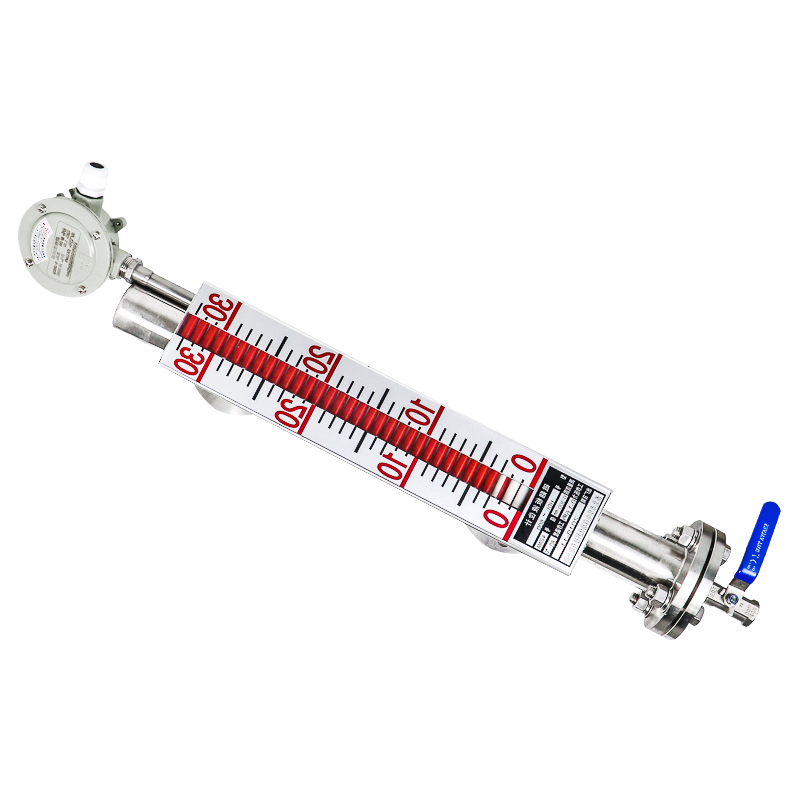

The magnetic level gauge is an essential industrial instrument designed for precise liquid level measurement in both open and pressurized tanks. Its unique construction makes it suitable for monitoring various media including toxic, flammable, high-temperature, and cryogenic liquids.
The gauge operates through a float containing permanent magnets that move with the liquid surface. This movement is transferred to an external indicator through magnetic coupling, ensuring the measuring system remains completely isolated from the process fluid. The non-contact measurement principle makes it ideal for hazardous or corrosive applications.
Key applications include acid/alkali storage tanks, steam boilers, oil/water separators, LNG vessels, and various industrial process tanks. The gauge can be equipped with additional control devices like switches and transmitters for automated level monitoring systems.

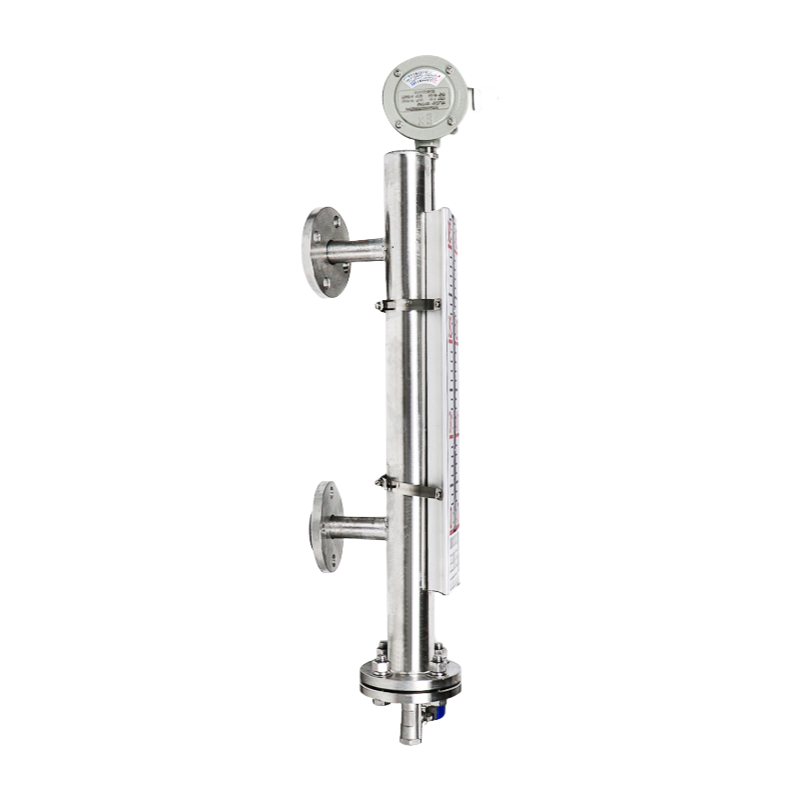

Available in multiple installation configurations including side-mounted, top-mounted, and bottom-mounted options to suit different tank designs. The chamber and float materials can be customized based on specific media requirements and operating conditions.
