Wholesale YF-136 Security Radar System with 0.2s Data Rate and 800W Power Consumption

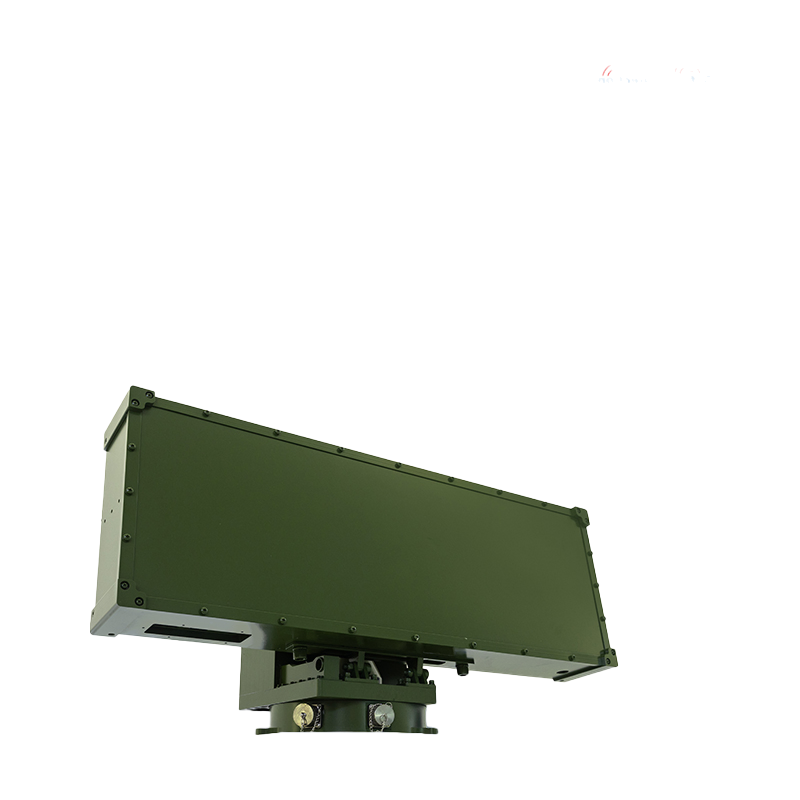

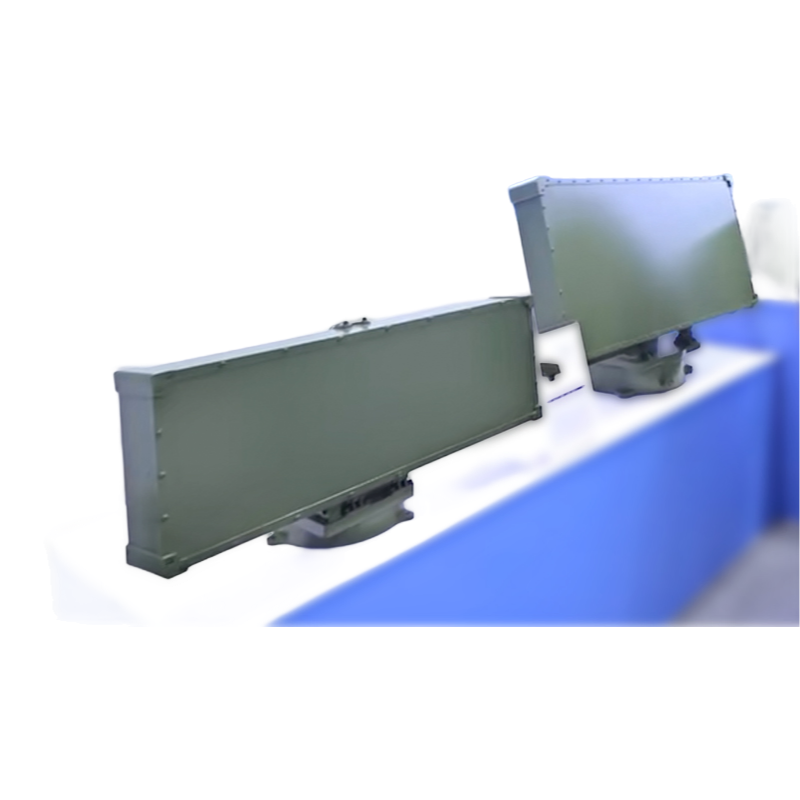

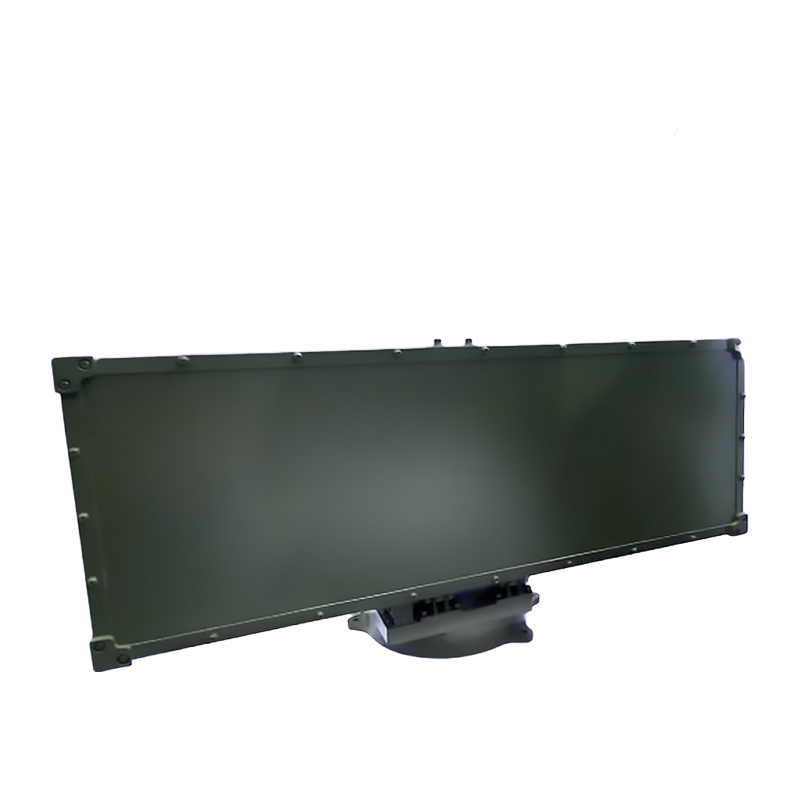

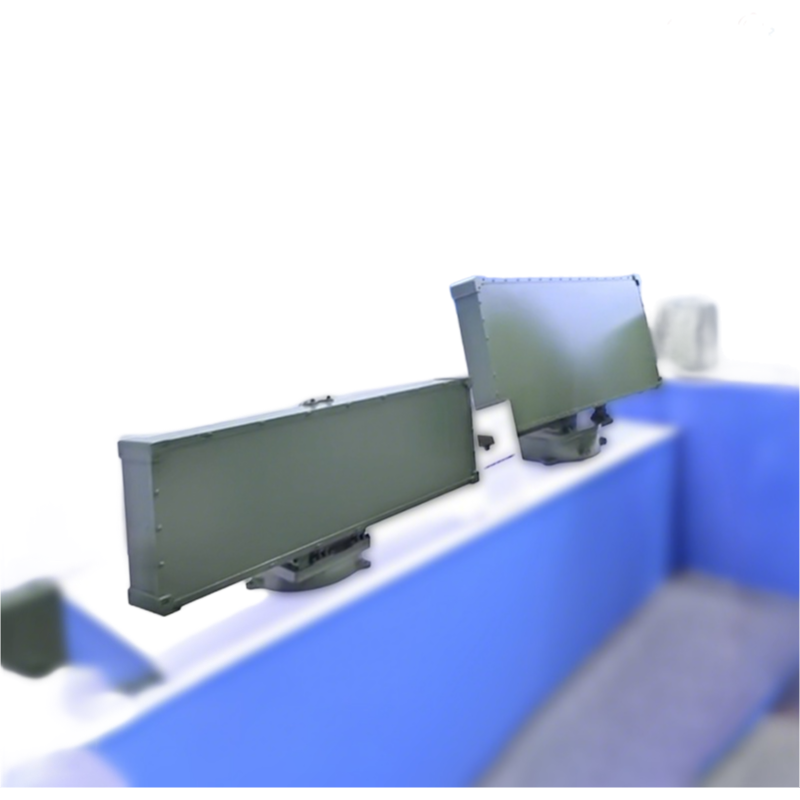

The YF-136 security radar is an advanced three-coordinate low altitude detection system operating in the Ku frequency band. This radar specializes in detecting and warning against low altitude, slow speed, and small targets (commonly referred to as low-slow-small targets) with 24/7 monitoring capability.

Utilizing fully coherent pulse Doppler technology, the YF-136 achieves comprehensive airspace coverage through 360° mechanical scanning in azimuth and fast phase scanning in elevation. This design enables effective detection of various targets including subsonic and supersonic drones or projectiles.

The system features a compact design with dimensions of 1140x370x900mm and weighs approximately 100kg. With a power consumption of 800W, it operates efficiently across a wide temperature range from -40°C to 60°C, making it suitable for various environmental conditions.

Key performance metrics include a 3km detection range, capability to track targets moving at speeds between 10-940m/s, and a rapid data rate of 0.2 seconds. The radar's elevation coverage spans 0-10° while maintaining 45° azimuth coverage for comprehensive surveillance.

This radar system is certified with CE and ISO standards, ensuring quality and reliability. The 4-channel design operates at 433.92MHz receive frequency with a transmission rate of 10-20Kbps, providing stable and consistent performance for security applications.
