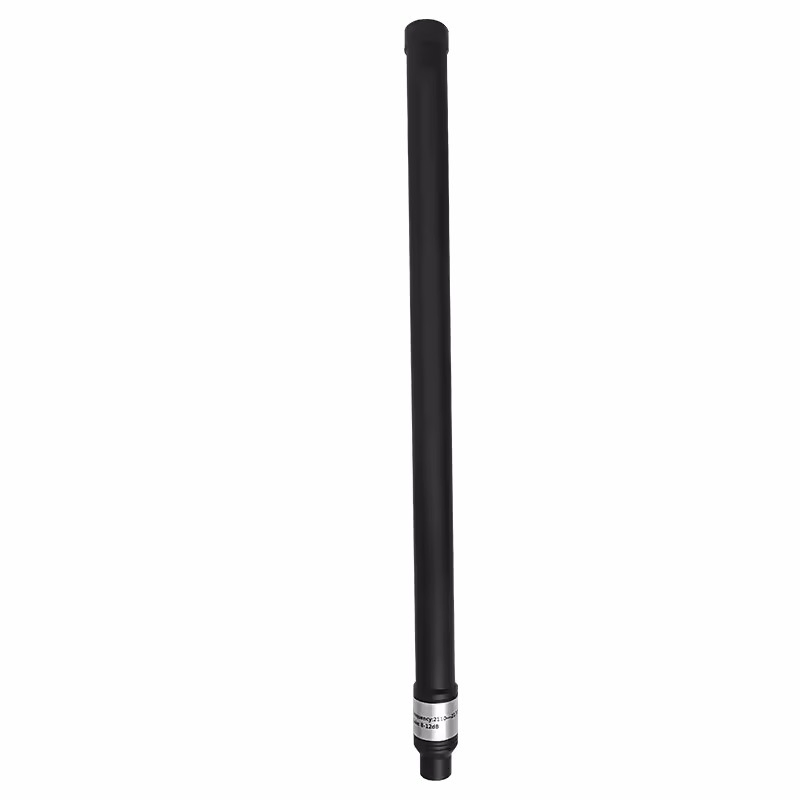

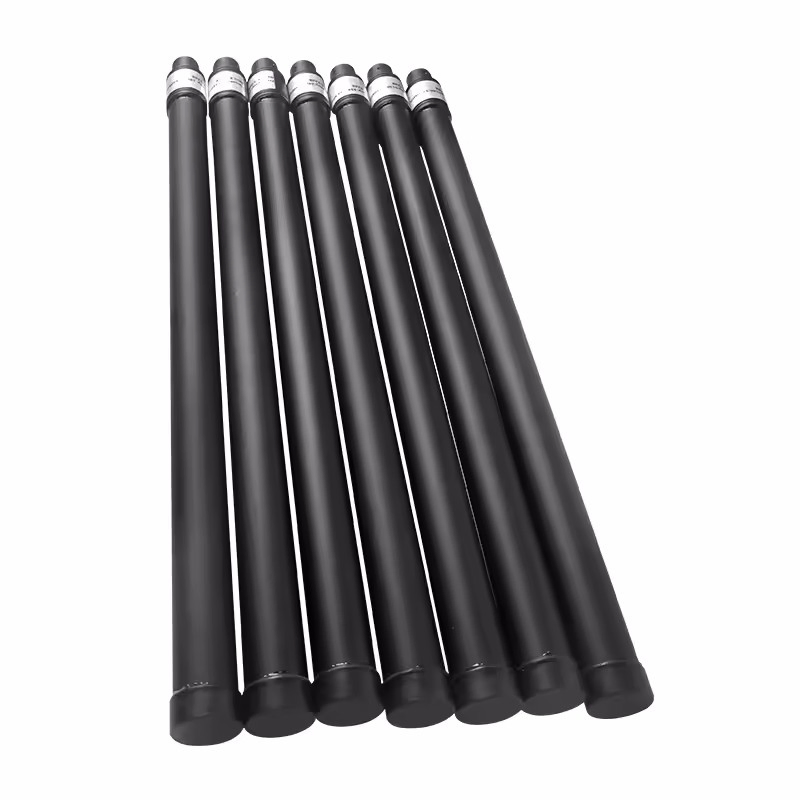

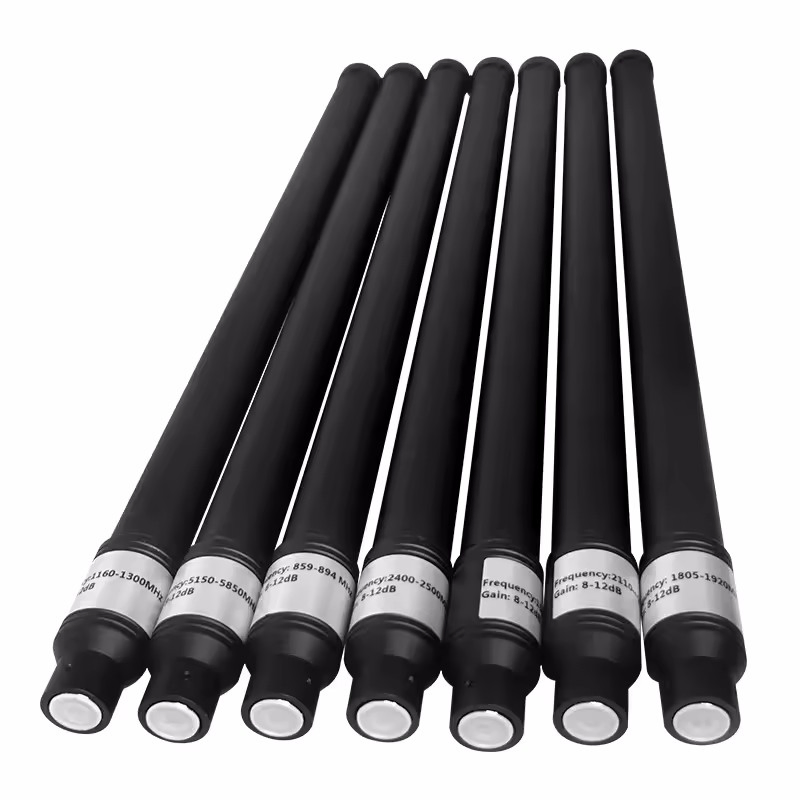

720-860MHz 50W High Power Fiberglass Omnidirectional Antenna for Drone Defense System

720-860MHz 50W High Power Fiberglass Omnidirectional Antenna for Drone Defense System

US$ 32.00 ~ 29.00

Min.Order: 2

Product origin: Shenzhen, Guangdong, China

Category: Electronics

Product Name: Electronics

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

Professional Grade Plant Protection UAV with 12m/s Wind Resistance for Crop Spraying

US$ 2473.00 ~ 8846.00

Agras T40 Agricultural Drone with 20L Spray Tank and 9m Spray Width for Precision Farming

US$ 4500.00 ~ 4000.00

Professional 6000W Tethered Drone Power Station with 24H Continuous Flight Capability

US$ 1 ~ 14960

Customizable RY-V10 Agricultural Sprayer Drone with Ultra Short Range Operation Radius

US$ 1 ~ 62999

Multirotor Agricultural Drone with Centrifugal Nozzles and Terrain Tracing Radar

US$ 6299.00 ~ 6099.00

Frequency Range : 720-860MHz (customizable)
Power Handling : 50W
Gain : 8±1dBi
VSWR : ≤1.5
Beamwidth : 360° horizontal / 15±5° vertical
Connector Type : N-K
Dimensions : 600mm (H) × 40mm (D)
Weight : 0.74kg
Material : Fiberglass
Waterproof Rating : IP67

Operating Temperature : -40°C to +70°C

Our 720-860MHz 50W omnidirectional fiberglass antenna is engineered for high-performance Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone/">Drone defense applications. The durable fiberglass construction ensures reliable operation in harsh outdoor environments while maintaining excellent signal transmission quality.

This professional-grade antenna features a wide frequency range of 720-860MHz with customizable options available. The 8dBi gain provides strong signal coverage while the omnidirectional design ensures 360° horizontal beamwidth for complete area protection.

The antenna's waterproof fiberglass housing protects internal components from moisture and environmental damage, making it ideal for permanent outdoor installation. With a power handling capacity of 50W and VSWR ≤1.5, this antenna delivers stable performance for critical drone defense operations.

Key applications include military installations, government facilities, airports, and other sensitive locations requiring reliable UAV detection and countermeasure systems. The antenna's compact 600mm height and lightweight 0.74kg design make installation simple while maintaining structural integrity in winds up to 60m/s.
