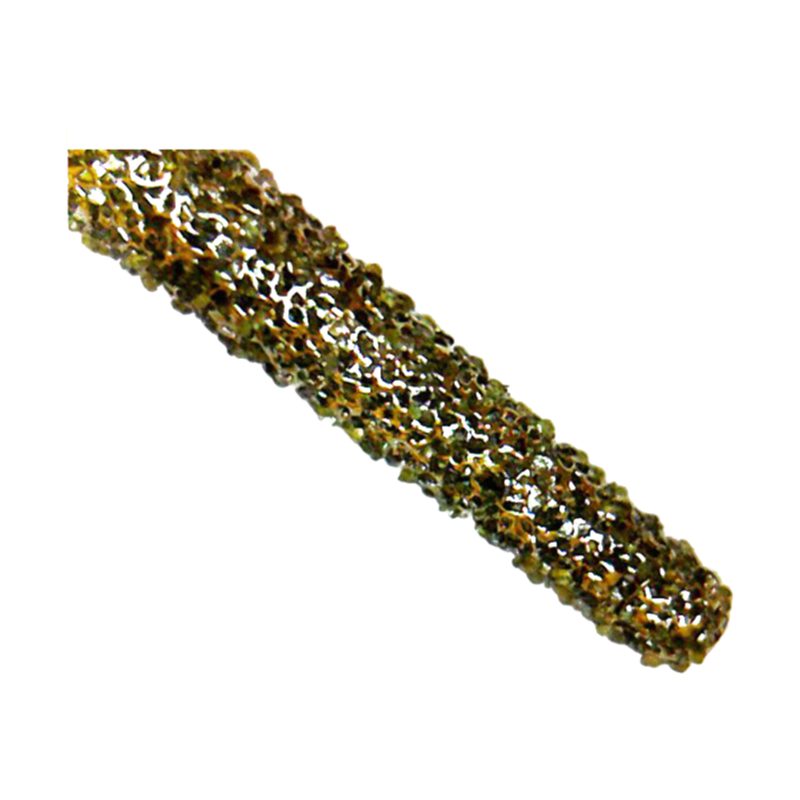

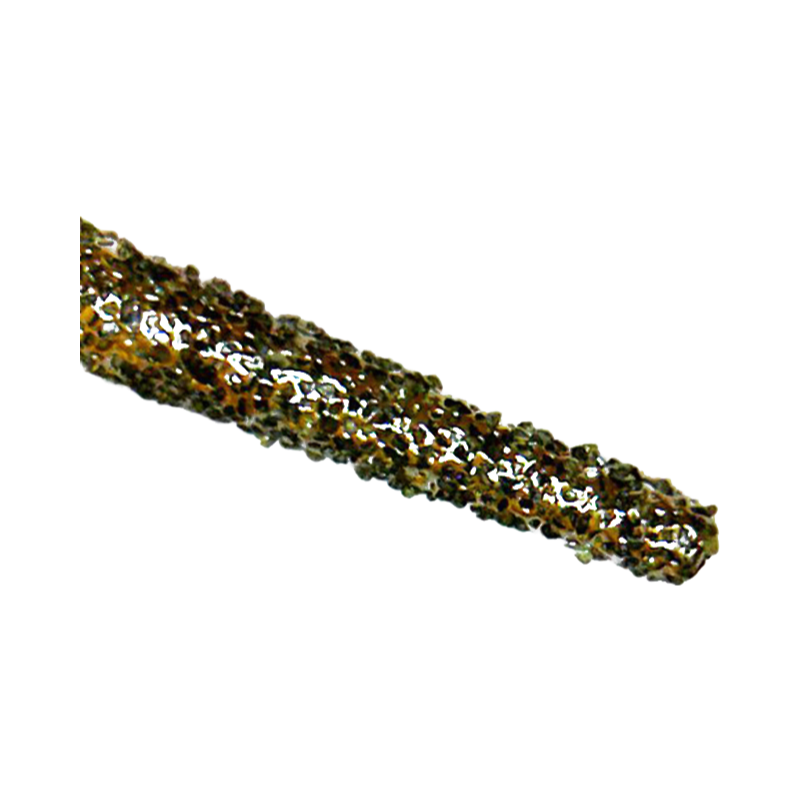

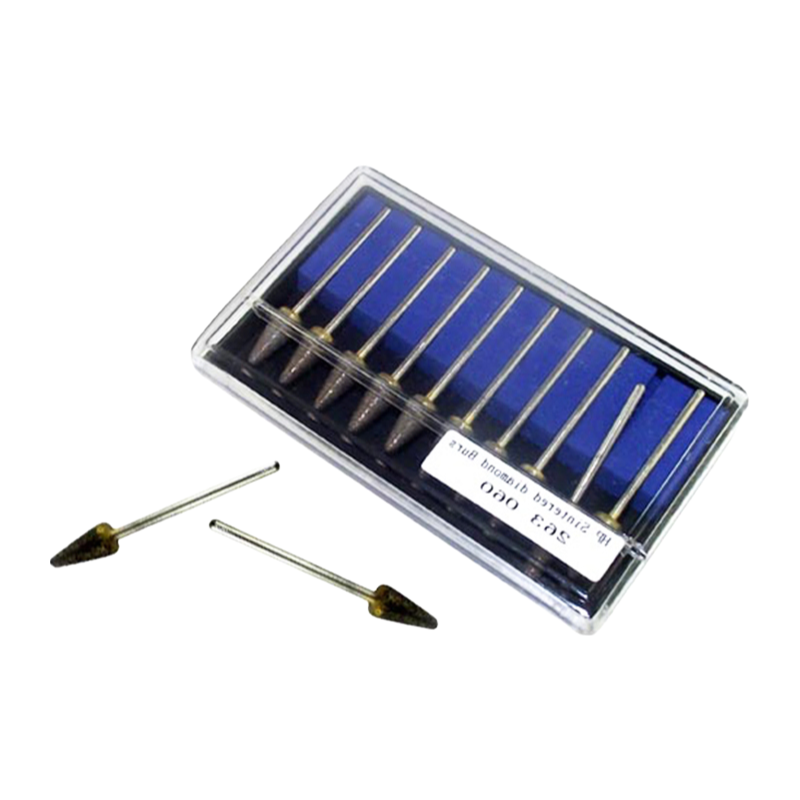

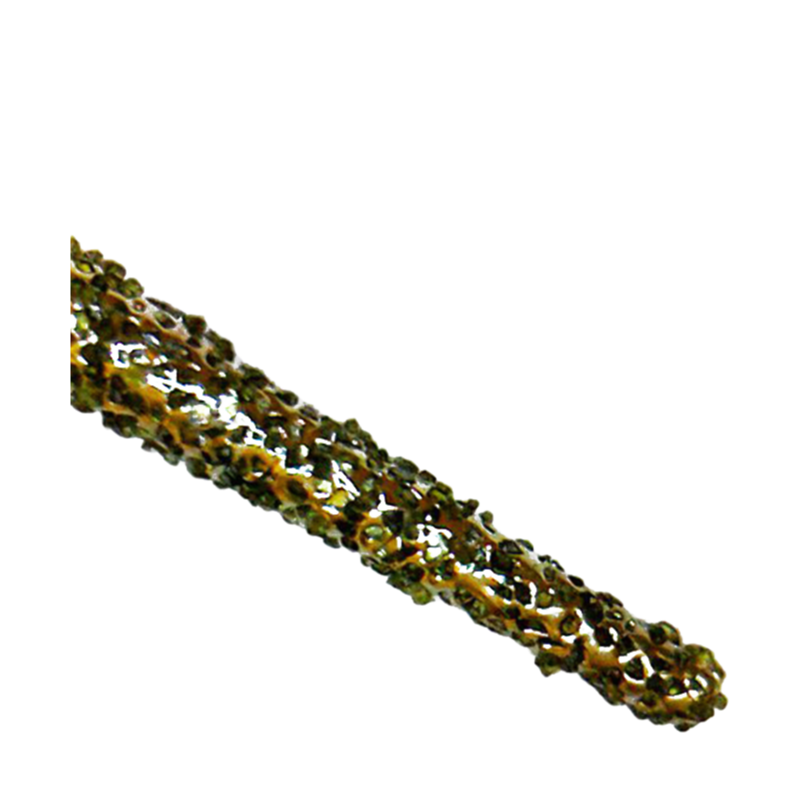

UMG dental diamond burs are manufactured using advanced multi-plating technology with diamond particles, ensuring consistent performance and durability. The work parts feature high-quality diamond particles that remain sharp even after surface wear, providing continuous efficiency. The shanks are constructed from top-grade stainless steel, offering high tensile strength, resistance to breaking or bending, and rust prevention.
These dental burs are designed for finishing, carving, and smoothing delicate parts of various dental workpieces. They are suitable for steel teeth, steel frames, inner steel crowns (not for outer crown surfaces), porcelain teeth, resin teeth, and resin bases. The goal is to deliver superior quality with higher grinding efficiency and longer service life.
Quality control is rigorous, with 100% inspection using laser measurement machines, cutting tests, and strength tests for each lot. All products meet internal standards that exceed ISO requirements, specifically ISO 806 for diamond, ISO 807 for sintered diamond, and ISO 500 for carbide.
Usage guidelines include inserting the shank fully into the handpiece as per manufacturer instructions, checking for centering before use, always using a spray, maintaining a plentiful water supply to prevent loading and pulpitis, applying pressure of 20-50p for instruments up to 023 diameter, and adhering to maximum RPM limits to avoid injury. Safety measures such as wearing glasses or masks are recommended, and sterilization should avoid high-pressure steam over 200°C. Proper disposal as medical waste is advised after use.
Rotation speed and maximum RPM vary by head diameter, ensuring optimal performance for different applications. For example, head diameters from 008-010mm have a rotation scope of 75,000-150,000 shifts/minute and a max speed of 450,000 shifts/minute, while larger diameters like 200-220mm have lower ranges.
Various specifications are available, including TF/Taper Flat End, TR/Taper Round End, TC/Taper Conical End, FO/Flame Ogival End, SF/Straight Flat End, SO/Straight Ogival End, SR/Straight Round End, RS/Rounded Shoulder, EX/Special Shape, BR/Ball Round Type, BC/Ball Collar Type, DI/Double Inverted Cone, S/Short Shank, SS/Super Short Shank, C/Coarse, F/Fine, EF/Extra Fine, SI/Single Inverted Cone, and WR/Wheel Round Edge.
These products are for research use only and not intended for personal application.
