9mm thick, 42mm wide, 33mm tall — that's the footprint you're working with, and it fits neatly into tight panel layouts where every millimeter counts.
We're looking at a 10A, 600V rating with wire section support form 0.75 to 1.5mm², so it handles typical control wiring without breaking a sweat — the push-pull connection means you can swap wires fast, but don't expect it to hold up under heavy vibration without a secondary lock.

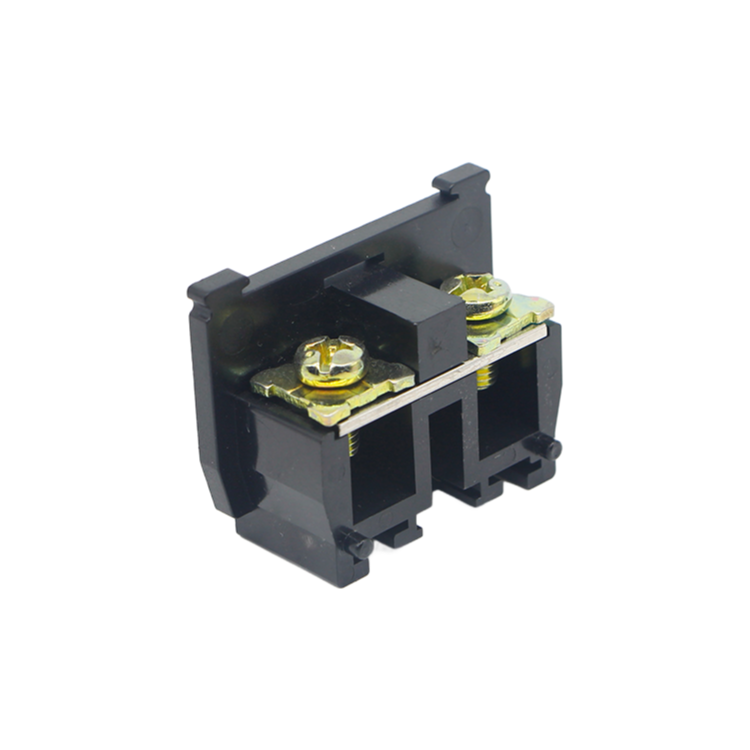

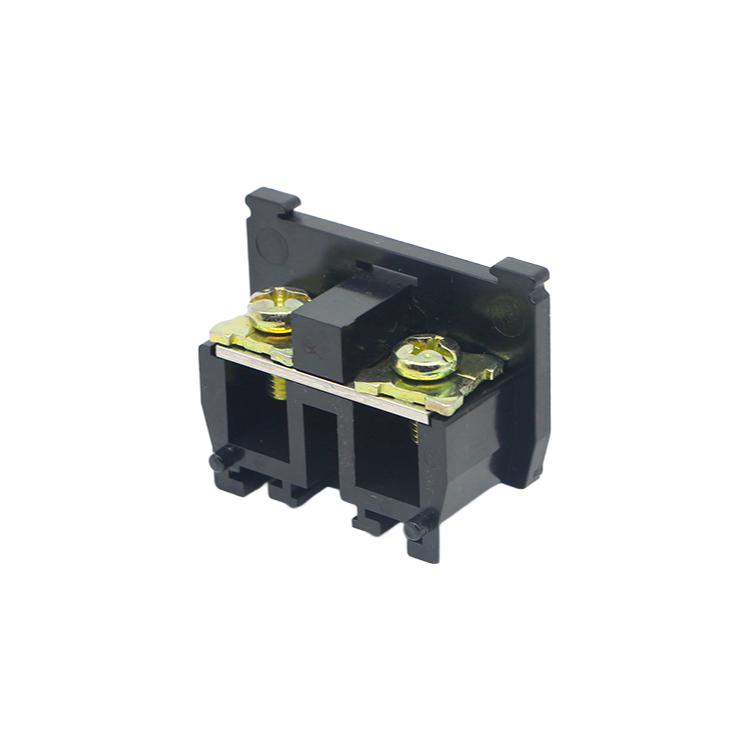

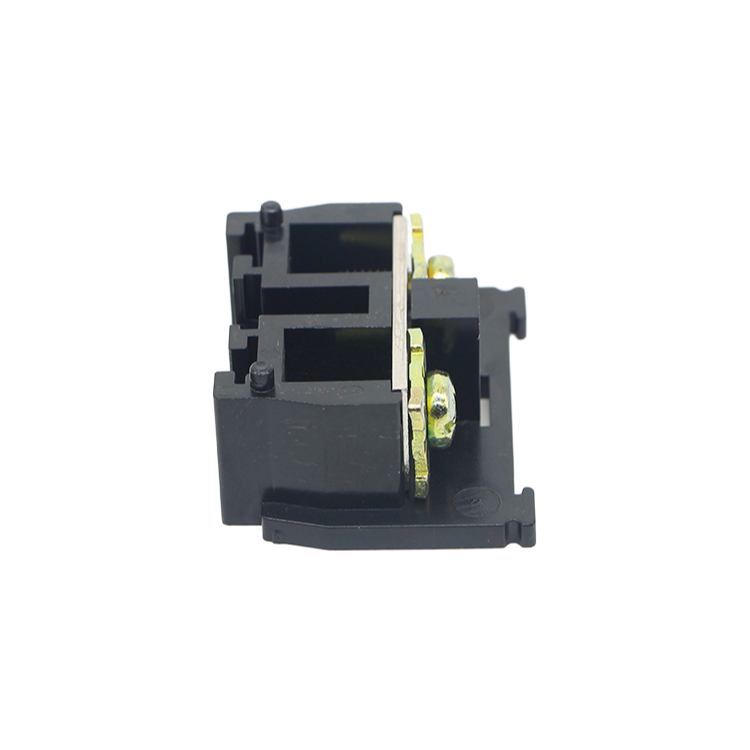

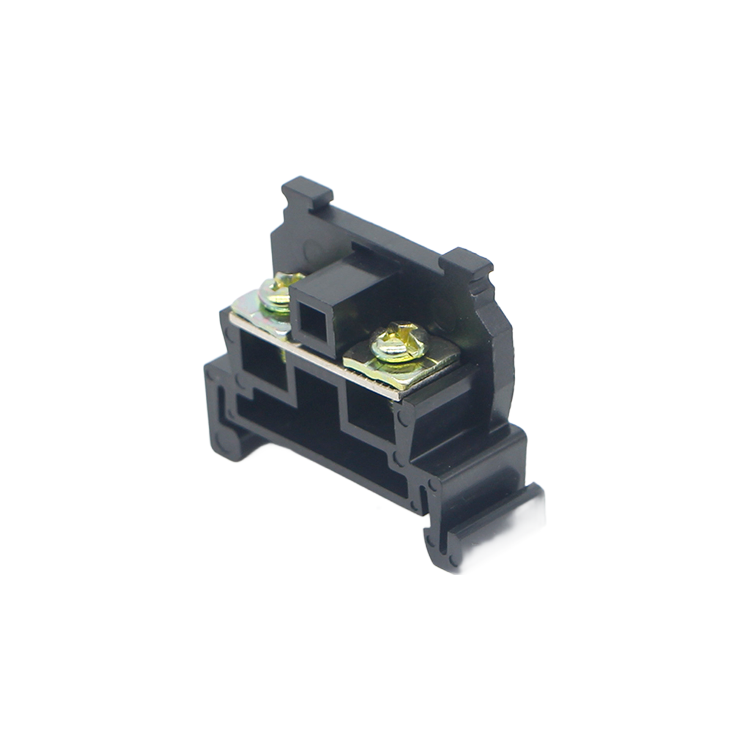

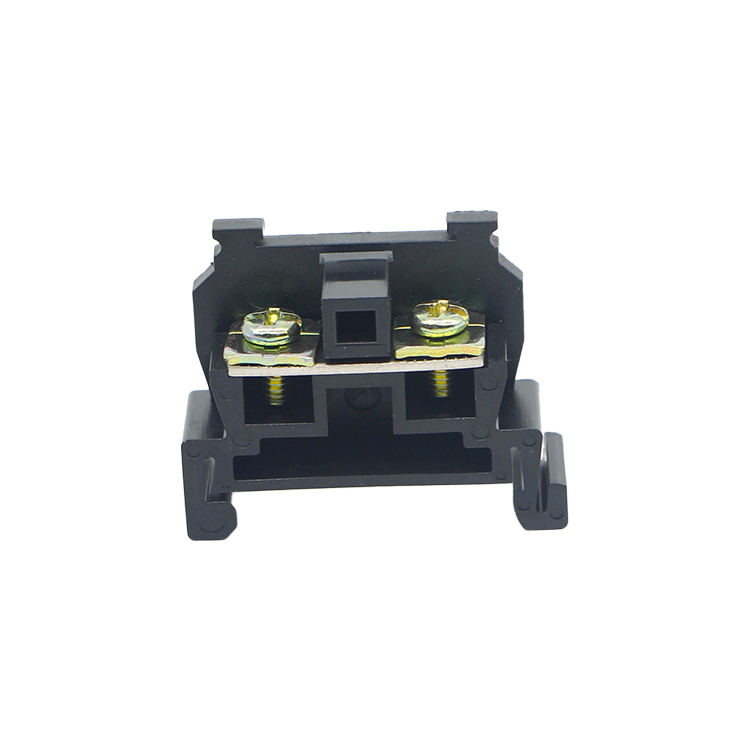

It's basically a filter electric connector with copper contacts and iron screws, so conductivity is solid but the screws can rust if you're in a humid enviornment (check your storage conditions).
Packing is 100 pieces per box, 2400 per carton — MOQ is usually one box, but our company can do smaller quantities if you're prototyping or just need a handful for a test run.
Most buyers go with this for cable termination in distribution boxes or control cabinets, though it's not suited for high-frequency signal lines — teh PC plastic body gives decent insulation but nothing exotic.
Lead time is roughly 20 days or so for standdard orders, and we include a COA with each batch — just confirm screw materail if you're ordering for outdoor use, because iron doesn't play nice with moisture.
Our standard MOQ is 2400 pieces, which is one full carton. If you need a smaller trial order, we can offer 100 pieces per box, but pricing will be adjusted accordingly.
Yes, we can provide material compliance documents like RoHS and REACH for the PC plastic and copper contacts. Just let us know which certifications you need, and we'll send them over.
We can do custom colors for larger MOQs, usually above 5000 pieces, and add your logo via pad printing. For smaller orders, standard black is the only option to keep costs low.
Keep them in their original carton or box in a dry, room-temperature area, away from direct sunlight and moisture. They're packed in 100-piece boxes, so just reseal after opening.
For a standard carton of 2400 pieces, lead time is usually 7-10 working days from order confirmation. If we have stock, we can ship within 2-3 days.
