For a single sample unit, expect around $8-12 depending on the thread spec and materail—once you hit 500 pieces that drops to roughly $2.50 each, and bulk orders of 5000+ can push below $1.80 per fitting delivered to your dock.

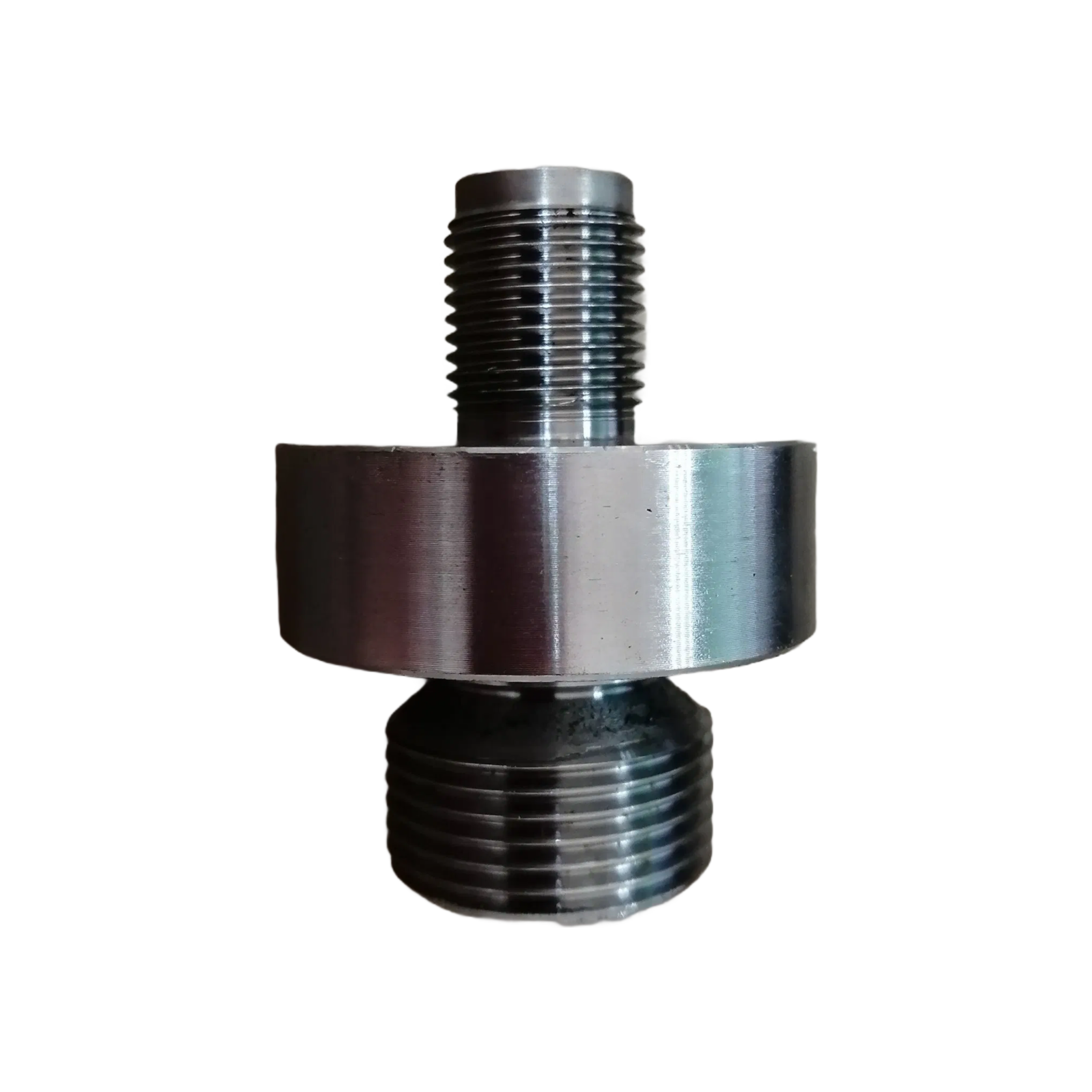

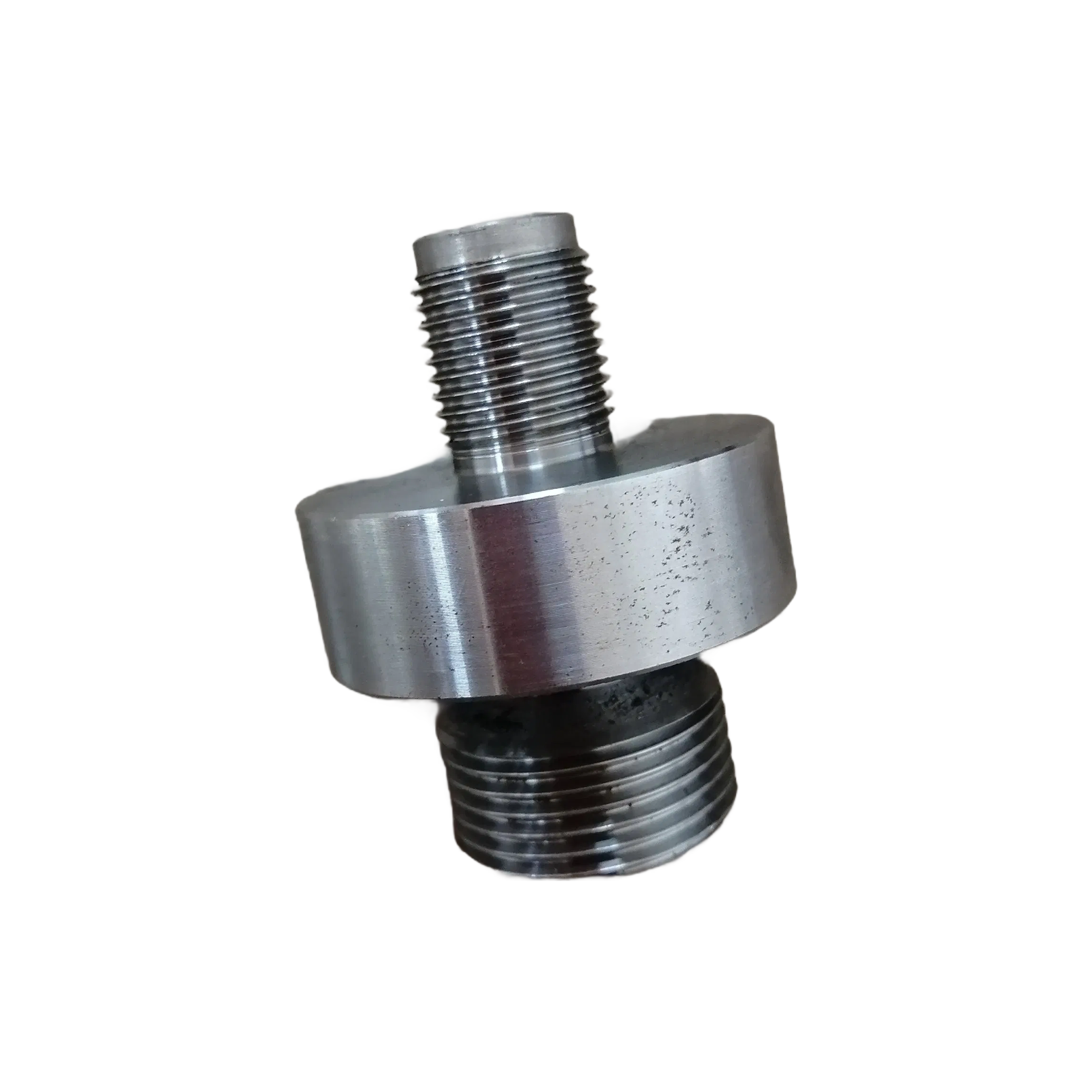

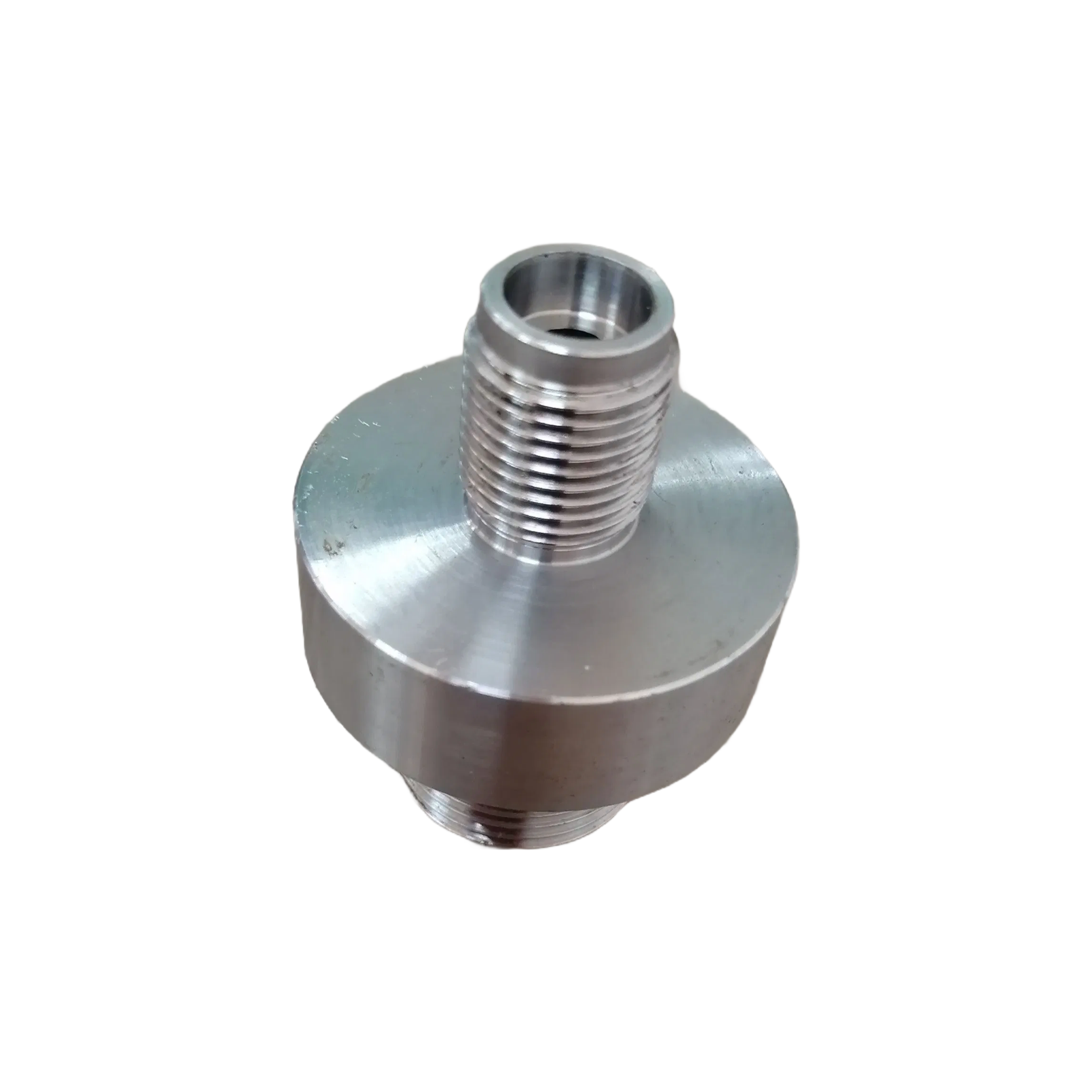

We're machining these from 304 or 316 stainless for most orders, though aluminum alloy is an option if weight is critical—you'll find the hex head gives you a solid grip with a wrench, and the anodized surface treatment on aluminum versions ups corrosion resistance significantly over bare metal, especially in humid industrial environments.
The tolerances are typically within ±0.1mm on the thread pitch and hex across the flats, which is tighter than standard pipe nipples from catalog suppliers, and that matters when you're assembling hydraulic lines or pneumatic systems where even 0.2mm of slop can cause a slow leak at 150 psi or so, in our experience.
You'll send us a DWG, STEP, or PDF, and we can handle most common threads like NPT, BSP, or metric from the JIS standard set—we've done runs as light as 0.5kg for prototype connectors up to 2000kg for industrial anchor points, but confirm the MOQ for non-standard head types because a custom hex size on a 2-inch nipple can increase setup time (usually 2-4 weeks lead).
Actually watch out for heavy wall thickness on threads smaller than 1/4 inch NPT—the CNC tools can chatter if the wall is too thin at that diameter, so for lightweight fittings under 10g we recommend sticking with standard schedule specs to avoid rejection.
Suface finish comes out of the machine at roughly 1.6μm Ra or better, and we offer passivation as an extra step for medical or food-grade applicaion, but that adds about 3-5 business days to the lead time depending on batch size and third-party inspection scheduling.
We don't have a fixed MOQ; it depends on the complexity and size. For standard stainless steel sizes, we can start from as low as 50 pieces.
Yes, we provide material certificates for stainless steel batches on request. Our QC covers IQC through OQC, and third-party inspection is also available.
Lead time varies by quantity and complexity, but for most custom orders we ship within 15-25 working days after drawing approval.
We accept DWG, DXF, DXW, IGES, STEP, and PDF. If you have another format, just send it over and we'll see if we can open it.
Yes, we can do other finishes like passivation, electropolishing, or powder coating depending on your material. Just specify the requirement in your drawing or inquiry.
