DZ47-63 4P Miniature Circuit Breaker MCB - High Breaking Capacity Low Voltage Protection

You’re looking at a 6kA breaking capacity in a 4P DIN-rail package, which is pretty much the standard for protecting lighting or motor circuits up to 63A in commercial panels. That 6kA rating holds up better than the 4kA option when you’ve got higher fault currents downstream—most buyers go with the 6kA for distribution boards with transformer feeds.

The Type C curve trips at 5-10x rated current, so it’s fine for general lighting and resistive loads, but if you’re switching inductive motors or transformers, the Type D curve (10-20x In) handles those inrush spikes without nuisance tripping. We usually have both in stock, but confirm lead time for Type D in 50A or 63A—those move slower.

Housing is flame-retardant PA66, which means it won’t propagate a fire if you get a sustained arc inside. Terminal capasity goes up to 25mm² cable, so you can land heavier feeds without needing reducers. One detail a buyer might not think to ask: the screw terminals are captive, so you won’t lose them during instalation.

Compliance covers IEC60898 and GB10963.1, so it’s fine for European and Chinese standard—CE and CCC are both on the label. The mechancial life is rated at 10,000 operations, but in practice you’ll see wear on the toggle mechanism before that if you’re cycling it daily. It’s not suited for high-cycle switching like a contactor would handle.

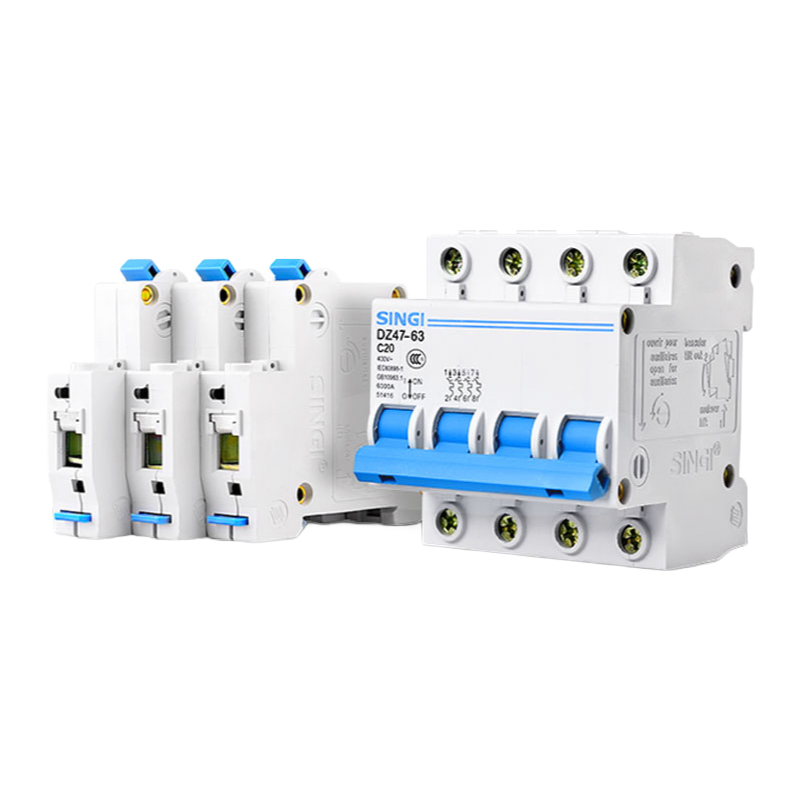

Ordering is straightforward—pick the poles (4P here, but 1P/2P/3P are options), teh current rating from 6A to 63A, and the trip curve. We ship with COAs and batch traceability. The 63A 4P Type C is our fastest mover, so lead time is usually 2-3 weeks or so for that one.

Also, the operating tempearture range is -5°C to +55°C, so it’s fine for most indoor panels but don’t install it in an unheated shed in a northern winter—you’ll get nuisance tripping below that. IP20 rating means it’s not dust-tight, so keep it in a cabinet.
