12kV 50Hz Outdoor High Speed Vacuum Circuit Breaker with ISO9001 CE Certification

12kV 50Hz Outdoor High Speed Vacuum Circuit Breaker with ISO9001 CE Certification

US$ 1399.00 ~ 1299.00

Min.Order: 4

Product origin: Wenzhou, Zhejiang, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

High Quality DC Miniature Circuit Breaker with 10kA Breaking Capacity for Solar Power Systems

US$ 8.89 ~ 2.09

12KV VS1 Vacuum Circuit Breaker with Permanent Magnet Actuator for Reclosing Operation

US$ 600.00 ~ 650.00

Custom OEM ODM WSB1L MCB Circuit Breaker with CE CB CCC Certification for Power Distribution

US$ 5.29 ~ 4.59

WCM6 Series Molded Case Circuit Breaker - High Breaking Capacity 22KA-50KA for Industrial Use

US$ 143.00 ~ 140.00

Wholesale AC DC Manual Reset Circuit Breaker with Overcurrent Protection Function

US$ 1 ~ 5.3

Model Number : ZW32M-12/630-25
Rated Voltage : 12kV
Rated Current : 630A/1250A
Breaking Capacity : 25kA
Operating Frequency : 50Hz
Mechanical Life : 10,000 operations
Poles Number : 3
Arc-extinguishing Medium : Vacuum
Operation Type : Permanent Magnet Mechanism
Insulation Level : 42kV/1min (dry), 34kV/1min (wet)

Short-time Withstand Current : 25kA/4s
Operating Temperature : -30°C to +60°C
Altitude Limit : ≤3000m
Pollution Degree : Level IV
Certification : ISO9001, CE
Installation : Outdoor
Control Voltage : 200V/110V/24V DC

The ZW32M-12/630-25 permanent magnet outdoor vacuum circuit breaker is designed for reliable operation in power distribution systems. This high-voltage circuit breaker features a vacuum arc-extinguishing chamber and permanent magnet operating mechanism, ensuring stable performance under various environmental conditions.

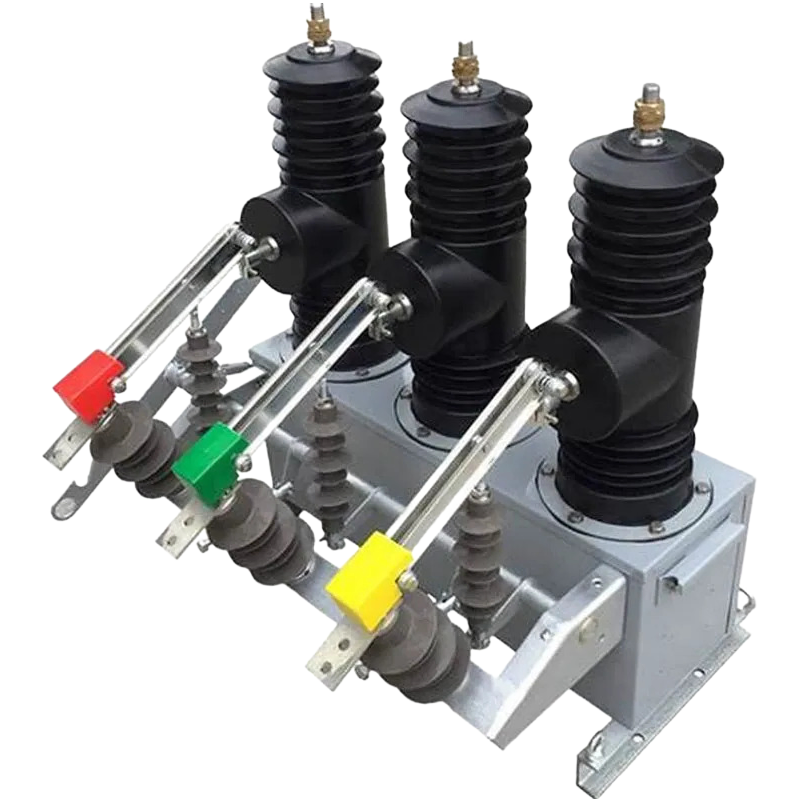

ZW32M-12 Outdoor Vacuum Circuit Breaker

This circuit breaker is particularly suitable for frequent operation scenarios in rural power grids and industrial substations. The compact design and excellent insulation performance make it ideal for outdoor installation in harsh environments.

Circuit Breaker Internal Structure

The breaker incorporates multiple protection functions including overcurrent protection and circuit-breaker failure protection. With its high breaking capacity and long mechanical life, it provides reliable protection for electrical equipment in power distribution networks.
