You've got a patient wearing a continuous glucose monitor that needs to run for 14 days without a hiccup, and that's exactly where this cell earns its keep—it's not just about sitting in a remote control drawer.

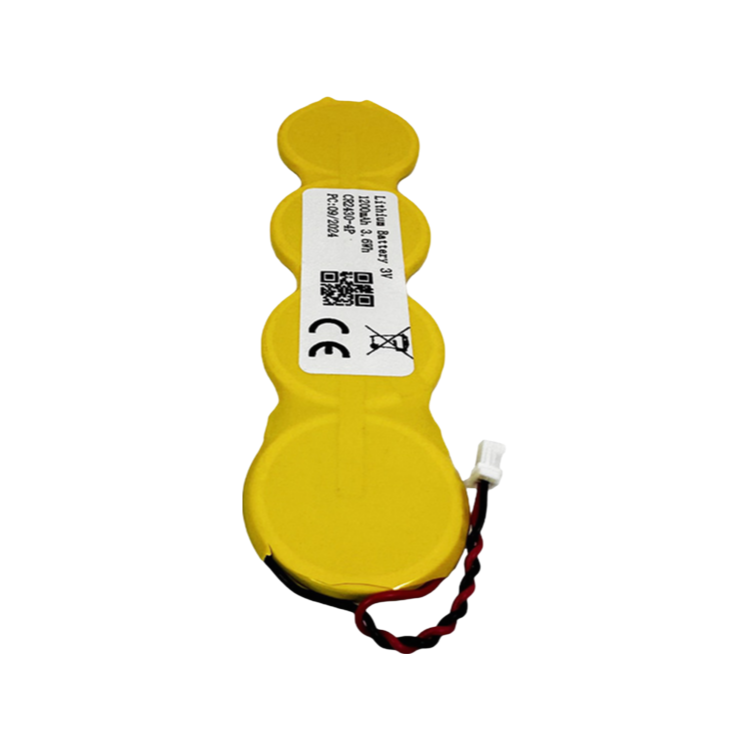

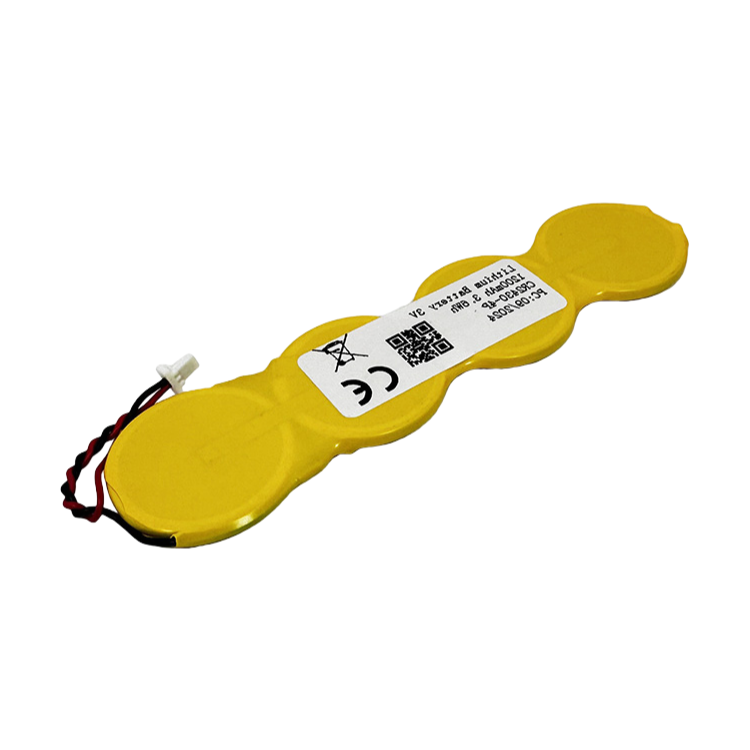

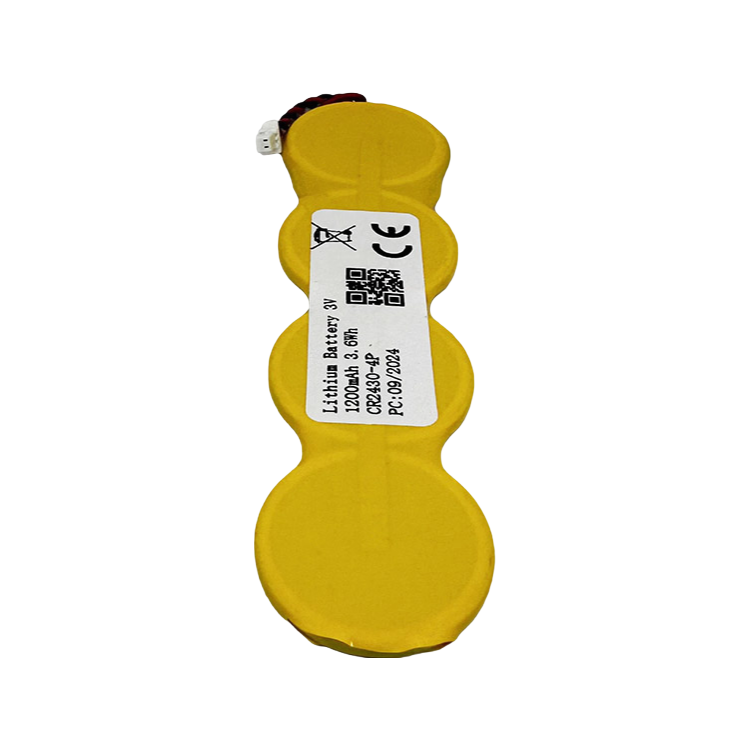

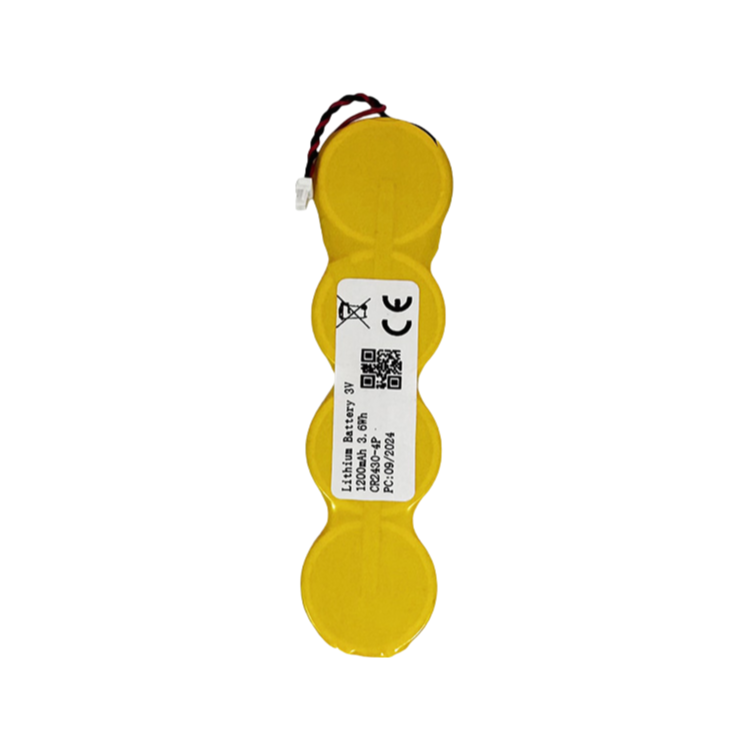

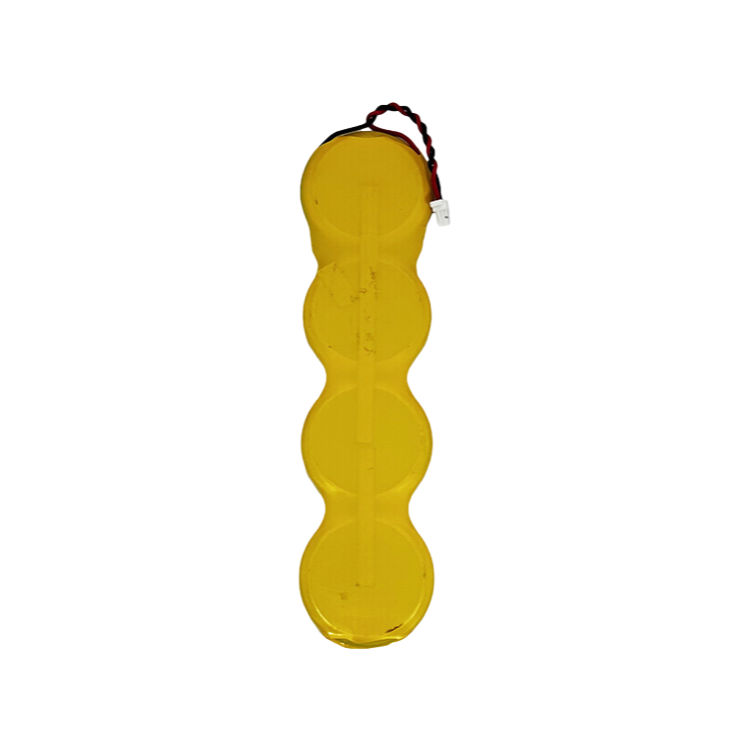

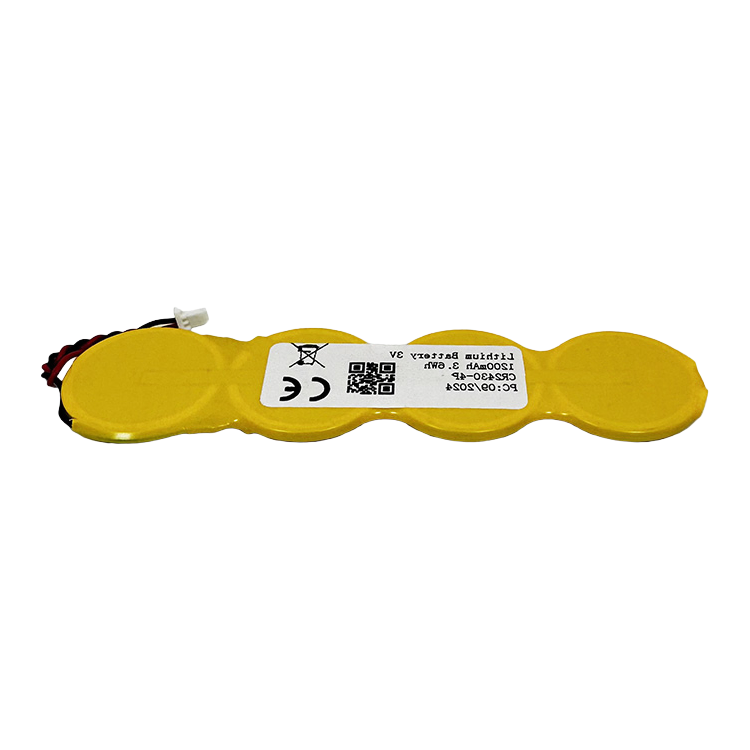

Single cell gives you 300mAh at 3V, but if you need more juice for something like a multi-sensor IoT gateway, the 1S4P pack configuration bumps that to 1200mAh while staying within same 24.5mm diameter footprint.
We ship these in trays or boxes depending on volume, and the terminal options vary form standerd flat contacts to pins, tabs, or even custom wire leads if you're integrating into a PCB assembly.
Operating range is -20°C to +60°C, so it'll handle a parked car in summer or a cold storage enviornment, though storage is best kept between 0°C and 35°C to preserve that 5-year shelf life at 20°C.
It's not rechargeable, and honestly, for a coin cell that's fine—you're swapping it every few years anyway, and the LiMnO2 chemistry gives you a flatter discharge curve than cheaper alkaline alternatives.
RoHS compliant, UL1642 tested, and we usually have stock on the standard CR2430, but teh custom terminal versions might add 20 days or so to lead time.
Yes, we offer CR2430 cells with pins, tabs, wires, or any custom terminal you need. MOQ for customized versions is typically 10,000 pieces, but we can be flexible on smaller trial orders.
We include a RoHS compliance certificate with every shipment. UL1642 test reports are available upon request for each production batch.
We package in trays, boxes, or cartons depending on quantity. Stored at 20°C, shelf life is 5 years; keep between 0°C and 35°C for best results.
For standard cells without custom terminals, lead time is 3-4 weeks after order confirmation. Customized versions may take 5-6 weeks depending on complexity.
Yes, the 1S4P pack connects four CR2430 cells in parallel for 1200mAh at 3V. We assemble and test the pack before shipping, including any custom wiring you need.
